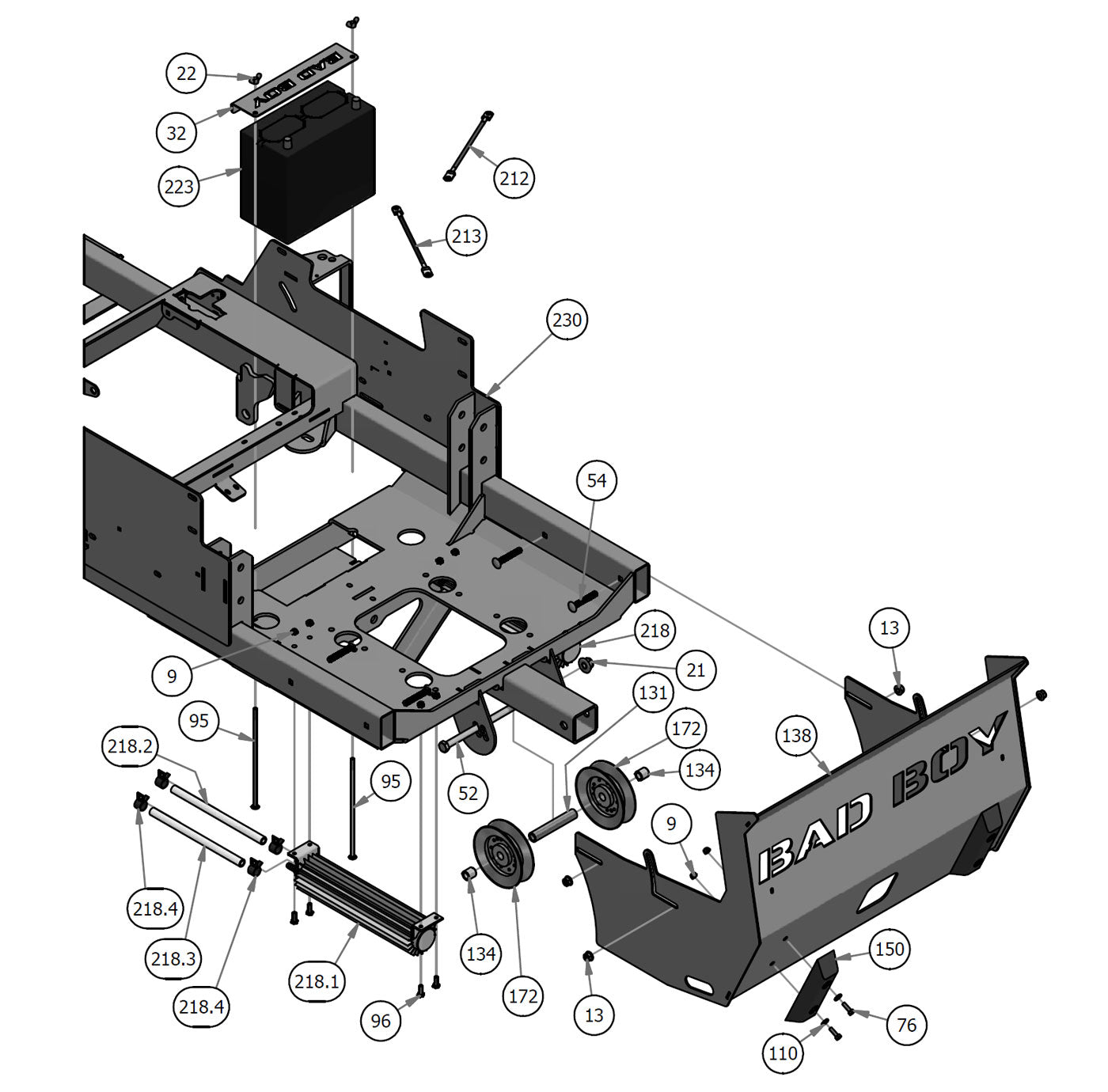

Rear Cover & Hydraulic Coolers

Parts Index
- 9 1/4-20 Nylon Insert Flange Nut (Qty 12)
- 13 3/8 Nylock Flange Nut (Qty 4)
- 21 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 22 1/4-20 Wing Nuts Zinc (Qty 2)

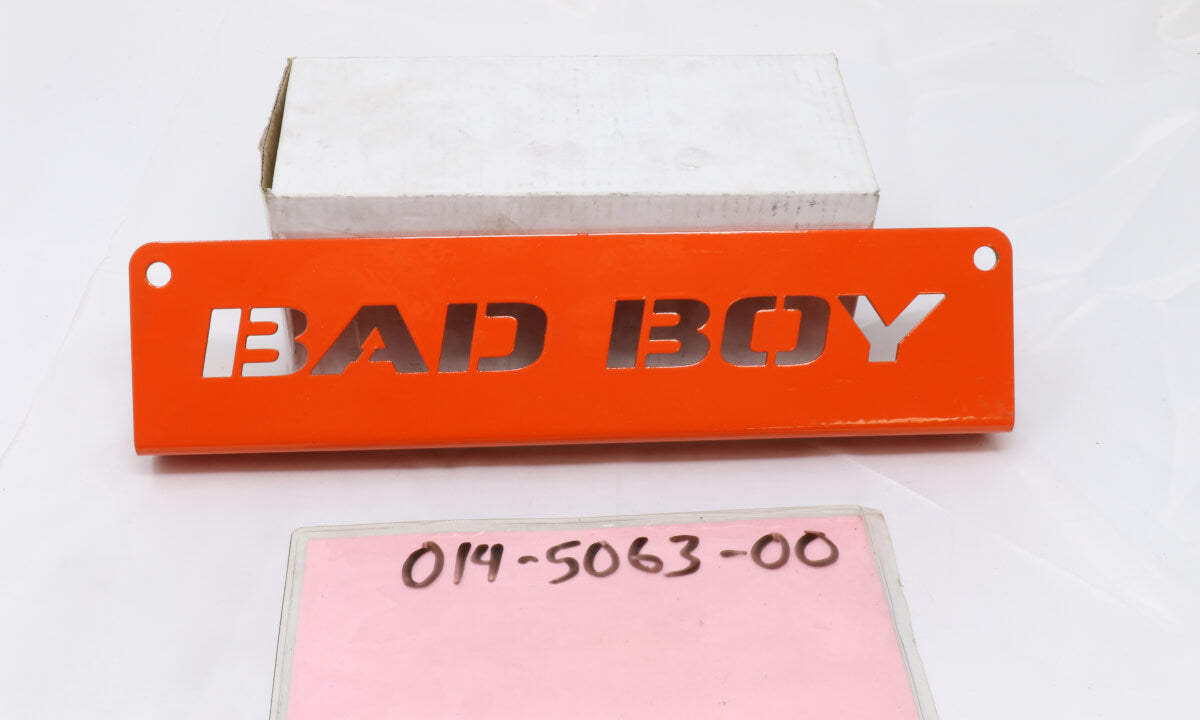

- 32 Battery Hold Down Cover--Orange (Qty 1)
- 52 1/2-13x8 1/2 Gr5 Hex Bolt (Qty 1)
- 54 3/8 x 2 1/2 Carriage Bolt (Qty 4)
- 76 1/4-20 X 1-1/4 GR 5 Hex Bolt (Qty 4)
- 95 1/4-20 X 9 Carriage Bolts Zinc (Qty 2)
- 96 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 8)
- 110 1/4 USS Flat Washer Zinc (Qty 4)
- 131 2019 Pulley Spacer .75 x 4.375 x .5 ID (Qty 1)

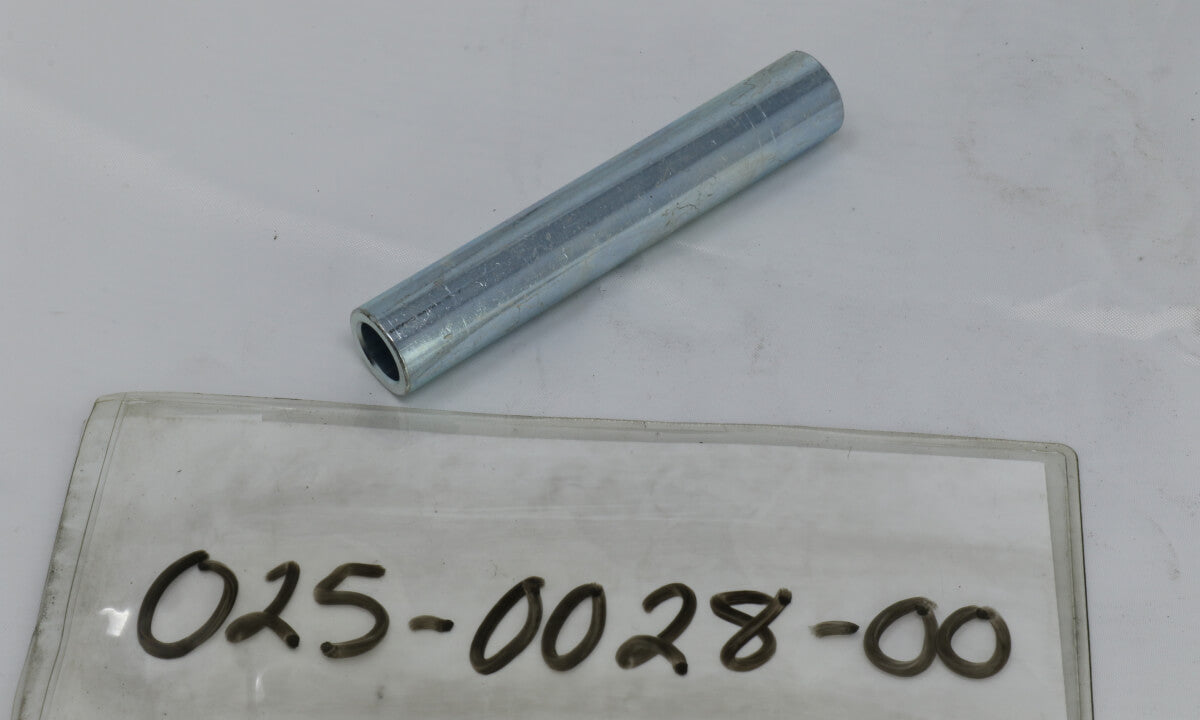

- 134 Spacer 3/4ODx1/2IDx0.75 (Qty 2)
- 138 2019 Horizontal Suspension Rear Cover--Orange (Qty 1)
- 150 8 Bumper (Qty 2)
- 172 2019 Outlaw Horizontal Rear V Pulley (Qty 2)
- 212 Red Battery Cable - Diesel (Qty 1)
- 213 Black Battery Cable - Diesel (Qty 1)
- 218 Renegade Oil Cooler-Assy (Qty 2)

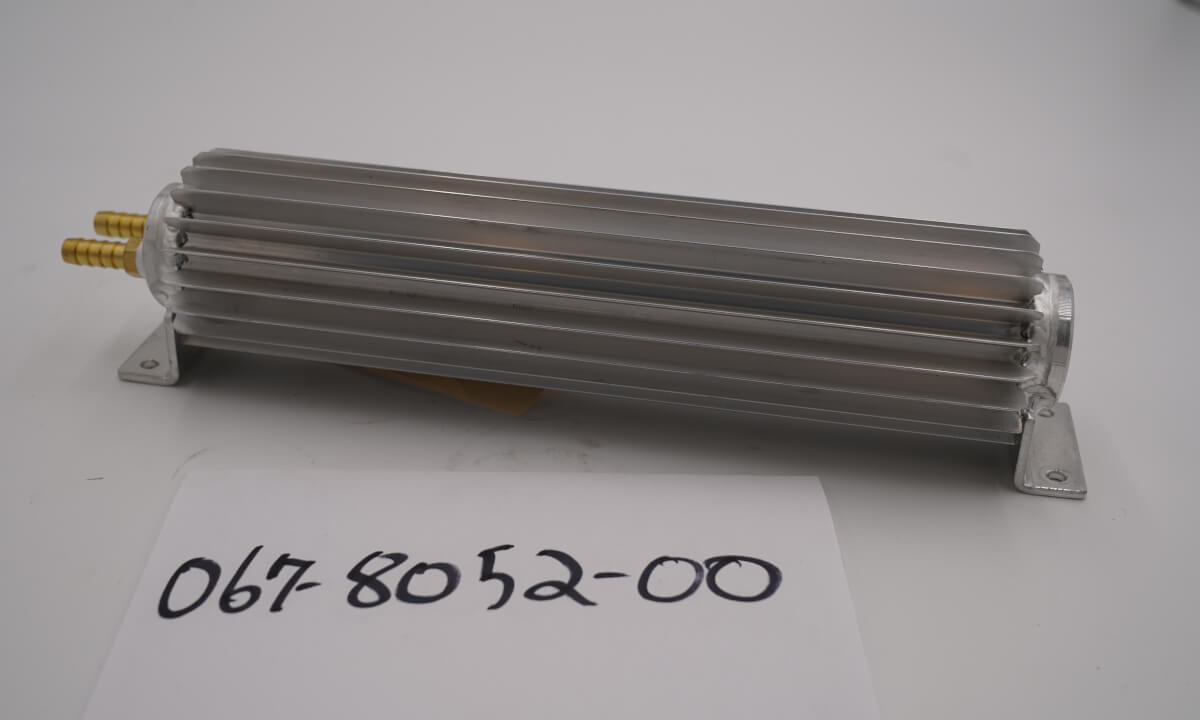

- 218.1 Oil Cooler( with fittings ) (Qty 2)

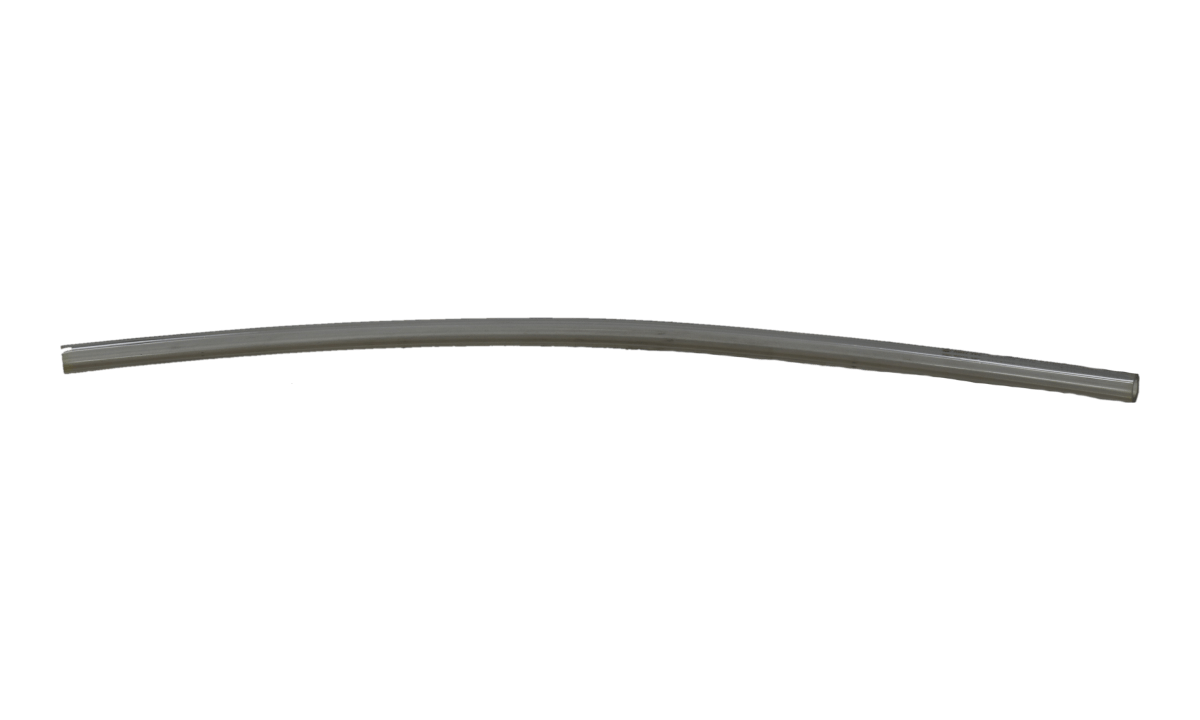

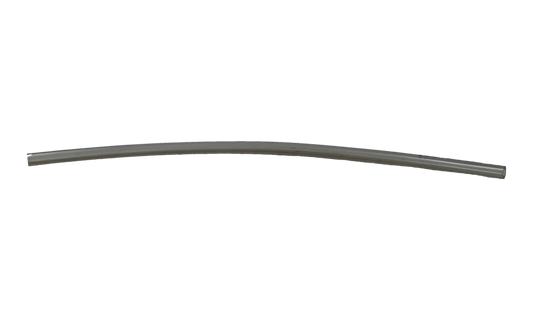

- 218.2 14" 3/8 Clear Hose No Clamp (Qty 2)
- 218.3 24" 3/8 Clear Hose No Clamps (Qty 2)
- 218.4 3/8 Hose Clamp - CTB-16-STFS (Qty 8)
- 223 Battery - Renegade (Qty 1)
- 230 2019 Horizontal Diesel Frame (Qty 1)
