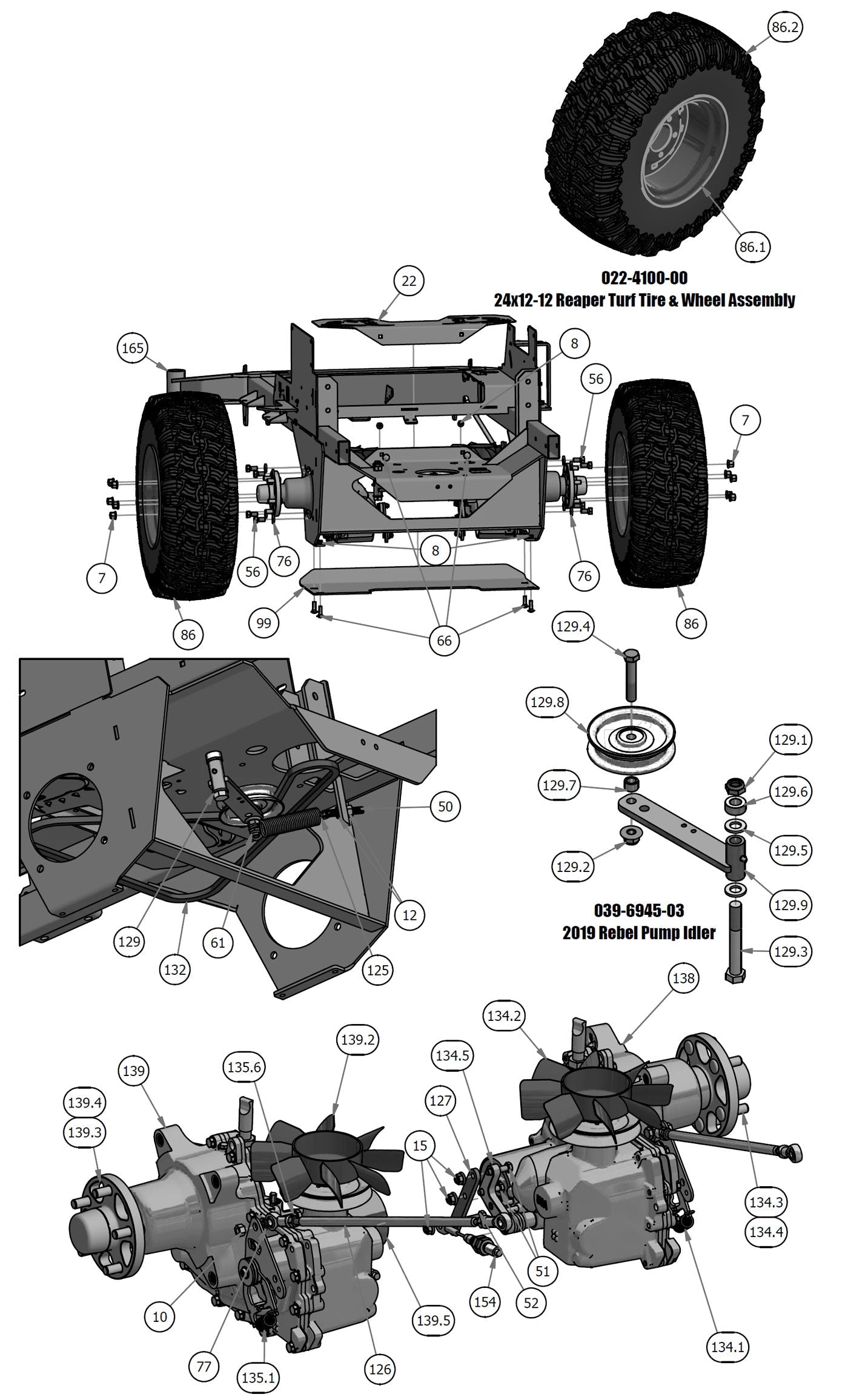

Transaxle Assembly
Parts Index
- 7 Acorn Lug Nut (Qty 10)
- 8 3/8 Nylock Flange Nut (Qty 6)
- 10 3/8-16 Hex Nuts Zinc (Qty 2)
- 12 1/2-13 Hex Nuts Zinc (Qty 2)
- 15 5/16-18 Nylon Flange Nut (Qty 6)
- 22 2019 Rigid Fan Guard--Orange (Qty 1)
- 50 All Thread (Qty 1)
- 51 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 4)
- 52 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 56 1/2 x 1 Bolt (Qty 8)
- 61 1/2-13 Nylon Insert Jam Locknut (Qty 1)
- 65 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 66 3/8-16 X 1-1/4 Carriage Bolt (Qty 6)
- 76 1/2 Lockwasher Zinc (Qty 8)
- 77 3/8 Lockwasher Zinc (Qty 2)
- 86 Rear Wheel Assy-24x12-12 Reaper Turf (Qty 2)
- 86.2 2018 24x12-12 Reaper Turf Tire-Fits 022-4100-00 (Qty 2)
- 86.1 2015 Outlaw Black Wheel12x8.5"/2019 022-4091-00 (Qty 2)
- 99 Rigid Skid Plate--Orange (Qty 1)
- 125 2019 Deck Spring - Big Diameter (Qty 1)
- 126 2019 Rebel Push Rod Assembly (Qty 2)
- 127 2015 Outlaw Brake Adapter Brkt--Plated (Qty 2)
- 129 2019 Rebel Pump Idler (Qty 1)
- 129.1 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 129.2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 129.3 5/8-11 x 4-1/2 GR 5 Hex Bolt (Qty 1)
- 129.4 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 129.5 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 129.6 5/8 Set Collar W/One Set Screw (Qty 1)
- 129.7 1/2 Set Collar w/set collar (Qty 1)
- 129.8 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 129.9 Idler Bracket (Qty 1)
- 132 2019 & up Rebel Pump Belt (Qty 1)
- 138 4400 Transaxle-Left- Rebel (Qty 1)
- 134.1 Gold Transaxle Spring (Qty 1)
- 134.2 Fan/Pulley Kit for 4400 Outlaw (Qty 1)
- 134.3 Hub for 4400 Transaxle (Qty 1)
- 134.4 Seal Kit for 4400 Series Outlaw Transaxle (Qty 1)
- 134.5 Hydro Filter for 4400 Transaxl (Qty 1)
- 139 4400 TransaxleRight- Rebel (Qty 1)
- 135.1 Gold Transaxle Spring (Qty 1)
- 139.2 Fan/Pulley Kit for 4400 Outlaw (Qty 1)
- 139.3 Hub for 4400 Transaxle (Qty 1)
- 139.4 Seal Kit for 4400 Series Outlaw Transaxle (Qty 1)
- 139.5 Hydro Filter for 4400 Transaxl (Qty 1)
- 154 Long Brake Cable (Qty 2)
- 165 2019 Rigid Frame (Qty 1)
-
132#041-8050-00
2019 & up Rebel Pump Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
129#039-6945-03
2019 Rebel Pump Idler
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
129.1#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
129.2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
129.3#018-5309-00
5/8-11 x 4-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
129.4#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
129.5#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
129.6#025-7020-00
5/8 Set Collar W/One Set Screw
Qty Used: 1Regular price $3.97 USDRegular priceUnit price per
-
129.7#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 1Regular price $4.18 USDRegular priceUnit price per
-
129.8#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
129.9#039-6945-00
Idler Bracket
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
127#039-2135-00
2015 Outlaw Brake Adapter Brkt--Plated
Qty Used: 2Regular price $6.99 USDRegular priceUnit price per
-
138#050-1000-00
4400 Transaxle-Left-Base Outlaw/2019 Rebel
Qty Used: 1Regular price $909.99 USDRegular priceUnit price per
-
134.1135.1#034-9080-00
Gold Transaxle Spring
Qty Used: 1Regular price $13.92 USDRegular priceUnit price per
-
134.2139.2#050-1025-00
Fan/Pulley Kit for 4400 Outlaw
Qty Used: 1Regular price $109.46 USDRegular priceUnit price per
-
134.3139.3#050-2082-00
Hub for 4400 Transaxle
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
134.4139.4#050-8003-00
Seal Kit for 4400 Series Outlaw Transaxle
Qty Used: 1Regular price $99.51 USDRegular priceUnit price per
-
134.5139.5#063-1070-00
Hydro Filter for 4400 Transaxl
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
139#050-1050-00
4400 TransaxleRight-Base Outlaw/2019 Rebel
Qty Used: 1Regular price $909.99 USDRegular priceUnit price per
-
154#064-8056-00
Long Brake Cable
Qty Used: 2Regular price $49.99 USDRegular priceUnit price per
-
165#070-5371-19
2019 Rigid Frame
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
65#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
8#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 6Regular price $1.49 USDRegular priceUnit price per
-
10#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
12#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
15#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
22#014-5070-00
2019 Rigid Fan Guard--Orange
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
50#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
51#018-2006-00
5/16-18 X 1-1/4 GR 5 Hex Bolt
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
52#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
56#018-2030-00
1/2 x 1 Bolt
Qty Used: 8Regular price $2.69 USDRegular priceUnit price per
-
61#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
7#013-3000-00
Acorn Lug Nut
Qty Used: 10Regular price $2.99 USDRegular priceUnit price per
-
66#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 6Regular price $0.99 USDRegular priceUnit price per
-
76#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 8Regular price $0.00 USDRegular priceUnit price per
-
77#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
86#022-4100-00
2018 Outlaw Assy-24x12-12 Reaper Turf
Qty Used: 2Regular price $299.99 USDRegular priceUnit price per
-
86.2#022-4095-00
2018 24x12-12 Reaper Turf Tire-Fits 022-4100-00
Qty Used: 2Regular price $199.99 USDRegular priceUnit price per
-
86.1#022-4070-00
2015 Outlaw Black Wheel12x8.5"/2019 022-4091-00
Qty Used: 2Regular price $131.99 USDRegular priceUnit price per
-
99#026-2240-00
Rigid Skid Plate--Orange
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
125#034-9050-00
2019 Deck Spring - Big Diameter
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
126#035-0003-00
2019 Rebel Push Rod Assembly
Qty Used: 2Regular price $39.79 USDRegular priceUnit price per
