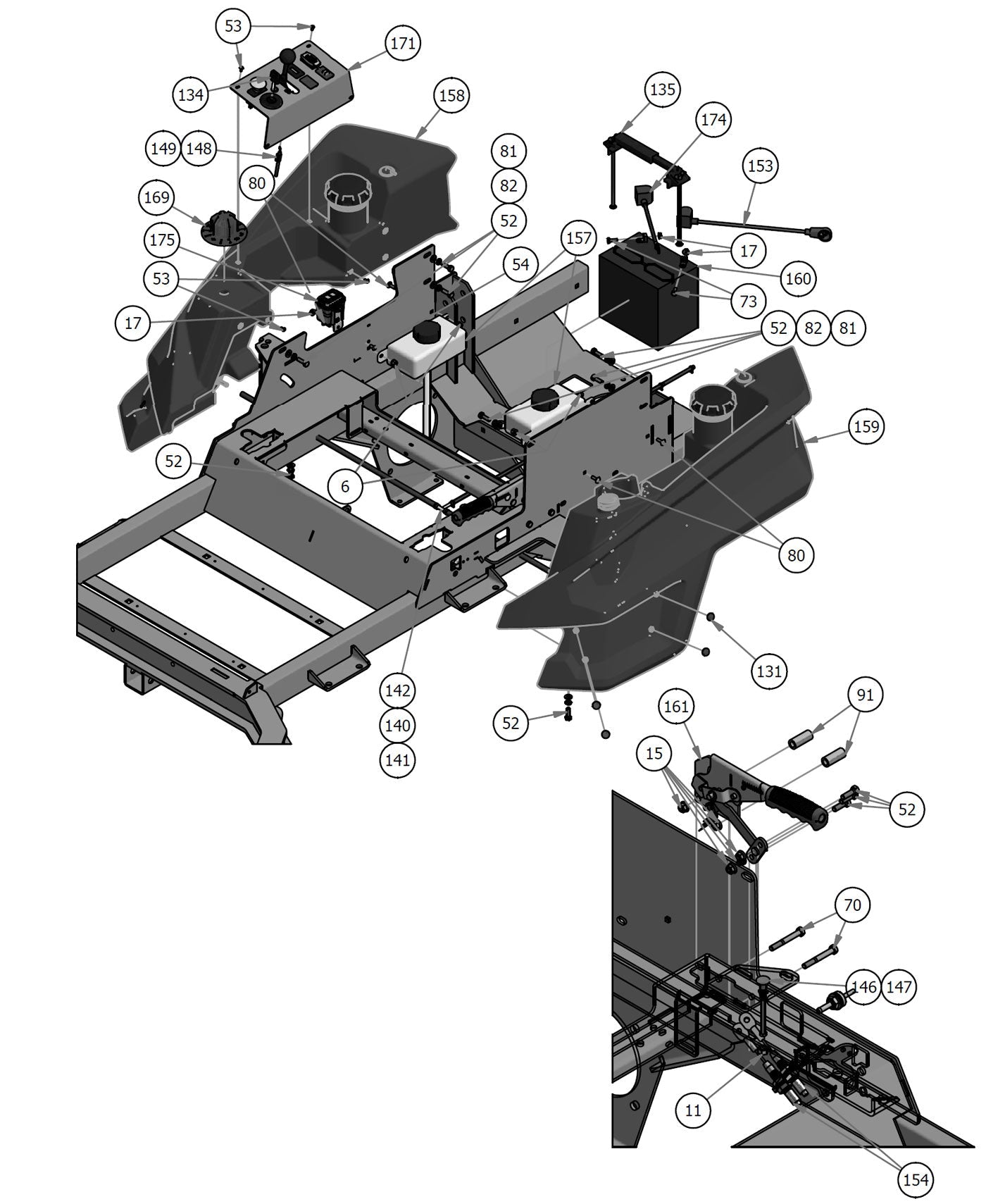

Tanks & Battery
Parts Index
- 6 1/4-20 Nylon Insert Flange Nut (Qty 4)
- 11 3/8-24 Hex Nut Zinc (Qty 1)
- 15 5/16-18 Nylon Flange Nut (Qty 5)
- 17 1/4-20 Hex Flange Nuts Zinc w/ (Qty 4)
- 52 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 11)
- 53 10-32 X 3/8 BS C/S 18-8 SS with Patch (Qty 4)
- 54 1/4-20 X 1/2 BS C/S 18-8 SS (Qty 1)
- 70 5/16 x 2 1/2 Bolt (Qty 2)
- 73 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 80 1/4 x 3/4 Carriage Bolt (Qty 4)
- 81 5/16 USS Flat Washer Zinc (Qty 8)
- 82 5/16 Lock washer Zinc (Qty 8)
- 91 2019 Brake Handle Spacer .625 x 1.5 (Qty 2)
- 131 3/16 x .48 Christmas Tree Nylon Black (Qty 8)
- 134 Ignition Key (Qty 1)
- 135 Battery Hold Down (Plastic) (Qty 1)
- 140 2019 R-series Fuel Line for Vangaurd & Yamaha (Qty 1)
- 141 2019 R-Series Fuel Line for Kohler (Qty 1)
- 142 2019 Rebel Rogue Kaw Fuel Line (Qty 1)
- 146 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 147 2019 36HP Vanguard FX1000 Rebel Choke Cable (Qty 1)
- 148 Rebel Rogue Renegade Throttle Cable ONLY (Qty 1)
- 149 2019 Throttle Cable (Qty 1)
- 153 14" Red Battery Cable- Rebel, Raider (Qty 1)
- 154 Long Brake Cable (Qty 2)
- 157 2019 Rebel Hydro Tank Assembly (Qty 2)
- 158 2019 Right Rebel, Rogue, Renagade Fuel Tank (GAS) (Qty 1)
- 159 2019 Left Rebel, Rogue, Renegade Fuel Tank (GAS) (Qty 1)
- 160 Battery - All models except Renegade and Revolt (Qty 1)
- 161 2019 Rebel, Rogue, Renegade Brake Handle Assy (Qty 1)
- 165 2019 Rigid Frame (Qty 1)
- 169 Deck Height Dial (1.5 - 5.5) (Qty 1)
- 171 Rebel/Rogue Control Panel Assy (Qty 1)
- 174 Rebel, Rogue Ground Wire (Qty 1)
- 175 2019 Harness-Rebel/Rogue harness-No Display (Qty 1)
-
6#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
11#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
15#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
17#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
52#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 11Regular price $0.00 USDRegular priceUnit price per
-
53#018-2010-00
10-32 X 3/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
54#018-2012-00
1/4-20 X 1/2 BS C/S 18-8 SS
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
70#018-5344-00
5/16 x 2 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
73#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
80#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
81#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
82#019-8051-00
5/16 Lock washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
91#025-0027-00
2019 Brake Handle Spacer .625 x 1.5
Qty Used: 2Regular price $6.59 USDRegular priceUnit price per
-
131#040-6081-00
3/16 x .48 Christmas Tree Nylon Black
Qty Used: 8Regular price $2.64 USDRegular priceUnit price per
-
134#042-9000-00
Ignition Key
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
135#043-8929-00
Battery Hold Down (Plastic)
Qty Used: 1Regular price $16.35 USDRegular priceUnit price per
-
140#051-2019-22
2019 R-series Fuel Line for Vangaurd & Yamaha
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
141#051-2019-28
2019 R-Series Fuel Line for Kohler
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
142#051-2019-32
2019 Rebel Rogue Kaw Fuel Line
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
146#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
147#054-8019-00
2019 36HP Vanguard FX1000 Rebel Choke Cable
Qty Used: 1Regular price $24.80 USDRegular priceUnit price per
-
148#055-8021-75
Rebel Rogue Renegade Throttle Cable ONLY
Qty Used: 1Regular price $26.99 USDRegular priceUnit price per
-
149#055-8022-00
2019 Throttle Cable
Qty Used: 1Regular price $36.48 USDRegular priceUnit price per
-
153#064-5301-01
14" Red Battery Cable-Base Outlaw
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
154#064-8056-00
Long Brake Cable
Qty Used: 2Regular price $49.99 USDRegular priceUnit price per
-
157#067-8085-19
2019 Rebel Hydro Tank Assembly
Qty Used: 2Regular price $46.65 USDRegular priceUnit price per
-
158#067-9950-50
2019 Right Rebel, Rogue, Renagade Fuel Tank (GAS)
Qty Used: 1Regular price $331.72 USDRegular priceUnit price per
-
159#067-9960-50
2019 Left Rebel, Rogue, Renegade Fuel Tank (GAS)
Qty Used: 1Regular price $331.72 USDRegular priceUnit price per
-
160#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
161#069-0001-00
2019 Rebel, Rogue, Renegade Brake Handle Assy
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
165#070-5371-19
2019 Rigid Frame
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
169#077-9002-00
Deck Height Dial (1.5 - 5.5)
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
171#079-3481-19
Rebel/Rogue Control Panel Assy
Qty Used: 1Regular price $109.00 USDRegular priceUnit price per
-
174#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
175#086-2050-19
2019 Harness-Rebel/Rogue harness-No Display
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
