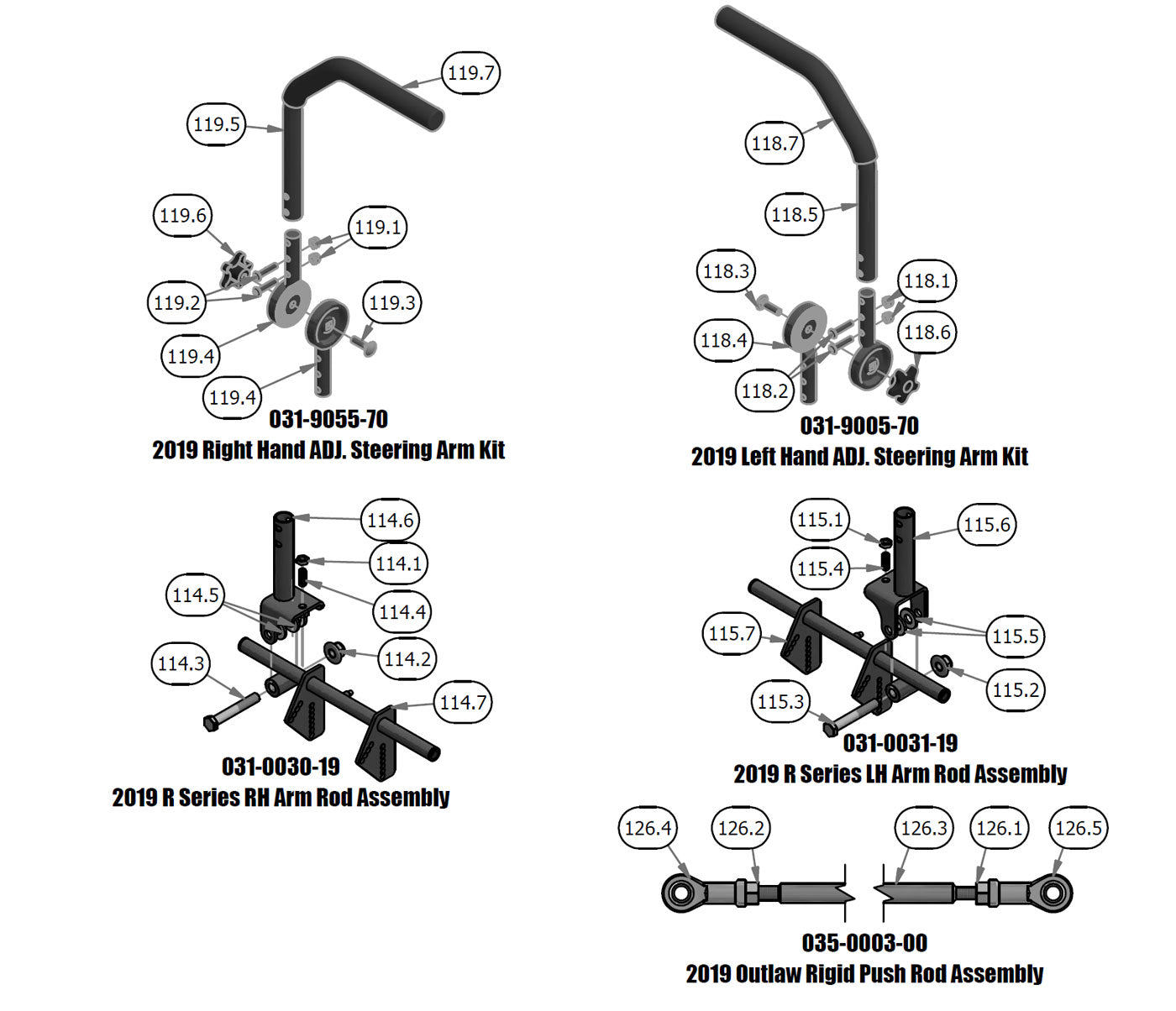

Steering Arm Kits, Arm Rod Assmelby, Push Rod Assembly
Parts Index
- 114.1 3/8-16 Half Jam Nut (Qty 1)
- 114.2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 114.3 1/2-13 X 3.25 Hex Bolt-Grade 5 (Qty 1)
- 114.4 3/8-16 X 1 SOCKET SET SCREW CUP POINT (Qty 1)
- 114.5 .505 ID X 1 OD X .128 THK Washer (Qty 2)
- 114.6 Drive Arm Pivot (Qty 1)
- 114.7 Drive Arm Actuator RH (Qty 1)
- 115.1 3/8-16 Half Jam Nut (Qty 1)
- 115.2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 115.3 1/2-13 X 3.25 Hex Bolt-Grade 5 (Qty 1)
- 115.4 3/8-16 X 1 SOCKET SET SCREW CUP POINT (Qty 1)
- 115.5 .505 ID X 1 OD X .128 THK Washer (Qty 2)
- 115.6 Drive Arm Pivot (Qty 1)
- 115.7 Drive Arm Actuator LH (Qty 1)
- 118.1 5/16-18 Nylon Insert Locknut Z (Qty 2)
- 118.2 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 1)
- 118.3 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 118.4 2019 Upper/Lower Steering Arm Casting (Qty 2)
- 118.5 2019 Steering Arm Tube (Qty 1)
- 118.6 Knob - Adjustable Steering Arm (Qty 1)
- 118.7 Black Steering Grip (Qty 1)
- 119.1 5/16-18 Nylon Insert Locknut Z (Qty 2)
- 119.2 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 2)
- 119.3 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 119.4 2019 Upper/Lower Steering Arm Casting (Qty 2)
- 119.5 2019 Steering Arm Tube (Qty 1)
- 119.6 Knob - Adjustable Steering Arm (Qty 1)
- 119.7 Black Steering Grip (Qty 1)
- 126.1 5/16 LH Nut (Qty 1)
- 126.2 3/8-24 Hex Nut Zinc (Qty 1)
- 126.4 Spherical Rod End (Qty 1)
- 126.5 Spherical Rod End - LH Thead - Rebel,Rogue,Renegad (Qty 1)
-
114.1115.1#013-0017-00
3/8-16 Half Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
114.2115.2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
114.3115.3#018-0050-00
1/2-13 X 3.25 Hex Bolt-Grade 5
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
114.4115.4#018-0063-00
3/8-16 X 1 SOCKET SET SCREW CUP POINT
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
114.5115.5#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
114.6115.6#031-0014-00
Drive Arm Pivot
Qty Used: 1Regular price $23.29 USDRegular priceUnit price per
-
114.7#031-0030-00
Drive Arm Actuator RH
Qty Used: 1Regular price $43.72 USDRegular priceUnit price per
-
115.7#031-0031-00
Drive Arm Actuator LH
Qty Used: 1Regular price $43.72 USDRegular priceUnit price per
-
118.1119.1#013-8047-00
5/16-18 Nylon Insert Locknut Z
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
118.2119.2#018-2020-18
5/16-18 x 1 3/8\" Button Head Torx Drive Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
118.3119.3#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
118.4119.4#031-9005-00
2019 Upper/Lower Steering Arm Casting
Qty Used: 2Regular price $26.53 USDRegular priceUnit price per
-
118.5119.5#031-9006-00
2019 Steering Arm Tube
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
118.6119.6#045-5000-00
Knob - Adjustable Steering Arm
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
118.7119.7#069-4010-00
Black Steering Grip
Qty Used: 1Regular price $7.38 USDRegular priceUnit price per
-
126.1#013-6050-00
5/16 LH Nut
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
126.2#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
126.4#048-3000-00
Spherical Rod End-Outlaw Only
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
126.5#048-3002-00
Spherical Rod End - LH Thead - Rebel,Rogue,Renegad
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
