852cc Kawasaki FX850

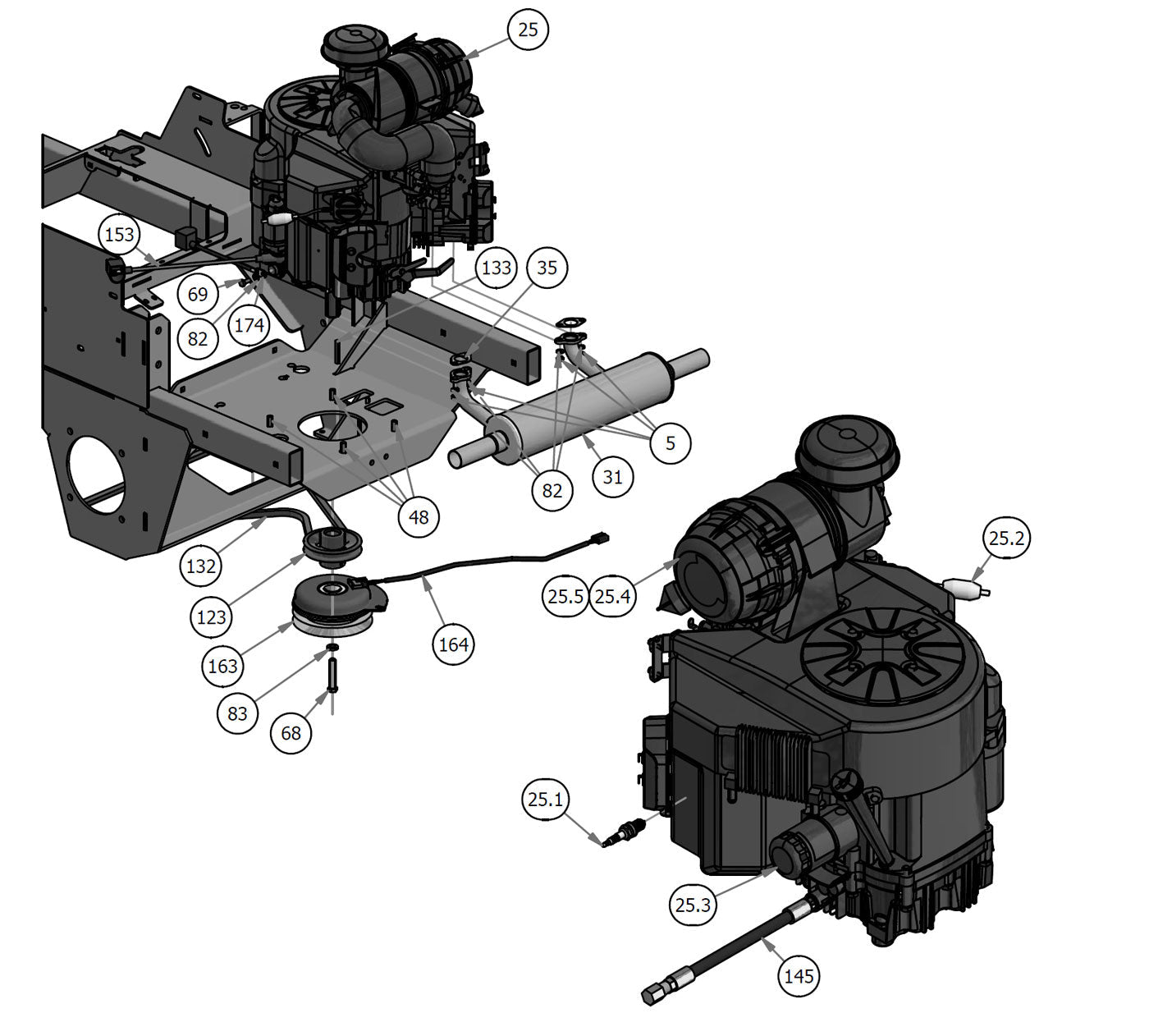

Parts Index
- 5 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 25 31hp Kawa Engine FX-850V-AS15R (Qty 1)
- 25.1 Spark plug-Kawasaki NGKBPR2ES (Qty 2)
- 25.2 Spark plug-Kawasaki NGKBPR2ES (Qty 1)
- 25.3 Kawasaki Oil Filter (Qty 1)
- 25.4 Canister Air Fil Outer2010&Old (Qty 1)
- 25.5 Canister Air Filter - Inner (Qty 1)
- 31 2019 Rebel/Rogue Kawasaki 850 Muffler (Qty 1)
- 35 Exhaust Gasket for 27 - Single Gasket (Qty 2)
- 48 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 68 7/16-20 X 2-1/2 GR 5 Hex Bolt (Qty 1)
- 69 M8 x 1.25 x 20MM Hex Head Bolt (Qty 1)
- 82 5/16 Lock washer Zinc (Qty 5)
- 123 4 3/4 Motor Pulley (Qty 1)
- 132 2019 & up Rebel Pump Belt (Qty 1)
- 133 1/4 X 2 Square Key Stock (Qty 1)
- 145 12" Kawasaki Oil Drain (Qty 1)
- 153 14" Red Battery Cable- Rebel, Raider (Qty 1)
- 163 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 164 Clutch Pigtail (Qty 1)
- 165 2019 Rigid Frame (Qty 1)
- 83 7/16 Lock washer zinc (Qty 1)
- 174 Rebel, Rogue Ground Wire (Qty 1)
-
5#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
25#015-0031-00
31hp Kawa Engine FX-850V-AS15R
Qty Used: 1Regular price $2,995.00 USDRegular priceUnit price per
-
25.125.2#015-8001-00
Spark plug-Kawasaki NGKBPR2ES
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
25.3#063-8017-00
Kawasaki Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
25.4#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
25.5#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
31#015-1011-00
2019 Rebel/Rogue Kawasaki 850 Muffler
Qty Used: 1Regular price $199.00 USDRegular priceUnit price per
-
35#015-2709-00
Exhaust Gasket for 27 - Single Gasket
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
48#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
68#018-5300-00
7/16-20 X 2-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
69#018-5321-00
M8 x 1.25 x 20MM Hex Head Bolt
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
82#019-8051-00
5/16 Lock washer Zinc
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
123#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
132#041-8050-00
2019 & up Rebel Pump Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
133#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
145#051-5407-00
12" Kawasaki Oil Drain
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
153#064-5301-01
14" Red Battery Cable-Base Outlaw
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
-
164#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
165#070-5371-19
2019 Rigid Frame
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
83#019-8053-00
7/16 Lock washer zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
174#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
