747cc Kohler Command

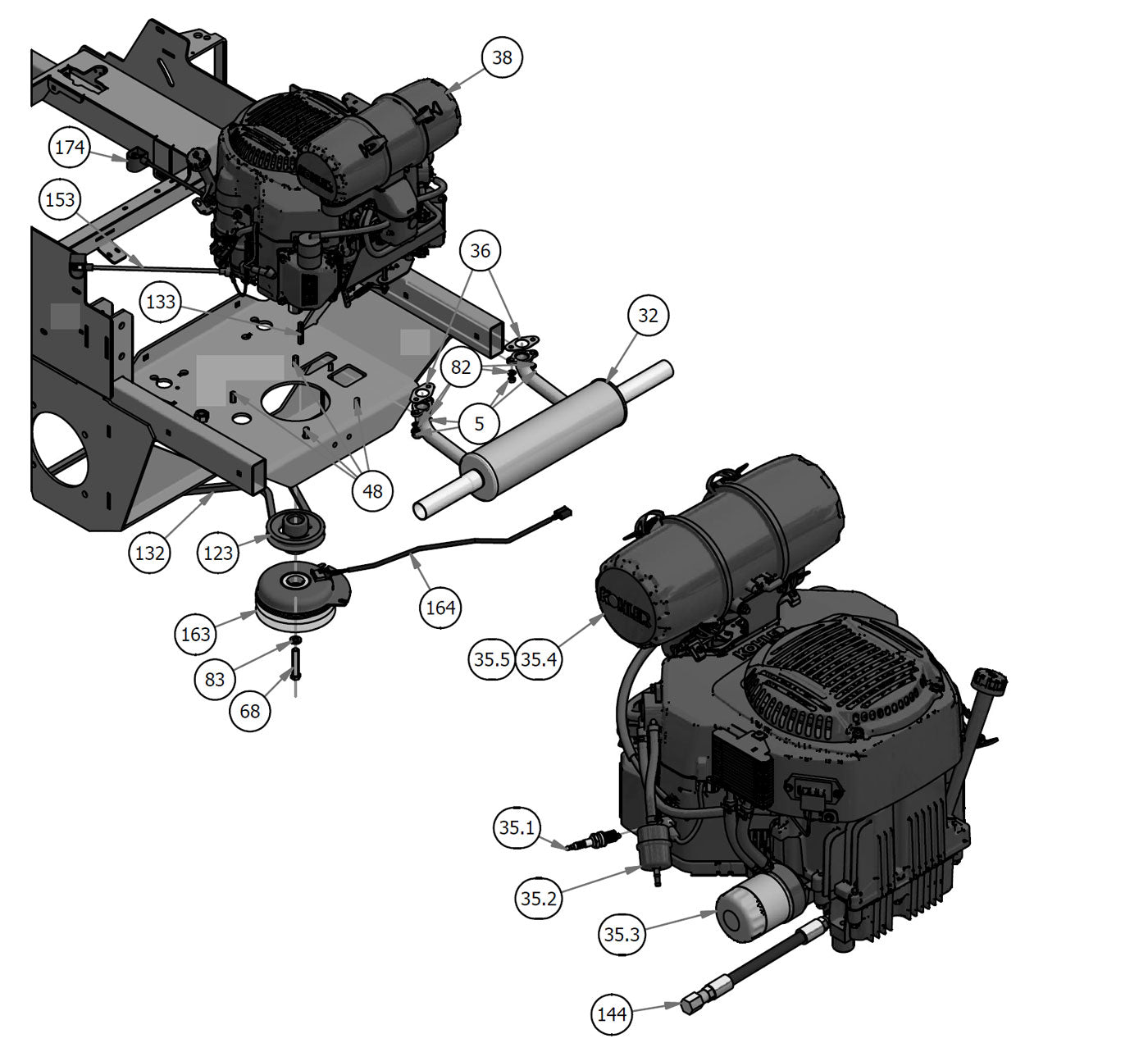

Parts Index
- 5 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 32 2019 Rebel Kohler CV752 Muffler (Qty 1)
- 36 Exhaust Gaskets for 27,30 hp (Qty 2)
- 38 2019 Kohler Command 27HP CV752 (Qty 1)
- 35.1 Spark Plug-Kohler/Briggs (Qty 2)
- 35.2 25/26 HP Koh Fuel Filter ZT/MZ (Qty 1)
- 35.3 Oil Filter - 27 & 30 Kohler (Qty 1)
- 35.4 Canister Air Fil Outer2010&Old (Qty 1)
- 35.5 Canister Air Filter - Inner (Qty 1)
- 48 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 68 7/16-20 X 2-1/2 GR 5 Hex Bolt (Qty 1)
- 82 5/16 Lock washer Zinc (Qty 4)
- 83 7/16 Lock washer zinc (Qty 1)
- 123 4 3/4 Motor Pulley (Qty 1)
- 132 2019 & up Rebel Pump Belt (Qty 1)
- 133 1/4 X 2 Square Key Stock (Qty 1)
- 144 Yamaha Oil Drain/ 2019 Rebel Kohler Oil Drain (Qty 1)
- 153 14" Red Battery Cable- Rebel, Raider (Qty 1)
- 163 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 164 Clutch Pigtail (Qty 1)
- 165 2019 Rigid Frame (Qty 1)
- 174 Rebel, Rogue Ground Wire (Qty 1)
-
5#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
32#015-1013-00
2019 Rebel Kohler CV752 Muffler
Qty Used: 1Regular price $199.00 USDRegular priceUnit price per
-
36#015-2751-00
Exhaust Gaskets for 27,30 hp
Qty Used: 2Regular price $5.96 USDRegular priceUnit price per
-
38#015-7520-00
2019 Kohler Command 27HP CV752
Qty Used: 1Regular price $1,999.99 USDRegular priceUnit price per
-
35.1#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
35.2#063-5001-00
25/26 HP Koh Fuel Filter ZT/MZ
Qty Used: 1Regular price $17.99 USDRegular priceUnit price per
-
35.3#063-5400-00
Oil Filter - 27 & 30 Kohler
Qty Used: 1Regular price $18.99 USDRegular priceUnit price per
-
35.4#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
35.5#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
48#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
68#018-5300-00
7/16-20 X 2-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
82#019-8051-00
5/16 Lock washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
83#019-8053-00
7/16 Lock washer zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
123#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
132#041-8050-00
2019 & up Rebel Pump Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
133#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
144#051-5403-00
Yamaha Oil Drain/ 2019 Rebel Kohler Oil Drain
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
153#064-5301-01
14" Red Battery Cable-Base Outlaw
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
-
164#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
165#070-5371-19
2019 Rigid Frame
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
174#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
