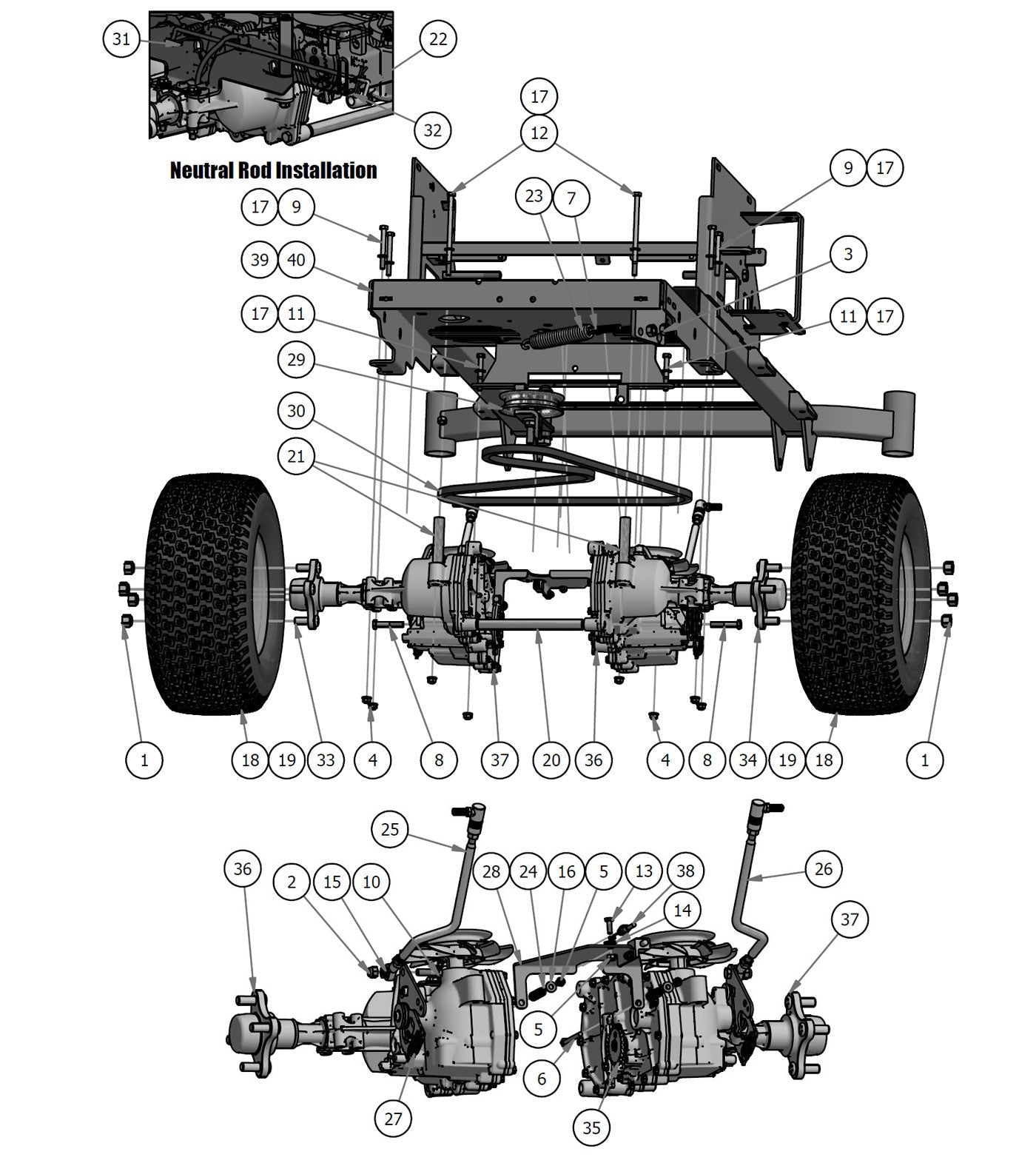

Transaxle & Rear Wheels
Parts Index
- 1 Acorn Lug Nut (Qty 8)
- 2 3/8-16 Nylon Insert Locknut Zi (Qty 2)
- 3 1/2-13 Hex Nuts Zinc (Qty 2)
- 4 5/16-18 Nylon Flange Nut (Qty 8)
- 5 1/4-20 Nylon Insert Locknut Zi (Qty 3)
- 6 ¼-20 x 2-1/2 Gr2 Hex C/S Zinc (Qty 2)
- 7 All Thread (Qty 1)
- 8 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 2)
- 9 5/16-18 X 3 GR 5 Hex Bolt Zinc (Qty 4)
- 10 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 11 5/16 x 2 1/2 Bolt (Qty 2)
- 12 5/16-18 X 6 GR 5 Hex Bolt Zinc (Qty 2)
- 13 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 1)
- 14 .390x.750x.062 Nylon Washer (Qty 1)
- 15 3/8 Lockwasher Zinc (Qty 2)
- 16 1/4 USS Flat Washer Zinc (Qty 2)
- 17 5/16 USS Flat Washer Zinc (Qty 8)
- 18 2017 18x8.50-8 Tire/Wheel Assembly 42" MZ (Qty 2)
- 19 18x9.50-8 Tire and Wheel Assembly Magnum (Qty 2)
- 20 2017 Transaxle Spacer-MZ (Qty 1)
- 21 2017 Transaxle Spacer (Qty 2)
- 22 Neutral Rod (Qty 2)
- 23 2015 Deck Idler Spring (Qty 1)
- 24 Spring-Brake Lock Bracket MZ (Qty 2)
- 25 Push Rod RH (Assembly) (Qty 1)
- 26 Push Rod LH (Assembly) (Qty 1)
- 28 2017 MZ/Magnum brake plate assembly (Qty 1)
- 29 Pump Idler Bracket Assembly-ZT, MZ, Aven, Raider (Qty 1)
- 30 Pump Belt for ZT, MZ, Avenger (Qty 1)
- 31 Bow Pin (Qty 2)
- 32 Neutral Rod Clip (Qty 2)
- 33 Transaxle Wheel Studs/ Drum Brake Studs (Qty 8)
- 34 MZ 4 Bolt Hub Kit (Qty 2)
- 35 MZ Brake Cog Kit (Qty 1)
- 36 Magnum RH Transaxle (Qty 1)
- 37 Magnum LH Transaxle (Qty 1)
- 38 2017 MZ Brake Cable- 18.37" CABLE ONLY (Qty 1)
- 39 2017 MZ/ZT 54"-60" Frame (Qty 1)
- 40 2017 MZ/ZT 42"-48" Frame (Qty 1)
-
1#013-3000-00
Acorn Lug Nut
Qty Used: 8Regular price $2.99 USDRegular priceUnit price per
-
2#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
3#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
4#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
5#013-8073-00
1/4-20 Nylon Insert Locknut Zi
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
6#018-1076-00
¼-20 x 2-1/2 Gr2 Hex C/S Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
7#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
8#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
9#018-4701-00
5/16-18 X 3 GR 5 Hex Bolt Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
10#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
11#018-5344-00
5/16 x 2 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
12#018-5355-00
5/16-18 X 6 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $2.19 USDRegular priceUnit price per
-
13#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
14#019-2003-00
.390x.750x.062 Nylon Washer
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
15#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
16#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
17#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
18#022-2050-17
2017 18x8.50-8 Tire/Wheel Assembly 42" MZ
Qty Used: 2Regular price $145.99 USDRegular priceUnit price per
-
19#022-8050-00
18x9.50-8 Tire and Wheel Assembly Magnum
Qty Used: 2Regular price $199.99 USDRegular priceUnit price per
-
20#025-0016-00
2017 Transaxle Spacer-MZ
Qty Used: 1Regular price $13.12 USDRegular priceUnit price per
-
21#025-0070-00
2017 Transaxle Spacer
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
22#028-0070-00
Neutral Rod
Qty Used: 2Regular price $11.66 USDRegular priceUnit price per
-
23#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
24#034-3050-00
Spring-Brake Lock Bracket MZ
Qty Used: 2Regular price $1.19 USDRegular priceUnit price per
-
25#035-5450-00
Push Rod RH (Assembly)
Qty Used: 1Regular price $31.73 USDRegular priceUnit price per
-
26#035-5451-00
Push Rod LH (Assembly)
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
28#039-0035-01
2017 MZ/Magnum brake plate assembly
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
29#039-5944-01
Pump Idler Bracket Assembly-ZT/MZ/Compact Outlaw
Qty Used: 1Regular price $58.37 USDRegular priceUnit price per
-
30#041-6400-00
Pump Belt for ZT, MZ, Avenger
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
-
32#044-2008-00
Neutral Rod Clip
Qty Used: 2Regular price $1.31 USDRegular priceUnit price per
-
33#050-2012-00
Transaxle Wheel Studs/ Drum Brake Studs
Qty Used: 8Regular price $5.10 USDRegular priceUnit price per
-
34#050-2078-00
MZ 4 Bolt Hub Kit
Qty Used: 2Regular price $79.99 USDRegular priceUnit price per
-
35#050-4032-98
MZ Brake Cog Kit
Qty Used: 1Regular price $61.00 USDRegular priceUnit price per
-
36#050-4070-00
2017 EZT - Right - MZ Models
Qty Used: 1Regular price $599.99 USDRegular priceUnit price per
-
37#050-4071-00
2017 EZT - Left - MZ Models
Qty Used: 1Regular price $599.99 USDRegular priceUnit price per
-
38#064-8057-17
2017 MZ Brake Cable- 18.37" CABLE ONLY
Qty Used: 1Regular price $23.87 USDRegular priceUnit price per
-
39#070-5420-00
2017 MZ/ZT 54"-60" Frame
Qty Used: 1Regular price $799.99 USDRegular priceUnit price per
-
40#070-5810-00
2017 MZ/ZT 42"-48" Frame
Qty Used: 1Regular price $799.99 USDRegular priceUnit price per
