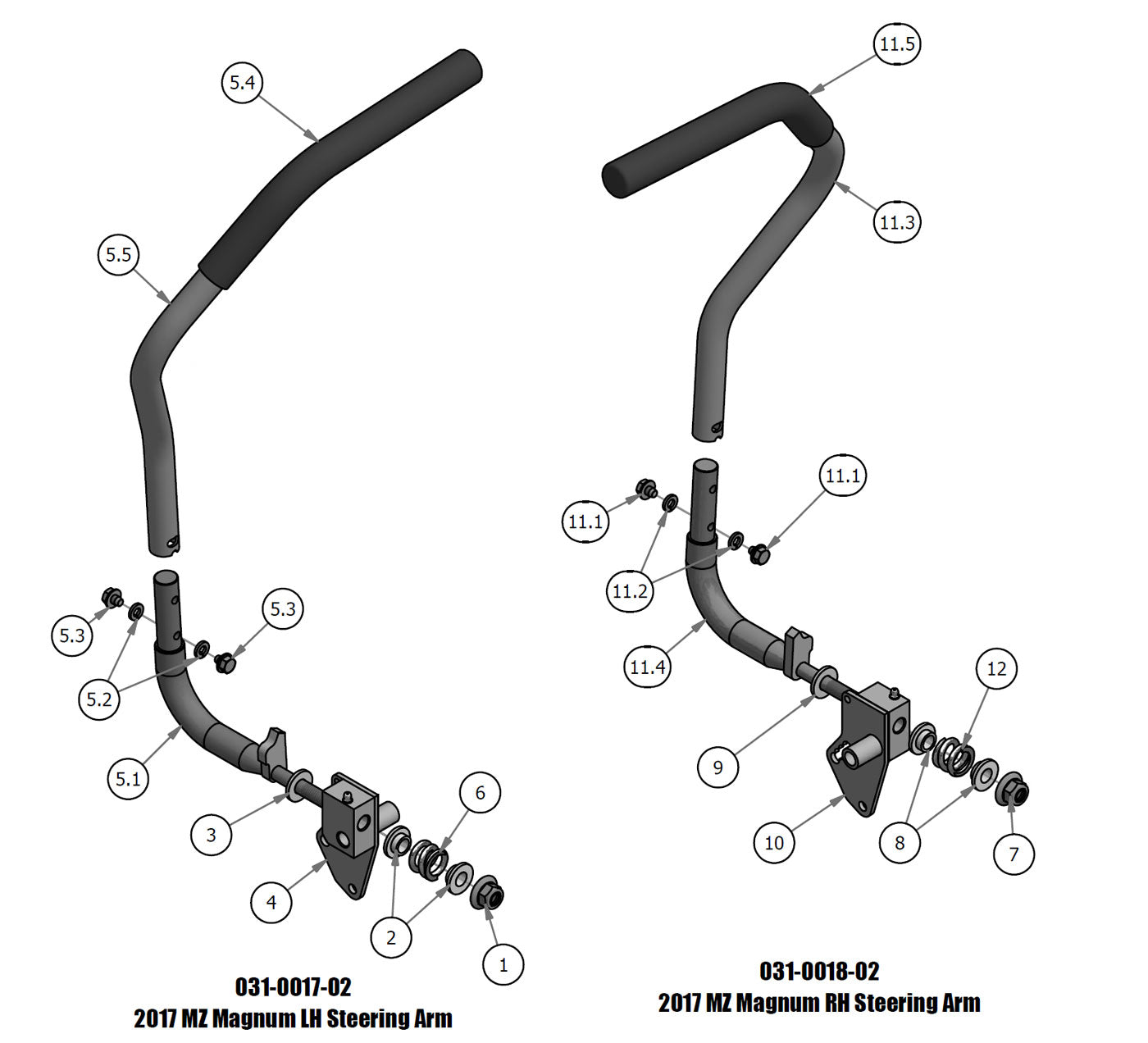

Steering Arm Subassemblies
Parts Index
- 1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 2 .515 ID Plastic Shoulder Washer (Qty 1)
- 3 .505 ID X 1 OD X .128 THK Washer (Qty 1)
- 4 Drive Lever Housing LH (Qty 1)
- 5 Orange ZT Steering Arm Left- (Qty 1)
- 5.1 Steering Arm Elbow- Left (Qty 1)
- 5.2 5/16 Lock washer Zinc (Qty 2)
- 5.3 5/16-18 x 1/2 HWH Bolt-Steering Arm (Qty 2)
- 5.4 Rubber Steering Arm (Qty 1)
- 5.5 Steering Arm Left - 5" Tubing (Qty 1)
- 6 Drive Lever Housing Spring (Qty 1)
- 7 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 8 .515 ID Plastic Shoulder Washer (Qty 2)
- 9 .505 ID X 1 OD X .128 THK Washer (Qty 1)
- 10 Drive Lever Housing RH (Qty 1)
- 11 Orange ZT Steering Arm-Right (Qty 1)
- 11.1 5/16-18 x 1/2 HWH Bolt-Steering Arm (Qty 2)
- 11.2 5/16 Lock washer Zinc (Qty 2)
- 11.3 Steering Arm Right - 5" Tubing (Qty 1)
- 11.4 Steering Arm Elbow - Right (Qty 1)
- 11.5 Rubber Steering Arm (Qty 1)
- 12 Drive Lever Housing Spring (Qty 1)
-
17#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
28#019-8027-00
.515 ID Plastic Shoulder Washer
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
39#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
4#031-0017-98
Drive Lever Housing LH
Qty Used: 1Regular price $29.19 USDRegular priceUnit price per
-
5#031-8850-70
Black ZT Steering Arm Left-
Qty Used: 1Regular price $87.51 USDRegular priceUnit price per
-
5.1#031-9020-70
Steering Arm Elbow- Left
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
5.211.2#019-8051-00
5/16 Lock washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
5.311.1#018-2020-00
5/16-18 x 1/2 HWH Bolt-Steering Arm
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
5.411.5#069-4007-00
Rubber Steering Arm
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
5.5#031-8850-02
Steering Arm Left - 5" Tubing
Qty Used: 1Regular price $79.55 USDRegular priceUnit price per
-
612#034-8025-00
Drive Lever Housing Spring
Qty Used: 1Regular price $3.70 USDRegular priceUnit price per
-
10#031-0018-98
Drive Lever Housing RH
Qty Used: 1Regular price $21.89 USDRegular priceUnit price per
-
11#031-8851-70
Black ZT Steering Arm-Right
Qty Used: 1Regular price $87.51 USDRegular priceUnit price per
-
11.3#031-8851-02
Steering Arm Right - 5" Tubing
Qty Used: 1Regular price $79.55 USDRegular priceUnit price per
-
11.4#031-9025-70
Steering Arm Elbow - Right
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
