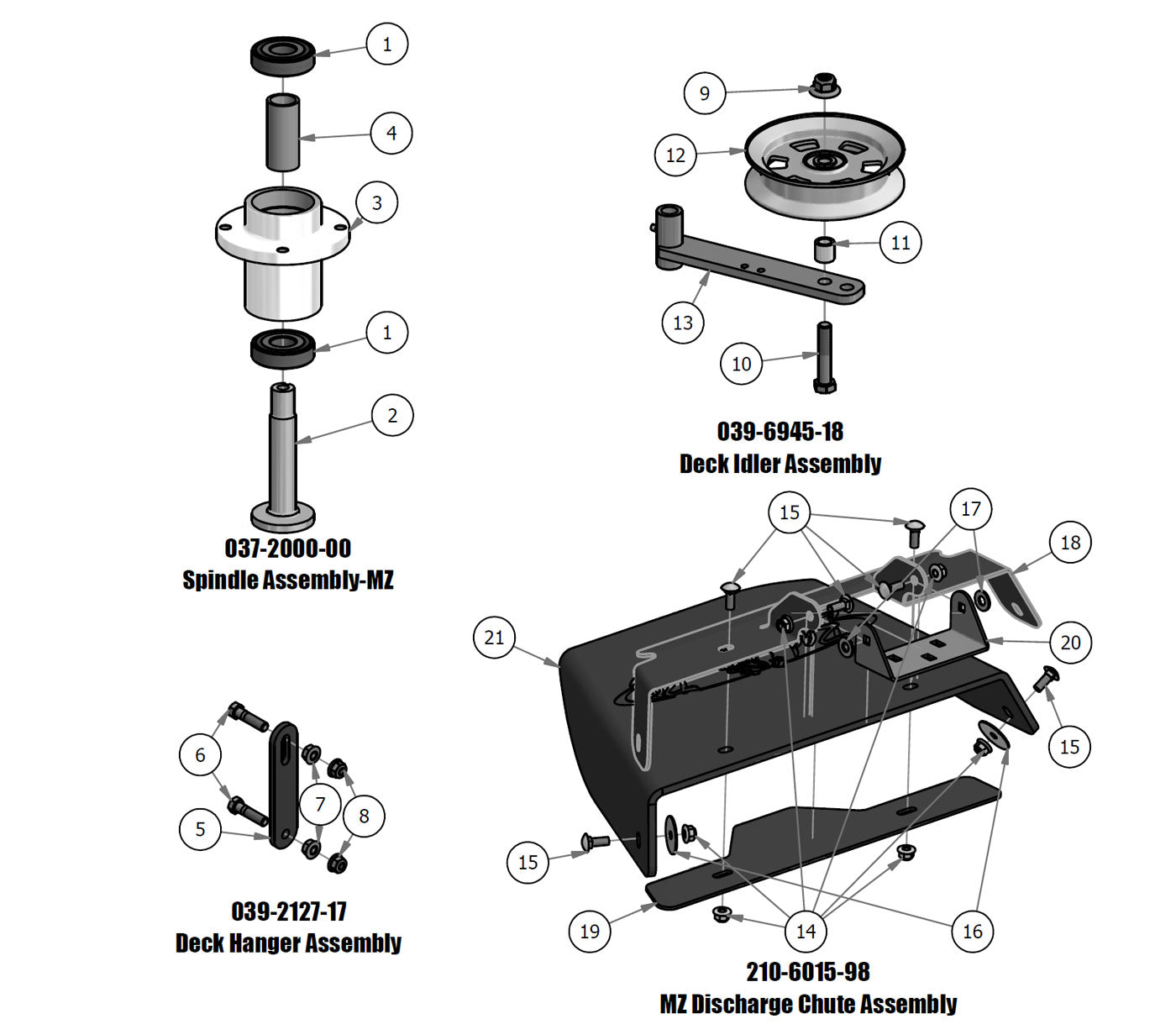

Spindle, Deck Hanger, Deck Idler, Chute Assembly
Parts Index
- 1 MZ Spindle Bearing (Qty 2)
- 2 mz spindle shaft (Qty 1)
- 3 MZ Spindle Housing (Qty 1)
- 4 MZ Spindle Spacer-Component (Qty 1)
- 5 Deck hanger for 039-2127-17 (Qty 1)
- 6 3/8 x 1 1/2 Bolt (Qty 2)
- 7 3/8-16 Hex Flange Nuts Zinc w/ (Qty 2)
- 8 3/8 Nylock Flange Nut (Qty 2)
- 9 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 10 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 11 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 12 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 13 Idler Bracket (Qty 1)
- 14 5/16-18 Nylon Flange Nut (Qty 6)
- 15 5/16 x 7/8 Carriage Bolt (Qty 6)
- 16 5/16" Fender Washer (Qty 2)
- 17 .360 ID Plastic Washer (Qty 2)
- 18 Discharge Chute Bracket 48 MZ (Qty 1)
- 19 OBSOLETE USE 039-4890-00 (Qty 1)
- 20 Chute Hanger 48 MZ (Qty 1)
- 21 2017 MZ Discharge Chute Rubber (Qty 1)
-
1#037-6024-00
MZ Spindle Bearing
Qty Used: 2Regular price $32.10 USDRegular priceUnit price per
-
2#037-6025-00
mz spindle shaft
Qty Used: 1Regular price $56.99 USDRegular priceUnit price per
-
3#037-6027-00
MZ Spindle Housing
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
4#037-6028-00
MZ Spindle Spacer-Component
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
5#039-2127-00
OBSOLETE USE 039-2127-17
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
6#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
7#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
8#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
9#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
10#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
11#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
12#033-8050-00
2017 5" Split Idler Pulley-Tensioner Only
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
13#039-6945-00
Idler Bracket
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
14#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
15#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 6Regular price $1.49 USDRegular priceUnit price per
-
16#019-0002-00
5/16" Fender Washer
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
17#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
18#039-4891-00
Discharge Chute Bracket 48 MZ
Qty Used: 1Regular price $33.11 USDRegular priceUnit price per
-
19#039-4892-00
OBSOLETE USE 039-4890-00
Qty Used: 1Regular price $33.11 USDRegular priceUnit price per
-
20#206-6020-00
Chute Hanger 48 MZ
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
21#210-6014-00
2017 MZ Discharge Chute Rubber
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
