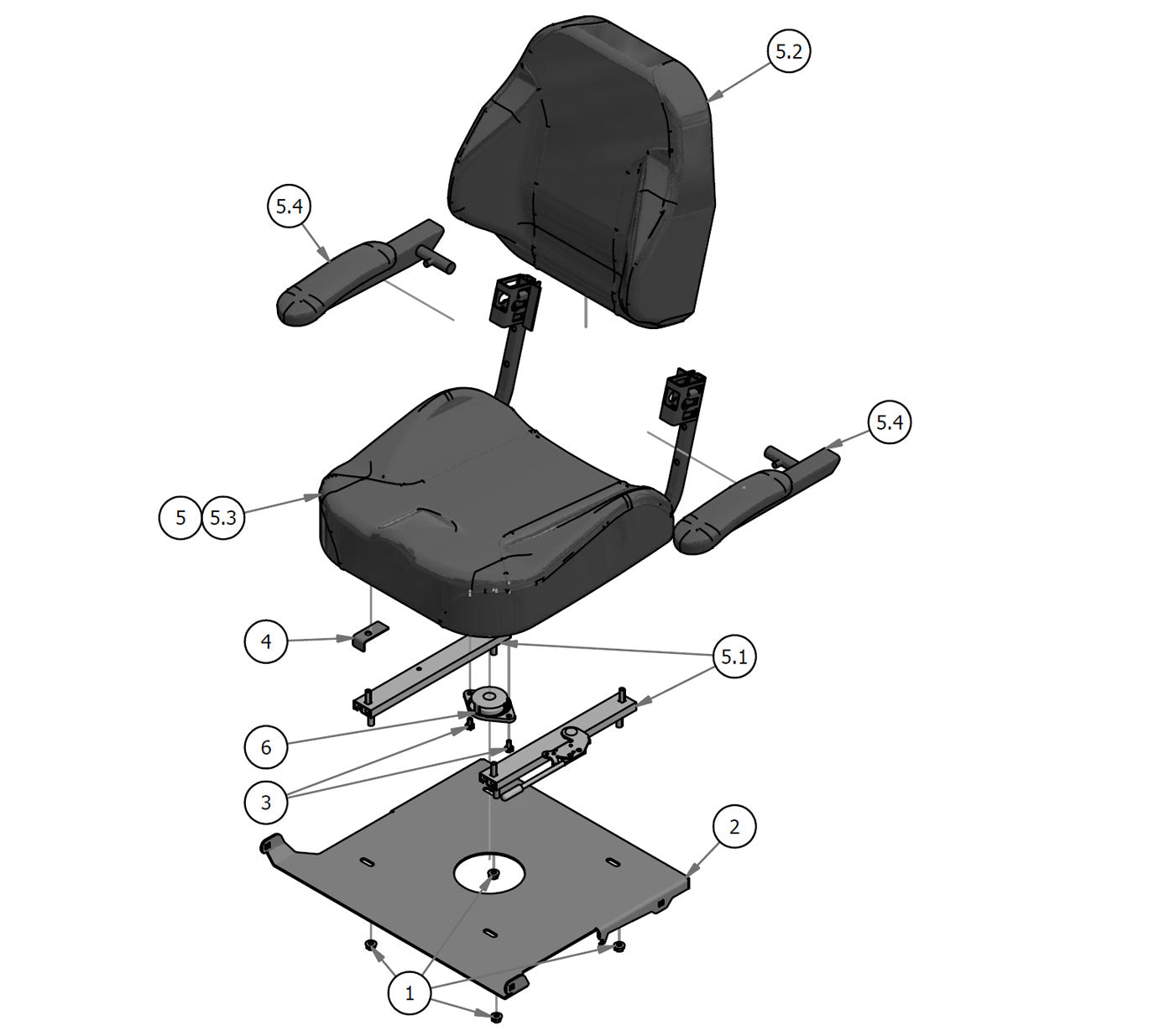

Seat Assembly (Kawasaki Magnum Only)
Parts Index
- 1 5/16-18 Nylon Flange Nut (Qty 4)
- 2 Seat Plate 2016--Orange (Qty 1)
- 3 1/4-20x1/2 HWH Bolt Slot Type (Qty 2)
- 4 MZ Seat Stop Bracket (Qty 1)
- 5 2017 ZT Seat/ 2019 Magnum Kaw (Qty 1)
- 5.1 Backrest Cushion OLD 071-2010 (Qty 1)
- 5.2 2017 ZT Back Cover For 071-2040-17 (Qty 1)
- 5.3 2017 ZT Seat Cover For 071-2040-17 (Qty 1)
- 5.4 2017 ZT/Maverick/2020 ZTElite/Avenger Arm Rest Kit (Qty 1)
- 6 13/14 MZ/Outlaw Seat Switch (Qty 1)
-
1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
2#026-1016-00
Seat Plate 2016--Orange
Qty Used: 1Regular price $102.11 USDRegular priceUnit price per
-
3#030-7041-00
1/4-20x1/2 HWH Bolt Slot Type
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
4#039-2155-00
MZ Seat Stop Bracket
Qty Used: 1Regular price $16.04 USDRegular priceUnit price per
-
5#071-2040-17
2017 ZT Seat/ 2019 Magnum Kaw
Qty Used: 1Regular price $529.99 USDRegular priceUnit price per
-
5.1#071-2015-00
Backrest Cushion OLD 071-2010
Qty Used: 1Regular price $79.95 USDRegular priceUnit price per
-
5.2#071-2050-00
2017 ZT Back Cover For 071-2040-17
Qty Used: 1Regular price $179.99 USDRegular priceUnit price per
-
5.3#071-2051-00
2017 ZT Seat Cover For 071-2040-17
Qty Used: 1Regular price $159.99 USDRegular priceUnit price per
-
5.4#071-2054-00
2017 ZT/Maverick/2020 ZTElite/Avenger Arm Rest Kit
Qty Used: 1Regular price $139.99 USDRegular priceUnit price per
-
6#071-8061-00
13/14 MZ/Outlaw Seat Switch
Qty Used: 1Regular price $17.89 USDRegular priceUnit price per
