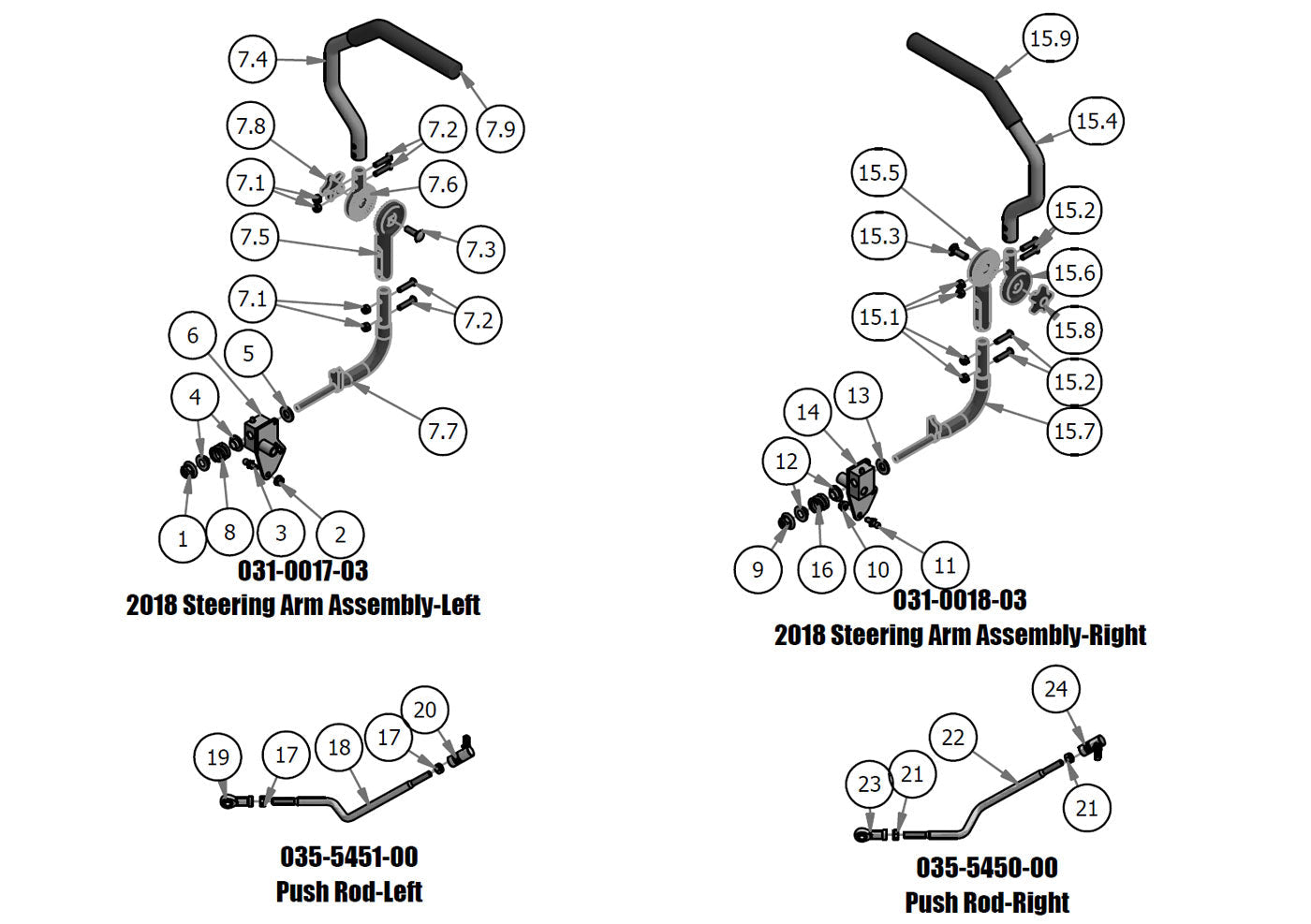

Steering Arms Assembly, Push Rod Assembly
Parts Index
- 1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 2 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 3 10mm Damper Ball Stud- (Qty 1)
- 4 .515 ID Plastic Shoulder Washer (Qty 2)
- 5 .505 ID X 1 OD X .128 THK Washer (Qty 1)
- 6 Drive Lever Housing LH (Qty 1)
- 7 2018 Adj. Steering Arm L-Black (Qty 1)
- 7.1 5/16-18 Nylon Insert Locknut Z (Qty 4)
- 7.2 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 4)
- 7.3 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 7.4 2018 Upper Tube Adjustable Steering Arm (Qty 1)
- 7.5 2018 Black Lower Adjuster - Steering Arm - Left (Qty 1)
- 7.6 2018 Black Upper Adjuster - Steering Arm - Left (Qty 1)
- 7.7 2018 Black Steering Arm Elbow - Left (Qty 1)
- 7.8 Knob - Adjustable Steering Arm (Qty 1)
- 7.9 Black Steering Grip (Qty 1)
- 8 Drive Lever Housing Spring (Qty 1)
- 9 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 10 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 11 10mm Damper Ball Stud- (Qty 1)
- 12 .515 ID Plastic Shoulder Washer (Qty 2)
- 13 .505 ID X 1 OD X .128 THK Washer (Qty 1)
- 14 Drive Lever Housing RH (Qty 1)
- 15 2018 Adj. Steering Arm R-Black (Qty 1)
- 15.1 5/16-18 Nylon Insert Locknut Z (Qty 4)
- 15.2 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 4)
- 15.3 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 15.4 2018 Upper Tube Adjustable Steering Arm (Qty 1)
- 15.5 2018 Black Lower Adjuster - Steering Arm - Right (Qty 1)
- 15.6 2018 Black Upper Adjuster - Steering Arm - Right (Qty 1)
- 15.7 2018 Black Steering Arm Elbow - Right (Qty 1)
- 15.8 Knob - Adjustable Steering Arm (Qty 1)
- 15.9 Black Steering Grip (Qty 1)
- 16 Drive Lever Housing Spring (Qty 1)
- 17 3/8-24 Hex Nut Zinc (Qty 2)
- 18 Push Rod LH (Assembly) (Qty 1)
- 19 Spherical Rod End (Qty 1)
- 20 Quick Release Ball Joint (Qty 1)
- 21 3/8-24 Hex Nut Zinc (Qty 2)
- 22 Push Rod RH (Assembly) (Qty 1)
- 23 Spherical Rod End (Qty 1)
- 24 Quick Release Ball Joint (Qty 1)
-
19#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
210#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
311#018-2050-00
10mm Damper Ball Stud-
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
412#019-8027-00
.515 ID Plastic Shoulder Washer
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
513#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
6#031-0017-98
Drive Lever Housing LH
Qty Used: 1Regular price $29.19 USDRegular priceUnit price per
-
7#031-9000-18
2018 Adj. Steering Arm L-Black
Qty Used: 1Regular price $144.50 USDRegular priceUnit price per
-
7.115.1#013-8047-00
5/16-18 Nylon Insert Locknut Z
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
7.215.2#018-2020-18
5/16-18 x 1 3/8\" Button Head Torx Drive Bolt
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
7.315.3#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
7.415.4#031-9010-18
2018 Upper Tube Adjustable Steering Arm
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
7.5#031-9014-18
2018 Black Lower Adjuster - Steering Arm - Left
Qty Used: 1Regular price $49.76 USDRegular priceUnit price per
-
7.6#031-9017-18
2018 Black Upper Adjuster - Steering Arm - Left
Qty Used: 1Regular price $49.76 USDRegular priceUnit price per
-
7.7#031-9020-18
2018 Black Steering Arm Elbow - Left
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
7.815.8#045-5000-00
Knob - Adjustable Steering Arm
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
7.915.9#069-4010-00
Black Steering Grip
Qty Used: 1Regular price $7.38 USDRegular priceUnit price per
-
816#034-8025-00
Drive Lever Housing Spring
Qty Used: 1Regular price $3.70 USDRegular priceUnit price per
-
14#031-0018-98
Drive Lever Housing RH
Qty Used: 1Regular price $21.89 USDRegular priceUnit price per
-
15#031-9050-18
2018 Adj. Steering Arm R-Black
Qty Used: 1Regular price $144.50 USDRegular priceUnit price per
-
15.5#031-9015-18
2018 Black Lower Adjuster - Steering Arm - Right
Qty Used: 1Regular price $49.76 USDRegular priceUnit price per
-
15.6#031-9016-18
2018 Black Upper Adjuster - Steering Arm - Right
Qty Used: 1Regular price $49.76 USDRegular priceUnit price per
-
15.7#031-9025-18
2018 Black Steering Arm Elbow - Right
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
1721#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
18#035-5451-00
Push Rod LH (Assembly)
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
1923#048-3000-00
Spherical Rod End-Outlaw Only
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
2024#099-2009-00
Quick Release Ball Joint
Qty Used: 1Regular price $8.99 USDRegular priceUnit price per
-
22#035-5450-00
Push Rod RH (Assembly)
Qty Used: 1Regular price $31.73 USDRegular priceUnit price per
