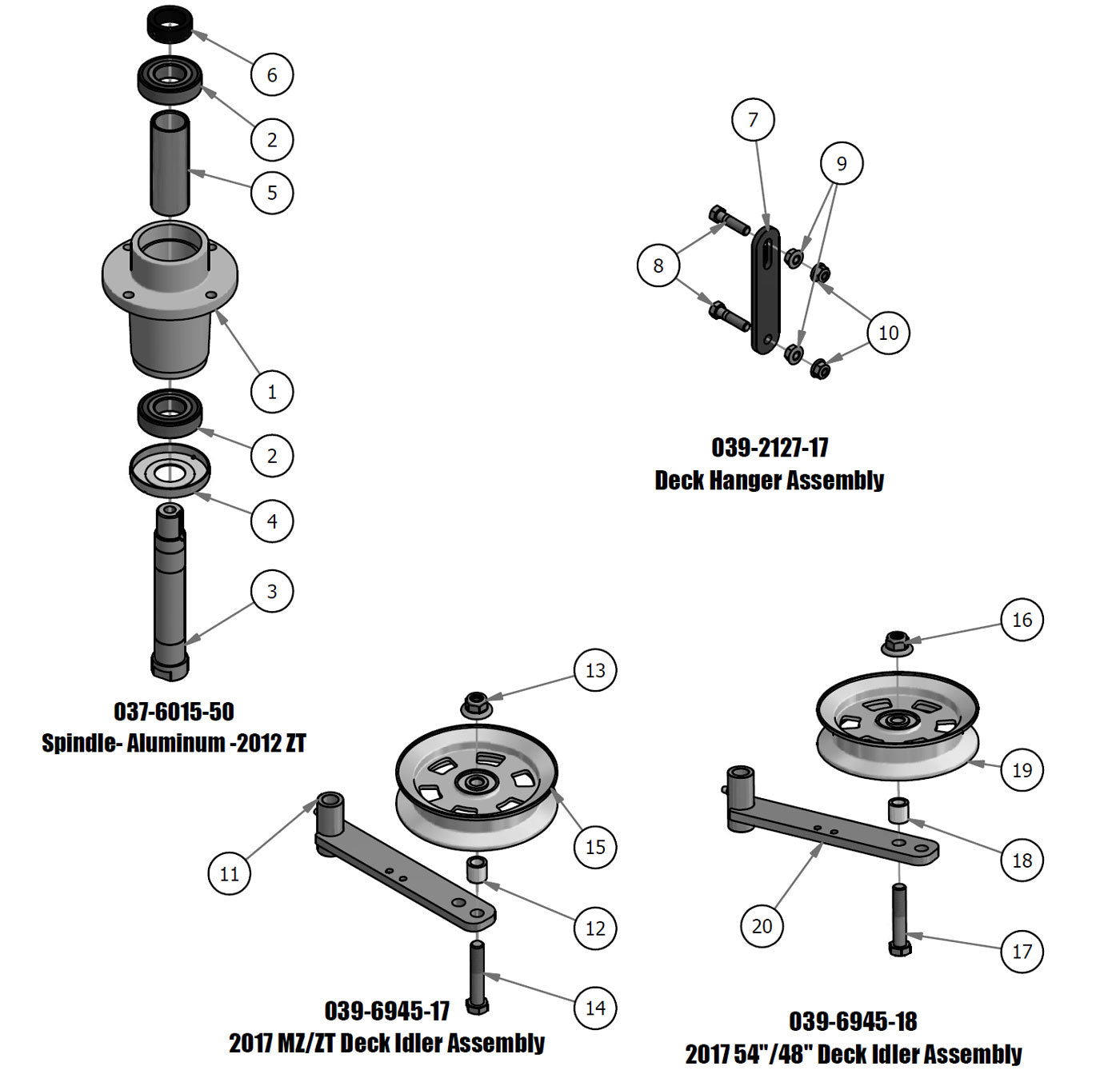

Spindle, Deck Hanger, Deck Idler
Parts Index
- 1 Aluminum Spindle Housing-2010 (Qty 1)
- 2 OBSOLETE USE 037-6029-00 (Qty 2)
- 3 Short Spindle Shaft for Locking Collar- No Grooved (Qty 1)
- 4 Dust Cover for 037-8000-00 - (Qty 1)
- 5 Tube Spacer for Spindle Shaft (Qty 1)
- 6 Collar Spacer - Top of Spindle (Qty 1)
- 7 Deck hanger for 039-2127-17 (Qty 1)
- 8 3/8 x 1 1/2 Bolt (Qty 2)
- 9 3/8-16 Hex Flange Nuts Zinc w/ (Qty 2)
- 10 3/8 Nylock Flange Nut (Qty 2)
- 11 Idler Bracket (Qty 1)
- 12 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 13 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 14 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 15 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 16 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 17 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 18 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 19 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 20 Idler Bracket (Qty 1)
-
1#037-6017-50
Aluminum Spindle Housing-2010
Qty Used: 1Regular price $119.36 USDRegular priceUnit price per
-
2#037-6023-00
OBSOLETE USE 037-6029-00
Qty Used: 2Regular price $39.79 USDRegular priceUnit price per
-
3#037-6026-00
Short Spindle Shaft w/Locking Collar- No Grooved
Qty Used: 1Regular price $78.29 USDRegular priceUnit price per
-
4#037-8002-00
Dust Cover for 037-8000-00
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
5#037-8050-00
Tube Spacer for Spindle Shaft
Qty Used: 1Regular price $7.90 USDRegular priceUnit price per
-
6#037-9050-00
Collar Spacer - Top of Spindle
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
7#039-2127-00
OBSOLETE USE 039-2127-17
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
8#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
9#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
10#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
1120#039-6945-00
Idler Bracket
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
1218#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
1316#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
1417#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
1519#033-8050-00
2017 5" Split Idler Pulley-Tensioner Only
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
