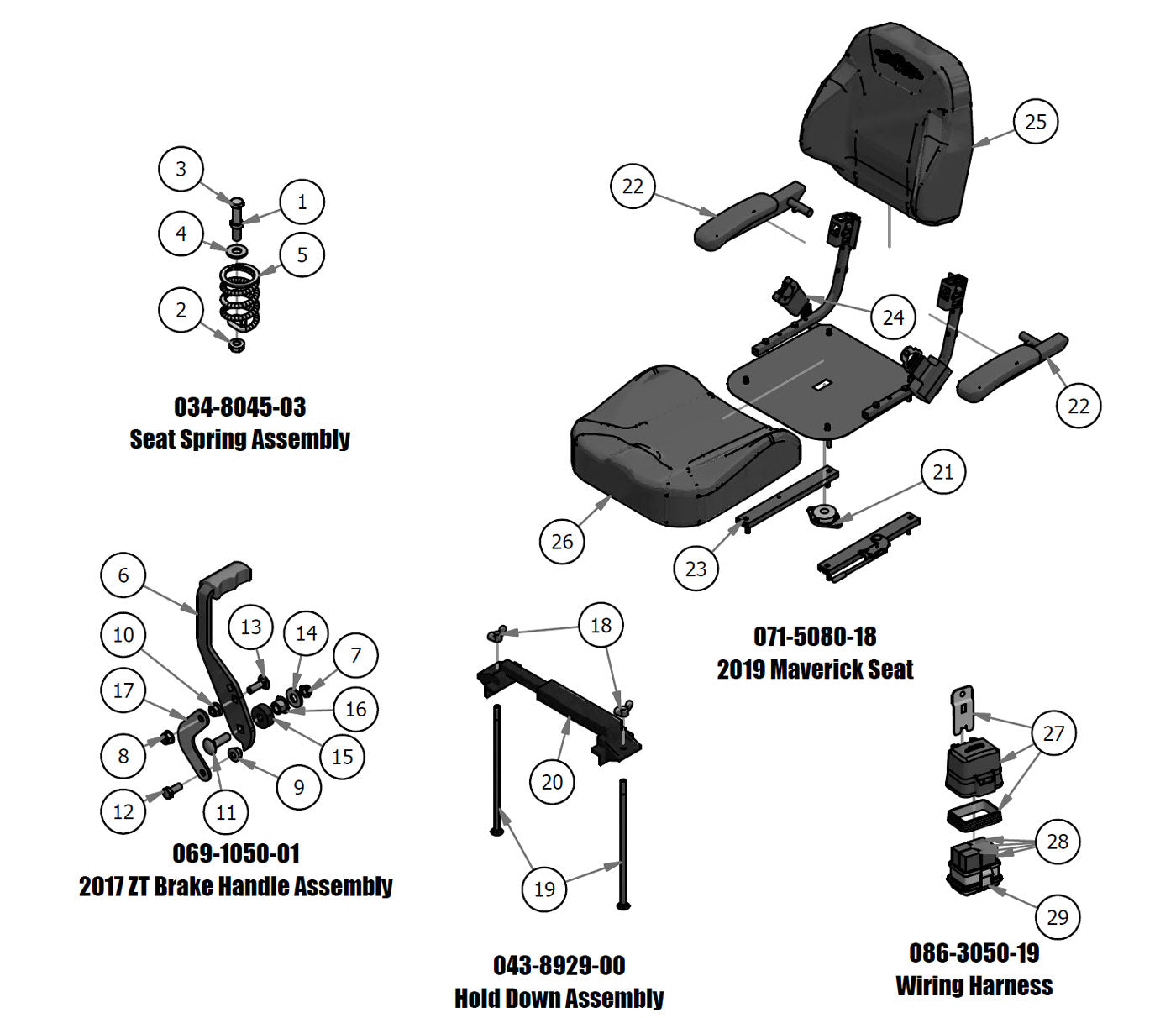

Seat Spring, Hold Down, Brake Handle, Seat, Wiring Harness
Parts Index
- 1 3/8-16 Half Jam Nut (Qty 1)
- 2 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 3 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 1)
- 4 3/8 USS Flat Washer Zinc (Qty 1)
- 5 Seat Spring (Qty 1)
- 6 Brake Handle (Qty 1)
- 7 3/8-16 Centerlock Half Nut (Qty 1)
- 8 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap) (Qty 1)
- 9 5/16-18 Nylon Flange Nut (Qty 1)
- 10 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 11 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 12 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 1)
- 13 5/16-18 X 1 Carriage Bolt Zinc (Qty 1)
- 14 3/8 USS Flat Washer Zinc (Qty 1)
- 15 Brake Lever Spacer (Qty 1)
- 16 Bronze Bushing SF-1220-8 (Qty 1)
- 17 Brake Cable Adapter Bracket (Qty 1)
- 18 1/4-20 Wing Nuts Zinc (Qty 2)
- 19 1/4-20 X 8 Carriage Bolts Zinc (Qty 2)
- 21 OBSOLETE USE 071-8061-00 (Qty 1)
- 22 2017 ZT/Maverick/2020 ZTElite/Avenger Arm Rest Kit (Qty 1)
- 23 Seat Rails for Outlaw Seat/2020 ZT Elite/ZTAvenger (Qty 1)
- 24 Seat Belt for 071-5080-17 (Qty 1)
- 25 Back Cover for 071-5080-18 (Qty 1)
- 26 Seat Cover for 071-5080-18 (Qty 1)
- 27 2019 Relay Cap Kit (Qty 1)
- 28 2019 Relay Terminal (Qty 4)
- 29 2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (Qty 1)
-
1#013-0017-00
3/8-16 Half Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
2#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
3#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
414#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
5#034-8045-00
Seat Spring
Qty Used: 1Regular price $19.15 USDRegular priceUnit price per
-
6#069-1050-00
Brake Handle
Qty Used: 1Regular price $17.24 USDRegular priceUnit price per
-
7#013-0012-00
3/8-16 Centerlock Half Nut
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
8#013-8042-00
5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap)
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
9#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
10#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
11#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
12#018-8063-00
5/16-18 X 3/4 GR 5 Hex Bolts Z
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
13#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
15#025-0001-00
Brake Lever Spacer
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
16#032-5053-00
Bronze Bushing SF-1220-8
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
17#039-0150-00
Brake Cable Adapter Bracket
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
18#013-8051-00
1/4-20 Wing Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
19#018-8050-00
1/4-20 X 8 Carriage Bolts Zinc
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
21#071-2045-00
OBSOLETE USE 071-8061-00
Qty Used: 1Regular price $17.89 USDRegular priceUnit price per
-
22#071-2054-00
2017 ZT/Maverick/2020 ZTElite/Avenger Arm Rest Kit
Qty Used: 1Regular price $139.99 USDRegular priceUnit price per
-
23#071-5015-00
Seat Rails for Outlaw Seat/2020 ZT Elite/ZTAvenger
Qty Used: 1Regular price $87.56 USDRegular priceUnit price per
-
24#071-5083-00
Seat Belt for 071-5080-17
Qty Used: 1Regular price $106.14 USDRegular priceUnit price per
-
25#071-5084-00
Back Cover for 071-5080-18
Qty Used: 1Regular price $119.41 USDRegular priceUnit price per
-
26#071-5089-00
Seat Cover for 071-5080-18
Qty Used: 1Regular price $119.41 USDRegular priceUnit price per
-
27#086-1202-01
2019 Relay Cap Kit
Qty Used: 1Regular price $17.24 USDRegular priceUnit price per
-
28#086-1202-19
2019 Relay Terminal
Qty Used: 4Regular price $23.34 USDRegular priceUnit price per
-
29#086-3050-19
2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
