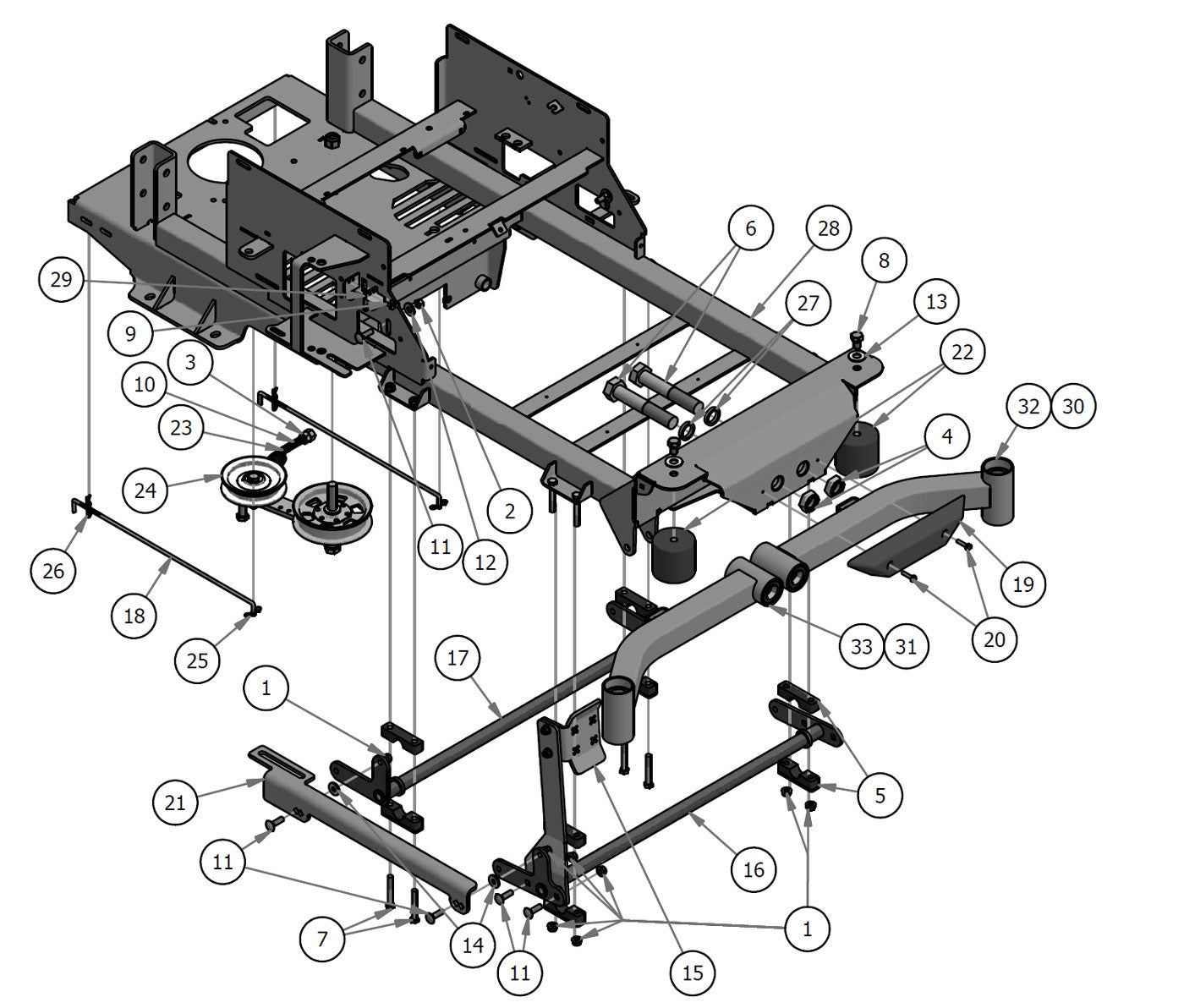

Lower Frame Assembly
Parts Index
- 1 3/8 Nylock Flange Nut (Qty 12)
- 2 3/8-16 Hex Nuts Zinc (Qty 2)
- 3 1" Nylock Nut 1/2 Nut - Fine (Qty 2)
- 4 1" Nylock Nut 1/2 Nut - Fine (Qty 2)
- 5 Pillow Block (Qty 4)
- 6 1-14 X 5 1/2 BOLT GR 8 ZC YELLOW (Qty 2)
- 7 3/8x2 1/2" Hex Bolt (Qty 8)
- 8 1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc (Qty 2)
- 9 12-24 x 1/2 HWH Bolt (Qty 4)
- 10 All Thread (Qty 1)
- 11 3/8-16 X 1-1/4 Carriage Bolt (Qty 6)
- 12 3/8 USS Flat Washer Zinc (Qty 2)
- 13 1/2 SAE Flat Washer GR 8 (Qty 2)
- 14 .360 ID Plastic Washer (Qty 2)
- 15 2017 MZ Foot Pedal Assembly (Qty 1)
- 16 Actuator Bar (Front) (Qty 1)
- 17 Actuator Bar (Rear) (Qty 1)
- 18 Neutral Rod (Qty 2)
- 19 ZT, Mav, HD, Revolt Front Bumper (Qty 1)
- 20 1/4 x 1 Hex Head Tek Screw (Qty 2)
- 21 2017 MZ/ZT Actuator Linkage--Orange (Qty 1)
- 22 Isolator (Red Dot) (Qty 2)
- 23 2015 Deck Idler Spring (Qty 1)
- 24 Pump Idler Bracket Assy-Maverick (Qty 1)
- 25 Bow Pin (Qty 1)
- 26 Neutral Rod Clip (Qty 1)
- 27 Spacer ( Front Fork and Suspension ) (Qty 2)
- 29 Safety Switch (Qty 2)
- 32 Suspension Arm LH (Qty 1)
- 33 Suspension Arm RH (Qty 1)
-
1#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 12Regular price $1.49 USDRegular priceUnit price per
-
2#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
34#013-9004-00
1" Nylock Nut 1/2 Nut - Fine
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
5#017-9076-00
Pillow Block
Qty Used: 4Regular price $21.88 USDRegular priceUnit price per
-
6#018-0026-00
1-14 X 5 1/2 BOLT GR 8 ZC YELLOW
Qty Used: 2Regular price $12.99 USDRegular priceUnit price per
-
7#018-0028-00
3/8x2 1/2" Hex Bolt
Qty Used: 8Regular price $3.99 USDRegular priceUnit price per
-
8#018-1055-00
1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
9#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
10#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
11#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 6Regular price $0.99 USDRegular priceUnit price per
-
12#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
13#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 2Regular price $0.75 USDRegular priceUnit price per
-
14#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
15#026-0019-01
2017 MZ Foot Pedal Assembly
Qty Used: 1Regular price $87.56 USDRegular priceUnit price per
-
16#028-0002-00
Actuator Bar (Front)
Qty Used: 1Regular price $72.97 USDRegular priceUnit price per
-
17#028-0003-00
Actuator Bar (Rear)
Qty Used: 1Regular price $72.97 USDRegular priceUnit price per
-
18#028-0070-00
Neutral Rod
Qty Used: 2Regular price $11.66 USDRegular priceUnit price per
-
-

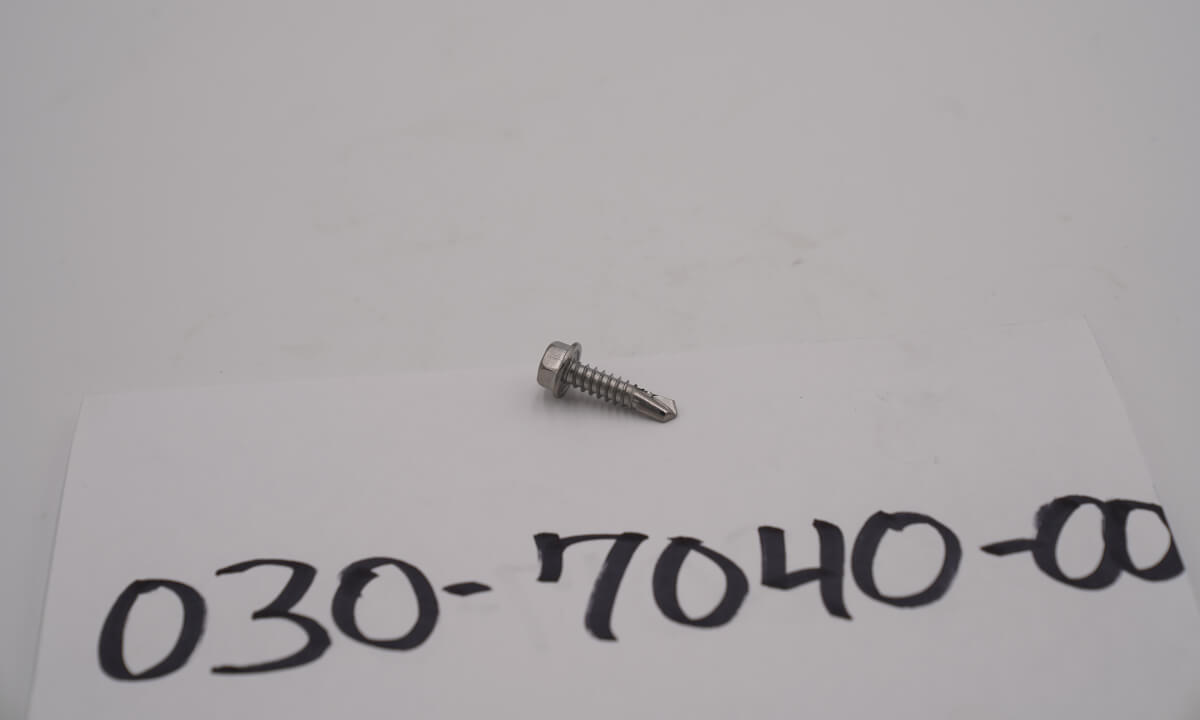

20#030-7040-00
1/4 x 1 Hex Head Tek Screw
Qty Used: 2Regular price $1.00 USDRegular priceUnit price per
-
21#031-0510-00
2017 MZ/ZT Actuator Linkage--Orange
Qty Used: 1Regular price $43.78 USDRegular priceUnit price per
-
22#032-9002-00
Isolator (Red Dot)
Qty Used: 2Regular price $66.33 USDRegular priceUnit price per
-
23#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
24#039-5944-05
Pump Idler Bracket Assy-Maverick
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
-
26#044-2008-00
Neutral Rod Clip
Qty Used: 1Regular price $1.31 USDRegular priceUnit price per
-
27#058-1000-00
Spacer ( Front Fork and Suspension )
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
29#077-8073-00
Safety Switch
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
32#250-2800-98
Suspension Arm LH
Qty Used: 1Regular price $87.51 USDRegular priceUnit price per
-

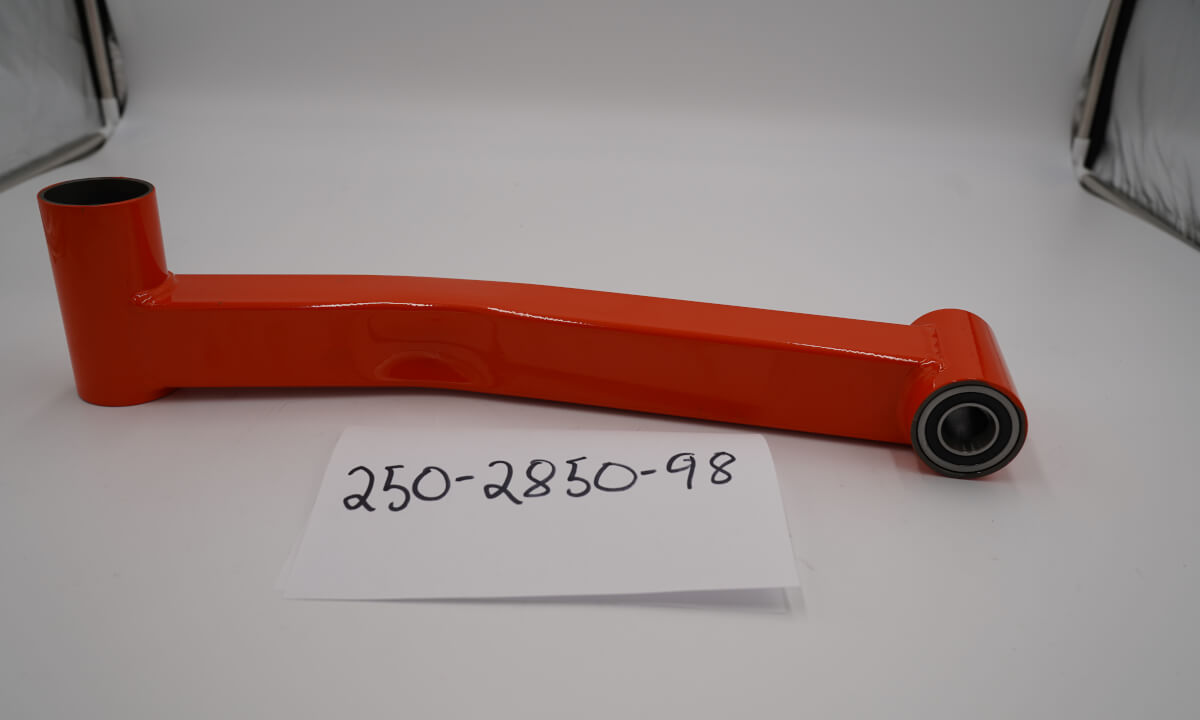

33#250-2850-98
Suspension Arm RH
Qty Used: 1Regular price $87.51 USDRegular priceUnit price per
