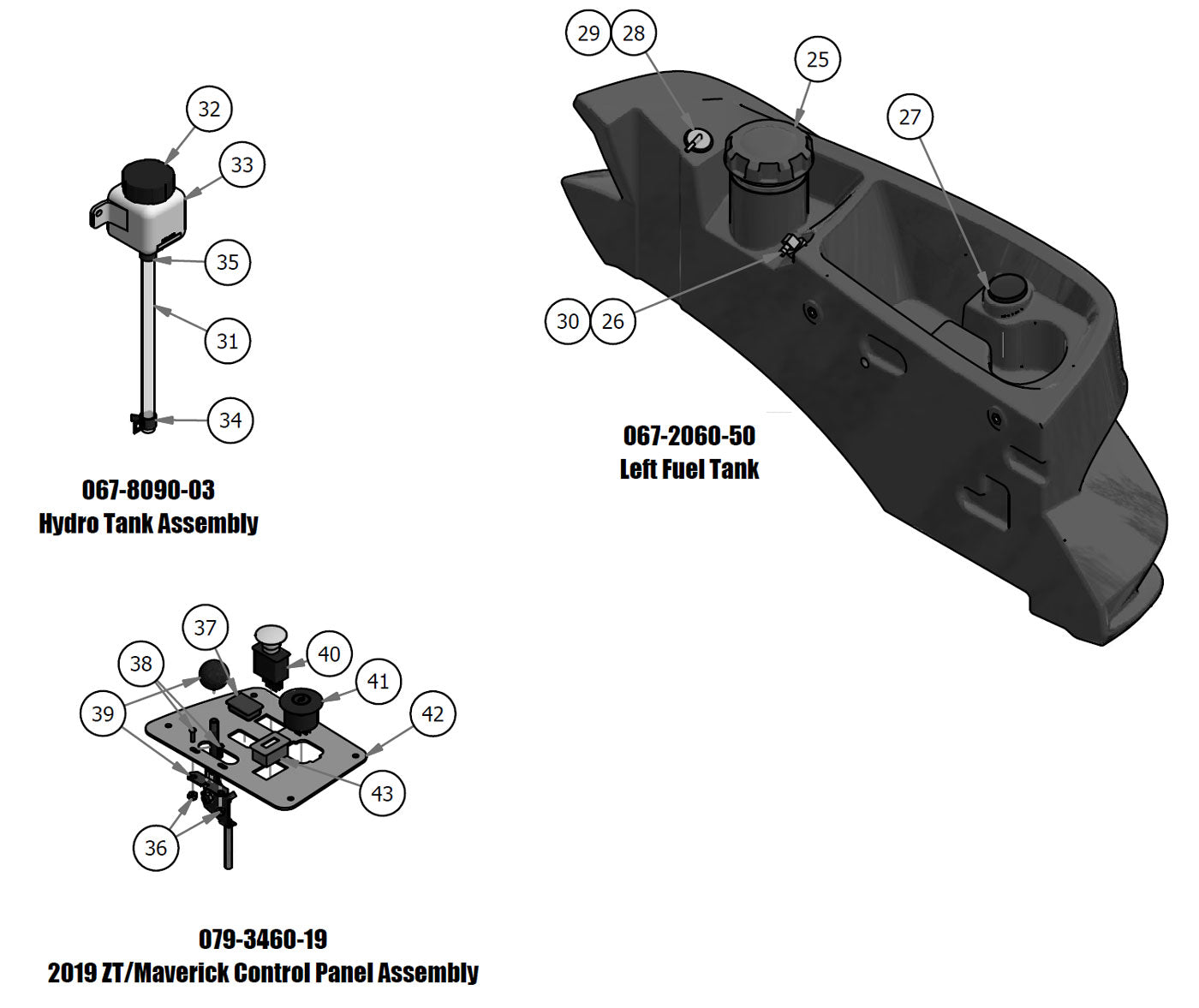

Fuel Tank, Hydro Tank, Control Panel Assembly
Parts Index
- 25 3.5" Tethered Fuel Cap (Qty 1)
- 26 Fuel Line Pickup Tube for ZT (Qty 1)
- 27 Fuel Gauge w/ Grommet (Qty 1)
- 28 Rollover Valve and Grommet New (Qty 1)
- 29 Rollover Valve and Grommet New (Qty 1)
- 30 Grommet for ZT Elite Fuel Line (Qty 1)
- 31 2017 ZT/ Maverick Hydro Tank Hose (Qty 1)
- 32 ZT Hydraulic Tank Cap (Qty 1)
- 33 71328-Expansion Tank CZT/ZT (Qty 1)
- 34 3/8 Hose Clamp - CTB-16-STFS (Qty 1)
- 35 1/2 Hose Clamp (Qty 1)
- 36 10-24 Nylon Insert Locknut Zin (Qty 2)
- 37 Light Plug (Qty 1)
- 38 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 39 ZT/Mav/MZ/Comp Outlaw Throttle-53" (Qty 1)
- 40 PTO Engager-Switch for Blades (Qty 1)
- 41 Ignition Switch (Qty 1)
- 42 2014 MZ/ZT Control Panel--Orange (Qty 1)
- 43 Tachometer-N310-0100-1018 (Qty 1)
-
25#066-8083-00
3.5" Tethered Fuel Cap
Qty Used: 1Regular price $19.84 USDRegular priceUnit price per
-
26#067-0011-00
Fuel Line Pickup Tube for ZT
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
27#067-4090-00
Fuel Gauge w/ Grommet
Qty Used: 1Regular price $42.99 USDRegular priceUnit price per
-

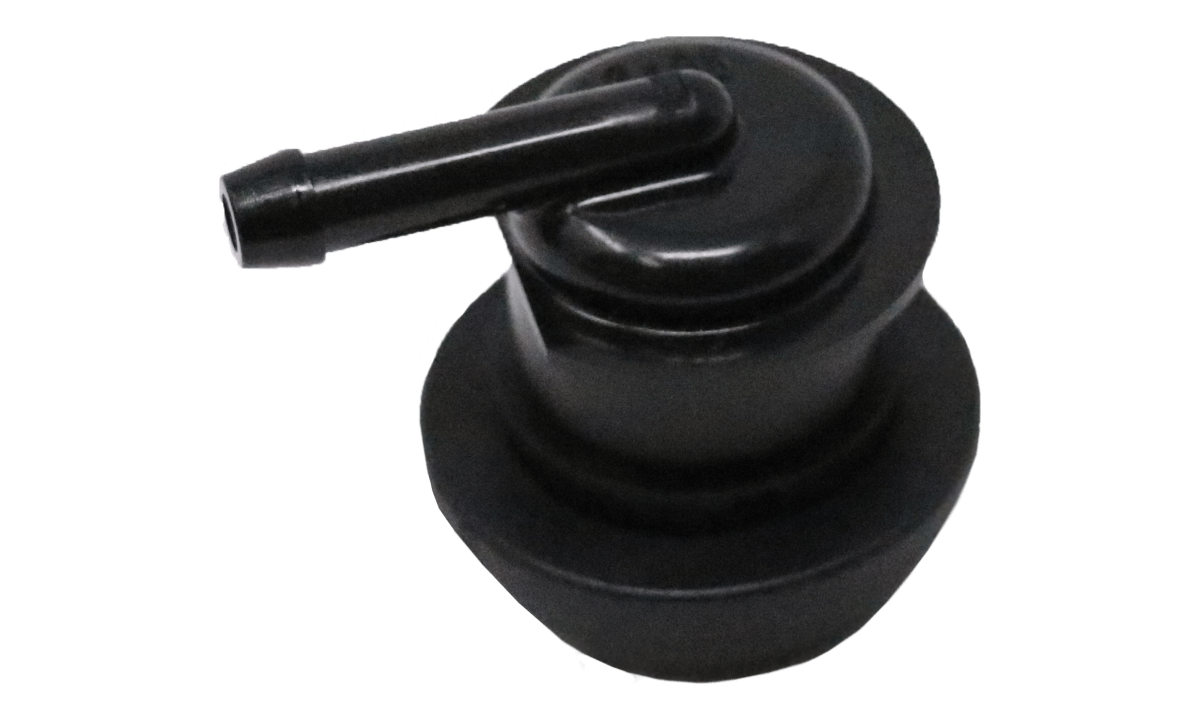

2829#067-6070-00
Rollover Valve and Grommet New
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-

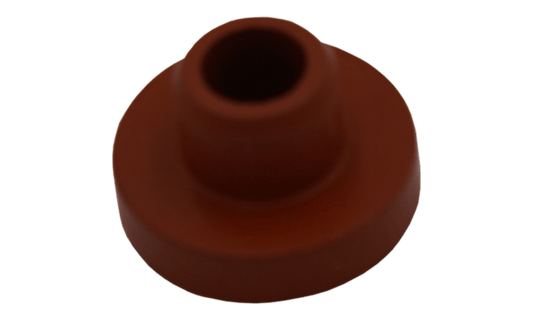

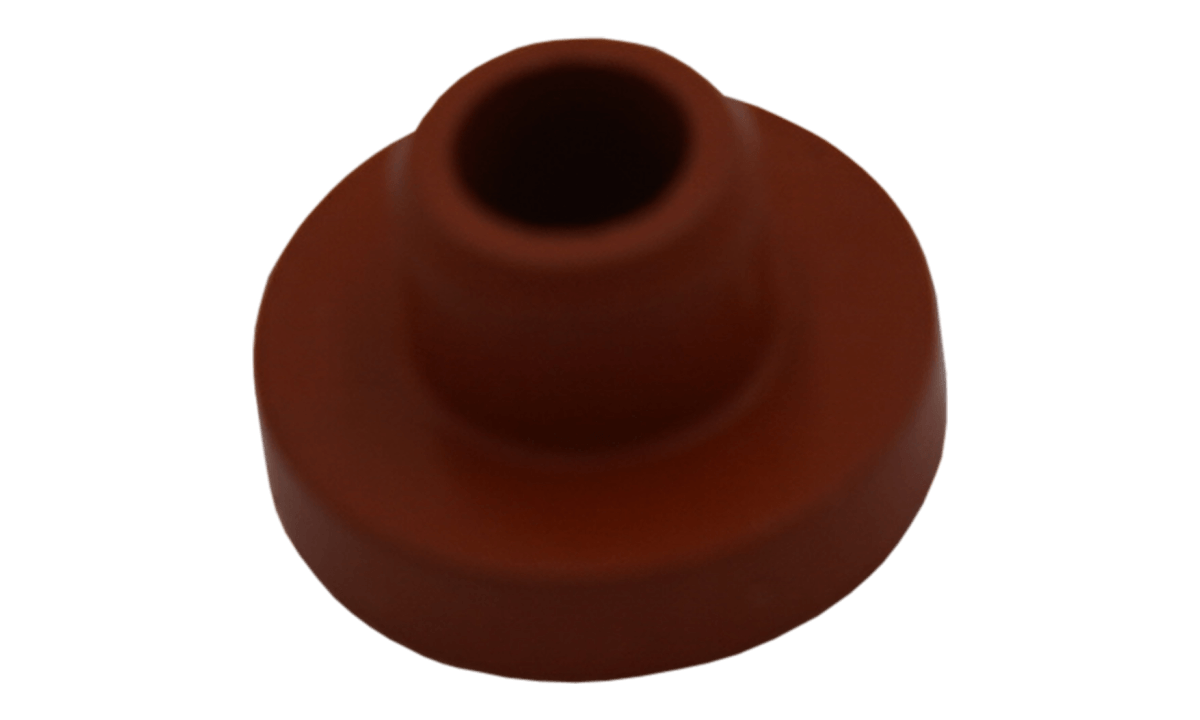

30#067-6080-00
Grommet for ZT Elite Fuel Line
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
31#051-0016-00
2017 ZT/ Maverick Hydro Tank Hose
Qty Used: 1Regular price $8.74 USDRegular priceUnit price per
-
32#066-5050-00
ZT Hydraulic Tank Cap
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
33#067-8090-00
71328-Expansion Tank CZT/ZT
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
34#072-8065-00
3/8 Hose Clamp - CTB-16-STFS
Qty Used: 1Regular price $0.88 USDRegular priceUnit price per
-
35#072-8066-00
1/2 Hose Clamp
Qty Used: 1Regular price $0.88 USDRegular priceUnit price per
-
36#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
37#018-1040-00
Light Plug
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
38#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
39#055-8020-00
ZT/Mav/MZ/Comp Outlaw Throttle-53\"
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
40#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
41#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
42#079-3460-00
2014 MZ/ZT Control Panel--Orange
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
43#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
