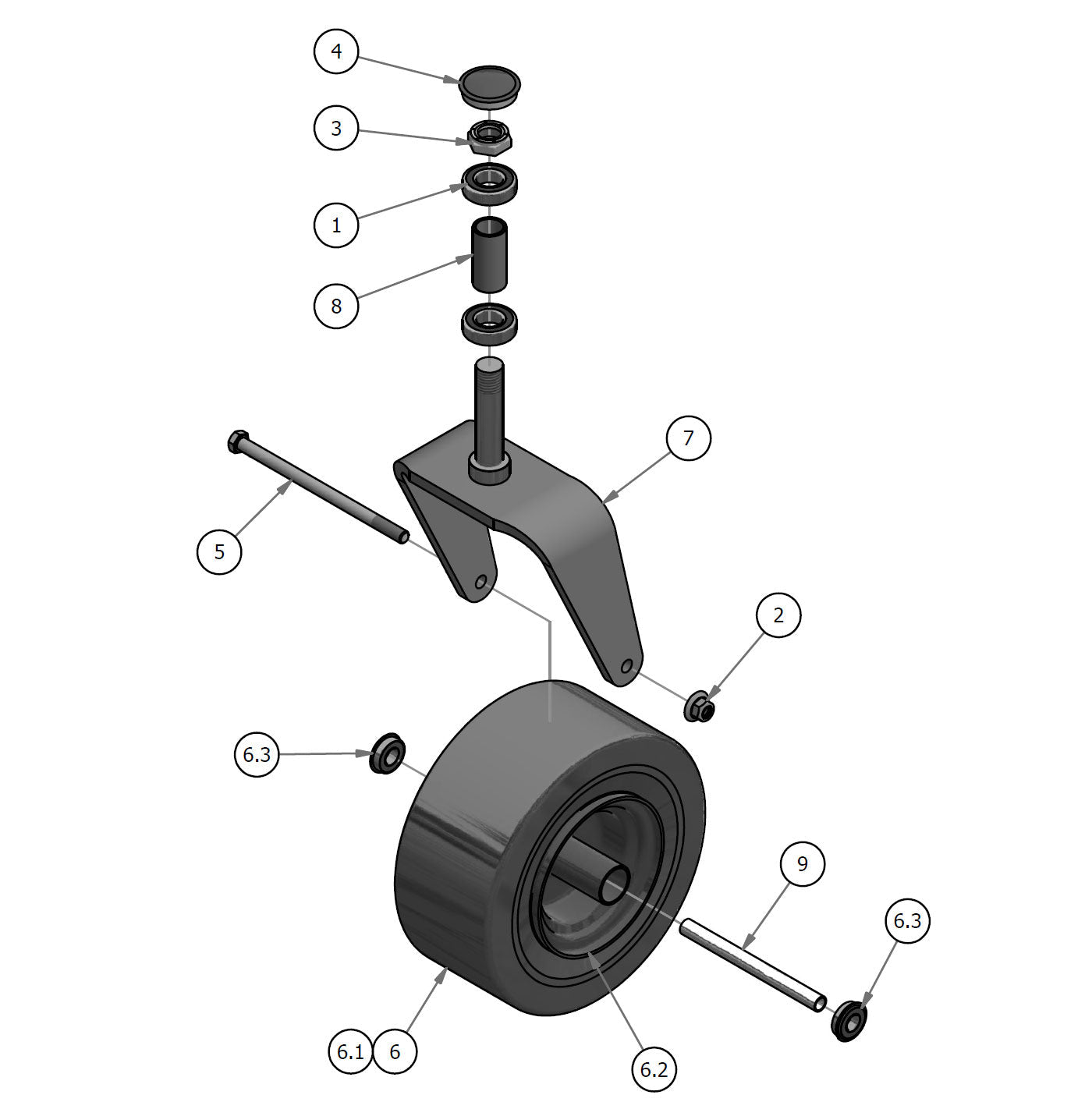

Front Fork Assembly

Parts Index
- 1 Caster Bearing (Qty 2)
- 2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 3 1" Nylock Nut 1/2 Nut - Fine (Qty 1)
- 4 Bearing Retainer Cap (Qty 1)
- 5 1/2-13 X 9 GR 5 Hex Bolts Zinc (Qty 1)
- 6 13x6.50-6 Caster Front (Qty 1)
- 6.1 13 x 6.50 - 6 Tire (Qty 1)
- 6.2 6 x 4.5 Black Wheel - Small Bore (Qty 1)
- 6.3 Ball Bearing w/clip; 99502H-NR; 5/8" Bore (Qty 2)
- 7 Front Fork (Qty 1)
- 8 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 1)
- 9 Front Wheel Spanner-All Models (Qty 1)
