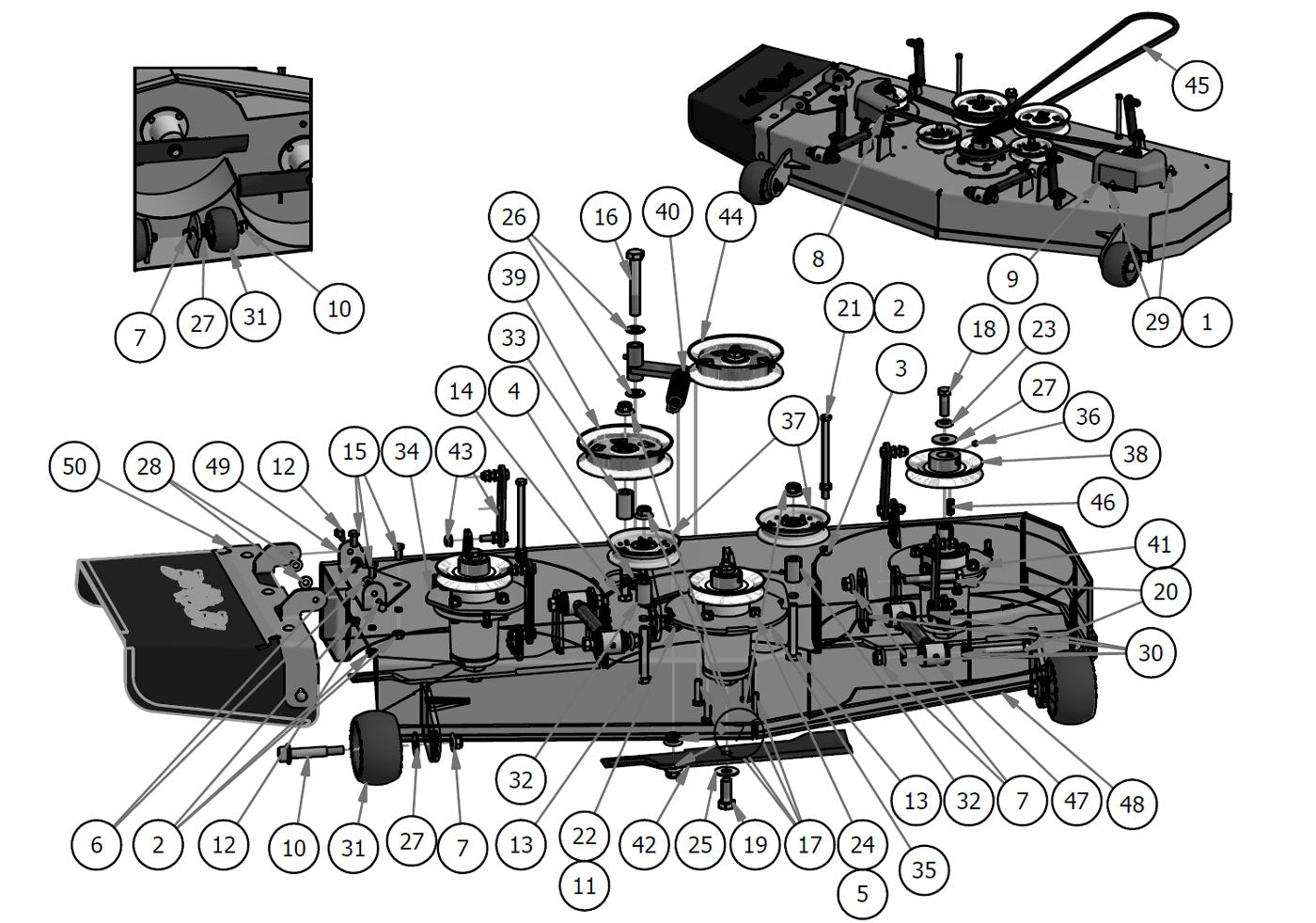

48" Deck Assembly
Parts Index
- 1 Acorn Nut-Pulley Cover (Qty 4)
- 2 3/8-16 Hex Flange Nuts Zinc w/ (Qty 5)
- 3 3/8 Nylock Flange Nut (Qty 2)
- 4 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 5 3/8-16 Hex Nuts Zinc (Qty 12)
- 6 5/16-18 Nylon Flange Nut (Qty 2)
- 7 1/2-13 Nylon Insert Flange Nut (Qty 13)
- 8 Pulley Cover RH 42"/48" (Qty 1)
- 9 Pulley Cover LH 42"/48" (Qty 1)
- 10 Deck Wheel Bolt (Qty 4)
- 11 1/2 x 2 Carriage Bolt (Qty 1)
- 12 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 13 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 14 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 1)
- 15 3/8-16 X 3/4 GR 5 Hex Bolts (Qty 3)
- 16 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 17 3/8 x 1 1/2 Bolt (Qty 12)
- 18 1/2-20 X 1-1/2 GR 5 Bolts Zinc (Qty 3)
- 19 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 3)
- 20 1/2-13 X 3-1/2 GR 5 Hex Bolts (Qty 4)
- 21 1/2-13 X 3-1/2 GR 5 Hex Bolts (Qty 2)
- 22 .517 Square Hole Round Washer (Qty 1)
- 23 1/2 Lockwasher Zinc (Qty 3)
- 24 3/8 Lockwasher Zinc (Qty 12)
- 25 5/8 Flat Washer (Qty 3)
- 26 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 27 1/2 Belleville Washer #K2000-G (Qty 7)
- 28 .360 ID Plastic Washer (Qty 2)
- 29 .360 ID Black Plastic Washer (Qty 4)
- 30 .505 ID X 1 OD X .128 THK Washer (Qty 8)
- 31 Deck Wheel (Qty 4)
- 32 .502 ID X 1.000 0D X 1.500 (Qty 2)
- 33 .502 ID X 1.00 OD X 1.750 (Qty 1)
- 34 42 & 48 Deck Spindle Support Plate--Orange (Qty 2)
- 35 Deck Spindle Support Plate 60"--Orange (Qty 1)
- 36 5/16-24 x 1/4 Set Screw (Qty 3)
- 37 4 3/4 Idler Pulley - ABFI-76 (Qty 2)
- 38 5" Spindle Deck Pulley - DB-80 (Qty 3)
- 39 5 3/4 Idler Pulley-Capitol (Qty 1)
- 40 2015 Deck Idler Spring (Qty 1)
- 41 Spindle-Aluminum (Qty 3)
- 42 48" ZT/Mav/Compact Outlaw Blade (Qty 3)
- 43 MZ/ZT Deck Hanger Assembly (Qty 4)
- 44 2017 54"/48" Deck Idler Assembly (Qty 1)
- 45 48" MZ/ZT/Mav/Compact Outlaw Deck Belt (Qty 1)
- 46 1/4 x 1 Square Key (Qty 3)
- 47 Toplink (Qty 2)
- 48 2017 48" ZT Deck (Qty 1)
- 49 Discharge Chute Hanger-Deck (Qty 1)
- 50 2013 48" ZT/Chute Assembly (Qty 1)
-
1#013-0004-00
Acorn Nut-Pulley Cover
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
2#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 5Regular price $1.49 USDRegular priceUnit price per
-
3#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
4#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
5#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 12Regular price $0.00 USDRegular priceUnit price per
-
6#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
7#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 13Regular price $1.39 USDRegular priceUnit price per
-
8#014-4025-00
Pulley Cover RH
Qty Used: 1Regular price $16.69 USDRegular priceUnit price per
-
9#014-4026-00
Pulley Cover LH 42\"/48\"
Qty Used: 1Regular price $16.69 USDRegular priceUnit price per
-
10#018-0010-00
Deck Wheel Bolt - 2011 Outlaw
Qty Used: 4Regular price $5.89 USDRegular priceUnit price per
-
11#018-1050-00
1/2 x 2 Carriage Bolt
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
1213#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
14#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
15#018-5250-00
3/8-16 X 3/4 GR 5 Hex Bolts
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
16#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
17#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
18#018-6019-00
1/2-20 X 1-1/2 GR 5 Bolts Zinc
Qty Used: 3Regular price $1.19 USDRegular priceUnit price per
-
19#018-6020-00
5/8-18 X 1-1/2 GR 8 Hex Bolts
Qty Used: 3Regular price $2.49 USDRegular priceUnit price per
-
2021#018-6054-00
1/2-13 X 3-1/2 GR 5 Hex Bolts
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
22#019-0007-00
.517 Square Hole Round Washer
Qty Used: 1Regular price $1.09 USDRegular priceUnit price per
-
23#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 3Regular price $0.00 USDRegular priceUnit price per
-
24#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 12Regular price $0.00 USDRegular priceUnit price per
-
25#019-5038-00
5/8 Flat Washer
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
26#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
27#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 7Regular price $4.69 USDRegular priceUnit price per
-
28#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
29#019-6050-00
.360 ID Black Plastic Washer
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
30#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 8Regular price $0.69 USDRegular priceUnit price per
-
31#022-1000-00
Deck Wheel
Qty Used: 4Regular price $15.99 USDRegular priceUnit price per
-
32#025-5338-00
.502 ID X 1.000 0D X 1.500
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
33#025-5339-00
.502 ID X 1.00 OD X 1.750
Qty Used: 1Regular price $4.87 USDRegular priceUnit price per
-
34#026-0024-00
42 & 48 Deck Spindle Support Plate--Orange
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
35#026-0025-00
Deck Spindle Support Plate 60\"--Orange
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
36#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 3Regular price $1.59 USDRegular priceUnit price per
-
37#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 2Regular price $29.18 USDRegular priceUnit price per
-
38#033-6003-00
5" Spindle Deck Pulley - DB-80
Qty Used: 3Regular price $39.79 USDRegular priceUnit price per
-
39#033-7201-25
5 3/4 Idler Pulley-Capitol
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
40#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
41#037-6015-50
Spindle-Aluminum
Qty Used: 3Regular price $199.99 USDRegular priceUnit price per
-
42#038-5350-00
48" ZT/Mav/Compact Outlaw Blade with Fusion
Qty Used: 3Regular price $21.16 USDRegular priceUnit price per
-
43#039-2127-17
MZ/ZT Deck Hanger Assembly
Qty Used: 4Regular price $14.58 USDRegular priceUnit price per
-
44#039-6945-18
2017 54"/48" Deck Idler Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
45#041-1470-00
48" MZ/ZT/Mav/Compact Outlaw Deck Belt
Qty Used: 1Regular price $81.67 USDRegular priceUnit price per
-
46#042-6030-00
1/4 x 1 Square Key
Qty Used: 3Regular price $4.37 USDRegular priceUnit price per
-
-
48#060-4817-00
2017 48" ZT Deck
Qty Used: 1Regular price $659.99 USDRegular priceUnit price per
-
49#206-6017-00
Discharge Chute Hanger-Deck
Qty Used: 1Regular price $36.48 USDRegular priceUnit price per
-
50#210-6005-48
2013 48" ZT/Chute Assembly
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
