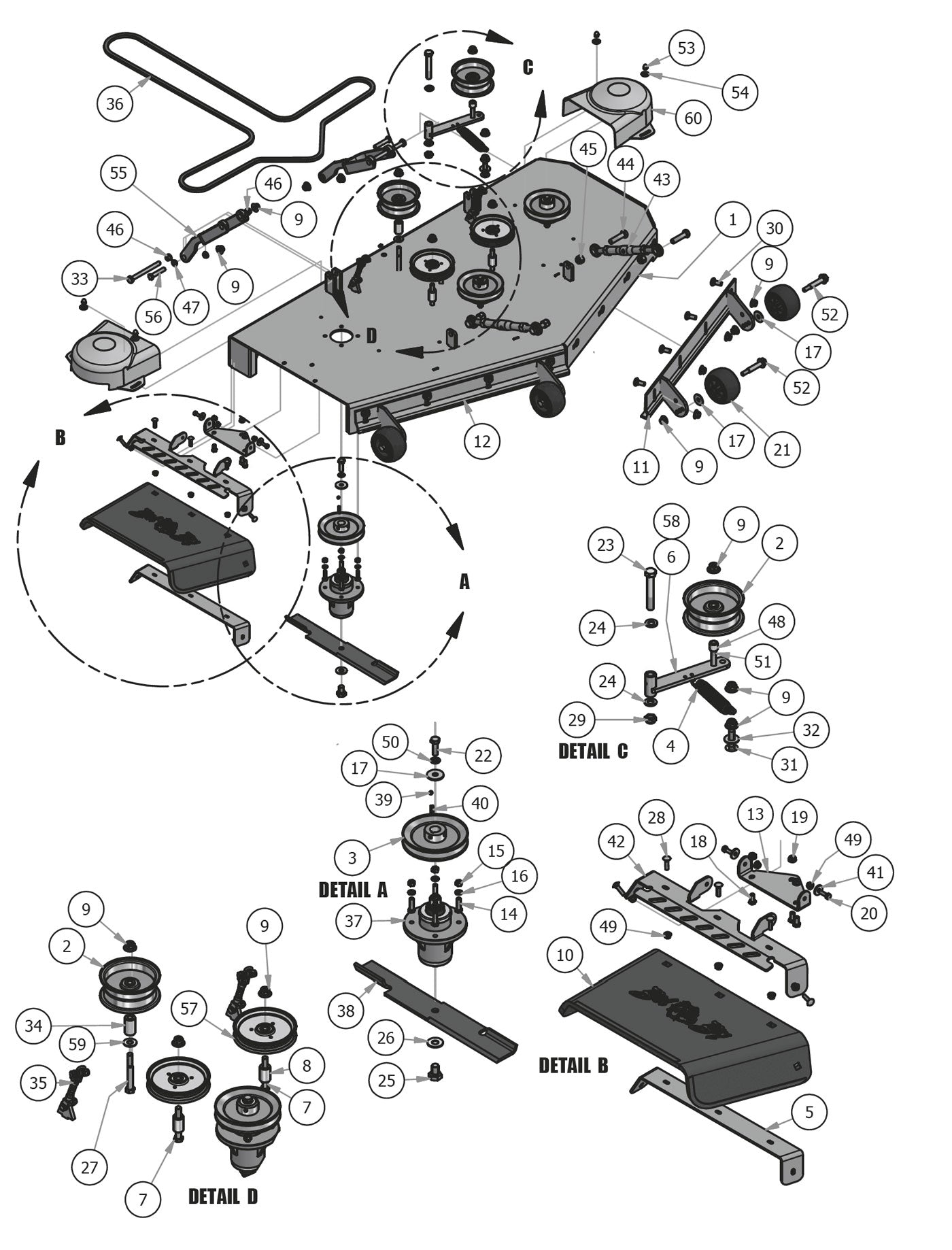

61" Deck Assembly
Parts Index
- 2 Double Bearing Flat Idler (Qty 2)
- 3 6 1/4 Spindle Deck Pulley (Qty 3)
- 4 2015 Deck Idler Spring (Qty 1)
- 5 60 Discharge Lower Bracket (Qty 1)
- 6 Idler Bracket (Qty 1)
- 7 1/2 x 3 1/2 Flange Bolt - Gr 8 (Qty 2)
- 8 .502 ID X 1.000 0D X 1.500 (Qty 2)
- 9 1/2-13 Nylon Insert Flange Nut (Qty 24)
- 10 Discharge Chute (Rubber Component) (Qty 1)
- 11 Left Hand 61 Outlaw Adjustable Deck Front Gate (Qty 1)
- 12 Right Hand 61 Outlaw Adjustable Deck Front Gate (Qty 1)
- 13 Discharge Chute Hanger-Deck (Qty 1)
- 14 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 112)
- 15 3/8-16 Hex Nuts Zinc (Qty 12)
- 16 3/8 Lockwasher Zinc (Qty 12)
- 17 1/2 Belleville Washer #K2000-G (Qty 9)
- 18 3/8-16 X 3/4 GR 5 Hex Bolts (Qty 3)
- 19 3/8-16 Hex Flange Nuts Zinc w/ (Qty 3)
- 20 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 21 Deck Wheel (Qty 6)
- 22 1/2-20 X 1-1/2 GR 5 Bolts Zinc (Qty 3)
- 23 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 24 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 25 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 3)
- 26 5/8 Flat Washer (Qty 3)
- 27 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 1)
- 28 5/16-18 X 1-1/4 Carriage Bolt (Qty 5)
- 29 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 30 1/2 x 1 1/4 Carriage Bolt (Qty 8)
- 31 1/2 x 2 Carriage Bolt (Qty 1)
- 32 .517 Square Hole Round Washer (Qty 1)
- 33 1/2-13x5 1/2 Hex Bolt Grade 5 (Qty 2)
- 34 .502 ID X 1.00 OD X 1.750 (Qty 1)
- 35 OBSOLETE USE 046-6048-98 (Qty 2)
- 36 B236 Belt - 61 Diesel EZ Ride (Qty 1)
- 37 OBSOLETE USE 037-4000-00 (Qty 3)
- 38 61" High Lift Blade (Qty 3)
- 39 5/16-24 x 1/4 Set Screw (Qty 3)
- 40 1/4 x 1 Square Key (Qty 3)
- 41 .360 ID Plastic Washer (Qty 2)
- 42 60 Discharge Chute Upper (Qty 1)
- 43 Toplink/Turnbuckle-Deck Adjust (Qty 2)
- 44 5/8-11 X 2-1/2 GR 5 Hex Bolts (Qty 4)
- 45 5/8-11 Nylon Insert Locknut Zi (Qty 4)
- 46 Flange Bushing-Deck Arms (Qty 4)
- 47 Flange for Lower Deck Arm (Qty 4)
- 48 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 49 5/16-18 Nylon Flange Nut (Qty 7)
- 50 1/2 Lockwasher Zinc (Qty 3)
- 51 1/2-13 X 3 GR 5 Hex Bolts Zinc (Qty 1)
- 52 Deck Wheel Bolt (Qty 6)
- 53 Acorn Nut-Pulley Cover (Qty 4)
- 54 .360 ID Black Plastic Washer (Qty 4)
- 55 2015 Deck Hanger-Black (Qty 2)
- 56 1/2-13 x 2 1/2 Hex Bolt Gr 5 (Qty 2)
- 57 5 3/4 Idler Pulley-Capitol (Qty 2)
- 58 Deck Idler Assembly-Pup/Lightning (Qty 1)
- 59 1/2 SAE Flat Washer GR 8 (Qty 1)
- 60 Pulley Cover (Qty 2)
-
2#033-5000-00
Double Bearing Flat Idler
Qty Used: 2Regular price $53.06 USDRegular priceUnit price per
-
3#033-6004-00
6 1/4 Spindle Deck Pulley
Qty Used: 3Regular price $33.16 USDRegular priceUnit price per
-
4#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
5#039-4863-00
60 Discharge Lower Bracket
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
6#039-6945-00
Idler Bracket
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
7#018-2018-00
1/2 x 3 1/2 Flange Bolt - Gr 8
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
8#025-5338-00
.502 ID X 1.000 0D X 1.500
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
9#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 24Regular price $1.39 USDRegular priceUnit price per
-
10#210-6005-00
Discharge Chute (Rubber Component)
Qty Used: 1Regular price $55.99 USDRegular priceUnit price per
-
11#060-6220-00
Left Hand 61 Outlaw Adjustable Deck Front Gate
Qty Used: 1Regular price $66.28 USDRegular priceUnit price per
-
12#060-6210-00
Right Hand 61 Outlaw Adjustable Deck Front Gate
Qty Used: 1Regular price $66.28 USDRegular priceUnit price per
-
13#206-6017-00
Discharge Chute Hanger-Deck
Qty Used: 1Regular price $36.48 USDRegular priceUnit price per
-
14#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 112Regular price $0.79 USDRegular priceUnit price per
-
15#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 12Regular price $0.00 USDRegular priceUnit price per
-
16#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 12Regular price $0.00 USDRegular priceUnit price per
-
17#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 9Regular price $4.69 USDRegular priceUnit price per
-
18#018-5250-00
3/8-16 X 3/4 GR 5 Hex Bolts
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
19#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
20#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
21#022-1000-00
Deck Wheel
Qty Used: 6Regular price $15.99 USDRegular priceUnit price per
-
22#018-6019-00
1/2-20 X 1-1/2 GR 5 Bolts Zinc
Qty Used: 3Regular price $1.19 USDRegular priceUnit price per
-
23#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
24#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
25#018-6020-00
5/8-18 X 1-1/2 GR 8 Hex Bolts
Qty Used: 3Regular price $2.49 USDRegular priceUnit price per
-
26#019-5038-00
5/8 Flat Washer
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
27#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
28#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-
29#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
30#018-3003-00
1/2 x 1 1/4 Carriage Bolt
Qty Used: 8Regular price $0.89 USDRegular priceUnit price per
-
31#018-1050-00
1/2 x 2 Carriage Bolt
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
32#019-0007-00
.517 Square Hole Round Washer
Qty Used: 1Regular price $1.09 USDRegular priceUnit price per
-
33#018-1090-00
1/2-13x5 1/2 Hex Bolt Grade 5
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
34#025-5339-00
.502 ID X 1.00 OD X 1.750
Qty Used: 1Regular price $4.87 USDRegular priceUnit price per
-

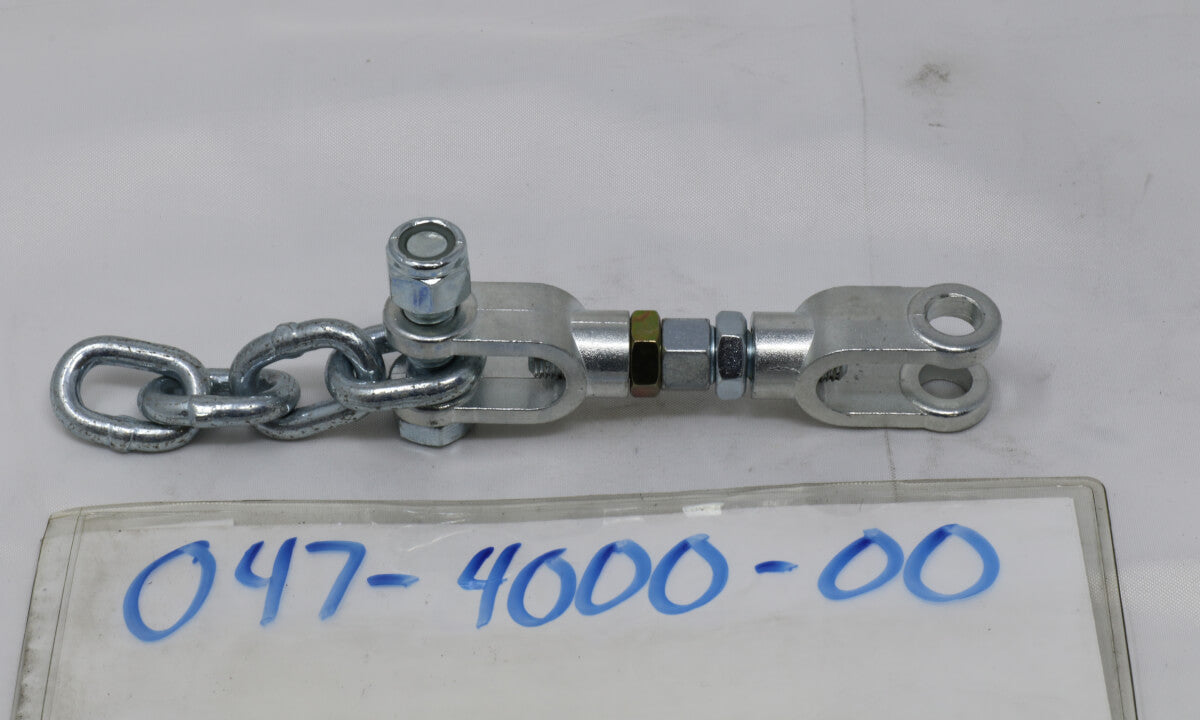

35#047-4000-00
OBSOLETE USE 046-6048-98
Qty Used: 2Regular price $29.99 USDRegular priceUnit price per
-

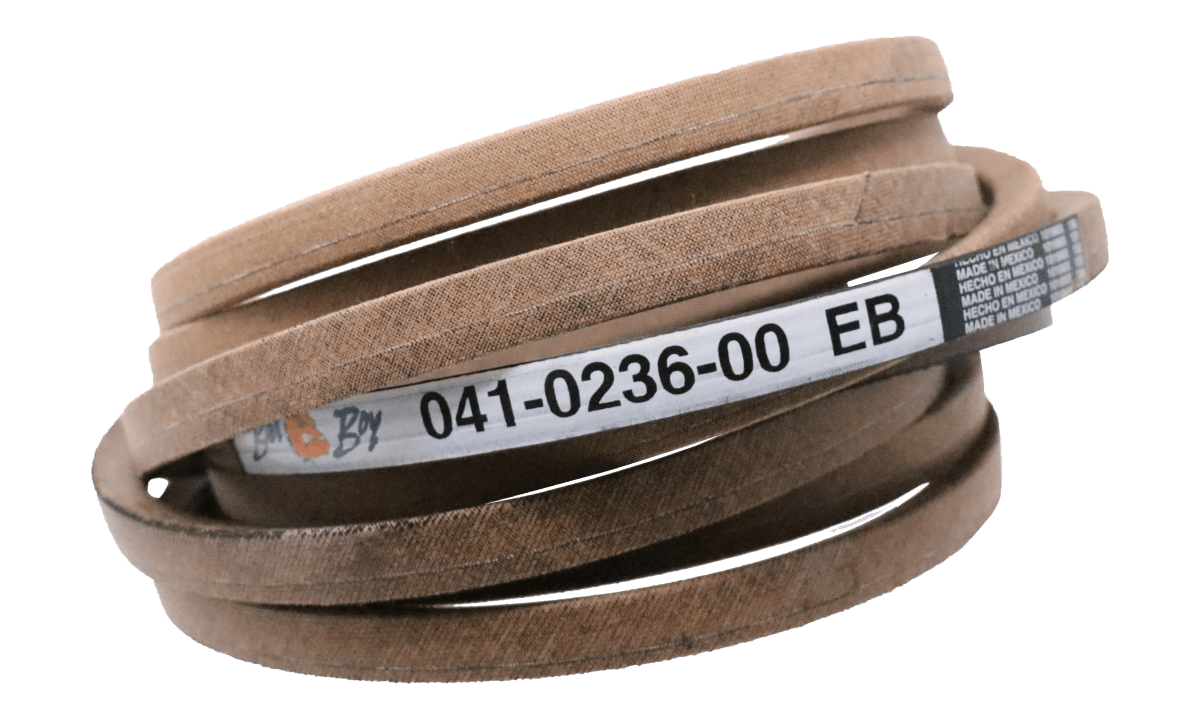

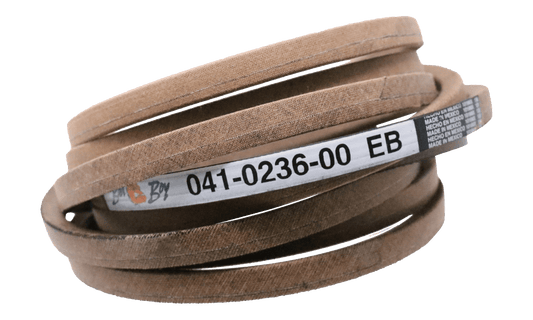

36#041-0236-00
B236 Belt - 61 Diesel EZ Ride
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
37#037-4000-50
OBSOLETE USE 037-4000-00
Qty Used: 3Regular price $291.91 USDRegular priceUnit price per
-
38#038-6080-00
61" High Lift Fusion Blade
Qty Used: 3Regular price $21.16 USDRegular priceUnit price per
-
39#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 3Regular price $1.59 USDRegular priceUnit price per
-
40#042-6030-00
1/4 x 1 Square Key
Qty Used: 3Regular price $4.37 USDRegular priceUnit price per
-
41#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
42#039-4864-00
60 Discharge Chute Upper
Qty Used: 1Regular price $39.74 USDRegular priceUnit price per
-
43#048-6056-00
Toplink/Turnbuckle-Deck Adjust
Qty Used: 2Regular price $49.99 USDRegular priceUnit price per
-
44#018-6059-00
5/8-11 X 2-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $2.29 USDRegular priceUnit price per
-
45#013-7021-00
5/8-11 Nylon Insert Locknut Zi
Qty Used: 4Regular price $1.19 USDRegular priceUnit price per
-
46#032-5056-00
Flange Bushing-Deck Arms
Qty Used: 4Regular price $5.29 USDRegular priceUnit price per
-
47#032-5057-00
Flange for Lower Deck Arm
Qty Used: 4Regular price $5.29 USDRegular priceUnit price per
-
48#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
49#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
50#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 3Regular price $0.00 USDRegular priceUnit price per
-
51#018-7016-00
1/2-13 X 3 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
52#018-0010-00
Deck Wheel Bolt - 2011 Outlaw
Qty Used: 6Regular price $5.89 USDRegular priceUnit price per
-
53#013-0004-00
Acorn Nut-Pulley Cover
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
54#019-6050-00
.360 ID Black Plastic Washer
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
55#031-6020-00
2015 Deck Hanger-Black
Qty Used: 2Regular price $132.68 USDRegular priceUnit price per
-
56#018-0015-00
1/2-13 x 2 1/2 Hex Bolt Gr 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
57#033-7201-25
5 3/4 Idler Pulley-Capitol
Qty Used: 2Regular price $33.16 USDRegular priceUnit price per
-
58#039-6945-98
Deck Idler Assembly-Pup/Lightning
Qty Used: 1Regular price $72.97 USDRegular priceUnit price per
-
59#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 1Regular price $0.75 USDRegular priceUnit price per
-
60#014-5000-00
Pulley Cover
Qty Used: 2Regular price $14.58 USDRegular priceUnit price per
