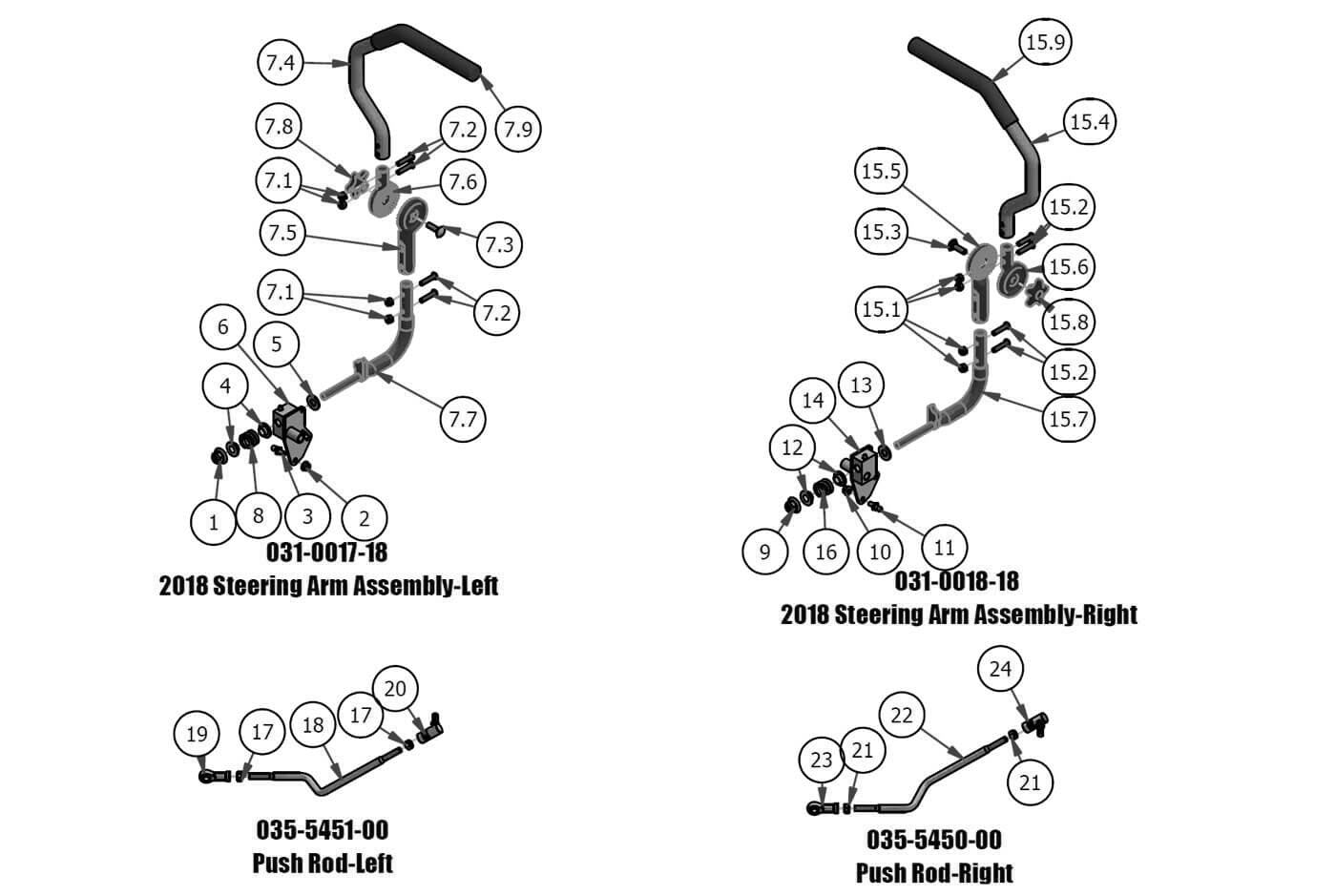

Steering Arms, Push Rods

Parts Index
- 1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 2 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 3 10mm Damper Ball Stud- (Qty 1)
- 4 .515 ID Plastic Shoulder Washer (Qty 2)
- 5 .505 ID X 1 OD X .128 THK Washer (Qty 1)
- 6 Drive Lever Housing LH (Qty 1)
- 7 2018 Adj. Steering Arm L-Black (Qty 1)
- 7.1 5/16-18 Nylon Insert Locknut Z (Qty 4)
- 7.2 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 4)
- 7.3 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 7.4 2018 Upper Tube Adjustable Steering Arm (Qty 1)
- 7.5 2018 Black Lower Adjuster - Steering Arm - Left (Qty 1)
- 7.6 2018 Black Upper Adjuster - Steering Arm - Left (Qty 1)
- 7.7 2018 Black Steering Arm Elbow - Left (Qty 1)
- 7.8 Knob - Adjustable Steering Arm (Qty 1)
- 7.9 Black Steering Grip (Qty 1)
- 8 Drive Lever Housing Spring (Qty 1)
- 9 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 10 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 11 10mm Damper Ball Stud- (Qty 1)
- 12 .515 ID Plastic Shoulder Washer (Qty 2)
- 13 .505 ID X 1 OD X .128 THK Washer (Qty 1)
- 14 Drive Lever Housing RH (Qty 1)
- 15 2018 Adj. Steering Arm R-Black (Qty 1)
- 15.1 5/16-18 Nylon Insert Locknut Z (Qty 4)
- 15.2 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 4)
- 15.3 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 15.4 2018 Upper Tube Adjustable Steering Arm (Qty 1)
- 15.5 2018 Black Lower Adjuster - Steering Arm - Right (Qty 1)
- 15.6 2018 Black Upper Adjuster - Steering Arm - Right (Qty 1)
- 15.7 2018 Black Steering Arm Elbow - Right (Qty 1)
- 15.8 Knob - Adjustable Steering Arm (Qty 1)
- 15.9 Black Steering Grip (Qty 1)
- 16 Drive Lever Housing Spring (Qty 1)
- 17 3/8-24 Hex Nut Zinc (Qty 2)
- 18 Push Rod LH (Assembly) (Qty 1)
- 19 Spherical Rod End (Qty 1)
- 20 Quick Release Ball Joint (Qty 1)
- 21 3/8-24 Hex Nut Zinc (Qty 2)
- 22 Push Rod RH (Assembly) (Qty 1)
- 23 Spherical Rod End (Qty 1)
- 24 Quick Release Ball Joint (Qty 1)
