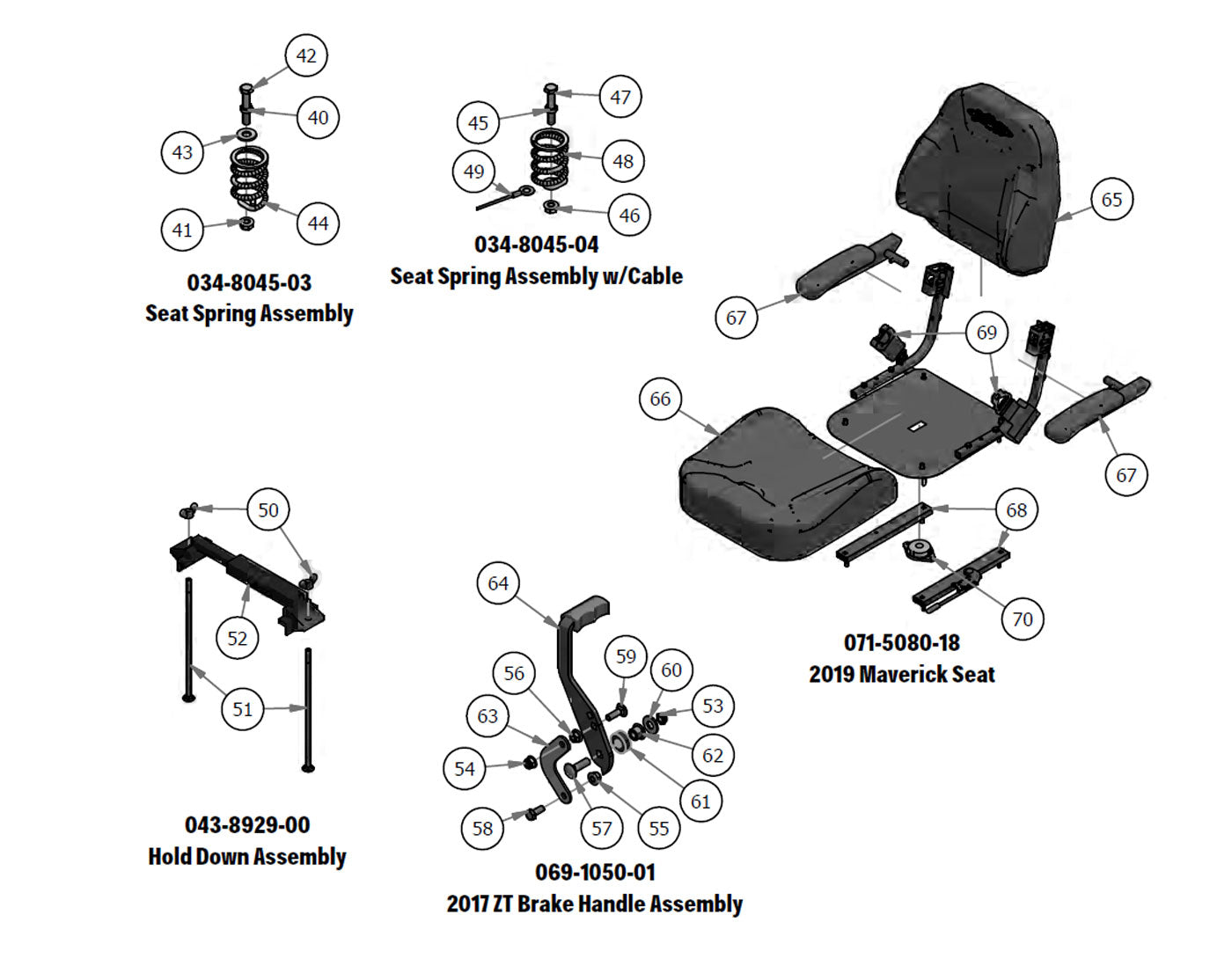

Seat Spring, Hold Down, Brake Handle, Seat Assembly

Parts Index
- 40 3/8-16 Half Jam Nut (Qty 1)
- 41 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 42 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 1)
- 43 3/8 USS Flat Washer Zinc (Qty 1)
- 44 Seat Spring (Qty 1)
- 45 3/8-16 Half Jam Nut (Qty 1)
- 46 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 47 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 1)
- 48 Seat Spring (Qty 1)
- 49 Seat Cable (Qty 1)
- 50 1/4-20 Wing Nuts Zinc (Qty 2)
- 51 1/4-20 X 8 Carriage Bolts Zinc (Qty 2)
- 52 Battery Hold Down (Plastic) (Qty 1)
- 53 3/8-16 Centerlock Half Nut (Qty 1)
- 54 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap) (Qty 1)
- 55 5/16-18 Nylon Flange Nut (Qty 1)
- 56 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 57 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 58 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 1)
- 59 5/16-18 X 1 Carriage Bolt Zinc (Qty 1)
- 60 3/8 USS Flat Washer Zinc (Qty 1)
- 61 Brake Lever Spacer (Qty 1)
- 62 Bronze Bushing SF-1220-8 (Qty 1)
- 63 Brake Cable Adapter Bracket (Qty 1)
- 64 Brake Handle (Qty 1)
- 65 2017 Maverick Back Cover 071-5080-17 (Qty 1)
- 66 2017 Maverick Seat Cover 071-5080-17 (Qty 1)
- 67 2017 ZT/Maverick/2020 ZTElite/Avenger Arm Rest Kit (Qty 1)
- 68 Seat Rails for Outlaw Seat/2020 ZT Elite/ZTAvenger (Qty 1)
- 69 Seat Belt for 071-5080-17 (Qty 1)
- 70 OBSOLETE USE 071-8061-00 (Qty 1)
