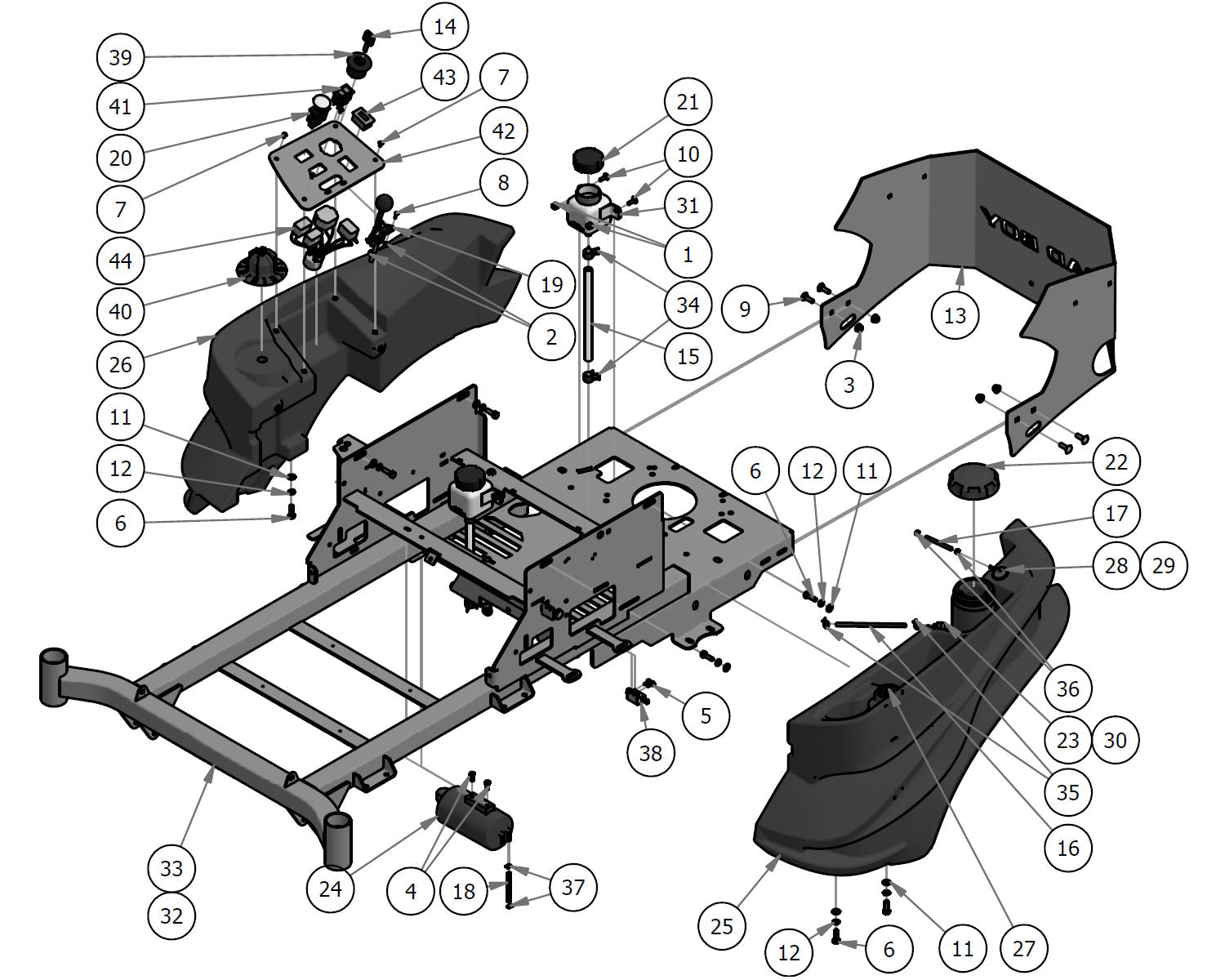

Tanks & Rear Cover
Parts Index
- 1 1/4-20 Nylon Insert Flange Nut (Qty 4)
- 2 10-24 Nylon Insert Locknut Zin (Qty 2)
- 3 5/16-18 Nylon Flange Nut (Qty 4)
- 4 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 5 12-24 x 1/2 HWH Bolt (Qty 4)
- 6 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 7)
- 7 10-32 X 3/8 BS C/S 18-8 SS with Patch (Qty 4)
- 8 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 9 5/16-18 X 1 Carriage Bolt Zinc (Qty 4)
- 10 1/4 x 3/4 Carriage Bolt (Qty 4)
- 11 5/16 USS Flat Washer Zinc (Qty 7)
- 12 5/16 Lock washer Zinc (Qty 7)
- 13 2017 ZT Rear Plate--Orange (Qty 1)
- 14 Ignition Key (Qty 1)
- 15 3/8 Clear Hose PRICED PER FOOT (Qty 2)
- 16 1/4 Fuel Line Hose PRICED/FOOT (Qty 1)
- 17 1/4" Vinyl Tubing - Black per foot (Qty 1)
- 18 3/16" Vinyl Tubing per foot (Qty 1)
- 19 ZT/Mav/MZ/Comp Outlaw Throttle-53" (Qty 1)
- 20 PTO Engager-Switch for Blades (Qty 1)
- 21 ZT Hydraulic Tank Cap (Qty 2)
- 22 3.5" Tethered Fuel Cap (Qty 1)
- 23 Fuel Line Pickup Tube for ZT (Qty 1)
- 24 Carbon Canister ZT,CZT,Outlaw (Qty 1)
- 25 2016 Maverick/ZT/Avenger Left Fuel Tank (Qty 1)
- 26 2016 Maverick/ZT/Avenger Right Side Console (Qty 1)
- 27 Fuel Gauge Assembly w/ Grommet-2014 ZT,2015 Outlaw (Qty 1)
- 28 Fuel Shut Off Valve - Metal (Qty 1)
- 29 Rollover Valve and Grommet New (Qty 1)
- 30 Grommet for ZT Elite Fuel Line (Qty 1)
- 31 71328-Expansion Tank CZT/ZT (Qty 2)
- 32 2017 MZ/ZT 54"-60" Frame (Qty 1)
- 33 2017 MZ/ZT 42"-48" Frame (Qty 1)
- 34 1/2 Hose Clamp (Qty 2)
- 35 1/4 Fuel Line Clamp (Qty 2)
- 36 MZ Tank Hose Clamp 1/4 Vinyl (Qty 2)
- 37 3/16" Vinyl Hose Clamp (Qty 2)
- 38 Safety Switch (Qty 2)
- 39 Ignition Switch (Qty 1)
- 40 Deck Height Dial (Qty 1)
- 41 Rocker Deck Lift Switch - 2011 (Qty 1)
- 42 2014 MZ/ZT Control Panel--Orange (Qty 1)
- 43 Tachometer-N310-0100-1018 (Qty 1)
- 44 2017 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (Qty 1)
-
1#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
2#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
3#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
4#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
5#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
6#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 7Regular price $0.00 USDRegular priceUnit price per
-
7#018-2010-00
10-32 X 3/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
8#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
9#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
10#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
11#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
12#019-8051-00
5/16 Lock washer Zinc
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
13#026-0090-00
2017 ZT Rear Plate--Orange
Qty Used: 1Regular price $189.74 USDRegular priceUnit price per
-
14#042-9000-00
Ignition Key
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
15#051-8063-00
3/8 Clear Hose PRICED PER FOOT
Qty Used: 2Regular price $2.64 USDRegular priceUnit price per
-
16#051-8067-00
1/4 Fuel Line Hose PRICED/FOOT
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
17#051-8072-00
1/4" Vinyl Tubing - Black per foot
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
18#051-8073-00
3/16" Vinyl Tubing per foot
Qty Used: 1Regular price $2.64 USDRegular priceUnit price per
-
19#055-8020-00
ZT/Mav/MZ/Comp Outlaw Throttle-53\"
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
20#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
21#066-5050-00
ZT Hydraulic Tank Cap
Qty Used: 2Regular price $14.58 USDRegular priceUnit price per
-
22#066-8083-00
3.5" Tethered Fuel Cap
Qty Used: 1Regular price $19.84 USDRegular priceUnit price per
-
23#067-0011-00
Fuel Line Pickup Tube for ZT
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
24#067-0020-00
Carbon Canister ZT,CZT,Outlaw
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
25#067-2060-50
2016 Maverick/ZT/Avenger Left Fuel Tank
Qty Used: 1Regular price $279.99 USDRegular priceUnit price per
-
26#067-2070-50
2017 ZT Right Side Console
Qty Used: 1Regular price $218.93 USDRegular priceUnit price per
-
27#067-4080-00
Fuel Gauge Assembly w/ Grommet-2014 ZT,2015 Outlaw
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
28#067-6050-00
Fuel Shut Off Valve - Metal
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
29#067-6070-00
Rollover Valve and Grommet New
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
30#067-6080-00
Grommet for ZT Elite Fuel Line
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
31#067-8090-00
71328-Expansion Tank CZT/ZT
Qty Used: 2Regular price $29.18 USDRegular priceUnit price per
-
32#070-5420-00
2017 MZ/ZT 54"-60" Frame
Qty Used: 1Regular price $799.99 USDRegular priceUnit price per
-
33#070-5810-00
2017 MZ/ZT 42"-48" Frame
Qty Used: 1Regular price $799.99 USDRegular priceUnit price per
-
34#072-8066-00
1/2 Hose Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
35#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
36#072-8070-00
MZ Tank Hose Clamp 1/4 Vinyl
Qty Used: 2Regular price $1.45 USDRegular priceUnit price per
-
37#072-8073-00
3/16\" Vinyl Hose Clamp
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
38#077-8073-00
Safety Switch
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
39#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
40#077-9000-00
Deck Height Dial
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
41#078-3000-00
Rocker Deck Lift Switch - 2011
Qty Used: 1Regular price $34.96 USDRegular priceUnit price per
-
42#079-3460-00
2014 MZ/ZT Control Panel--Orange
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
43#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
44#086-3050-17
2017 MZ/ZT/Maverick/Compact Outlaw Wiring Harness
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
