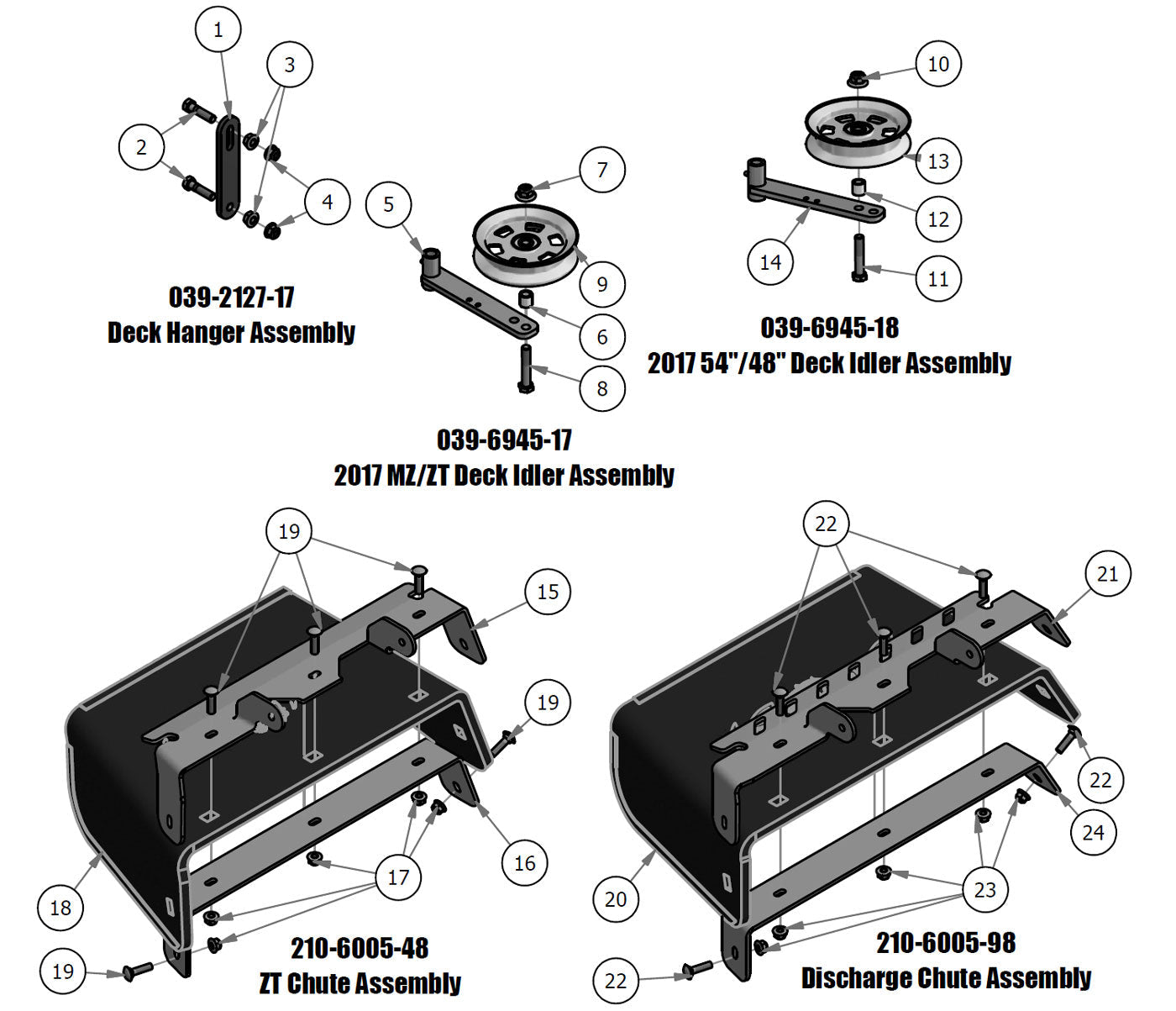

Deck Sub Assemblies - Deck Hanger, Deck Idler, Chute
Parts Index
- 1 Deck hanger for 039-2127-17 (Qty 1)
- 2 3/8 x 1 1/2 Bolt (Qty 2)
- 3 3/8-16 Hex Flange Nuts Zinc w/ (Qty 2)
- 4 3/8 Nylock Flange Nut (Qty 2)
- 5 Idler Bracket (Qty 1)
- 6 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 7 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 8 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 9 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 10 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 11 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 12 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 13 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 14 Idler Bracket (Qty 1)
- 15 48/52 Discharge Top Bracket (Qty 1)
- 16 48/52 Discharge Lower Bracket (Qty 1)
- 17 5/16-18 Nylon Flange Nut (Qty 5)
- 18 Discharge Chute (Rubber Component) (Qty 1)
- 19 5/16-18 X 1-1/4 Carriage Bolt (Qty 5)
- 20 Discharge Chute (Rubber Component) (Qty 1)
- 21 60 Discharge Chute Upper (Qty 1)
- 22 5/16-18 X 1-1/4 Carriage Bolt (Qty 5)
- 23 5/16-18 Nylon Flange Nut (Qty 5)
- 24 60 Discharge Lower Bracket (Qty 1)
-
1#039-2127-00
OBSOLETE USE 039-2127-17
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
2#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
3#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
4#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
514#039-6945-00
Idler Bracket
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
612#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
710#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
811#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
913#033-8050-00
2017 5" Split Idler Pulley-Tensioner Only
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
15#039-4870-00
48/52 Discharge Top Bracket
Qty Used: 1Regular price $39.74 USDRegular priceUnit price per
-
16#039-4871-00
48/52 Discharge Lower Bracket
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
1723#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
1820#210-6005-00
Discharge Chute (Rubber Component)
Qty Used: 1Regular price $55.99 USDRegular priceUnit price per
-
1922#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-
21#039-4864-00
60 Discharge Chute Upper
Qty Used: 1Regular price $39.74 USDRegular priceUnit price per
-
24#039-4863-00
60 Discharge Lower Bracket
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
