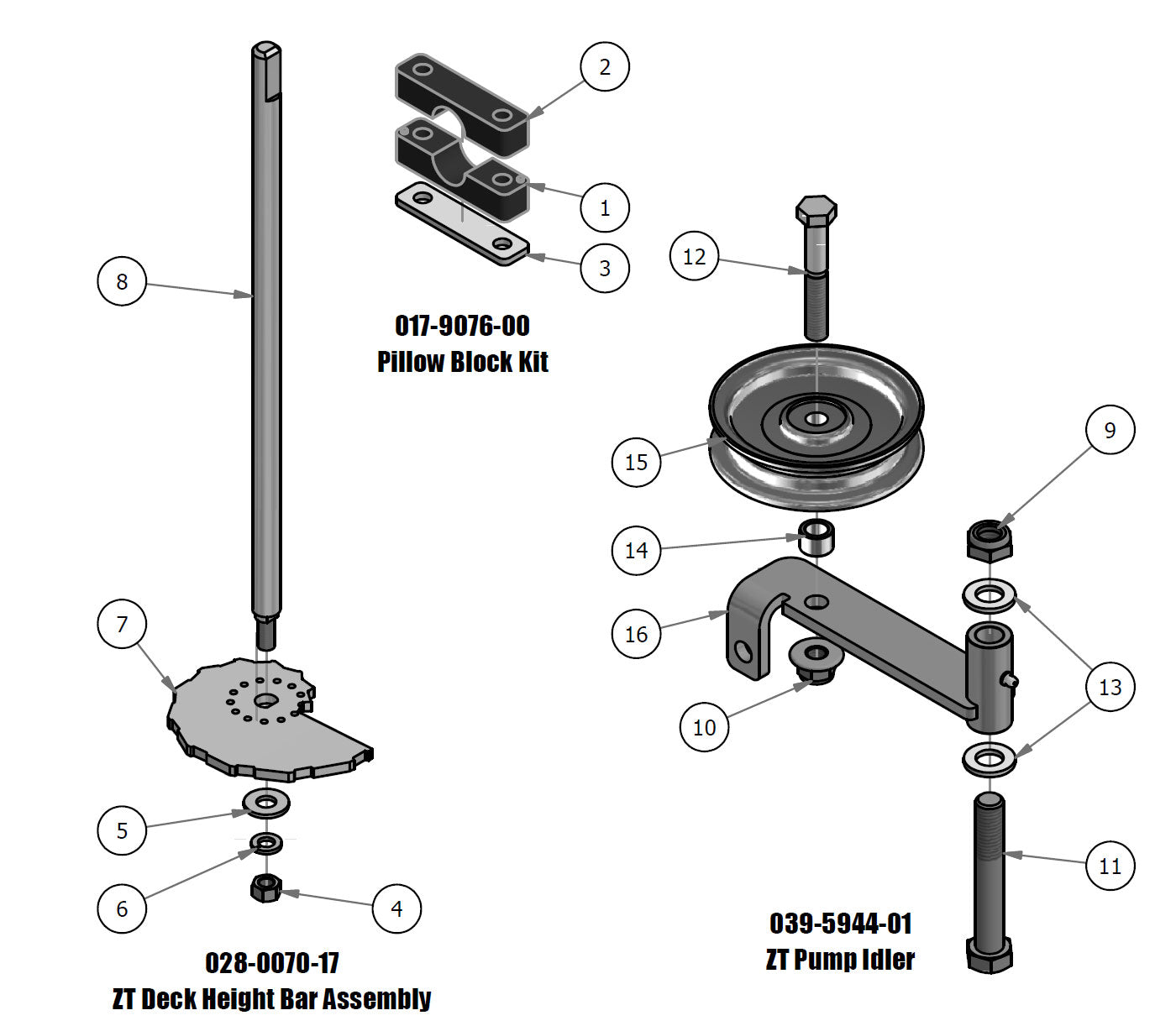

Deck Height Bar, Pump Idler, & Pillow Block
Parts Index
- 1 2017 Magnum Pillow Block-Male (Qty 1)
- 2 2017 Magnum Pillow Block-Female (Qty 1)
- 3 2017 Magnum Pillow Block-Metal Plate (Qty 1)
- 4 3/8-24 Hex Nut Zinc (Qty 1)
- 5 3/8 USS Flat Washer Zinc (Qty 1)
- 6 3/8 Lockwasher Zinc (Qty 1)
- 7 Deck Height Cam Plate (Qty 1)
- 8 2017 Deck Height Dial Rod ZT (Qty 1)
- 9 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 10 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 11 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 12 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 13 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 14 1/2 Set Collar w/set collar (Qty 1)
- 15 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 16 Idler Bracket (Qty 1)
-
1#017-9077-00
2017 Magnum Pillow Block-Male
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
2#017-9078-00
2017 Magnum Pillow Block-Female
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
3#017-9079-00
2017 Magnum Pillow Block-Metal Plate
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
4#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
5#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
6#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
7#026-1100-00
Deck Height Cam Plate
Qty Used: 1Regular price $14.53 USDRegular priceUnit price per
-
8#028-0014-00
2017 Deck Height Dial Rod ZT
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
9#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
10#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
11#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
12#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
13#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
14#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 1Regular price $4.18 USDRegular priceUnit price per
-
15#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
16#039-5944-00
Idler Bracket
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
