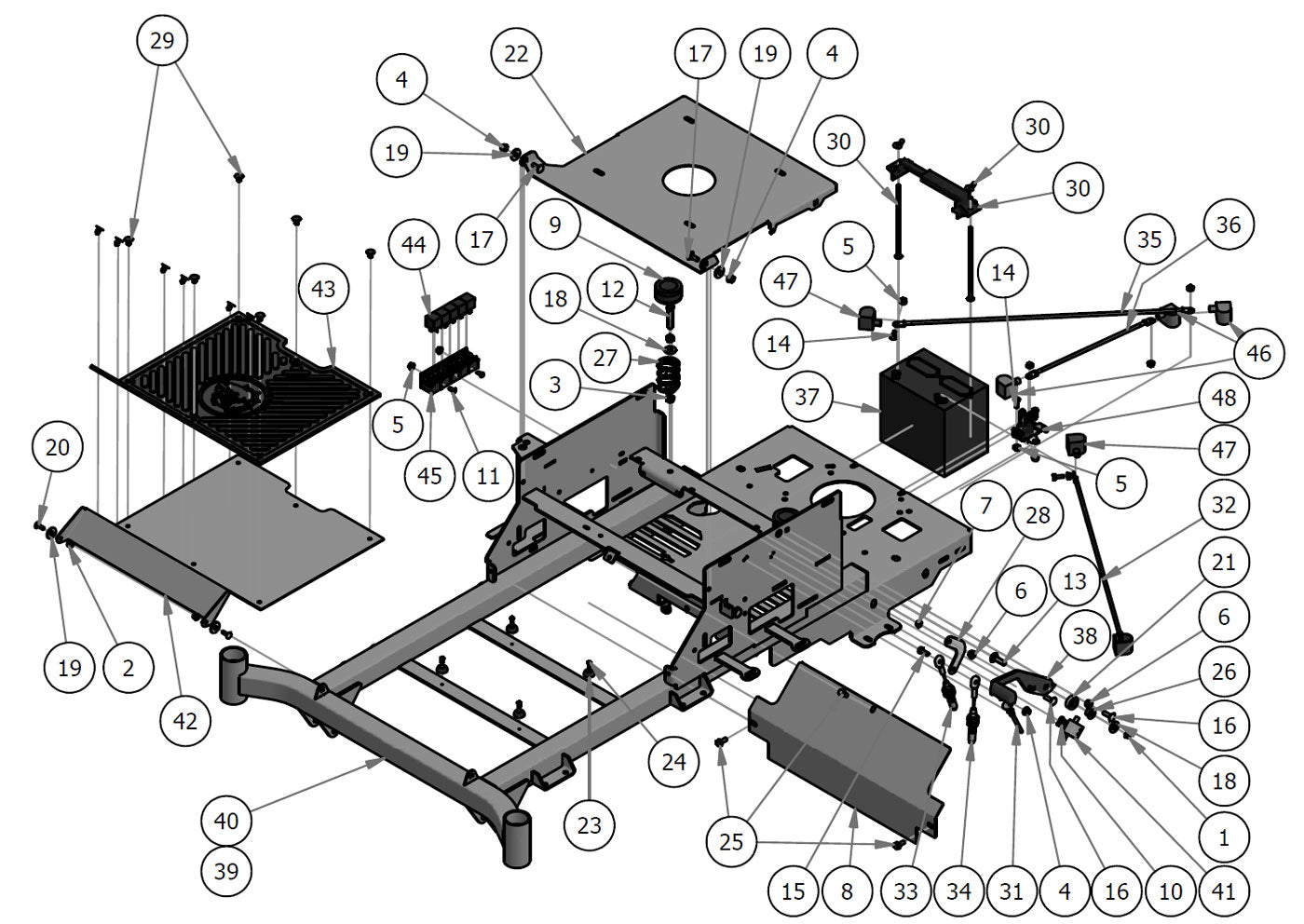

Battery, Seat & Cover Assembly
Parts Index
- 1 3/8-16 Centerlock Half Nut (Qty 1)
- 2 1/4-20 Nylon Insert Flange Nut (Qty 2)
- 3 3/8-16 Hex Flange Nuts Zinc w/ (Qty 2)
- 4 5/16-18 Nylon Flange Nut (Qty 7)
- 5 1/4-20 Hex Flange Nuts Zinc w/ (Qty 6)
- 6 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
- 7 5/16-18 Nylock Jam Nut (Qty 1)
- 8 2017 ZT Cooler Cover--Orange (Qty 1)
- 9 Seat Spring Cap Cover (Qty 2)
- 10 12-24 x 1/2 HWH Bolt (Qty 2)
- 11 1/4-20 X 1/2 BS C/S 18-8 SS (Qty 2)
- 12 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 2)
- 13 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 14 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 4)
- 15 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 1)
- 16 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 17 5/16 x 7/8 Carriage Bolt (Qty 2)
- 18 3/8 USS Flat Washer Zinc (Qty 2)
- 19 .360 ID Plastic Washer (Qty 4)
- 20 1/4 x 3/4 Carriage Bolt (Qty 2)
- 21 Brake Lever Spacer (Qty 1)
- 22 Seat Plate 2016--Orange (Qty 1)
- 23 Button Bumper (Qty 4)
- 24 10 X 1/2 Pan Phil a T/S Zinc (Qty 4)
- 25 5/16 x 3/4 Hex Washer Type F (Qty 3)
- 26 Bronze Bushing SF-1220-8 (Qty 1)
- 27 Seat Spring (Qty 2)
- 28 Brake Cable Adapter Bracket (Qty 1)
- 29 OBSOLETE USE 040-6080-00 (Qty 12)
- 30 Battery Hold Down (Plastic) (Qty 1)
- 31 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 32 24 inch Black Cable - MZ/ZT (Qty 1)
- 33 2017 ZT Brake Cable-18.50" (Qty 1)
- 34 2017 ZT Brake Cable-24.50" (Qty 1)
- 35 24 Red Battery Cable (Qty 1)
- 36 14" Red Battery Cable (Qty 1)
- 37 Battery - All models except Renegade and Revolt (Qty 1)
- 38 Brake Handle (Qty 1)
- 39 2017 MZ/ZT 54"-60" Frame (Qty 1)
- 40 2017 MZ/ZT 42"-48" Frame (Qty 1)
- 41 Safety Switch (Qty 1)
- 42 2017 MZ/ZT Floorboard--Orange (Qty 1)
- 43 Mat (Floor) (Qty 1)
- 44 5Relay Terminal (Qty 5)
- 45 2017 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (Qty 5)
- 46 Red Lug Boot (Qty 3)
- 47 Black Cable Boot (Qty 2)
- 48 Solenoid (752-1251-210HP) (Qty 1)
-
1#013-0012-00
3/8-16 Centerlock Half Nut
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
2#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
3#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
4#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
5#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
6#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
7#013-9005-00
5/16-18 Nylock Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
8#014-3417-00
2017 ZT Cooler Cover--Orange
Qty Used: 1Regular price $71.50 USDRegular priceUnit price per
-
9#014-8047-00
Seat Spring Cap Cover
Qty Used: 2Regular price $8.12 USDRegular priceUnit price per
-
10#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
11#018-2012-00
1/4-20 X 1/2 BS C/S 18-8 SS
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
12#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
13#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
14#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
15#018-8063-00
5/16-18 X 3/4 GR 5 Hex Bolts Z
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
16#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
17#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
18#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
19#019-6042-00
.360 ID Plastic Washer
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
20#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
21#025-0001-00
Brake Lever Spacer
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
22#026-1016-00
Seat Plate 2016--Orange
Qty Used: 1Regular price $102.11 USDRegular priceUnit price per
-
23#029-4010-00
Button Bumper
Qty Used: 4Regular price $1.31 USDRegular priceUnit price per
-
24#030-3050-00
10 X 1/2 Pan Phil a T/S Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
25#030-7042-00
5/16 x 3/4 Hex Washer Type F
Qty Used: 3Regular price $0.89 USDRegular priceUnit price per
-
26#032-5053-00
Bronze Bushing SF-1220-8
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
27#034-8045-00
Seat Spring
Qty Used: 2Regular price $19.15 USDRegular priceUnit price per
-

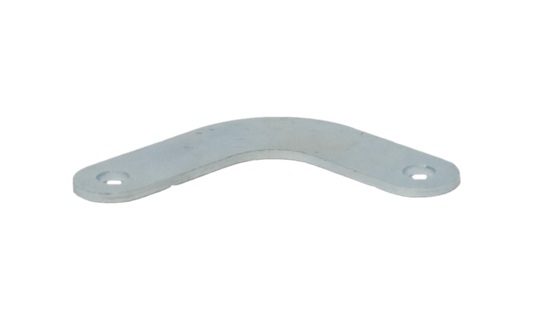

28#039-0150-00
Brake Cable Adapter Bracket
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
29#040-6090-00
OBSOLETE USE 040-6080-00
Qty Used: 12Regular price $1.99 USDRegular priceUnit price per
-
30#043-8929-00
Battery Hold Down (Plastic)
Qty Used: 1Regular price $16.35 USDRegular priceUnit price per
-
31#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
32#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
33#064-3050-00
2017 ZT Brake Cable-18.50"
Qty Used: 1Regular price $48.10 USDRegular priceUnit price per
-
34#064-3051-00
2017 ZT Brake Cable-24.50"
Qty Used: 1Regular price $53.94 USDRegular priceUnit price per
-
35#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
36#064-5301-00
14\" Red Battery Cable
Qty Used: 1Regular price $16.04 USDRegular priceUnit price per
-
37#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-

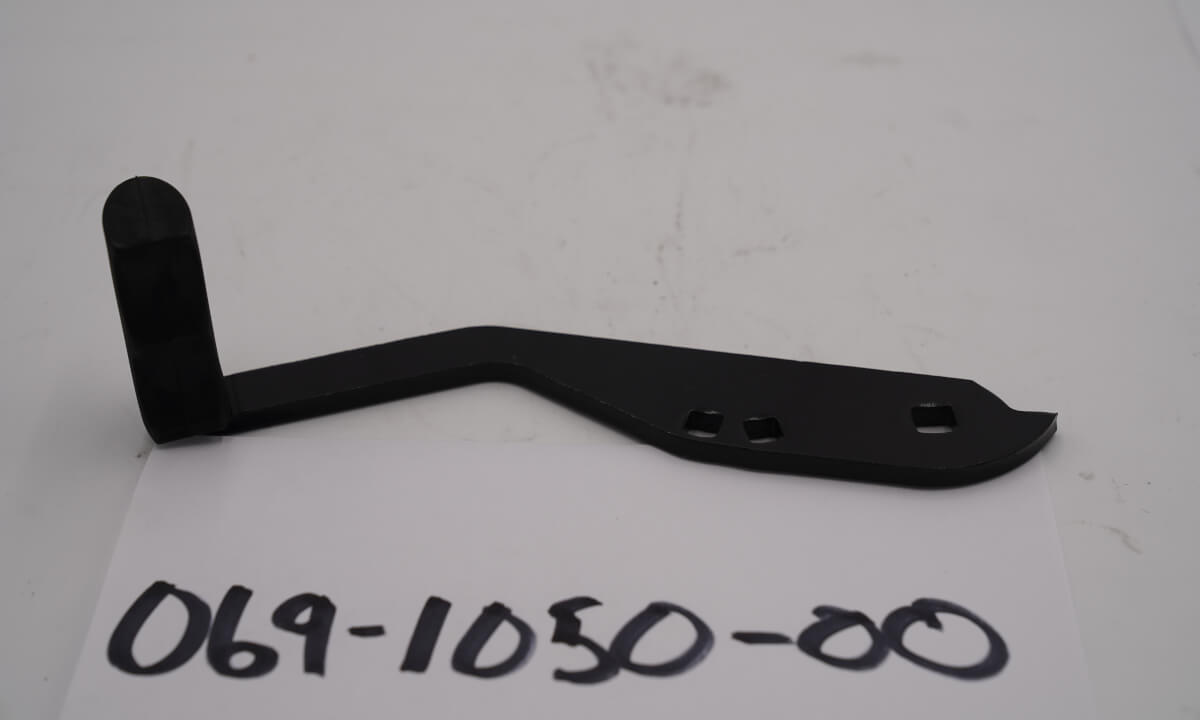

38#069-1050-00
Brake Handle
Qty Used: 1Regular price $17.24 USDRegular priceUnit price per
-
39#070-5420-00
2017 MZ/ZT 54"-60" Frame
Qty Used: 1Regular price $799.99 USDRegular priceUnit price per
-
40#070-5810-00
2017 MZ/ZT 42"-48" Frame
Qty Used: 1Regular price $799.99 USDRegular priceUnit price per
-
41#077-8073-00
Safety Switch
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
42#079-3417-00
2017 MZ/ZT Floorboard--Orange
Qty Used: 1Regular price $145.95 USDRegular priceUnit price per
-
43#081-4000-00
Mat (Floor)
Qty Used: 1Regular price $58.39 USDRegular priceUnit price per
-
44#086-1201-00
Relay Terminal
Qty Used: 5Regular price $23.34 USDRegular priceUnit price per
-
45#086-3050-17
2017 MZ/ZT/Maverick/Compact Outlaw Wiring Harness
Qty Used: 5Regular price $363.44 USDRegular priceUnit price per
-
46#103-5300-00
Red Lug Boot
Qty Used: 3Regular price $5.29 USDRegular priceUnit price per
-
47#103-5400-00
Black Cable Boot
Qty Used: 2Regular price $3.97 USDRegular priceUnit price per
-
48#108-0001-00
Solenoid (752-1251-210HP)
Qty Used: 1Regular price $27.49 USDRegular priceUnit price per
