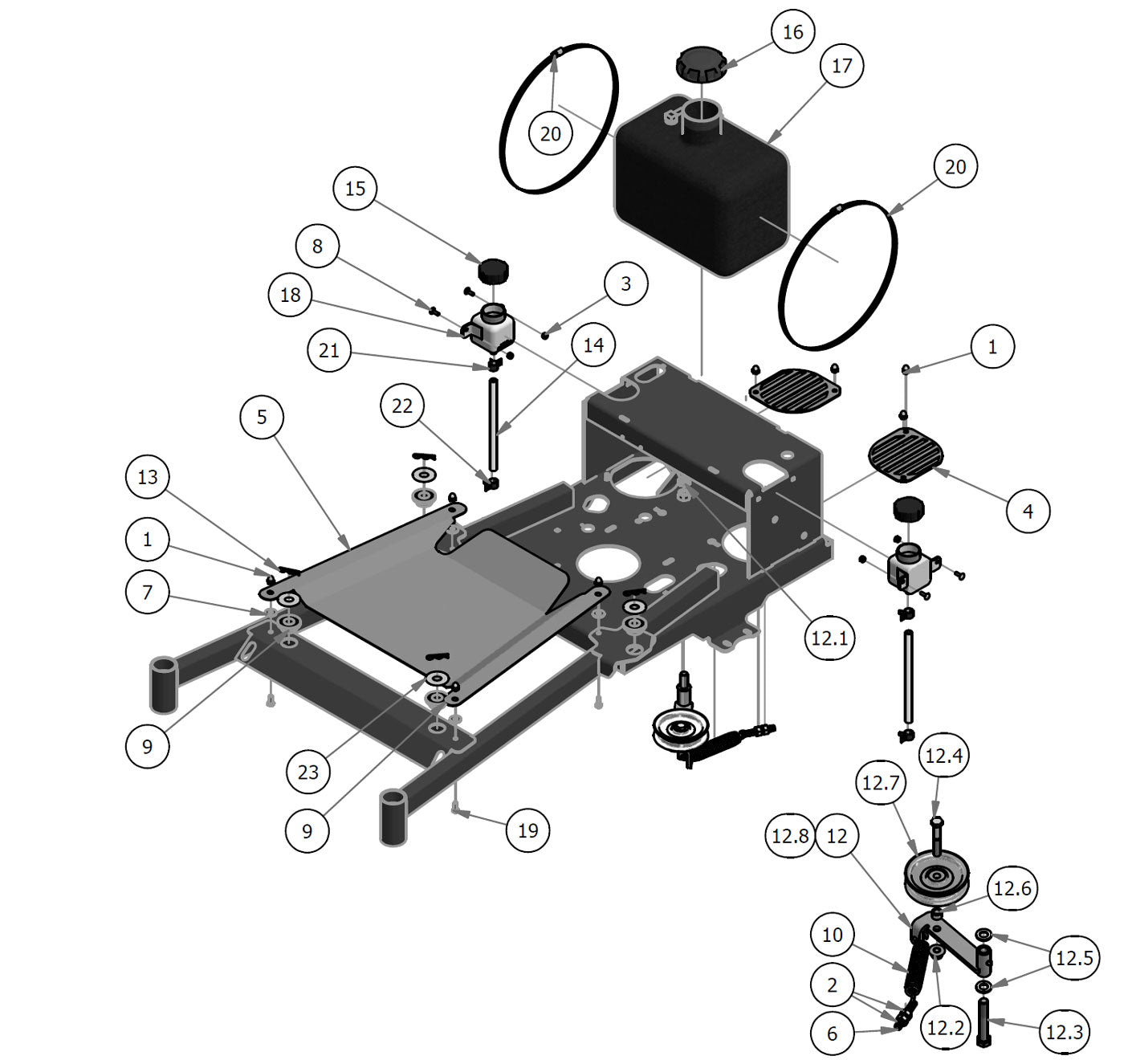

Walk-Behind Frame
Parts Index
- 1 Acorn Nut-Pulley Cover (Qty 8)
- 2 1/2-13 Hex Nuts Zinc (Qty 2)
- 3 1/4-20 Nylon Insert Locknut Zi (Qty 4)
- 4 Walk Behind Bolt On Fan Cover--Orange (Qty 2)
- 5 2018 Walk Behind Cover--Orange (Qty 1)
- 6 All Thread (Qty 1)
- 7 .360 ID Black Plastic Washer (Qty 4)
- 8 1/4 x 3/4 Carriage Bolt (Qty 4)
- 9 Deck Hanger Insert (Qty 4)
- 10 2009 Deck/Pump Idler Spring (Qty 1)
- 12 Pump Idler Bracket Assembly-ZT, MZ, Aven, Raider (Qty 1)
- 12.1 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 12.2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 12.3 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 12.4 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 12.5 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 12.6 1/2 Set Collar w/set collar (Qty 1)
- 12.7 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 12.8 Idler Bracket (Qty 1)
- 13 Seat Latch Pin (Qty 4)
- 14 3/8 Clear Hose PRICED PER FOOT (Qty 2)
- 15 ZT Hydraulic Tank Cap (Qty 2)
- 16 3.5" Tethered Fuel Cap (Qty 1)
- 17 2017/18 Walk Behind Black Fuel Tank (Qty 1)
- 18 71328-Expansion Tank CZT/ZT (Qty 2)
- 19 2017 Walk Behind Frame (Qty 1)
- 20 Fuel Tank Clamp-Stand On (Qty 2)
- 21 3/8 Hose Clamp - CTB-16-STFS (Qty 2)
- 22 1/2 Hose Clamp (Qty 2)
- 23 3/4" Flat Washer (Qty 4)
-
1#013-0004-00
Acorn Nut-Pulley Cover
Qty Used: 8Regular price $2.99 USDRegular priceUnit price per
-
2#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
3#013-8073-00
1/4-20 Nylon Insert Locknut Zi
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
4#014-3580-00
Walk Behind Bolt On Fan Cover--Orange
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
5#014-3590-18
2018 Walk Behind Cover--Orange
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
6#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
7#019-6050-00
.360 ID Black Plastic Washer
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
8#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
9#025-0031-00
Deck Hanger Insert
Qty Used: 4Regular price $9.28 USDRegular priceUnit price per
-
10#034-2009-00
2009 Deck/Pump Idler Spring
Qty Used: 1Regular price $16.99 USDRegular priceUnit price per
-
12#039-5944-01
Pump Idler Bracket Assembly-ZT/MZ/Compact Outlaw
Qty Used: 1Regular price $58.37 USDRegular priceUnit price per
-
12.1#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
12.2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
12.3#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
12.4#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
12.5#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
12.6#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 1Regular price $4.18 USDRegular priceUnit price per
-
12.7#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
12.8#039-5944-00
Idler Bracket
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
13#040-6060-00
Seat Latch Pin
Qty Used: 4Regular price $2.64 USDRegular priceUnit price per
-
14#051-8063-00
3/8 Clear Hose PRICED PER FOOT
Qty Used: 2Regular price $2.64 USDRegular priceUnit price per
-
15#066-5050-00
ZT Hydraulic Tank Cap
Qty Used: 2Regular price $14.58 USDRegular priceUnit price per
-
16#066-8083-00
3.5" Tethered Fuel Cap
Qty Used: 1Regular price $19.84 USDRegular priceUnit price per
-
17#067-0003-00
2017/18 Walk Behind Black Fuel Tank
Qty Used: 1Regular price $290.46 USDRegular priceUnit price per
-
18#067-8090-00
71328-Expansion Tank CZT/ZT
Qty Used: 2Regular price $29.18 USDRegular priceUnit price per
-
19#070-5100-00
2017 Walk Behind Frame
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
20#072-0050-00
Fuel Tank Clamp-Stand On
Qty Used: 2Regular price $10.60 USDRegular priceUnit price per
-
21#072-8065-00
3/8 Hose Clamp - CTB-16-STFS
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
22#072-8066-00
1/2 Hose Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
23#319-0002-00
3/4" Flat Washer
Qty Used: 4Regular price $0.49 USDRegular priceUnit price per
