Transaxle

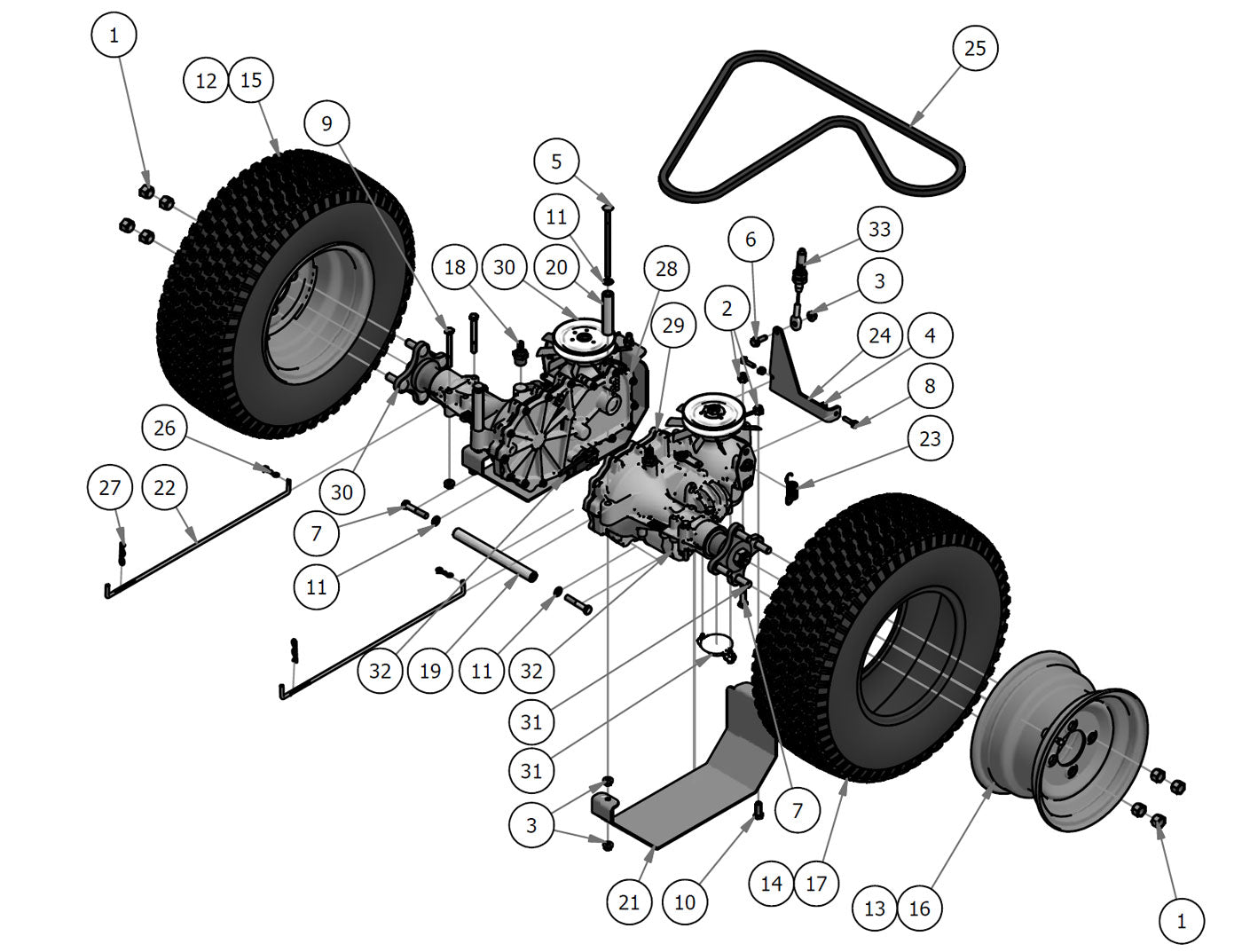

Parts Index
- 1 Acorn Lug Nut (Qty 8)
- 2 3/8-16 Nylon Insert Locknut Zi (Qty 4)
- 3 5/16-18 Nylon Flange Nut (Qty 9)
- 4 1/4-20 Nylon Insert Locknut Zi (Qty 2)
- 5 5/16x6 Carriage Bolt-Grade 5 (Qty 2)
- 6 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 1)
- 7 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 4)
- 8 1/4-20 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 9 5/16-18 X 3 GR 5 Hex Bolt Zinc (Qty 4)
- 10 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 11 5/16 USS Flat Washer Zinc (Qty 6)
- 12 20x10.50-8 Tire/Wheel Assembly (Qty 2)
- 13 8 inch Wheel for ZT (Qty 2)
- 14 20x10.50-8 Turf Tire Only (Qty 2)
- 15 21x7-10 Assy-36" 2017 Walk Behind (Qty 2)
- 16 10" Wheel Only-36" Stand On (Qty 2)
- 18 ZT Fitting, 3/8 x 3/8 45 Degree (Qty 2)
- 19 2017 Transaxle Spacer-MZ (Qty 1)
- 20 2017 Transaxle Spacer (Qty 2)
- 22 Neutral Rod (Qty 2)
- 23 Gold Transaxle Spring (Qty 1)
- 25 36" Walk Behind Pump Belt (Qty 1)
- 26 Bow Pin (Qty 2)
- 27 Neutral Rod Clip (Qty 2)
- 28 2017 Walk Behind Transaxle Left (Qty 1)
- 29 2017 Walk Behind Transaxle Left (Qty 1)
- 30 Fan/Pulley Kit for ZT / 2017 MZ (Qty 2)
- 30.1 ZT Transaxle Wheel Hub (Qty 2)
- 31 Transaxle Wheel Studs/ Drum Brake Studs (Qty 8)
- 31.1 ZT Transaxle Charge Plate (Qty 1)
- 32 Transaxle Brake Lever (Qty 1)
- 32.1 ZT Hydraulic Filter (Qty 1)
- 33 Brake Cable Walk Behind/Revolt (Qty 1)
-
1#013-3000-00
Acorn Lug Nut
Qty Used: 8Regular price $2.99 USDRegular priceUnit price per
-
2#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
3#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 9Regular price $0.79 USDRegular priceUnit price per
-
4#013-8073-00
1/4-20 Nylon Insert Locknut Zi
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
5#018-0056-00
5/16x6 Carriage Bolt-Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
6#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
7#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
8#018-4007-00
1/4-20 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
9#018-4701-00
5/16-18 X 3 GR 5 Hex Bolt Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
10#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
11#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
12#022-6000-00
20x10.50-8 Tire/Wheel Assembly
Qty Used: 2Regular price $144.69 USDRegular priceUnit price per
-
13#022-6002-00
8 inch Wheel for ZT
Qty Used: 2Regular price $89.99 USDRegular priceUnit price per
-
14#022-6003-00
20x10.50-8 Turf Tire Only
Qty Used: 2Regular price $99.99 USDRegular priceUnit price per
-
15#022-8019-00
21x7-10 Assy-36" 2017 Walk Behind
Qty Used: 2Regular price $141.90 USDRegular priceUnit price per
-
16#022-8022-00
10" Wheel Only-36" Stand On
Qty Used: 2Regular price $69.00 USDRegular priceUnit price per
-
18#024-1200-00
ZT Fitting, 3/8 x 3/8 45 Degree
Qty Used: 2Regular price $18.63 USDRegular priceUnit price per
-
19#025-0016-00
2017 Transaxle Spacer-MZ
Qty Used: 1Regular price $13.12 USDRegular priceUnit price per
-
20#025-0070-00
2017 Transaxle Spacer
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
22#028-0070-00
Neutral Rod
Qty Used: 2Regular price $11.66 USDRegular priceUnit price per
-
23#034-9080-00
Gold Transaxle Spring
Qty Used: 1Regular price $13.92 USDRegular priceUnit price per
-
25#041-6500-00
36" Walk Behind Pump Belt
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
-
27#044-2008-00
Neutral Rod Clip
Qty Used: 2Regular price $1.31 USDRegular priceUnit price per
-
28#050-0003-00
2017 Walk Behind Transaxle Left
Qty Used: 1Regular price $549.99 USDRegular priceUnit price per
-
29#050-0004-00
2017 Walk Behind Transaxle Left
Qty Used: 1Regular price $549.99 USDRegular priceUnit price per
-
30#050-2075-00
Fan/Pulley Kit for ZT / 2017 MZ
Qty Used: 2Regular price $66.33 USDRegular priceUnit price per
-
30.1#050-2076-00
ZT Transaxle Wheel Hub
Qty Used: 2Regular price $84.64 USDRegular priceUnit price per
-
31#050-2012-00
Transaxle Wheel Studs/ Drum Brake Studs
Qty Used: 8Regular price $5.10 USDRegular priceUnit price per
-
31.1#050-2071-00
ZT Transaxle Charge Plate
Qty Used: 1Regular price $84.99 USDRegular priceUnit price per
-
32#092-8000-00
Transaxle Brake Lever
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
32.1#063-1050-00
ZT Hydraulic Filter
Qty Used: 1Regular price $21.22 USDRegular priceUnit price per
-
33#064-3000-00
Brake Cable Walk Behind/Revolt
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
