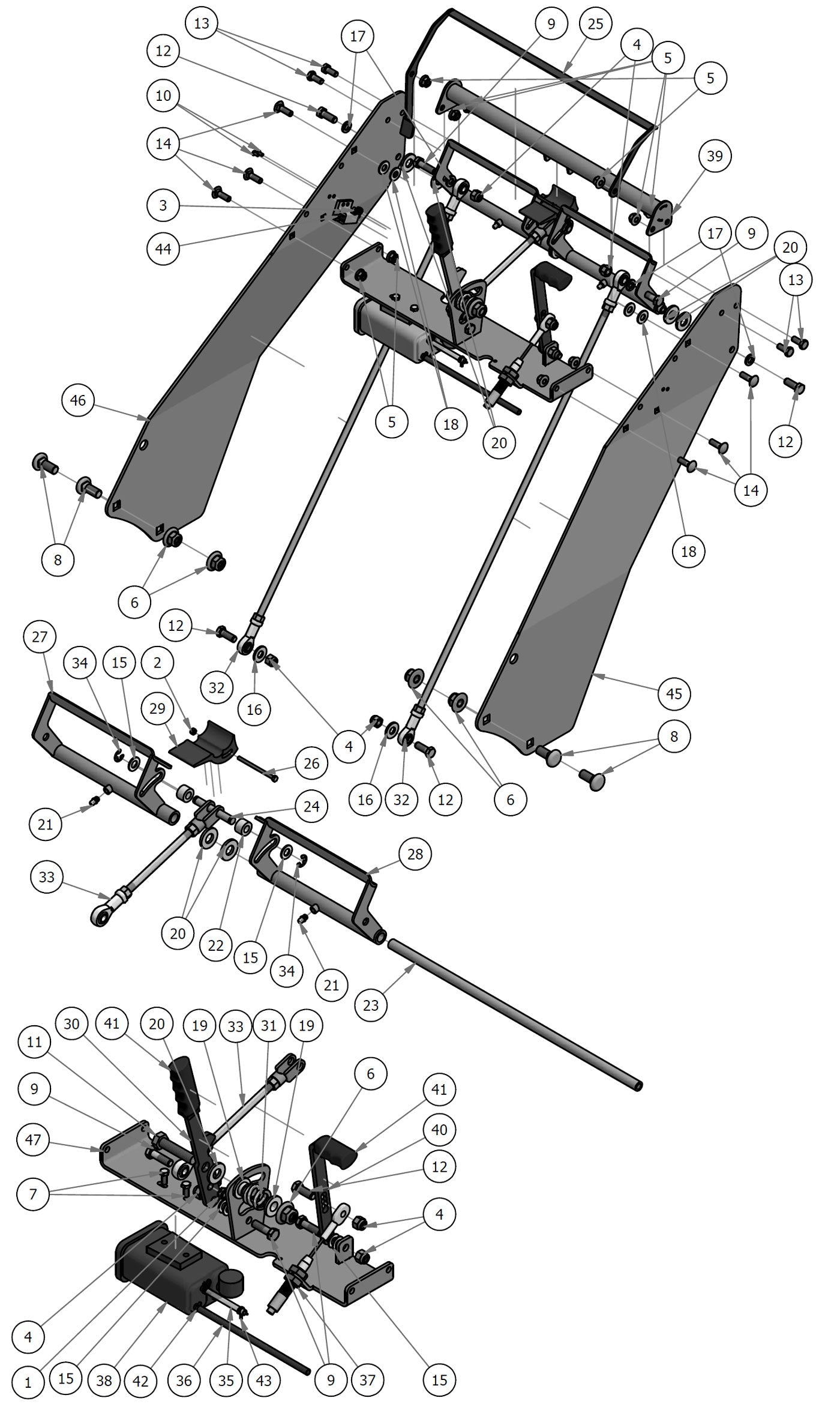

Podium Assembly
Parts Index
- 1 3/8-16 Centerlock Half Nut (Qty 1)
- 2 8-32 Nylock Nut (Qty 1)
- 3 10-24 Nylon Insert Locknut Zin (Qty 2)
- 4 3/8-16 Nylon Insert Locknut Zi (Qty 7)
- 5 5/16-18 Nylon Flange Nut (Qty 10)
- 6 1/2-13 Nylon Insert Flange Nut (Qty 5)
- 7 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 8 1/2 x 1 1/4 Carriage Bolt (Qty 4)
- 9 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 5)
- 10 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 11 1/2-13 X 2-1/4 GR 5 Hex Bolts (Qty 1)
- 12 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 5)
- 13 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 4)
- 14 5/16-18 X 1 Carriage Bolt Zinc (Qty 6)
- 15 .390x.750x.062 Nylon Washer (Qty 6)
- 16 3/8 USS Flat Washer Zinc (Qty 2)
- 17 3/8 Lockwasher Zinc (Qty 4)
- 18 .360 ID Plastic Washer (Qty 4)
- 19 .515 ID Plastic Shoulder Washer (Qty 2)
- 20 .505 ID X 1 OD X .128 THK Washer (Qty 7)
- 21 1/4 Drive-in Grease Fitting (Qty 2)
- 22 MZ Tank Spacer (Qty 2)
- 23 2017 Walk Behind Control Pivot Rod (Qty 1)
- 24 2017 Walk Behind T-Rod (Qty 1)
- 25 Presence Rod (Qty 1)
- 26 8-32 x 2 1/2 Hex Machine Screw (Qty 1)
- 27 Drive Lever Control RH (Qty 1)
- 28 Drive lever Control LH (Qty 1)
- 29 Neutral Lock (Qty 1)
- 30 Walk Behind Speed Control Lever--Black (Qty 1)
- 31 Drive Lever Housing Spring (Qty 1)
- 32 2017 Walk Behind Push Rod (Qty 2)
- 33 2017 Walk Behind Speed Control Rod Assembly (Qty 1)
- 34 E Clip 5/16 (Qty 2)
- 35 Clear 3/16" Magnum Air Line (Qty 3)
- 36 1/4 Fuel Line Hose PRICED/FOOT (Qty 2)
- 37 Brake Cable Walk Behind/Revolt (Qty 1)
- 38 Carbon Canister for Magnum/MZ (Qty 1)
- 39 Walk Behind Control Handle (Qty 1)
- 40 Walk Behind Brake Handle--Black (Qty 1)
- 41 Rubber Brake Grip-cZT/ZT 2013 (Qty 2)
- 42 3/16" Vinyl Hose Clamp (Qty 1)
- 43 8.6 mm Hose Clamp (Qty 2)
- 44 Deck Stop Switch (Qty 1)
-
1#013-0012-00
3/8-16 Centerlock Half Nut
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-

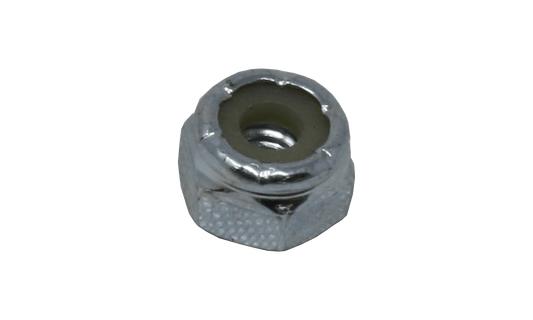

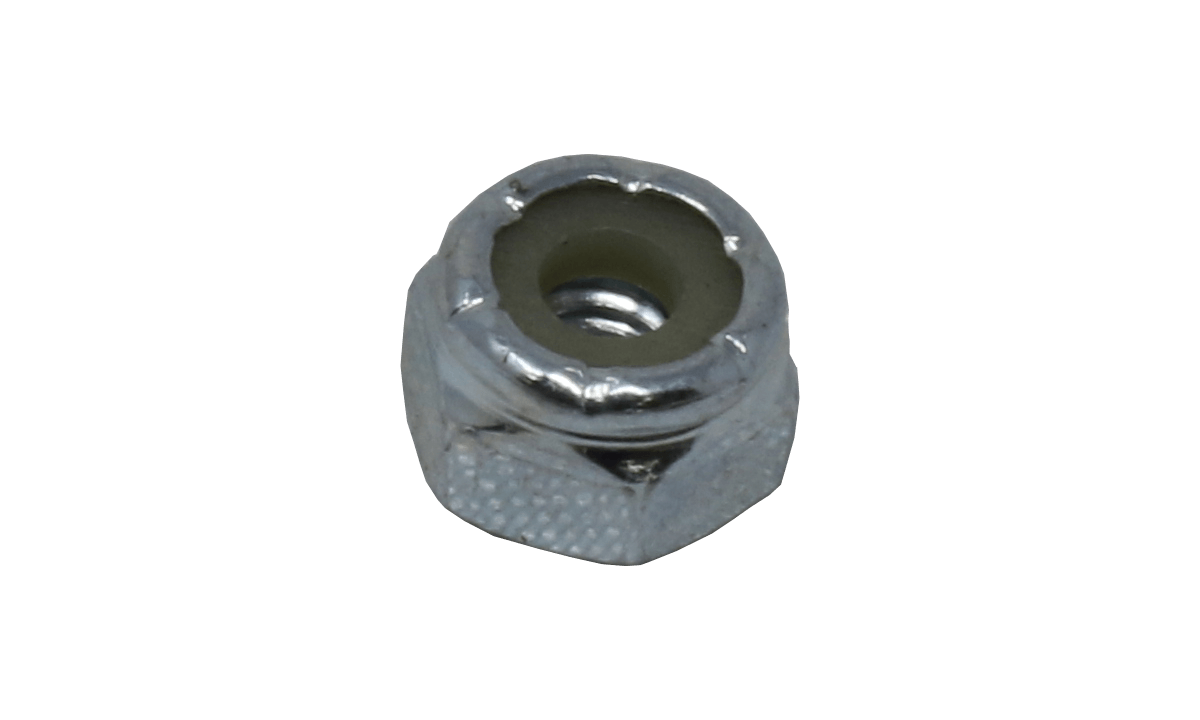

2#013-0015-00
8-32 Nylock Nut
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
3#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
4#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 7Regular price $0.69 USDRegular priceUnit price per
-
5#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 10Regular price $0.79 USDRegular priceUnit price per
-
6#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 5Regular price $1.39 USDRegular priceUnit price per
-
7#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
8#018-3003-00
1/2 x 1 1/4 Carriage Bolt
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
9#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
10#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
11#018-6037-00
1/2-13 X 2-1/4 GR 5 Hex Bolts
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
12#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-
13#018-8063-00
5/16-18 X 3/4 GR 5 Hex Bolts Z
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
14#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
15#019-2003-00
.390x.750x.062 Nylon Washer
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
16#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
17#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
18#019-6042-00
.360 ID Plastic Washer
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
19#019-8027-00
.515 ID Plastic Shoulder Washer
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
20#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 7Regular price $0.69 USDRegular priceUnit price per
-
21#024-6034-00
1/4 Drive-in Grease Fitting
Qty Used: 2Regular price $0.66 USDRegular priceUnit price per
-
22#025-2025-00
MZ Tank Spacer
Qty Used: 2Regular price $1.33 USDRegular priceUnit price per
-
23#028-0009-00
2017 Walk Behind Control Pivot Rod
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
24#028-0012-00
2017 Walk Behind T-Rod
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-

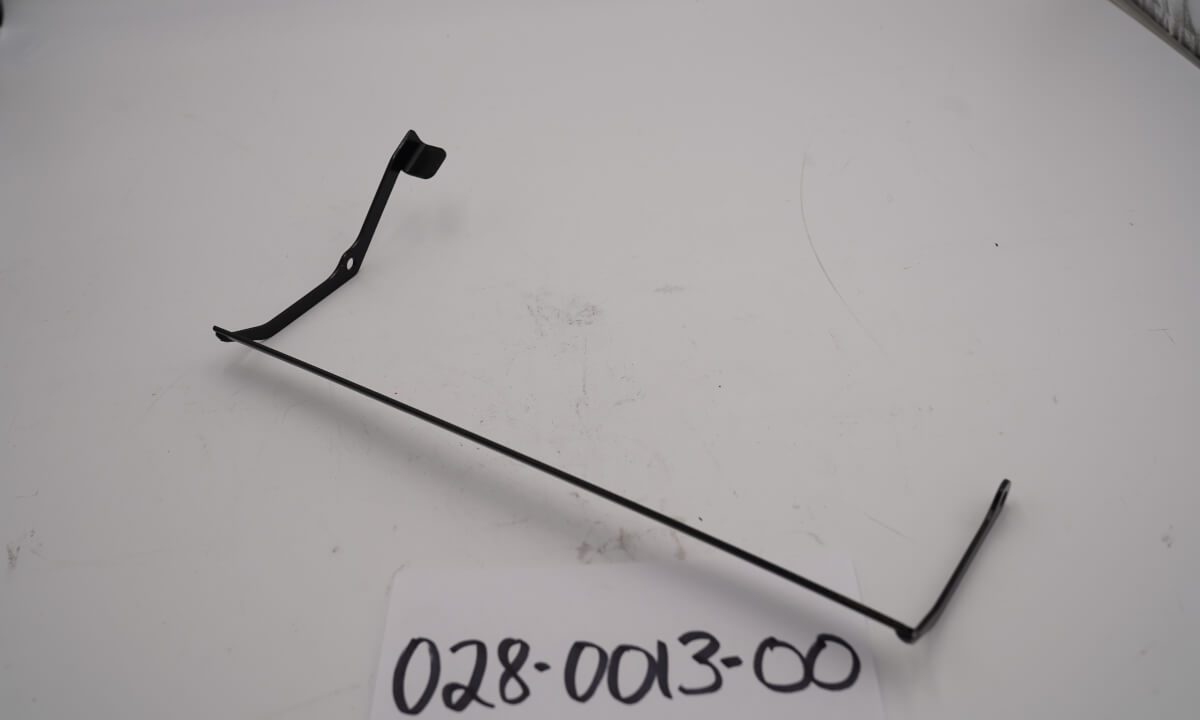

25#028-0013-00
Presence Rod
Qty Used: 1Regular price $43.95 USDRegular priceUnit price per
-

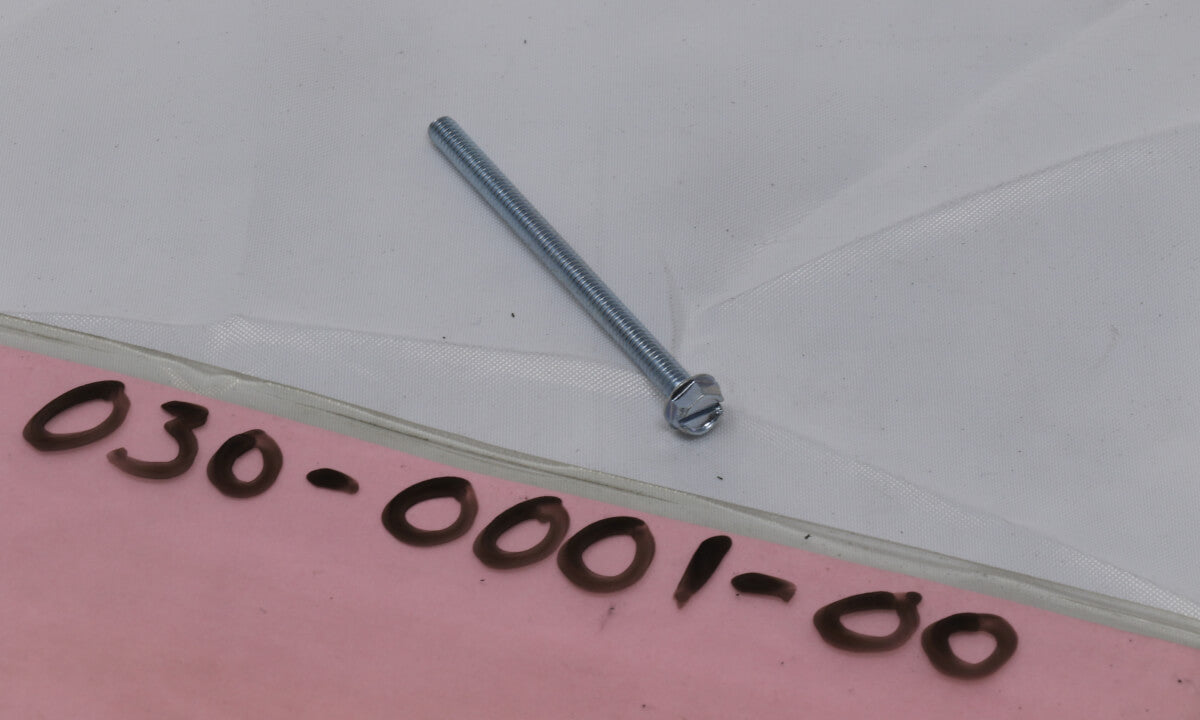

26#030-0001-00
8-32 x 2 1/2 Hex Machine Screw
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-

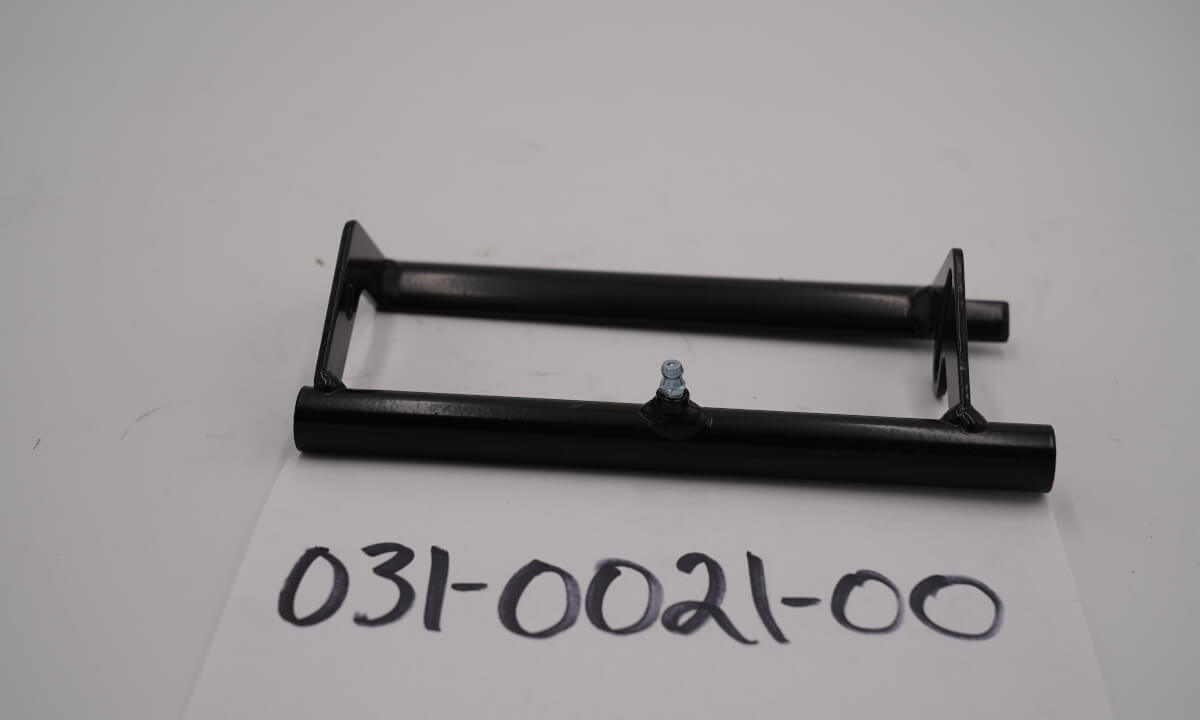

27#031-0021-00
Drive Lever Control RH
Qty Used: 1Regular price $29.95 USDRegular priceUnit price per
-

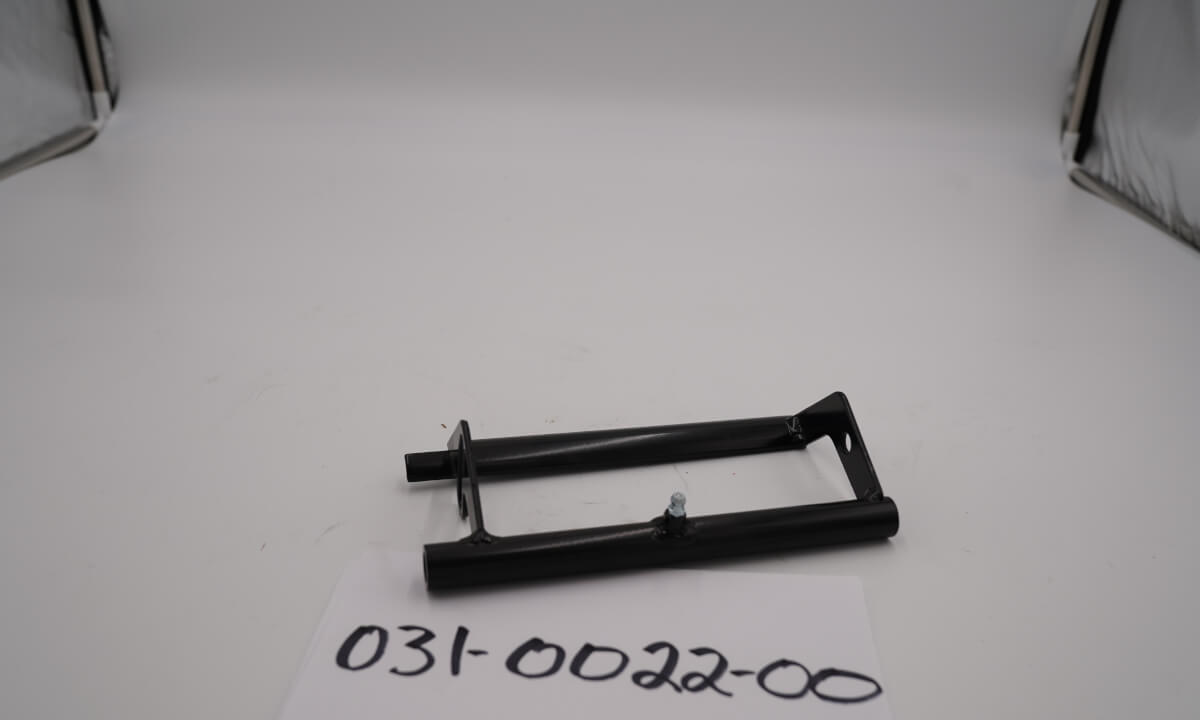

28#031-0022-00
Drive lever Control LH
Qty Used: 1Regular price $29.95 USDRegular priceUnit price per
-

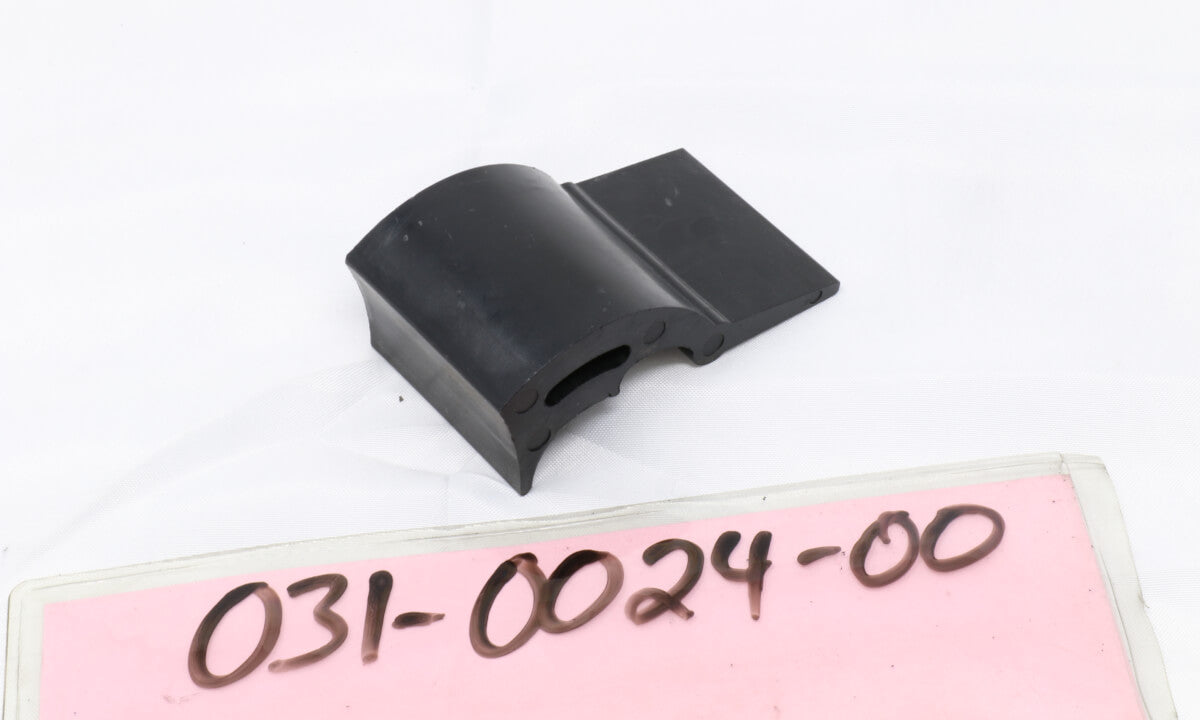

29#031-0024-00
Neutral Lock
Qty Used: 1Regular price $19.95 USDRegular priceUnit price per
-
30#031-0036-00
Walk Behind Speed Control Lever--Black
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
31#034-8025-00
Drive Lever Housing Spring
Qty Used: 1Regular price $3.70 USDRegular priceUnit price per
-
32#035-0001-00
2017 Walk Behind Push Rod
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
No sequence found for SKU:
2017 Walk Behind Speed Control Rod Assembly
Regular price $0.00 USDRegular priceUnit price per
-
34#044-2017-00
E Clip 5/16
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
35#051-2027-00
Clear 3/16" Magnum Air Line
Qty Used: 3Regular price $1.31 USDRegular priceUnit price per
-
36#051-8067-00
1/4 Fuel Line Hose PRICED/FOOT
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
37#064-3000-00
Brake Cable Walk Behind/Revolt
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
38#067-0015-00
Carbon Canister for Magnum/MZ
Qty Used: 1Regular price $43.72 USDRegular priceUnit price per
-
39#069-2017-00
Walk Behind Control Handle
Qty Used: 1Regular price $14.99 USDRegular priceUnit price per
-
40#069-2020-00
Walk Behind Brake Handle--Black
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
41#069-7000-00
Rubber Brake Grip-cZT/ZT 2013
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
42#072-8073-00
3/16\" Vinyl Hose Clamp
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
43#072-8075-00
8.6 mm Hose Clamp
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
44#077-5300-00
Deck Stop Switch
Qty Used: 1Regular price $8.99 USDRegular priceUnit price per
