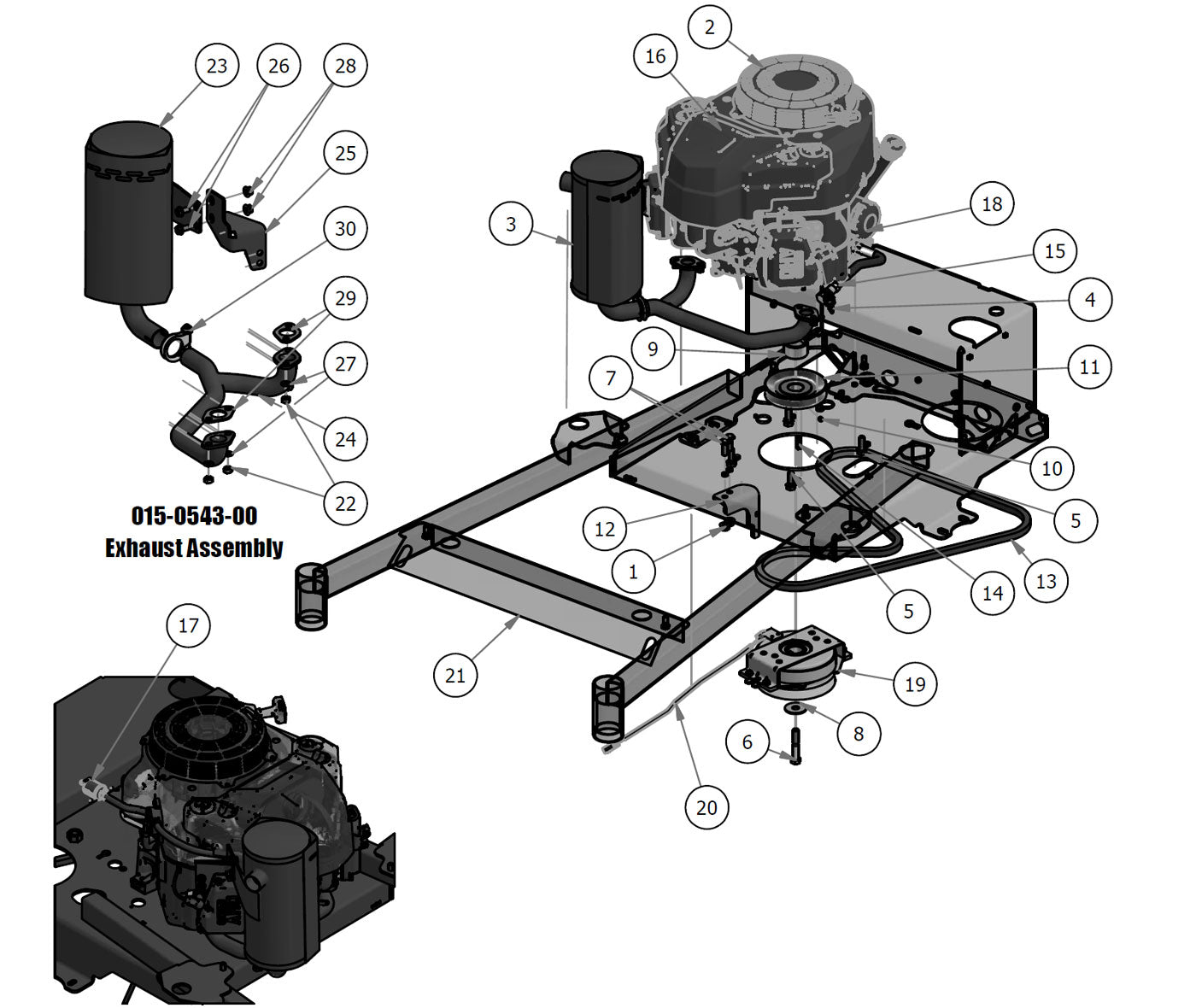

Kawasaki FS541V
Parts Index
- 1 3/8 Nylock Flange Nut (Qty 2)
- 2 FS541V-BS28-S Kawasaki Walk Behind Engine-Pull Sta (Qty 1)
- 3 Exhaust Assembly-2018 Kawasaki Walk Behind (Qty 1)
- 4 Spark plug-Kawasaki NGKBPR2ES (Qty 2)
- 5 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 6 7/16-20 x 1 1/2 Fine Thread Bolt Gr8 (Qty 1)
- 7 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 8 1/2 Belleville Washer #K2000-G (Qty 1)
- 9 1.130 ID X 1.75 OD X 1 Length (Qty 1)
- 10 5/16-24 x 1/4 Set Screw (Qty 1)
- 11 4 3/4 Motor Pulley - DB74-601 (Qty 1)
- 12 Warner Clutch Bracket (Qty 1)
- 13 36" Walk Behind Pump Belt (Qty 1)
- 14 1/4 x 1 Square Key (Qty 1)
- 15 Kawasaki Oil Drain (Qty 1)
- 16 22-26 Kaw Air Filter FR / FS (Qty 1)
- 17 Universal Inline Fuel Filter (Qty 1)
- 18 Kawasaki Oil Filter (Qty 1)
- 19 Clutch For 1-1/8" Shaft (Qty 1)
- 20 Clutch Pigtail (Qty 1)
- 21 2017 Walk Behind Frame (Qty 1)
- 22 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 23 Exhaust Only for 2018 Kawasaki Walk Behind (Qty 1)
- 24 Exhaust Pipe for 2018 Kawasaki Walk Behind (Qty 1)
- 25 Exhaust Bracket for 2018 Kawasaki Walk Behind (Qty 1)
- 26 Exhaust Flanged Bolt for 2018 Kawasaki Walk Behind (Qty 4)
- 27 Exhaust Washer Spring / Muffler Mount Lock Washer (Qty 4)
- 28 Exhaust Nut for 2018 Kawasaki Walk Behind (Qty 2)
- 29 Exhaust Gasket for 2018 Kawasaki Walk Behind (Qty 2)
- 30 Exhaust Band for 2018 Kawasaki Walk Behind (Qty 1)
-
1#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
2#015-0541-00
FS541V-BS28-S Kawasaki Walk Behind Engine-Pull Sta
Qty Used: 1Regular price $2,599.00 USDRegular priceUnit price per
-
3#015-0543-00
Exhaust Assembly-2018 Kawasaki Walk Behind
Qty Used: 1Regular price $219.99 USDRegular priceUnit price per
-
4#015-8001-00
Spark plug-Kawasaki NGKBPR2ES
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
5#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
6#018-5450-00
7/16-20 x 1 1/2 Fine Thread Bolt Gr8
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
7#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
8#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 1Regular price $4.69 USDRegular priceUnit price per
-
9#025-5032-00
1.130 ID X 1.75 OD X 1 Length
Qty Used: 1Regular price $10.60 USDRegular priceUnit price per
-
10#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
11#033-5034-00
4 3/4 Motor Pulley - DB74-601
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
12#039-1220-00
Warner Clutch Bracket
Qty Used: 1Regular price $11.80 USDRegular priceUnit price per
-
13#041-6500-00

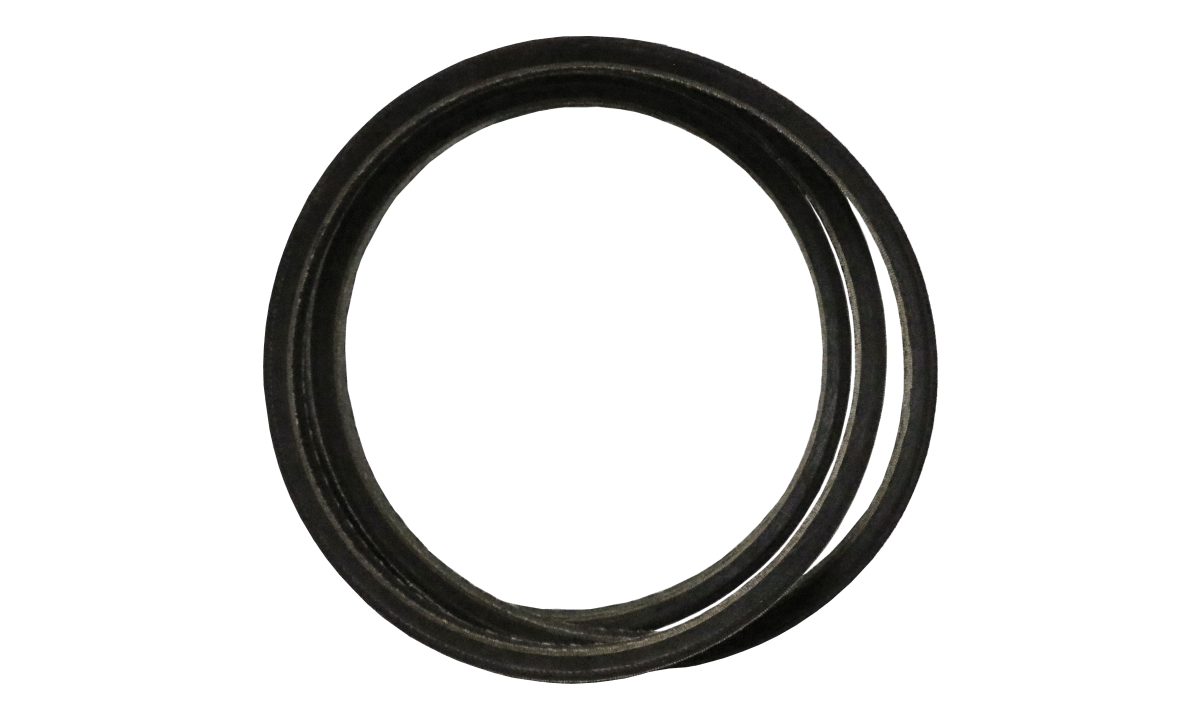

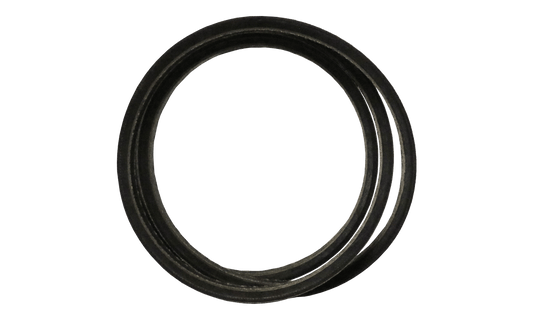

36" Walk Behind Pump Belt
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
14#042-6030-00
1/4 x 1 Square Key
Qty Used: 1Regular price $4.37 USDRegular priceUnit price per
-
15#051-5404-00
Kawasaki Oil Drain
Qty Used: 1Regular price $26.27 USDRegular priceUnit price per
-
16#063-2097-00
22-26 Kaw Air Filter FR / FS
Qty Used: 1Regular price $23.99 USDRegular priceUnit price per
-
17#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
18#063-8017-00
Kawasaki Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
-
20#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
21#070-5100-00
2017 Walk Behind Frame
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
22#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
23#015-0543-01
Exhaust Only for 2018 Kawasaki Walk Behind
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
24#015-0543-02
Exhaust Pipe for 2018 Kawasaki Walk Behind
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
25#015-0543-03
Exhaust Bracket for 2018 Kawasaki Walk Behind
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
26#015-0543-04
Exhaust Flanged Bolt for 2018 Kawasaki Walk Behind
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
27#015-0543-05
Exhaust Washer Spring / Muffler Mount Lock Washer
Qty Used: 4Regular price $0.99 USDRegular priceUnit price per
-
28#015-0543-06
Exhaust Nut for 2018 Kawasaki Walk Behind
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
29#015-0543-07
Exhaust Gasket for 2018 Kawasaki Walk Behind
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
30#015-0543-08
Exhaust Band for 2018 Kawasaki Walk Behind
Qty Used: 1Regular price $12.99 USDRegular priceUnit price per
