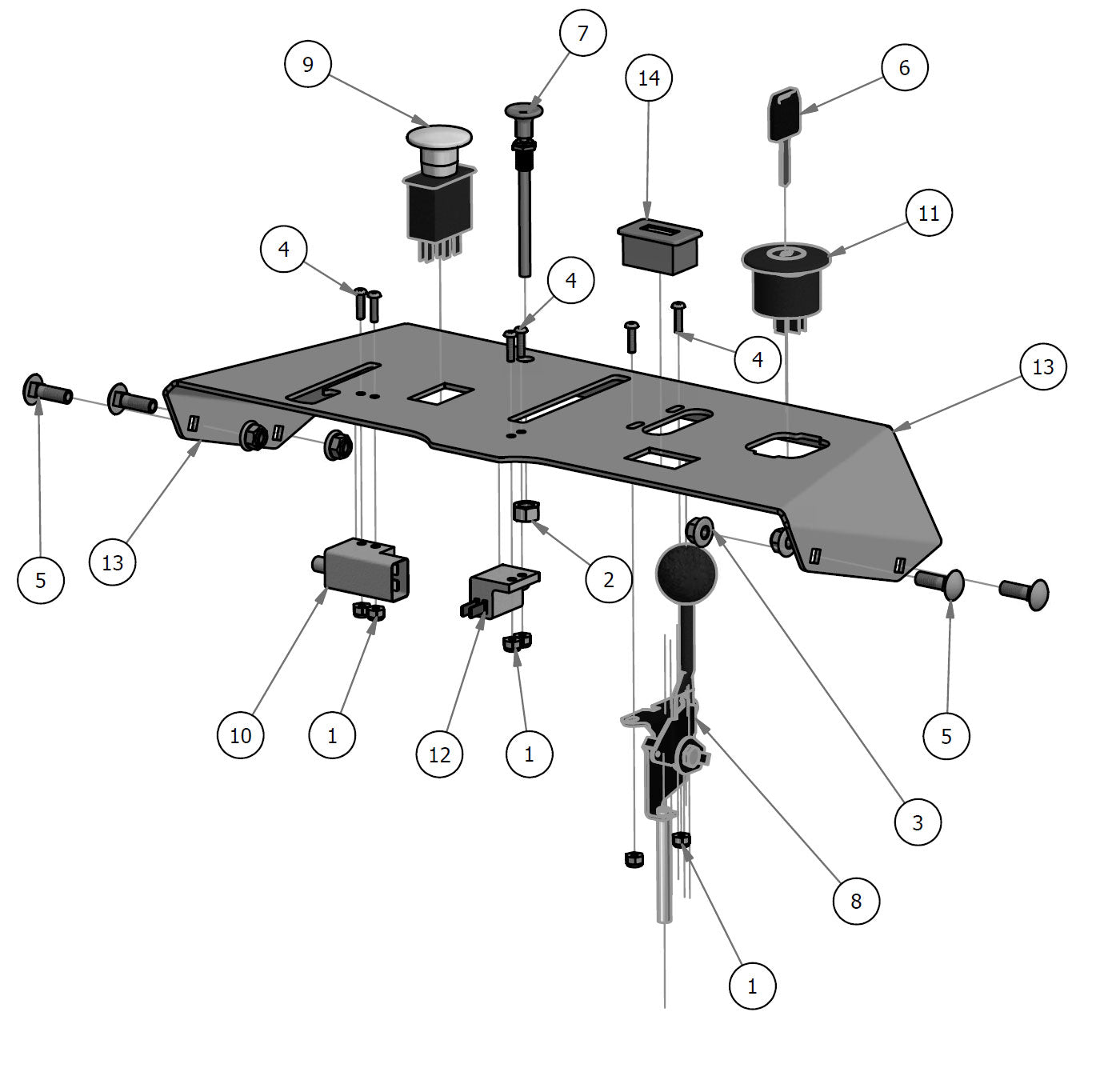

Instrument Panel
Parts Index
- 1 10-24 Nylon Insert Locknut Zin (Qty 1)
- 2 3/8-24 Hex Nut Zinc (Qty 1)
- 3 5/16-18 Nylon Flange Nut (Qty 4)
- 4 10-24 X 5/8 BS C/S 18-8 SS (Qty 6)
- 5 5/16-18 X 1 Carriage Bolt Zinc (Qty 4)
- 6 Ignition Key (Qty 1)
- 7 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 8 ZT/Mav/MZ/Comp Outlaw Throttle-53" (Qty 1)
- 9 PTO Engager-Switch for Blades (Qty 1)
- 10 2017? Walk Behind-Safety Switch Brake (Qty 1)
- 11 2017? Walk Behind-Key Switch (Qty 1)
- 12 Deck Stop Switch (Qty 1)
- 14 Tachometer-N310-0100-1018 (Qty 1)
-
1#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
2#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
3#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
4#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
5#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
6#042-9000-00
Ignition Key
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
7#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
8#055-8020-00
ZT/Mav/MZ/Comp Outlaw Throttle-53\"
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
9#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
10#077-0001-00
2017? Walk Behind-Safety Switch Brake
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
11#077-0003-00
2017? Walk Behind-Key Switch
Qty Used: 1Regular price $30.64 USDRegular priceUnit price per
-
12#077-5300-00
Deck Stop Switch
Qty Used: 1Regular price $8.99 USDRegular priceUnit price per
-
14#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
