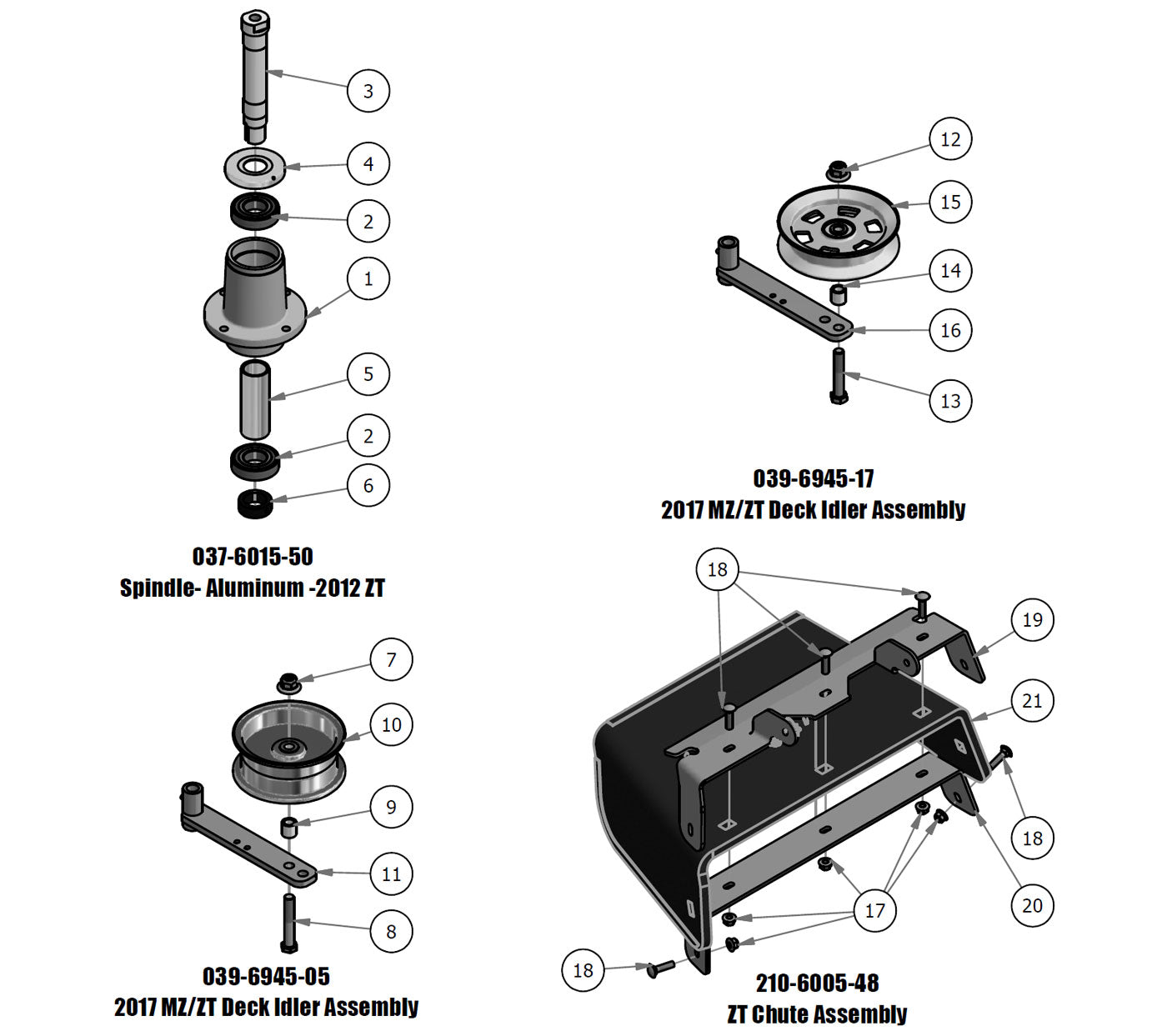

Deck Sub-assemblies
Parts Index
- 1 Aluminum Spindle Housing-2010 (Qty 1)
- 2 OBSOLETE USE 037-6029-00 (Qty 2)
- 3 Short Spindle Shaft for Locking Collar- No Grooved (Qty 1)
- 4 Dust Cover for 037-8000-00 - (Qty 1)
- 5 Tube Spacer for Spindle Shaft (Qty 1)
- 6 Collar Spacer - Top of Spindle (Qty 1)
- 7 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 8 1/2-13 X 3 GR 5 Hex Bolts Zinc (Qty 1)
- 9 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 10 Double Bearing Flat Idler (Qty 1)
- 11 Idler Bracket (Qty 1)
- 12 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 13 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 14 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 15 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 16 Idler Bracket (Qty 1)
- 17 5/16-18 Nylon Flange Nut (Qty 5)
- 18 5/16-18 X 1-1/4 Carriage Bolt (Qty 5)
- 19 48/52 Discharge Top Bracket (Qty 1)
- 20 48/52 Discharge Lower Bracket (Qty 1)
- 21 Discharge Chute (Rubber Component) (Qty 1)
-
1#037-6017-50
Aluminum Spindle Housing-2010
Qty Used: 1Regular price $119.36 USDRegular priceUnit price per
-
2#037-6023-00
OBSOLETE USE 037-6029-00
Qty Used: 2Regular price $39.79 USDRegular priceUnit price per
-
3#037-6026-00
Short Spindle Shaft w/Locking Collar- No Grooved
Qty Used: 1Regular price $78.29 USDRegular priceUnit price per
-
4#037-8002-00
Dust Cover for 037-8000-00
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
5#037-8050-00
Tube Spacer for Spindle Shaft
Qty Used: 1Regular price $7.90 USDRegular priceUnit price per
-
6#037-9050-00
Collar Spacer - Top of Spindle
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
712#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
8#018-7016-00
1/2-13 X 3 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
914#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
10#033-5000-00
Double Bearing Flat Idler
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
1116#039-6945-00
Idler Bracket
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
13#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
15#033-8050-00
2017 5" Split Idler Pulley-Tensioner Only
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
17#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
18#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-
19#039-4870-00
48/52 Discharge Top Bracket
Qty Used: 1Regular price $39.74 USDRegular priceUnit price per
-
20#039-4871-00
48/52 Discharge Lower Bracket
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
21#210-6005-00
Discharge Chute (Rubber Component)
Qty Used: 1Regular price $55.99 USDRegular priceUnit price per
