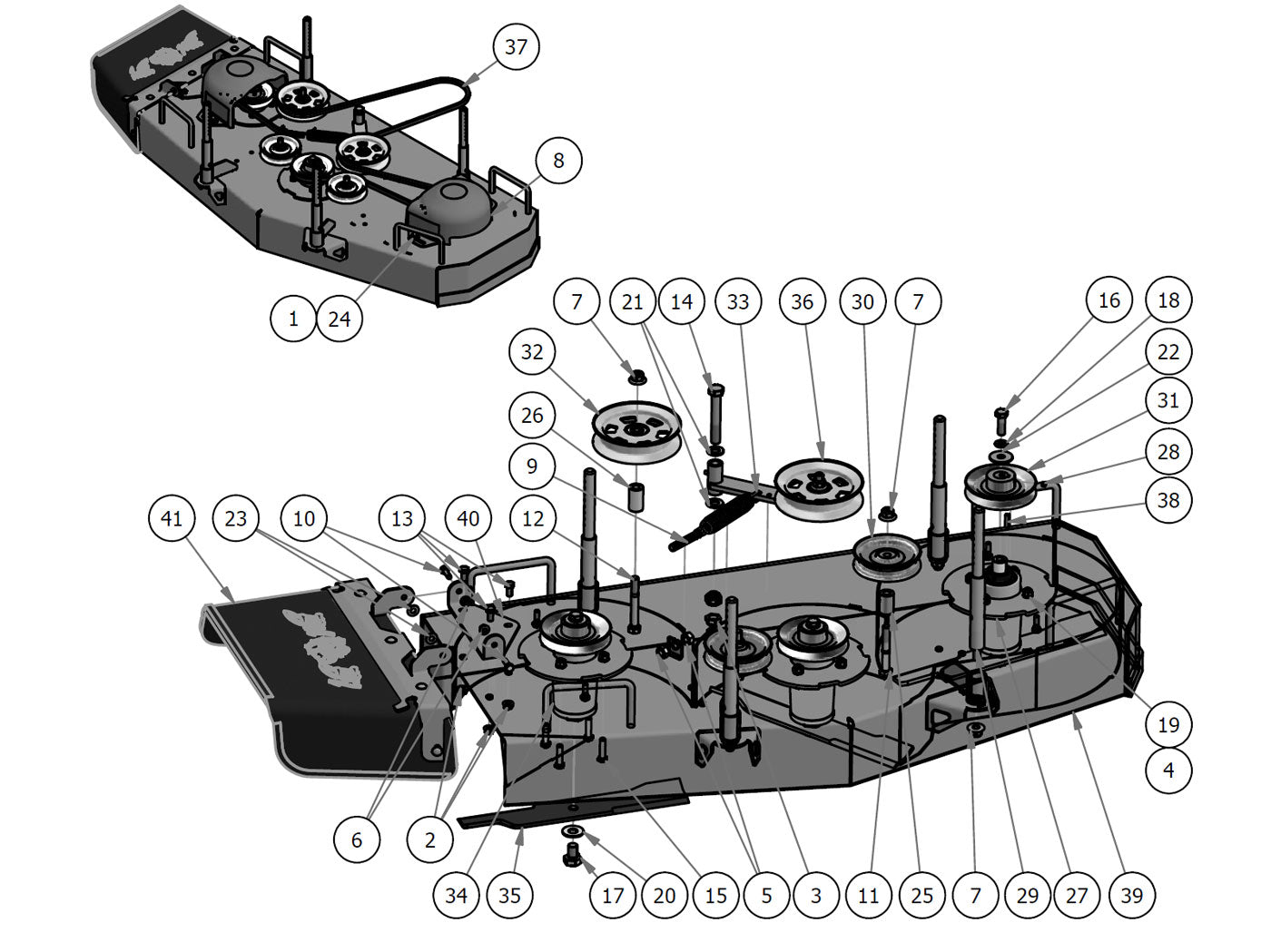

48" Deck Assembly
Parts Index
- 1 Acorn Nut-Pulley Cover (Qty 4)
- 2 3/8-16 Hex Flange Nuts Zinc w/ (Qty 3)
- 3 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 4 3/8-16 Hex Nuts Zinc (Qty 12)
- 5 1/2-13 Hex Nuts Zinc (Qty 2)
- 6 5/16-18 Nylon Flange Nut (Qty 2)
- 7 1/2-13 Nylon Insert Flange Nut (Qty 7)
- 8 Raider Pulley Cover (Qty 2)
- 9 All Thread (Qty 1)
- 10 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 11 1/2 x 3 1/2 Flange Bolt - Gr 8 (Qty 2)
- 12 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 1)
- 13 3/8-16 X 3/4 GR 5 Hex Bolts (Qty 3)
- 14 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 15 3/8 x 1 1/2 Bolt (Qty 12)
- 16 1/2-20 X 1-1/2 GR 5 Bolts Zinc (Qty 3)
- 17 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 3)
- 18 1/2 Lockwasher Zinc (Qty 3)
- 19 3/8 Lockwasher Zinc (Qty 12)
- 20 5/8 Flat Washer (Qty 3)
- 21 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 22 1/2 Belleville Washer #K2000-G (Qty 3)
- 23 .360 ID Plastic Washer (Qty 2)
- 24 .360 ID Black Plastic Washer (Qty 4)
- 25 .502 ID X 1.000 0D X 1.500 (Qty 2)
- 26 .502 ID X 1.00 OD X 1.750 (Qty 1)
- 27 Deck Spindle Support Plate 60"--Orange (Qty 3)
- 28 5/16-24 x 1/4 Set Screw (Qty 3)
- 29 2017 Walk Behind Deck Hanger (Qty 4)
- 30 4 3/4 Idler Pulley - ABFI-76 (Qty 2)
- 31 5" Spindle Deck Pulley - DB-80 (Qty 3)
- 32 5 3/4 Idler Pulley-Capitol (Qty 1)
- 33 2015 Deck Idler Spring (Qty 1)
- 34 Spindle-Aluminum (Qty 3)
- 35 48" ZT/Mav/Compact Outlaw Blade (Qty 3)
- 36 2017 MZ/ZT Deck Idler Assembly (Qty 1)
- 37 36 ZT/ 2019 48" Walk Behind/ 48" Revolt Deck Belt (Qty 1)
- 38 1/4 x 1 Square Key (Qty 3)
- 40 Discharge Chute Hanger-Deck (Qty 1)
- 41 2013 48" ZT/Chute Assembly (Qty 1)
-
1#013-0004-00
Acorn Nut-Pulley Cover
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
2#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
3#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
4#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 12Regular price $0.00 USDRegular priceUnit price per
-
5#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
6#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
7#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 7Regular price $1.39 USDRegular priceUnit price per
-
8#014-4000-00
Pulley Cover
Qty Used: 2Regular price $26.53 USDRegular priceUnit price per
-
9#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
10#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
11#018-2018-00
1/2 x 3 1/2 Flange Bolt - Gr 8
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
12#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
13#018-5250-00
3/8-16 X 3/4 GR 5 Hex Bolts
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
14#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
15#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
16#018-6019-00
1/2-20 X 1-1/2 GR 5 Bolts Zinc
Qty Used: 3Regular price $1.19 USDRegular priceUnit price per
-
17#018-6020-00
5/8-18 X 1-1/2 GR 8 Hex Bolts
Qty Used: 3Regular price $2.49 USDRegular priceUnit price per
-
18#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 3Regular price $0.00 USDRegular priceUnit price per
-
19#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 12Regular price $0.00 USDRegular priceUnit price per
-
20#019-5038-00
5/8 Flat Washer
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
21#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
22#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 3Regular price $4.69 USDRegular priceUnit price per
-
23#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
24#019-6050-00
.360 ID Black Plastic Washer
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
25#025-5338-00
.502 ID X 1.000 0D X 1.500
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
26#025-5339-00
.502 ID X 1.00 OD X 1.750
Qty Used: 1Regular price $4.87 USDRegular priceUnit price per
-
27#026-0025-00
Deck Spindle Support Plate 60\"--Orange
Qty Used: 3Regular price $13.26 USDRegular priceUnit price per
-
28#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 3Regular price $1.59 USDRegular priceUnit price per
-
29#031-0023-00
2017 Walk Behind Deck Hanger
Qty Used: 4Regular price $43.95 USDRegular priceUnit price per
-
30#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 2Regular price $29.18 USDRegular priceUnit price per
-
31#033-6003-00
5" Spindle Deck Pulley - DB-80
Qty Used: 3Regular price $39.79 USDRegular priceUnit price per
-
32#033-7201-25
5 3/4 Idler Pulley-Capitol
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
33#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
34#037-6015-50
Spindle-Aluminum
Qty Used: 3Regular price $199.99 USDRegular priceUnit price per
-
35#038-5350-00
48" ZT/Mav/Compact Outlaw Blade with Fusion
Qty Used: 3Regular price $21.16 USDRegular priceUnit price per
-
36#039-6945-17
2017 MZ/ZT Deck Idler Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
37#041-5200-00
36 ZT/ 2019 48" Walk Behind/ 48" Revolt Deck Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
38#042-6030-00
1/4 x 1 Square Key
Qty Used: 3Regular price $4.37 USDRegular priceUnit price per
-
40#206-6017-00
Discharge Chute Hanger-Deck
Qty Used: 1Regular price $36.48 USDRegular priceUnit price per
-
41#210-6005-48
2013 48" ZT/Chute Assembly
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
