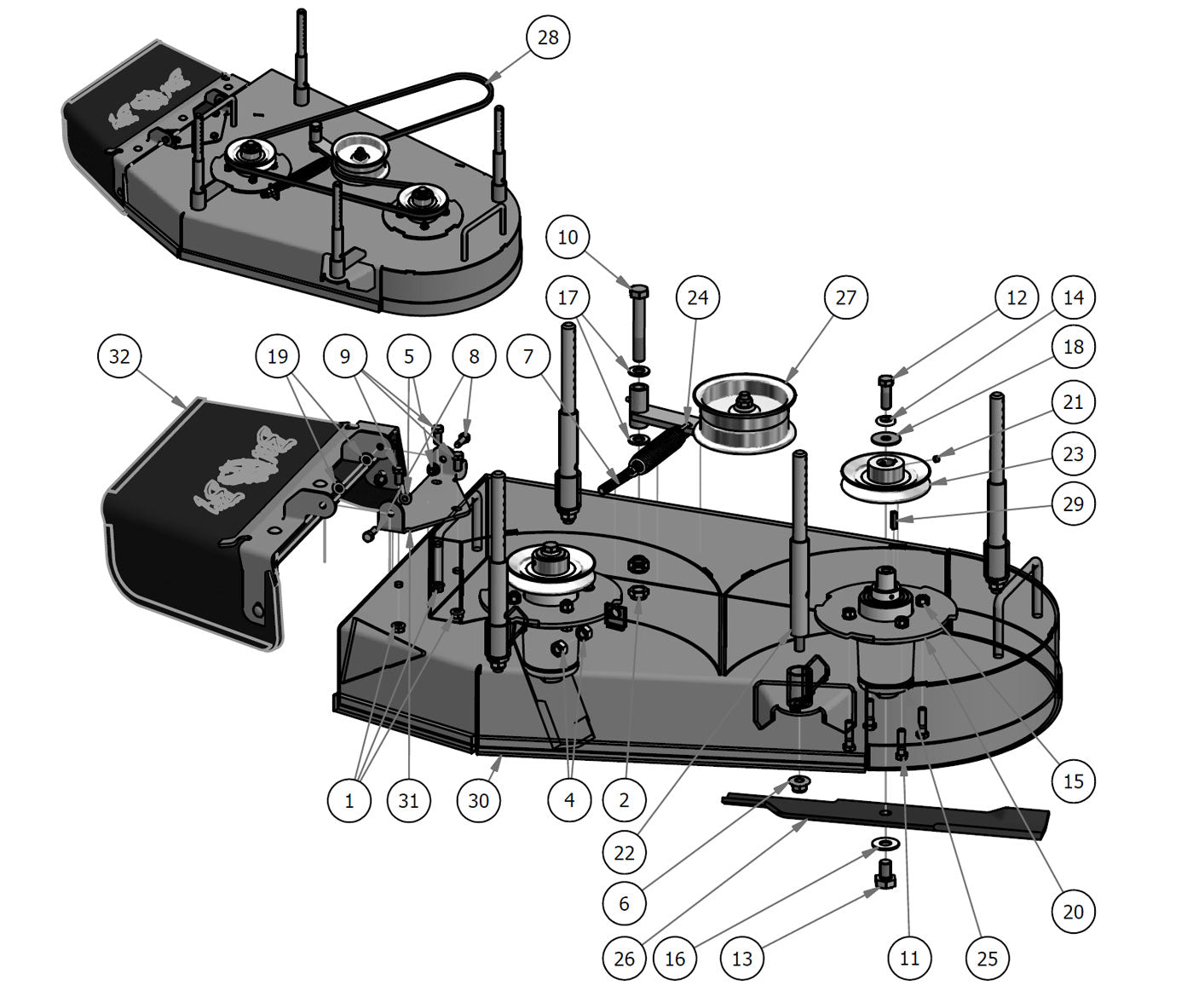

36" Deck Assembly
Parts Index
- 1 3/8-16 Hex Flange Nuts Zinc w/ (Qty 3)
- 2 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 3 3/8-16 Hex Nuts Zinc (Qty 8)
- 4 1/2-13 Hex Nuts Zinc (Qty 2)
- 5 5/16-18 Nylon Flange Nut (Qty 2)
- 6 1/2-13 Nylon Insert Flange Nut (Qty 4)
- 7 All Thread (Qty 1)
- 8 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 9 3/8-16 X 3/4 GR 5 Hex Bolts (Qty 3)
- 10 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 11 3/8 x 1 1/2 Bolt (Qty 8)
- 12 1/2-20 X 1-1/2 GR 5 Bolts Zinc (Qty 2)
- 13 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 2)
- 14 1/2 Lockwasher Zinc (Qty 2)
- 15 3/8 Lockwasher Zinc (Qty 8)
- 16 5/8 Flat Washer (Qty 2)
- 17 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 18 1/2 Belleville Washer #K2000-G (Qty 2)
- 19 .360 ID Plastic Washer (Qty 2)
- 20 Deck Spindle Support Plate 60"--Orange (Qty 2)
- 21 5/16-24 x 1/4 Set Screw (Qty 2)
- 22 2017 Walk Behind Deck Hanger (Qty 4)
- 23 5" Spindle Deck Pulley - DB-80 (Qty 2)
- 24 2015 Deck Idler Spring (Qty 1)
- 25 Spindle-Aluminum (Qty 2)
- 26 54" Blade for Avenger/ZT/Mav/Outlaw/Revolt (Qty 2)
- 27 Deck Idler Assy-35 Diesel/Stand on (Qty 1)
- 28 36" Walk Behind Deck Belt 91" 5L/B (Qty 1)
- 29 1/4 x 1 Square Key (Qty 2)
- 30 36" Walker Deck Weldment (Qty 1)
- 31 Discharge Chute Hanger-Deck (Qty 1)
- 32 2013 48" ZT/Chute Assembly (Qty 1)
-
1#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
2#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
3#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 8Regular price $0.00 USDRegular priceUnit price per
-
4#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
5#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
6#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
7#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
8#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
9#018-5250-00
3/8-16 X 3/4 GR 5 Hex Bolts
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
10#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
11#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
12#018-6019-00
1/2-20 X 1-1/2 GR 5 Bolts Zinc
Qty Used: 2Regular price $1.19 USDRegular priceUnit price per
-
13#018-6020-00
5/8-18 X 1-1/2 GR 8 Hex Bolts
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
14#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
15#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 8Regular price $0.00 USDRegular priceUnit price per
-
16#019-5038-00
5/8 Flat Washer
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
17#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
18#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 2Regular price $4.69 USDRegular priceUnit price per
-
19#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
20#026-0025-00
Deck Spindle Support Plate 60\"--Orange
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
21#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 2Regular price $1.59 USDRegular priceUnit price per
-
22#031-0023-00
2017 Walk Behind Deck Hanger
Qty Used: 4Regular price $43.95 USDRegular priceUnit price per
-
23#033-6003-00
5" Spindle Deck Pulley - DB-80
Qty Used: 2Regular price $39.79 USDRegular priceUnit price per
-
24#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
25#037-6015-50
Spindle-Aluminum
Qty Used: 2Regular price $199.99 USDRegular priceUnit price per
-
26#038-0001-00
54\" Blade for Avenger/ZT/Mav/Outlaw/Revolt
Qty Used: 2Regular price $21.16 USDRegular priceUnit price per
-
27#039-6945-05
Deck Idler Assy-35 Diesel/Stand on
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-

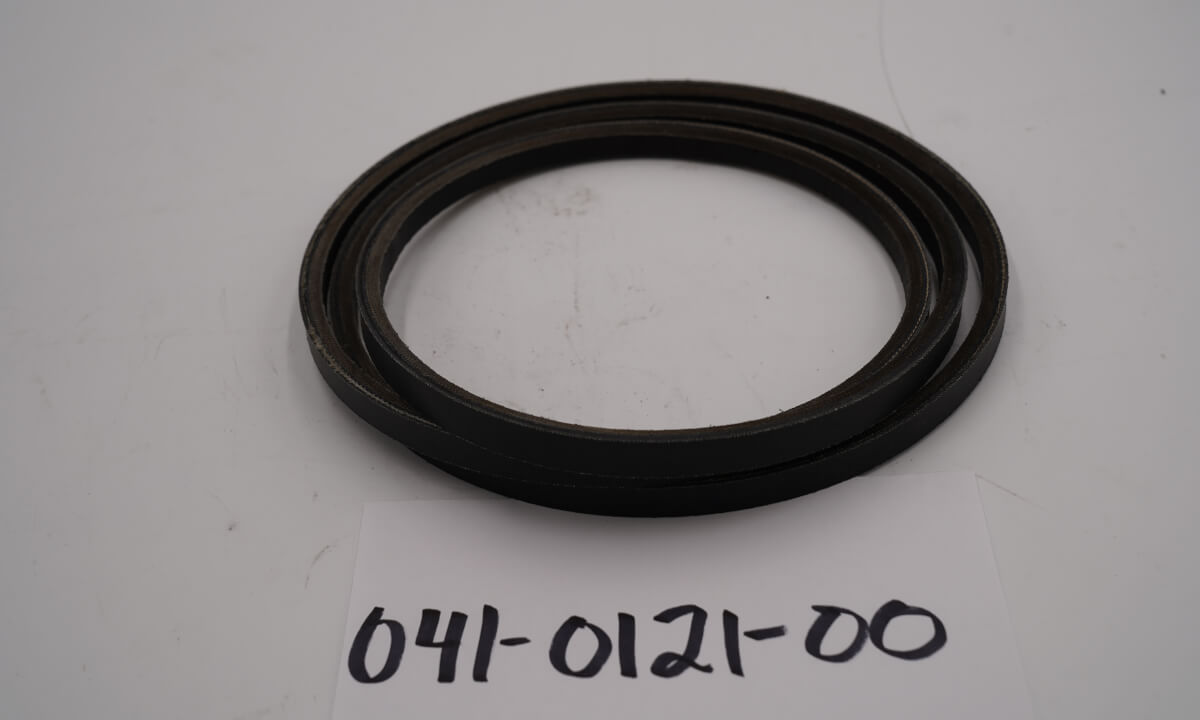

28#041-0121-00
36" Walk Behind Deck Belt 91" 5L/B
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
29#042-6030-00
1/4 x 1 Square Key
Qty Used: 2Regular price $4.37 USDRegular priceUnit price per
-
30#060-3600-00
36\" Walker Deck Weldment
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
31#206-6017-00
Discharge Chute Hanger-Deck
Qty Used: 1Regular price $36.48 USDRegular priceUnit price per
-
32#210-6005-48
2013 48" ZT/Chute Assembly
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
