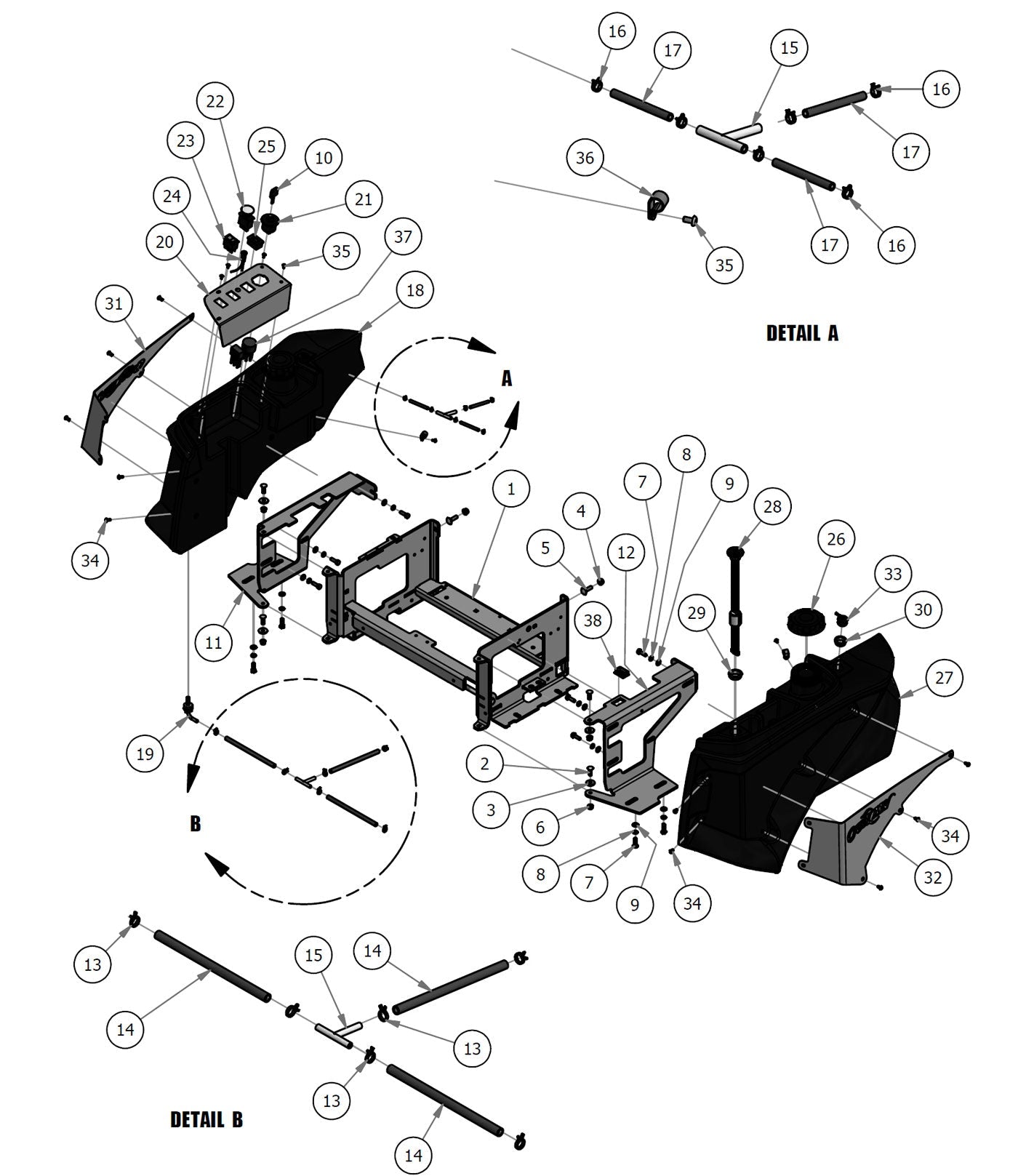

Gas Tank Assemblies
Parts Index
- 1 2017 Outlaw Seat Bracket (Qty 1)
- 2 5/16-18 X 1 Carriage Bolt Zinc (Qty 4)
- 3 .360 ID Plastic Washer (Qty 4)
- 4 .360 ID Plastic Washer (Qty 4)
- 5 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
- 6 5/16-18 Nylon Flange Nut (Qty 4)
- 7 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 10)
- 8 5/16 Lock washer Zinc (Qty 10)
- 9 5/16 USS Flat Washer Zinc (Qty 10)
- 10 Ignition Key (Qty 1)
- 11 2015 Outlaw Tank Support (Qty 1)
- 12 2016 Outlaw Tank Support (Qty 1)
- 13 1/4 Fuel Line Clamp (Qty 6)
- 14 1/4 Fuel Line Hose PRICED/FOOT (Qty 3)
- 15 Fuel Line T (Qty 2)
- 16 MZ Tank Hose Clamp 1/4 Vinyl (Qty 6)
- 17 1/4" Vinyl Tubing - Black per foot (Qty 3)
- 18 Rght Fuel Tank 2015 Outlaw/XP (Qty 1)
- 19 Fuel Tank Hose Nipple w/Filter (Qty 2)
- 20 2015 Outlaw Control Panel (Qty 1)
- 21 Ignition Switch (Qty 1)
- 22 PTO Engager-Switch for Blades (Qty 1)
- 23 Rocker Deck Lift Switch - 2011 (Qty 1)
- 24 Oil Light (Qty 1)
- 25 Tachometer-N310-0100-1018 (Qty 1)
- 26 Fuel Kelch Cap - 3.5 Neck (Qty 2)
- 27 Left Fuel Tank 2015 Outlaw/XP (Qty 1)
- 28 Fuel Gauge Assembly w/ Grommet-2014 ZT,2015 Outlaw (Qty 1)
- 29 Old Style Grommet for Fule Gau (Qty 1)
- 30 Old Style Grommet for Fule Gau (Qty 2)
- 31 Outlaw Tank Panel (Right) (Qty 1)
- 32 Outlaw Tank Panel (Right) (Qty 1)
- 33 Rollover Valve and Grommet New (Qty 2)
- 34 1/4-20 X 1/2 BS C/S 18-8 SS (Qty 10)
- 35 10-32 X 3/8 BS C/S 18-8 SS with Patch (Qty 6)
- 37 Harness-27hp Briggs/25hp Outla (Qty 1)
- 38 Light Plug (Qty 1)
-
1#080-5116-17
2017 Outlaw Seat Bracket
Qty Used: 1Regular price $399.99 USDRegular priceUnit price per
-
2#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
34#019-6042-00
.360 ID Plastic Washer
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
5#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
6#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
7#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 10Regular price $0.00 USDRegular priceUnit price per
-
8#019-8051-00
5/16 Lock washer Zinc
Qty Used: 10Regular price $0.79 USDRegular priceUnit price per
-
9#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 10Regular price $0.79 USDRegular priceUnit price per
-
10#042-9000-00
Ignition Key
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
11#031-2040-00
2015 Outlaw Tank Support
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
12#031-2045-00
2016 Outlaw Tank Support
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
13#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 6Regular price $0.88 USDRegular priceUnit price per
-
14#051-8067-00
1/4 Fuel Line Hose PRICED/FOOT
Qty Used: 3Regular price $5.83 USDRegular priceUnit price per
-
15#073-8068-00
Fuel Line T
Qty Used: 2Regular price $8.82 USDRegular priceUnit price per
-
16#072-8070-00
MZ Tank Hose Clamp 1/4 Vinyl
Qty Used: 6Regular price $1.45 USDRegular priceUnit price per
-
17#051-8072-00
1/4" Vinyl Tubing - Black per foot
Qty Used: 3Regular price $2.91 USDRegular priceUnit price per
-
18#067-1180-50
Rght Fuel Tank 2015 Outlaw/XP
Qty Used: 1Regular price $249.99 USDRegular priceUnit price per
-
19#067-6055-00
Fuel Tank Hose Nipple w/Filter
Qty Used: 2Regular price $24.75 USDRegular priceUnit price per
-
20#079-3360-00
2015 Outlaw Control Panel
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
21#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
22#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
23#078-3000-00
Rocker Deck Lift Switch - 2011
Qty Used: 1Regular price $34.96 USDRegular priceUnit price per
-
-
25#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
26#066-8076-00
Fuel Kelch Cap - 3.5 Neck
Qty Used: 2Regular price $29.95 USDRegular priceUnit price per
-
27#067-1190-50
Left Fuel Tank 2015 Outlaw/XP
Qty Used: 1Regular price $319.66 USDRegular priceUnit price per
-
28#067-4080-00
Fuel Gauge Assembly w/ Grommet-2014 ZT,2015 Outlaw
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
2930#067-6054-00
Old Style Grommet for Fule Gau
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
3132#079-3280-00
Outlaw Tank Panel (Right)
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
33#067-6070-00
Rollover Valve and Grommet New
Qty Used: 2Regular price $22.99 USDRegular priceUnit price per
-
34#018-2012-00
1/4-20 X 1/2 BS C/S 18-8 SS
Qty Used: 10Regular price $0.69 USDRegular priceUnit price per
-
35#018-2010-00
10-32 X 3/8 BS C/S 18-8 SS
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
37#086-2050-00
Harness-27hp Briggs/25hp Outla
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
-
38#018-1040-00
Light Plug
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
