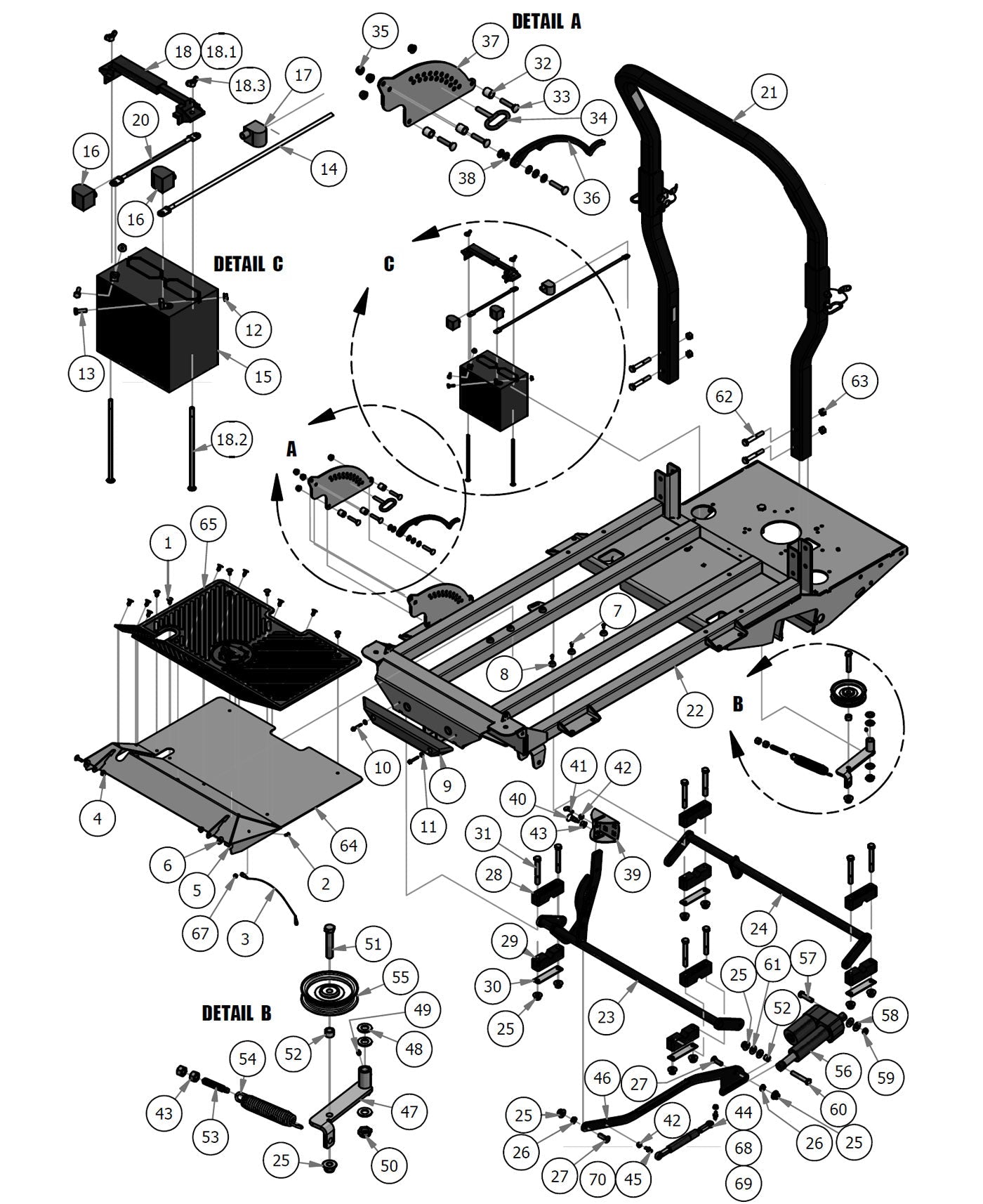

Floorboard & Battery

Parts Index
- 1 Ratchet Fastener - Floorboard (Qty 12)
- 2 1/4-20 X 5/8 BS C/S 18-8 SS (Qty 1)
- 3 Floorboard Cable (Qty 1)
- 4 5/16-18 Nylon Flange Nut (Qty 2)
- 5 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 6 .360 ID Plastic Washer (Qty 2)
- 7 10 X 1/2 Pan Phil a T/S Zinc (Qty 6)
- 8 Button Bumper (Qty 6)
- 9 Bumper (Qty 1)
- 10 14 X 1-1/2 HWA A T/S Zinc (Qty 2)
- 11 1/4 USS Flat Washer Zinc (Qty 2)
- 12 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 13 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 14 24 Red Battery Cable (Qty 1)
- 15 Battery - All models except Renegade and Revolt (Qty 1)
- 16 Black Cable Boot (Qty 2)
- 17 Red Lug Boot (Qty 1)
- 18 Battery Hold Down (Plastic) (Qty 1)
- 18.1 Battery Hold Down (Plastic) (Qty 1)
- 18.2 1/4-20 X 8 Carriage Bolts Zinc (Qty 2)
- 18.3 1/4-20 Wing Nuts Zinc (Qty 2)
- 20 Rebel, Rogue Ground Wire (Qty 1)
- 21 2014 to 2018 Outlaw 2x2 Folding (Qty 1)
- 22 2017 XP Frame (Qty 1)
- 23 2015 Outlaw Actuator Bar (Qty 1)
- 24 2015 Outlaw Actuator Bar(Rear) (Qty 1)
- 25 1/2-13 Nylon Insert Flange Nut (Qty 12)
- 26 Actuator Bar Bushing-SF-1620-4 (Qty 2)
- 27 1/2 x 1 1/2 Carriage Bolt (Qty 2)
- 28 Two Piece Pillow Block-Male (Qty 4)
- 29 Two Piece Pillow Block-Female (Qty 4)
- 30 Two Piece Pillow Block-Plate (Qty 4)
- 31 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 8)
- 32 Spacer 3/4ODx1/2IDx0.75 (Qty 3)
- 33 3/8 x 1 3/4 Carriage Bolt (Qty 4)
- 34 Deck Height Lever Pin (Qty 1)
- 35 3/8 Nylock Flange Nut (Qty 4)
- 36 Outlaw Deck Lever Lock (Qty 1)
- 37 Outlaw Height Indicator Plate (Qty 1)
- 38 .390x.750x.062 Nylon Washer (Qty 5)
- 39 Outlaw Deck Lift Pedal (Qty 1)
- 40 Pull Pin - Foot Assist w/Ring (Qty 1)
- 41 5/16-18 x 1 Thumb Screw Zinc (Qty 1)
- 42 5/16-18 Hex Flange Nuts Zinc w (Qty 3)
- 43 1/2-13 Hex Nuts Zinc (Qty 3)
- 44 Dampener (200lbs) (Qty 1)
- 45 10mm Damper Ball Stud- (Qty 2)
- 46 Outlaw Linkage Bar Suspension Frame (Qty 1)
- 47 Idler Bracket (Qty 1)
- 48 .630 ID X 1.122 OD X .142 THK (Qty 3)
- 49 1/4 Drive-in Grease Fitting (Qty 1)
- 50 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 51 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 52 1/2 Set Collar w/set collar (Qty 2)
- 53 All Thread-Pump Idler Tensioner (Qty 1)
- 54 2009 Deck/Pump Idler Spring (Qty 1)
- 55 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 56 Actuator for Pup/Lightning/AOS (Qty 1)
- 57 1/2-13 x 2 Grade 8 Hex Bolt (Qty 1)
- 58 1/2 SAE Flat Washer GR 8 (Qty 2)
- 59 1/2-13 Nylon Insert Jam Locknut (Qty 1)
- 60 1/2-13 X 3 GR 5 Hex Bolts Zinc (Qty 1)
- 61 .505 ID X 1 OD X .128 THK Washer (Qty 2)
- 62 1/2-13 X 3.25 Hex Bolt-Grade 5 (Qty 4)
- 63 1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC (Qty 4)
- 64 2017 Outlaw XP Floor Panel (Qty 1)

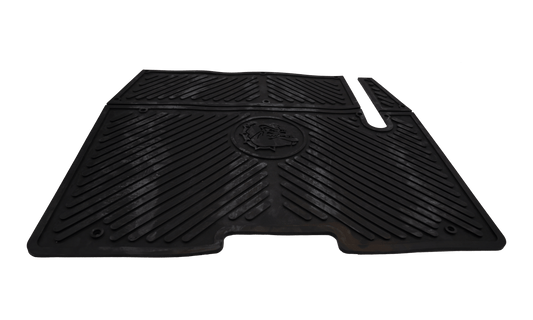

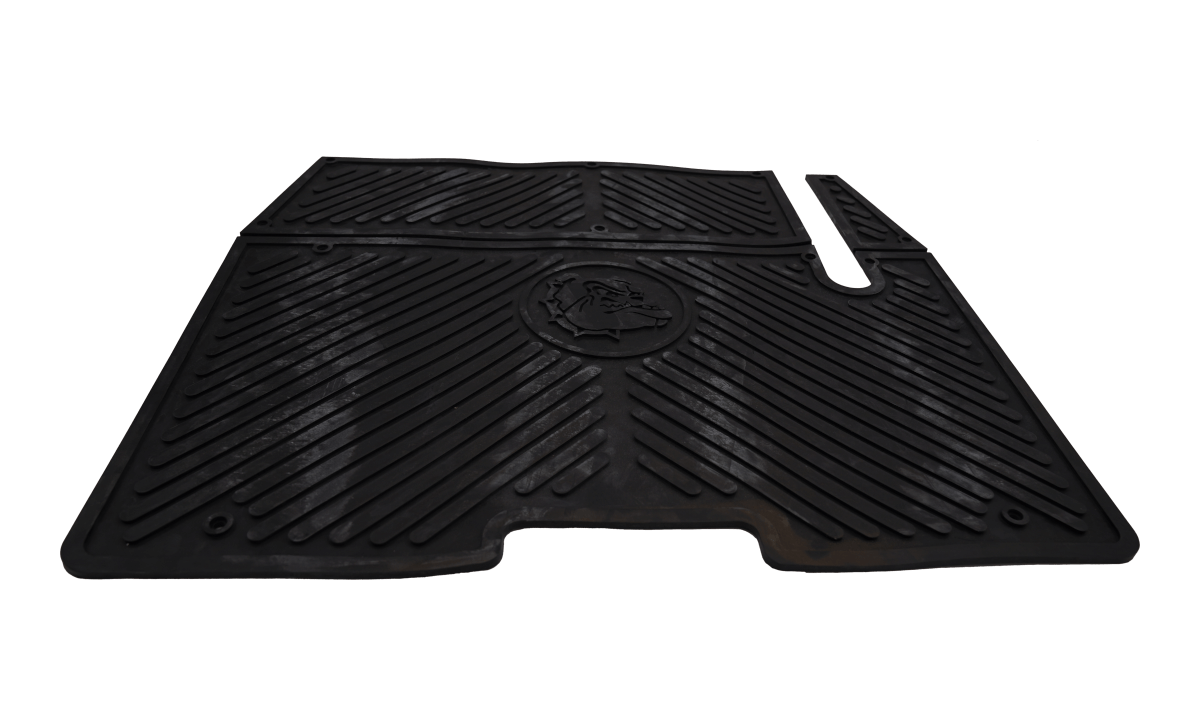

- 65 2016 Outlaw Floor Mat Base/XP (Qty 1)
- 67 1/4-20 Hex Nuts Zinc (Qty 1)
- 68 Dampener (250lbs) (Qty 1)
- 69 Dampener (300lbs) (Qty 1)
- 70 13mm Ball Stud (Qty 2)
