824cc Yamaha

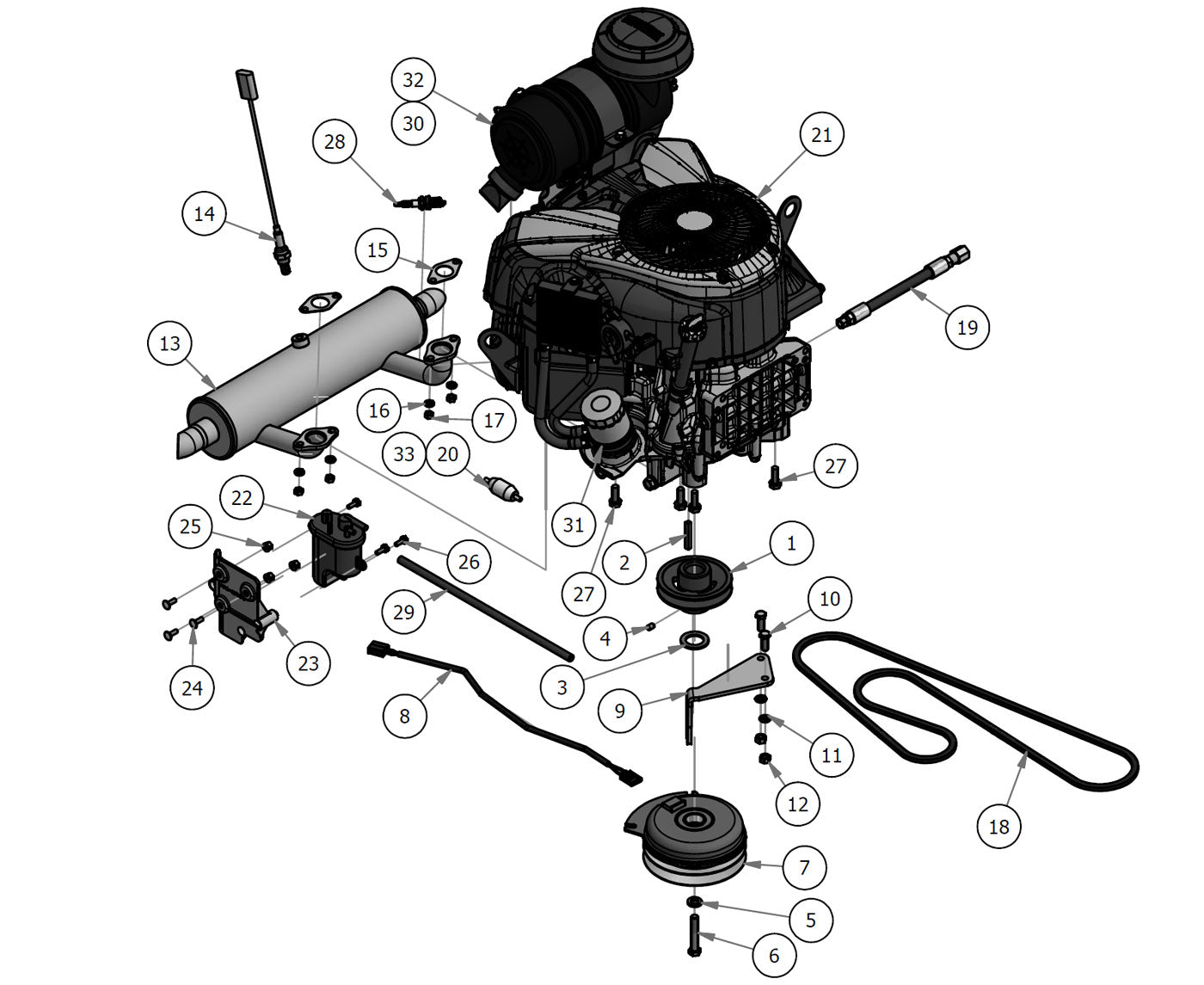

Parts Index
- 1 4 3/4 Motor Pulley (Qty 1)
- 2 1/4 X 2 Square Key Stock (Qty 1)
- 3 1.140x1.750x .132 Flat Washer (Qty 1)
- 4 3/8-16x1/2 Socket Set Cup Point (Qty 1)
- 5 7/16 Lock washer zinc (Qty 1)
- 6 7/16-20 X 2-1/2 GR 5 Hex Bolt (Qty 1)
- 7 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 8 Clutch Pigtail (Qty 1)
- 9 PTO Engager Holder-Clutch--Plated (Qty 1)
- 10 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 11 3/8 Lockwasher Zinc (Qty 2)
- 12 3/8-16 Hex Nuts Zinc (Qty 2)
- 13 2018 Yamaha Exhaust (Qty 1)
- 14 2017 Yamaha O2 Sensor (Qty 1)
- 15 2017 Yamaha Exhuast Gasket (Qty 2)
- 16 5/16 Lock washer Zinc (Qty 4)
- 17 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 18 Pump Belt for 35hp Diesel/XP (Qty 1)
- 19 Yamaha Oil Drain/ 2019 Rebel Kohler Oil Drain (Qty 1)
- 20 Universal Inline Fuel Filter (Qty 1)
- 21 2017 Yamaha Engine-33hp (Qty 1)
- 22 2017 Yamaha High Pressure Fuel Pump (Qty 1)
- 23 2017 Yamaha Fuel Pump Bracket (Qty 1)
- 24 1/4 x 3/4 Carriage Bolt (Qty 3)
- 25 1/4-20 Nylon Insert Flange Nut (Qty 3)
- 27 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 28 2017 Yamaha Spark Plug (Qty 2)
- 29 1/4 Fuel Line Hose PRICED/FOOT (Qty 1)
- 30 Canister Air Fil Outer2010&Old (Qty 1)
- 31 2017 Yamaha Oil Filter (Qty 1)
- 32 Canister Air Filter - Inner (Qty 1)
- 33 OBSOLETE USE 063-6000-00 (Qty 1)
-
1#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
2#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
3#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
4#030-6029-00
3/8-16x1/2 Socket Set Cup Point
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
5#019-8053-00
7/16 Lock washer zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
6#018-5300-00
7/16-20 X 2-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
-
8#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
9#057-5906-00
PTO Engager Holder-Clutch--Plated
Qty Used: 1Regular price $19.32 USDRegular priceUnit price per
-
10#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
11#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
12#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
13#015-0050-00

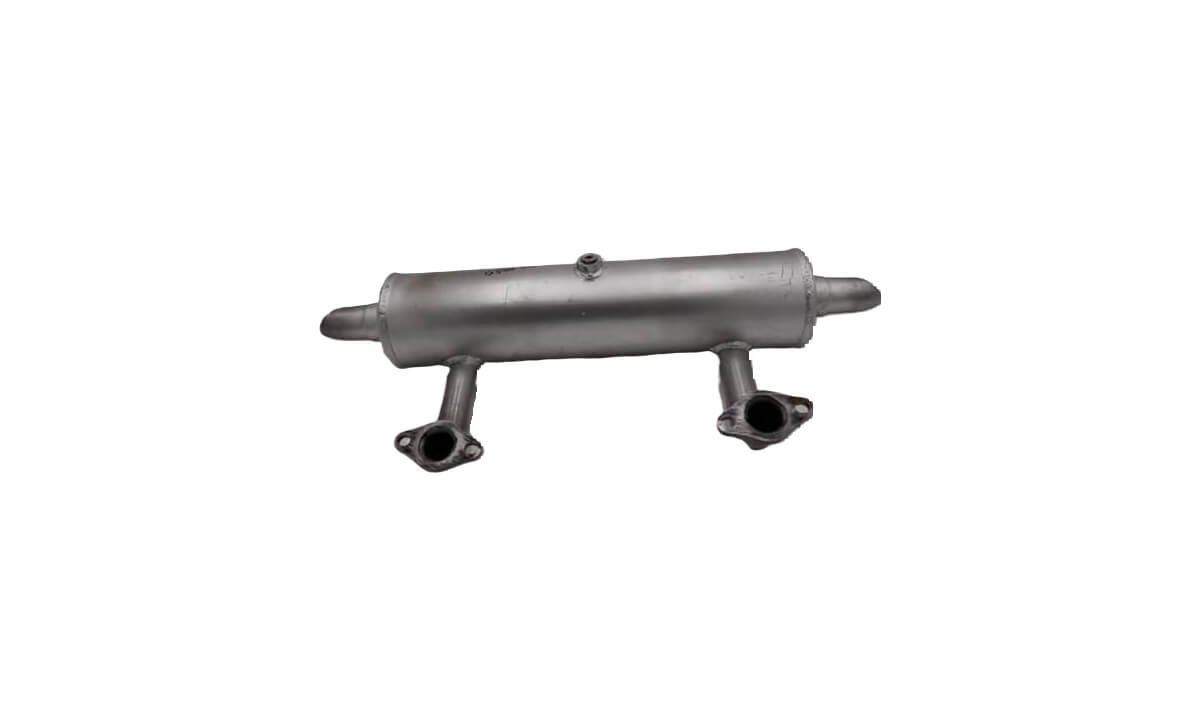

2018 Yamaha Exhaust
Qty Used: 1Regular price $163.90 USDRegular priceUnit price per
-
14#015-0053-05
2017 Yamaha O2 Sensor
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
-
15#015-0053-01

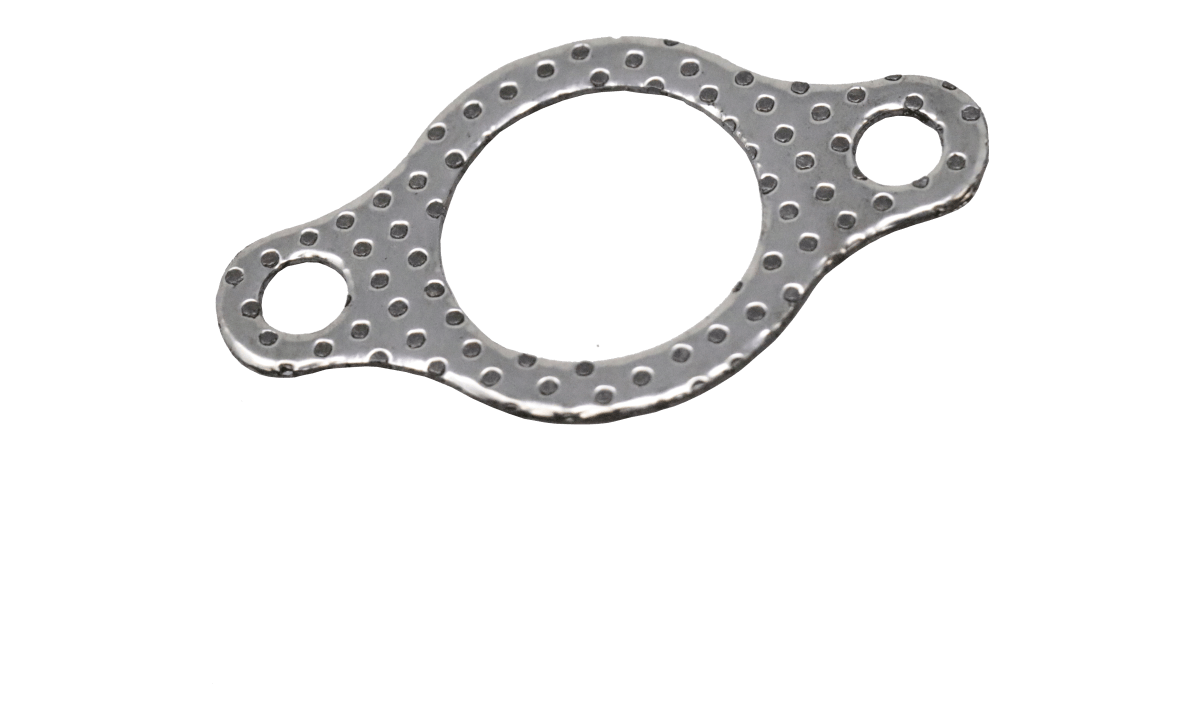

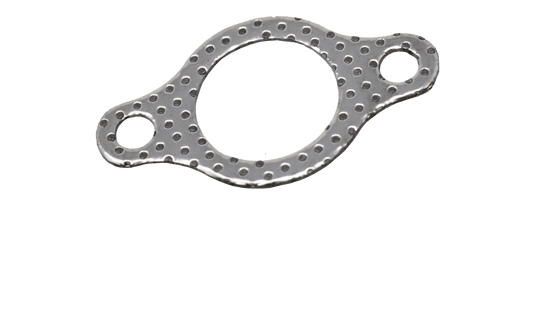

2017 Yamaha Exhuast Gasket
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
16#019-8051-00
5/16 Lock washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
17#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
18#041-8411-00
Pump Belt for 35hp Diesel/XP
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
19#051-5403-00

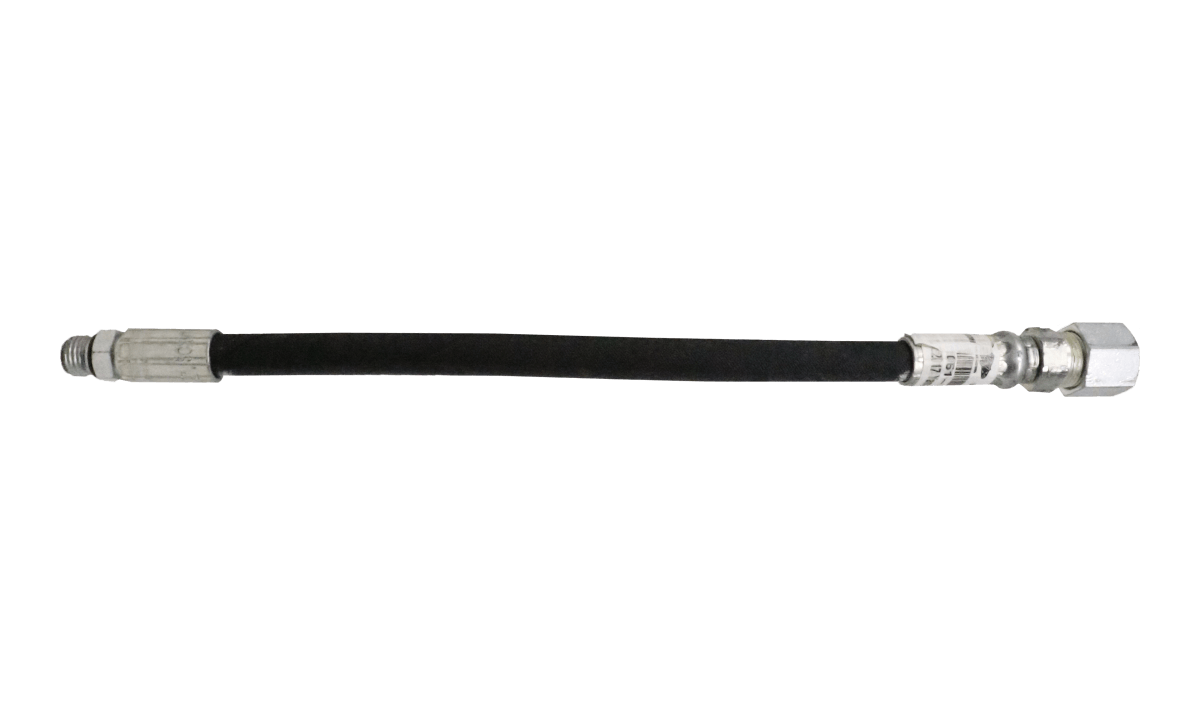

Yamaha Oil Drain/ 2019 Rebel Kohler Oil Drain
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
20#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
21#015-0053-00
2017 Yamaha Engine-33hp
Qty Used: 1Regular price $2,999.00 USDRegular priceUnit price per
-
22#015-0053-03

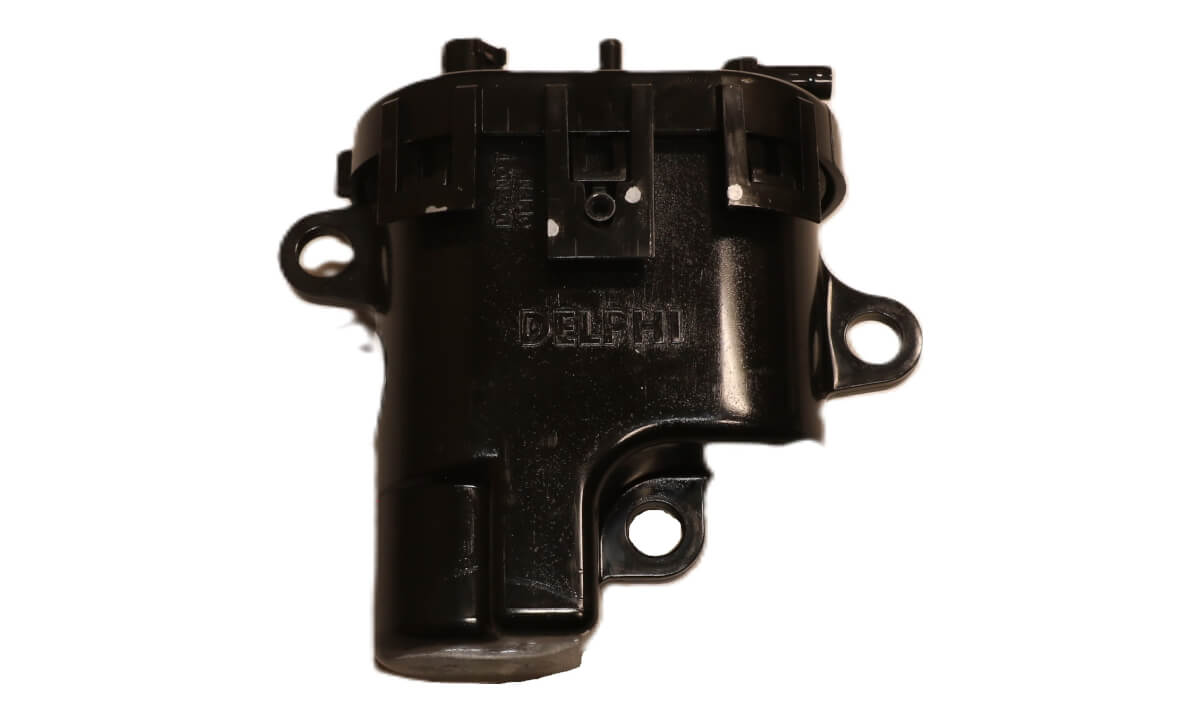

2017 Yamaha High Pressure Fuel Pump
Qty Used: 1Regular price $499.99 USDRegular priceUnit price per
-

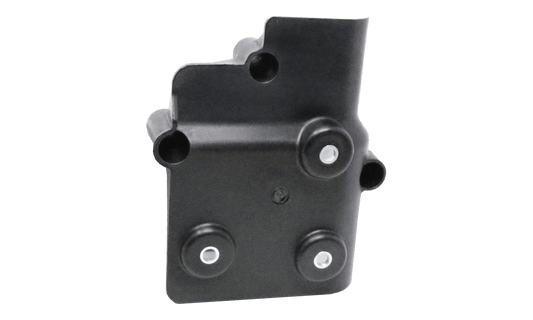

23#015-0053-04
2017 Yamaha Fuel Pump Bracket
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
24#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
25#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 3Regular price $1.39 USDRegular priceUnit price per
-
27#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
28#015-0053-06

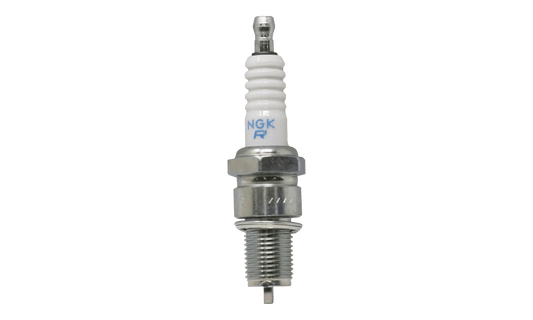

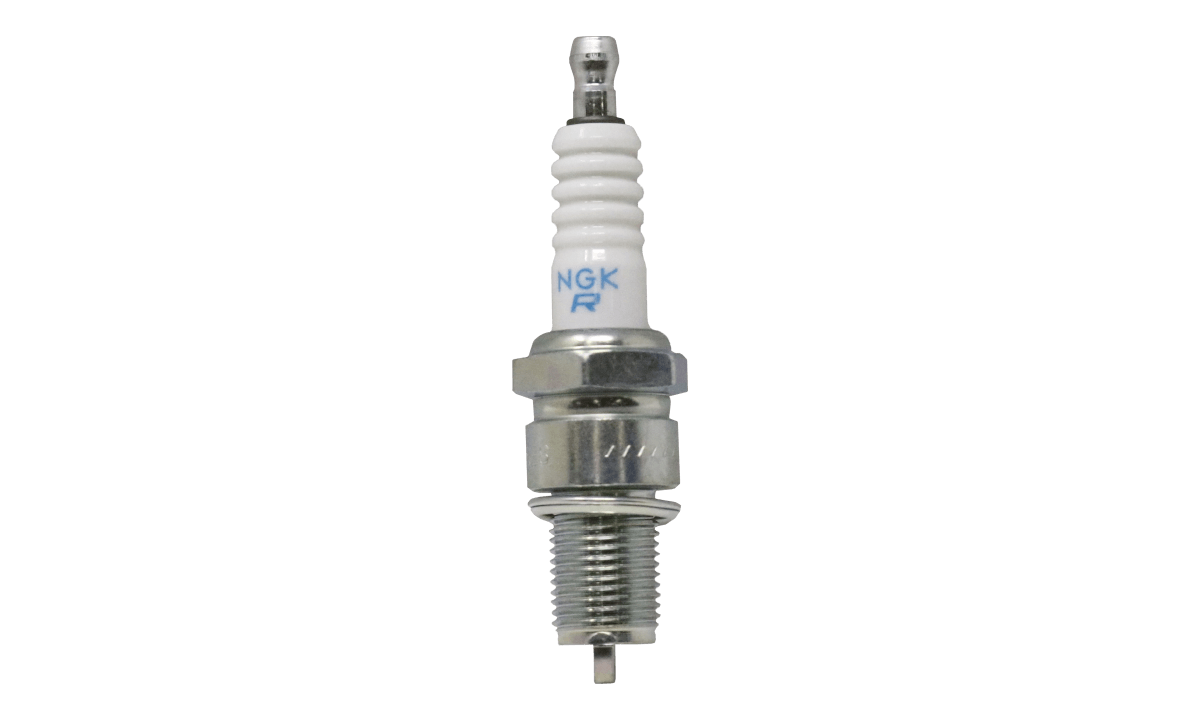

2017 Yamaha Spark Plug
Qty Used: 2Regular price $7.99 USDRegular priceUnit price per
-
29#051-8067-00
1/4 Fuel Line Hose PRICED/FOOT
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
30#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-

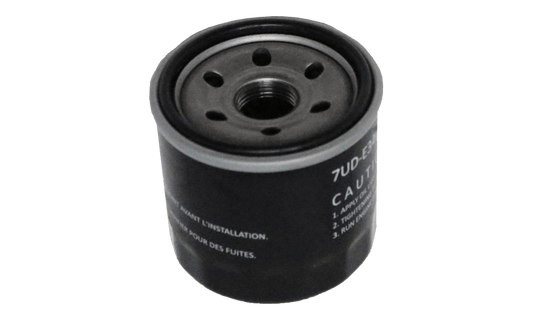

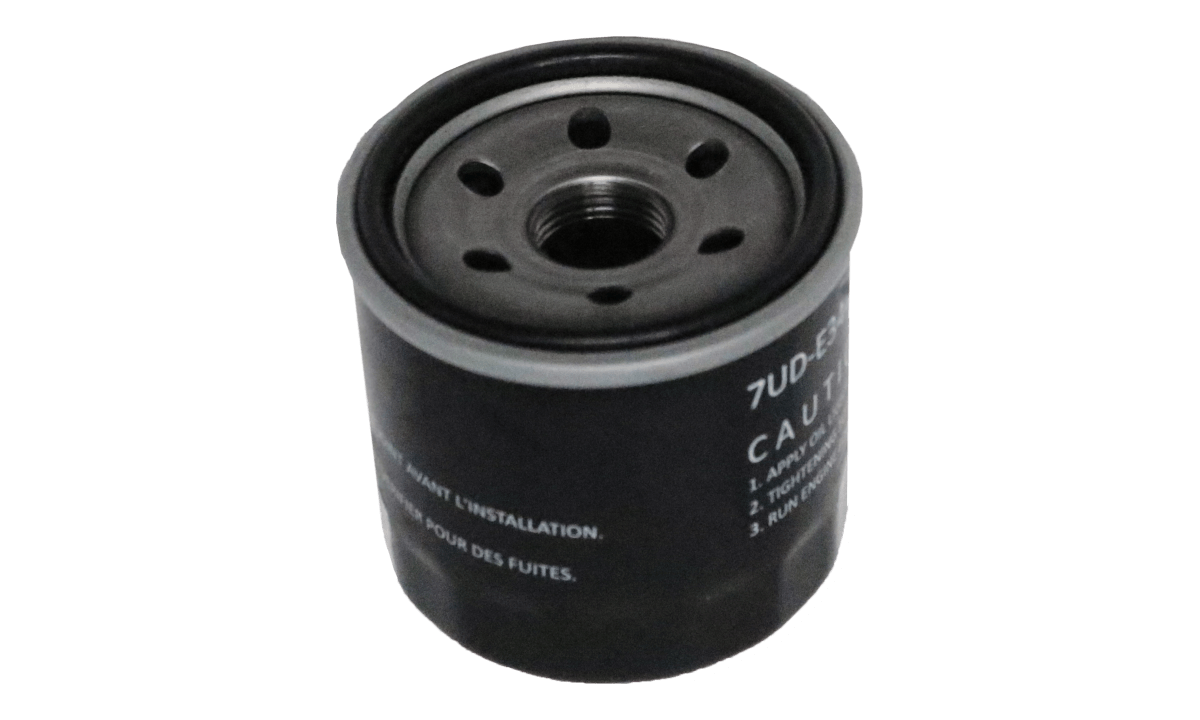

31#015-0053-02
2017 Yamaha Oil Filter
Qty Used: 1Regular price $23.99 USDRegular priceUnit price per
-
32#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
33#015-0053-21
OBSOLETE USE 063-6000-00
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
