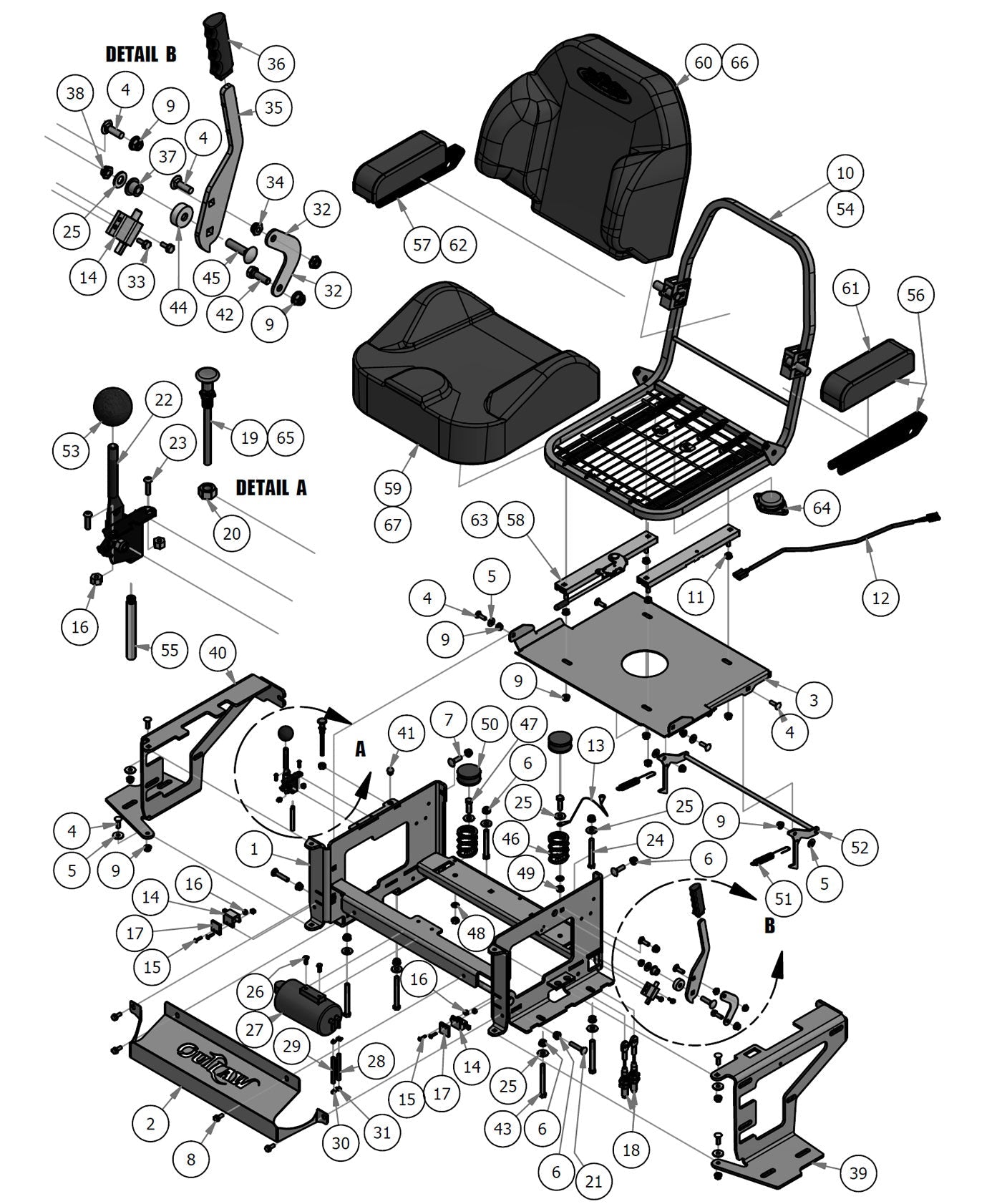

Seat Assembly
Parts Index
- 1 2017 Outlaw Seat Bracket (Qty 1)
- 2 Outlaw Cooler Cover (Qty 1)
- 3 2016 Outlaw Seat Plate (Qty 1)
- 4 5/16-18 X 1 Carriage Bolt Zinc (Qty 10)
- 5 .360 ID Plastic Washer (Qty 8)
- 6 3/8 Nylock Flange Nut (Qty 10)
- 7 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
- 8 5/16 x 3/4 Hex Washer Type F (Qty 4)
- 9 5/16-18 Nylon Flange Nut (Qty 14)
- 10 2015 XP/Extreme Outlaw Seat (Qty 1)
- 11 5/16-18 Hex Flange Nuts Zinc w (Qty 4)
- 12 Seat Switch Adaptor - Pup (Qty 1)
- 13 Seat Cable (Qty 1)
- 14 Safety Switch (Qty 3)
- 15 10-24 X 1 BS C/S 18-8 SS (Qty 4)
- 16 10-24 Nylon Insert Locknut Zin (Qty 6)
- 17 Switch Block Plastic (Qty 2)
- 18 Long Brake Cable (Qty 2)
- 19 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 20 3/8-24 Hex Nut Zinc (Qty 1)
- 21 3/8 x 1 3/4 Carriage Bolt (Qty 2)
- 22 Universal Throttle Head - 2012 (Qty 1)
- 23 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 24 3/8-16 X 3 GR 5 Hex Bolts Zinc (Qty 2)
- 25 3/8 USS Flat Washer Zinc (Qty 9)
- 26 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 27 Carbon Canister ZT,CZT,Outlaw (Qty 1)
- 28 1/4" Vinyl Tubing - Black per foot (Qty 1)
- 29 3/16" Vinyl Tubing per foot (Qty 1)
- 30 3/16" Vinyl Hose Clamp (Qty 2)
- 31 MZ Tank Hose Clamp 1/4 Vinyl (Qty 2)
- 32 Brake Cable Adapter Bracket (Qty 1)
- 33 12-24 x 1/2 HWH Bolt (Qty 2)
- 34 5/16-18 Nylock Jam Nut (Qty 2)
- 35 Brake Handle Cam Over (Qty 1)
- 36 Rubber Brake Grip-cZT/ZT 2013 (Qty 1)
- 37 Bronze Bushing SF-1220-8 (Qty 1)
- 38 3/8-16 Hex Flange Top L/N (Qty 1)
- 39 2016 Outlaw Tank Support (Qty 1)
- 40 2015 Outlaw Tank Support (Qty 1)
- 41 Black Plug - 5/8" Head (Qty 1)
- 42 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 1)
- 43 3/8-16x3-1/2 Grade 5 Hex Bolt (Qty 4)
- 44 Brake Lever Spacer (Qty 1)
- 45 3/8 x 1 1/2 Carriage Bolt (Qty 1)
- 46 Seat Spring (Qty 2)
- 47 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 48 3/8 Lockwasher Zinc (Qty 2)
- 49 3/8-16 Hex Nuts Zinc (Qty 2)
- 50 Seat Spring Cap Cover (Qty 2)
- 51 Brake Spring (Qty 2)
- 52 2016 Seat Latch Rod Assembly (Qty 1)
- 53 Throttle / Brake Head Ball (Qty 1)
- 54 2016-2018 Base/Compact Outlaw Seat (Qty 1)
- 55 Rebel Rogue Renegade Throttle Cable ONLY (Qty 1)
- 56 Left Arm rest w/Pad-071-5055-00 (Qty 1)
- 57 Righ Arm rest w/Pad-071-5055-00 (Qty 1)
- 58 OBSOLETE USE 071-2012-00 (Qty 1)
- 59 Seat Cover for 071-5060-00 (Qty 1)
- 60 Back Cover for 071-5060-00 (Qty 1)
- 61 Pair of Arm Pads for the (Qty 1)
- 62 Pair of Arm rest for 071-5060-00 (Qty 1)
- 63 Seat Rails for Outlaw Seat/2020 ZT Elite/ZTAvenger (Qty 1)
- 64 13/14 MZ/Outlaw Seat Switch (Qty 1)
- 65 Rambler Choke Cable (Qty 1)
- 66 Back Cover for 071-5055-00 (Qty 1)
- 67 Seat Bottom Cover for 071-5055-00 (Qty 1)
- 68 Seat Belt for All Models w/Har (Qty 1)
-
1#080-5116-17
2017 Outlaw Seat Bracket
Qty Used: 1Regular price $399.99 USDRegular priceUnit price per
-
2#014-2100-00
Outlaw Cooler Cover
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
3#026-2016-00
2016 Outlaw Seat Plate
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
4#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 10Regular price $0.79 USDRegular priceUnit price per
-
5#019-6042-00
.360 ID Plastic Washer
Qty Used: 8Regular price $0.00 USDRegular priceUnit price per
-
6#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 10Regular price $1.49 USDRegular priceUnit price per
-
7#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
8#030-7042-00
5/16 x 3/4 Hex Washer Type F
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
9#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 14Regular price $0.79 USDRegular priceUnit price per
-
10#071-5060-00
2015 XP/Extreme Outlaw Seat
Qty Used: 1Regular price $699.99 USDRegular priceUnit price per
-
11#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
12#036-5300-00
Seat Switch Adaptor - Pup
Qty Used: 1Regular price $14.53 USDRegular priceUnit price per
-
13#064-8081-00
Seat Cable
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
14#077-8073-00
Safety Switch
Qty Used: 3Regular price $9.99 USDRegular priceUnit price per
-
15#018-8058-00
10-24 X 1 BS C/S 18-8 SS
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
16#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
17#025-6041-00
Switch Block Plastic
Qty Used: 2Regular price $2.00 USDRegular priceUnit price per
-
18#064-8056-00
Long Brake Cable
Qty Used: 2Regular price $49.99 USDRegular priceUnit price per
-
19#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
20#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
21#018-0009-00
3/8 x 1 3/4 Carriage Bolt
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
22#055-2012-00
Universal Throttle Head - 2012
Qty Used: 1Regular price $23.87 USDRegular priceUnit price per
-
23#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
24#018-4700-00
3/8-16 X 3 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
25#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 9Regular price $0.79 USDRegular priceUnit price per
-
26#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
27#067-0020-00
Carbon Canister ZT,CZT,Outlaw
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
28#051-8072-00
1/4" Vinyl Tubing - Black per foot
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
29#051-8073-00
3/16" Vinyl Tubing per foot
Qty Used: 1Regular price $2.64 USDRegular priceUnit price per
-
30#072-8073-00
3/16\" Vinyl Hose Clamp
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
31#072-8070-00
MZ Tank Hose Clamp 1/4 Vinyl
Qty Used: 2Regular price $1.45 USDRegular priceUnit price per
-
32#039-0150-00
Brake Cable Adapter Bracket
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
33#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
34#013-9005-00
5/16-18 Nylock Jam Nut
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
35#069-1000-00
Brake Handle Cam Over
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
36#069-7000-00
Rubber Brake Grip-cZT/ZT 2013
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
37#032-5053-00
Bronze Bushing SF-1220-8
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
38#013-0009-00
3/8-16 Hex Flange Top L/N
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
39#031-2045-00
2016 Outlaw Tank Support
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
40#031-2040-00
2015 Outlaw Tank Support
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
41#014-2000-00
Black Plug - 5/8" Head
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
42#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
43#018-1010-00
3/8-16x3-1/2 Grade 5 Hex Bolt
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
44#025-0001-00
Brake Lever Spacer
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
45#018-4706-00
3/8 x 1 1/2 Carriage Bolt
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
46#034-8045-00
Seat Spring
Qty Used: 2Regular price $19.15 USDRegular priceUnit price per
-
47#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
48#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
49#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
50#014-8047-00
Seat Spring Cap Cover
Qty Used: 2Regular price $8.12 USDRegular priceUnit price per
-
51#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 2Regular price $11.66 USDRegular priceUnit price per
-
52#028-0085-00
2016 Seat Latch Rod Assembly
Qty Used: 1Regular price $24.95 USDRegular priceUnit price per
-
53#055-2013-00
Throttle Head Ball
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
54#071-5055-00
2016-2018 Base/Compact Outlaw Seat
Qty Used: 1Regular price $499.99 USDRegular priceUnit price per
-
55#055-8021-75
Rebel Rogue Renegade Throttle Cable ONLY
Qty Used: 1Regular price $26.99 USDRegular priceUnit price per
-
56#071-5056-00
Left Arm rest w/Pad-071-5055-00
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
57#071-5057-00
Righ Arm rest w/Pad-071-5055-00
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
58#071-2020-50
OBSOLETE USE 071-2012-00
Qty Used: 1Regular price $49.95 USDRegular priceUnit price per
-
59#071-5063-00
Seat Cover for 071-5060-00
Qty Used: 1Regular price $120.68 USDRegular priceUnit price per
-
60#071-5064-00
Back Cover for 071-5060-00
Qty Used: 1Regular price $160.49 USDRegular priceUnit price per
-
61#071-5062-00
Pair of Arm Pads for the
Qty Used: 1Regular price $74.37 USDRegular priceUnit price per
-
62#071-5061-00
Pair of Arm rest for 071-5060-00
Qty Used: 1Regular price $116.70 USDRegular priceUnit price per
-
63#071-5015-00
Seat Rails for Outlaw Seat/2020 ZT Elite/ZTAvenger
Qty Used: 1Regular price $87.56 USDRegular priceUnit price per
-
64#071-8061-00
13/14 MZ/Outlaw Seat Switch
Qty Used: 1Regular price $17.89 USDRegular priceUnit price per
-
65#054-8016-00
Choke-Lightning/AOS/Pup/MZ KAW
Qty Used: 1Regular price $26.99 USDRegular priceUnit price per
-
66#071-5058-00
Back Cover for 071-5055-00
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
67#071-5059-00
Seat Bottom Cover for 071-5055-00
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
68#071-2013-00
Seat Belt for All Models w/Har
Qty Used: 1Regular price $119.36 USDRegular priceUnit price per
