FX751-V Kawasaki

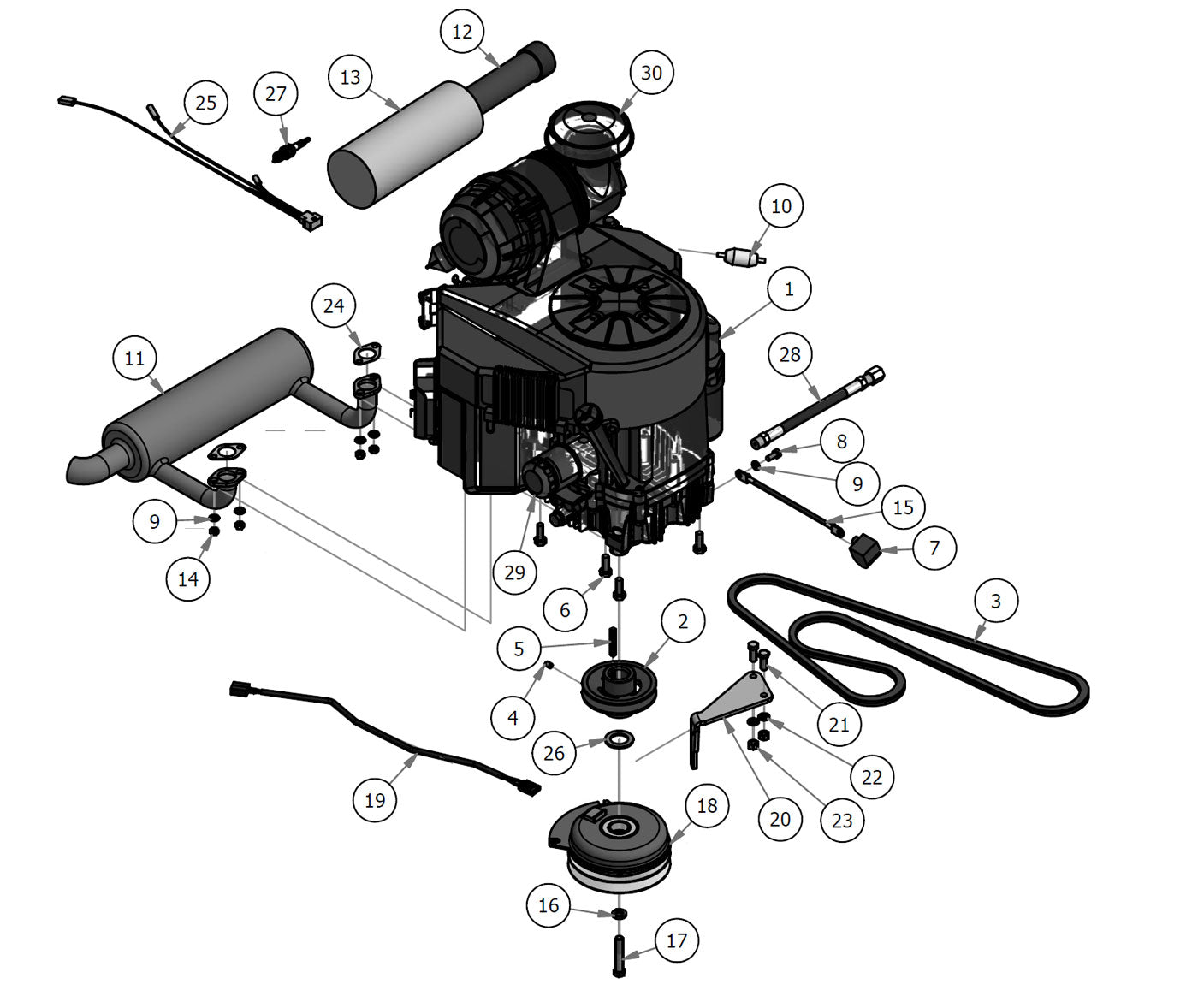

Parts Index
- 2 4 3/4 Motor Pulley (Qty 1)
- 3 Pump Belt Outlaw (Qty 1)
- 4 3/8-16x1/2 Socket Set Cup Point (Qty 1)
- 5 1/4 X 2 Square Key Stock (Qty 1)
- 6 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 7 Black Cable Boot (Qty 1)
- 8 M8 x 1.25 x 20MM Hex Head Bolt (Qty 1)
- 9 5/16 Lock washer Zinc (Qty 5)
- 10 Universal Inline Fuel Filter (Qty 1)
- 11 Exhaust for 31hp Kawasaki (Qty 1)
- 12 Canister Air Filter - Inner (Qty 1)
- 13 Canister Air Fil Outer2010&Old (Qty 1)
- 14 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 15 Rebel, Rogue Ground Wire (Qty 1)
- 16 7/16 Lock washer zinc (Qty 1)
- 17 7/16-20 X 2-1/2 GR 5 Hex Bolt (Qty 1)
- 18 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 19 Clutch Pigtail (Qty 1)
- 20 PTO Engager Holder-Clutch--Plated (Qty 1)
- 21 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 22 3/8 Lockwasher Zinc (Qty 2)
- 23 3/8-16 Hex Nuts Zinc (Qty 2)
- 24 Exhaust Gasket for 27 - Single Gasket (Qty 2)
- 25 Harness Adaptor-FX691, FX730 HD (Qty 1)
- 26 1.140x1.750x .132 Flat Washer (Qty 1)
- 27 Spark plug-Kawasaki NGKBPR2ES (Qty 2)
- 28 Kawasaki Oil Drain (Qty 1)
- 29 Kawasaki Oil Filter (Qty 1)
- 30 26/31 KAW Rain Cap for Can (Qty 1)
-
2#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-

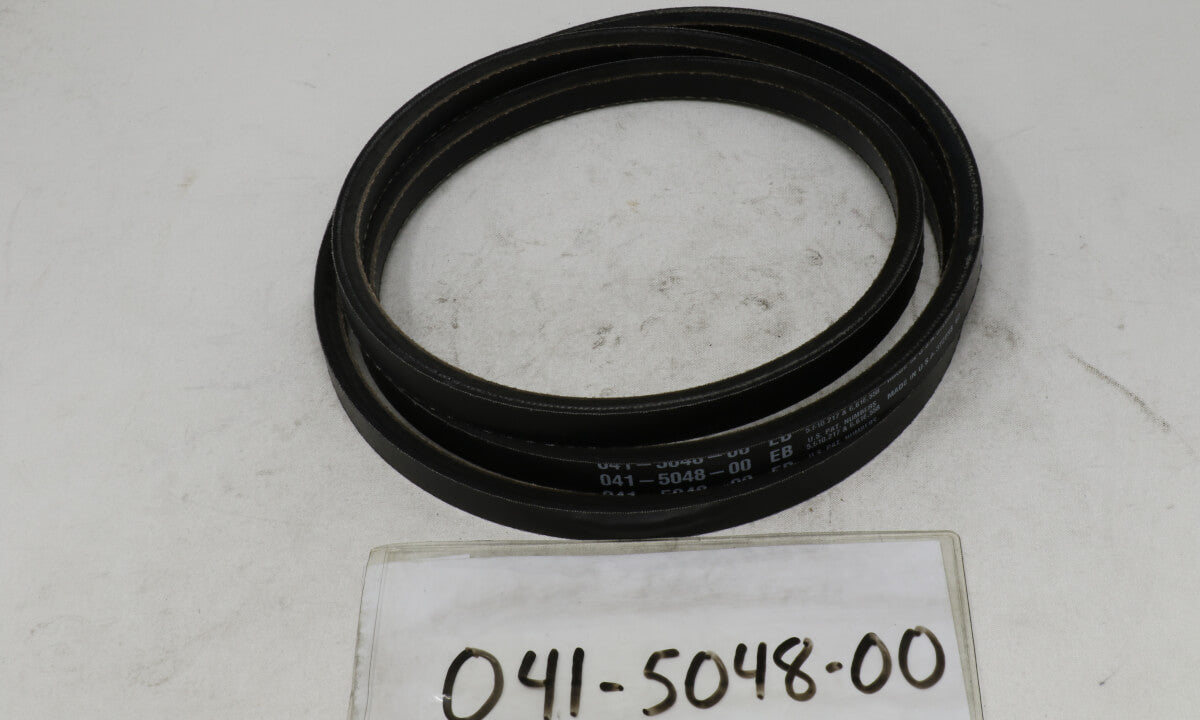

3#041-5048-00
Pump Belt Outlaw
Qty Used: 1Regular price $56.99 USDRegular priceUnit price per
-
4#030-6029-00
3/8-16x1/2 Socket Set Cup Point
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
5#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
6#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
7#103-5400-00
Black Cable Boot
Qty Used: 1Regular price $3.97 USDRegular priceUnit price per
-
8#018-5321-00
M8 x 1.25 x 20MM Hex Head Bolt
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
9#019-8051-00
5/16 Lock washer Zinc
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
10#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-

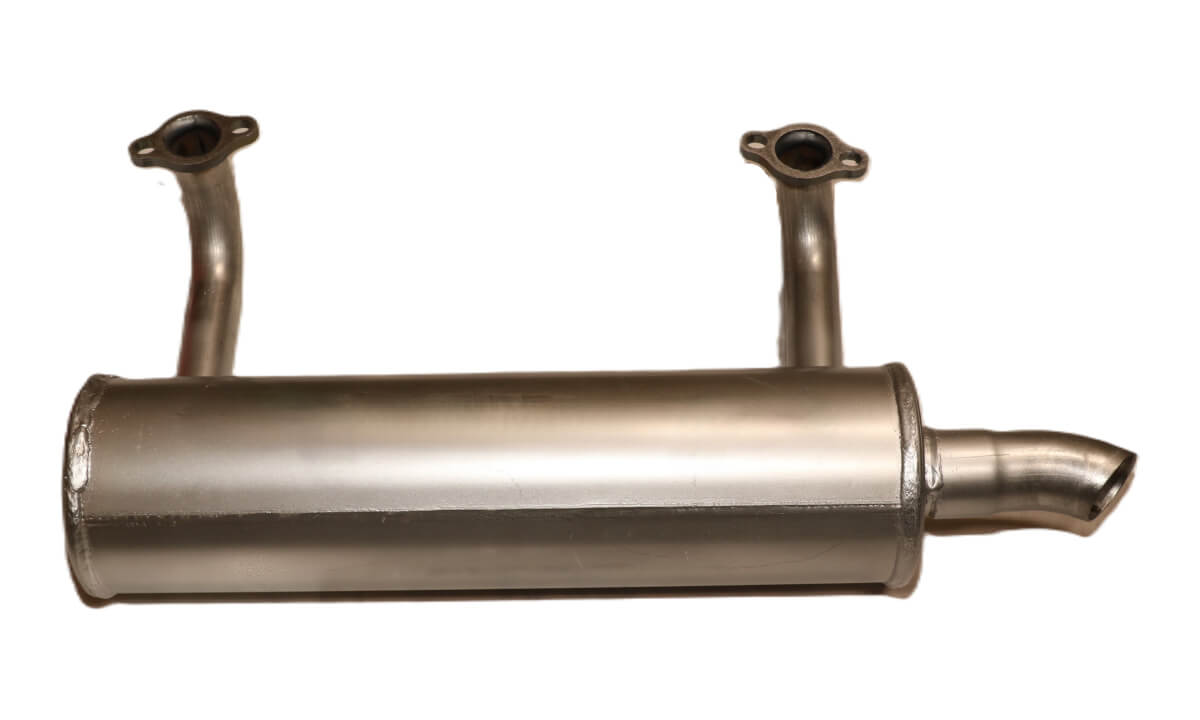

11#015-0035-00
Exhaust for 31hp Kawasaki
Qty Used: 1Regular price $204.33 USDRegular priceUnit price per
-
12#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
13#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
14#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
15#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
16#019-8053-00
7/16 Lock washer zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
17#018-5300-00
7/16-20 X 2-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
-
19#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-

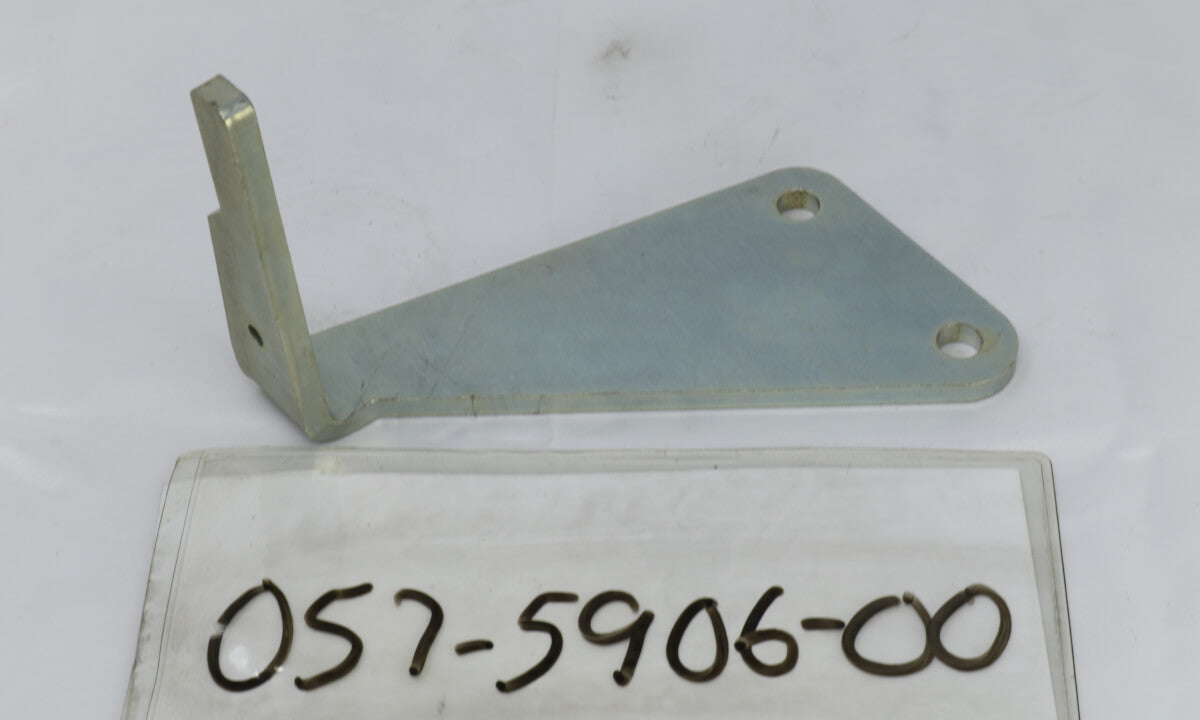

20#057-5906-00
PTO Engager Holder-Clutch--Plated
Qty Used: 1Regular price $19.32 USDRegular priceUnit price per
-
21#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
22#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
23#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
24#015-2709-00
Exhaust Gasket for 27 - Single Gasket
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
25#086-9002-00
Harness Adaptor-Outlaw FX-All
Qty Used: 1Regular price $43.78 USDRegular priceUnit price per
-
26#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
27#015-8001-00
Spark plug-Kawasaki NGKBPR2ES
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
28#051-5404-00
Kawasaki Oil Drain
Qty Used: 1Regular price $26.27 USDRegular priceUnit price per
-
29#063-8017-00
Kawasaki Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-

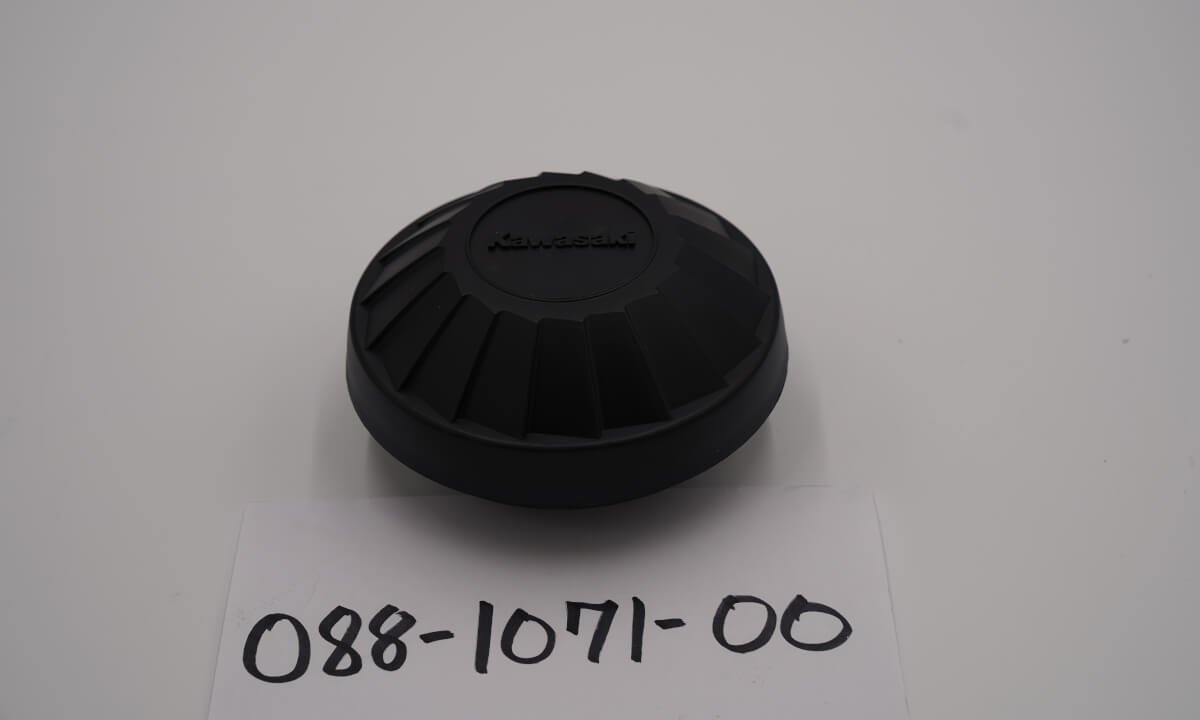

30#088-1071-00
26/31 KAW Rain Cap for Can
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
