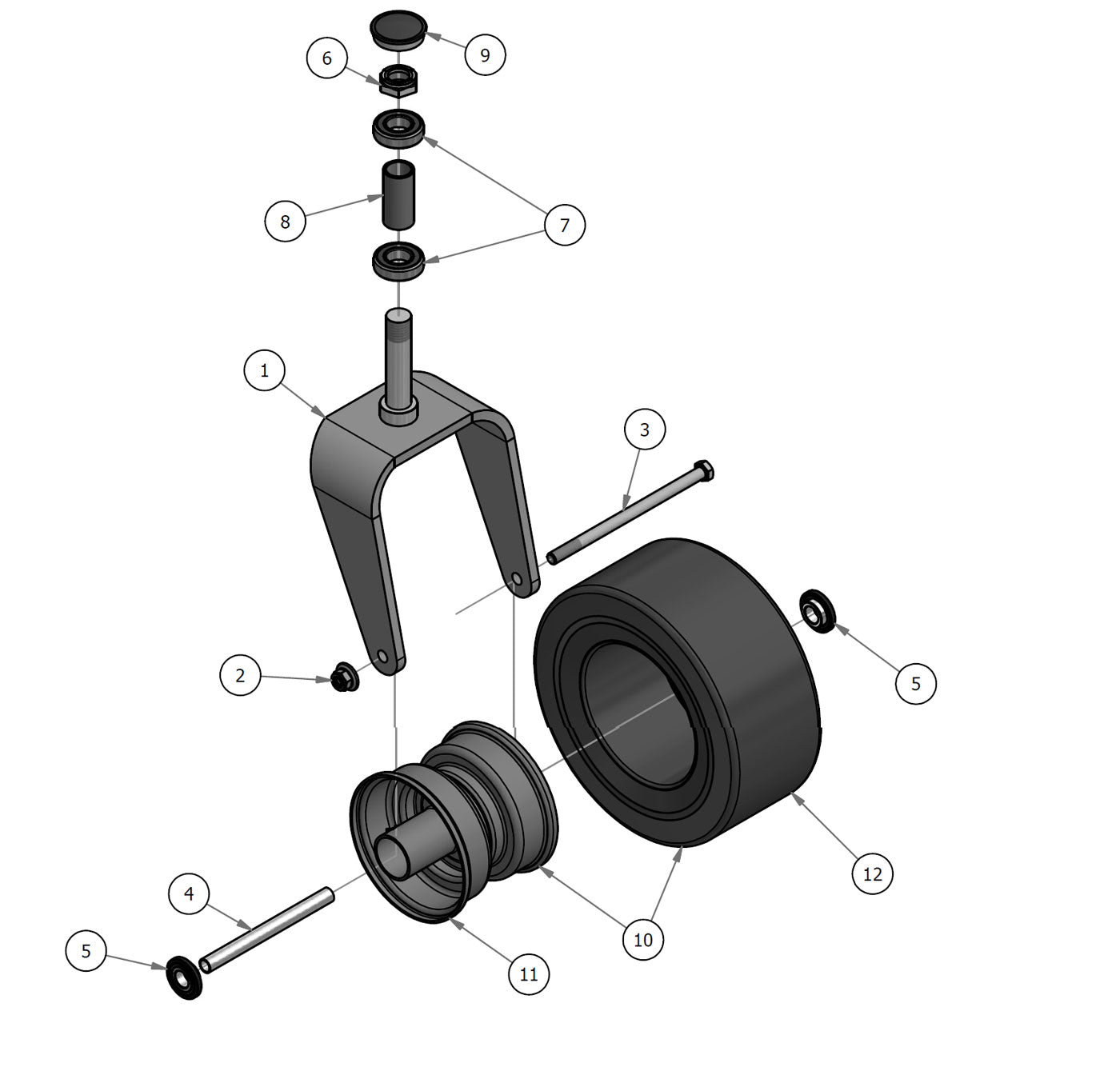

Fork Assembly
Parts Index
- 1 Front Fork (Qty 1)
- 2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 3 1/2-13 X 9 GR 5 Hex Bolts Zinc (Qty 1)
- 4 Front Wheel Spanner-All Models (Qty 1)
- 5 1 3/4" Bearing-Large Bore (Qty 2)
- 6 1" Nylock Nut 1/2 Nut - Fine (Qty 1)
- 7 Caster Bearing (Qty 2)
- 8 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 1)
- 9 Bearing Retainer Cap (Qty 1)
- 10 13x6.50-6 LARGE BORE-Black (Qty 1)
- 11 2015 Outlaw Black Front Wheel (Qty 1)
- 12 13 x 6.50 - 6 Tire (Qty 1)
-
1#023-7913-00
Front Fork
Qty Used: 1Regular price $129.84 USDRegular priceUnit price per
-
2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
3#018-7010-00
1/2-13 X 9 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $5.29 USDRegular priceUnit price per
-
4#025-5202-00
Front Wheel Spanner-All Models
Qty Used: 1Regular price $9.49 USDRegular priceUnit price per
-
5#022-7010-00
1 3/4" Bearing-Large Bore
Qty Used: 2Regular price $18.99 USDRegular priceUnit price per
-
6#013-9004-00
1" Nylock Nut 1/2 Nut - Fine
Qty Used: 1Regular price $3.29 USDRegular priceUnit price per
-
7#010-1050-00
Caster Bearing
Qty Used: 2Regular price $17.19 USDRegular priceUnit price per
-
8#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 1Regular price $13.12 USDRegular priceUnit price per
-
9#014-2025-00
Bearing Retainer Cap
Qty Used: 1Regular price $2.49 USDRegular priceUnit price per
-
10#022-3085-00
13x6.50-6 LARGE BORE-Black
Qty Used: 1Regular price $112.99 USDRegular priceUnit price per
-
11#022-3090-00
2015 Outlaw Black Front Wheel
Qty Used: 1Regular price $132.99 USDRegular priceUnit price per
-
12#022-5347-00
13 x 6.50 - 6 Tire
Qty Used: 1Regular price $89.99 USDRegular priceUnit price per
