Floorboard & Battery

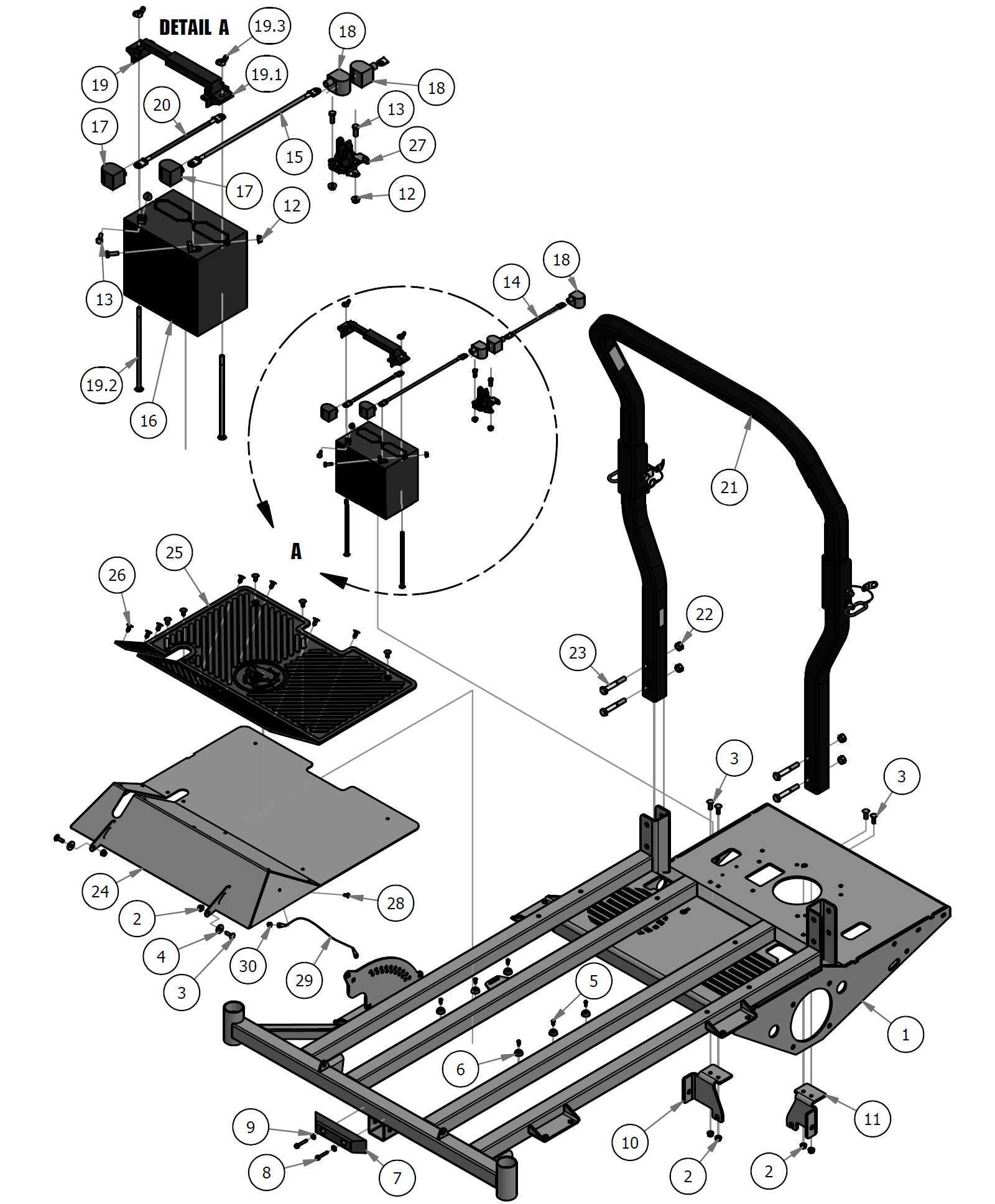

Parts Index
- 1 2017 Standard/Extreme Outlaw Frame (Qty 1)
- 2 5/16-18 Nylon Flange Nut (Qty 6)
- 3 5/16-18 X 1 Carriage Bolt Zinc (Qty 6)
- 4 .360 ID Plastic Washer (Qty 2)
- 5 10 X 1/2 Pan Phil a T/S Zinc (Qty 6)
- 6 Button Bumper (Qty 6)
- 7 8 Bumper (Qty 1)
- 8 14 X 1-1/2 HWA A T/S Zinc (Qty 2)
- 9 1/4 USS Flat Washer Zinc (Qty 2)

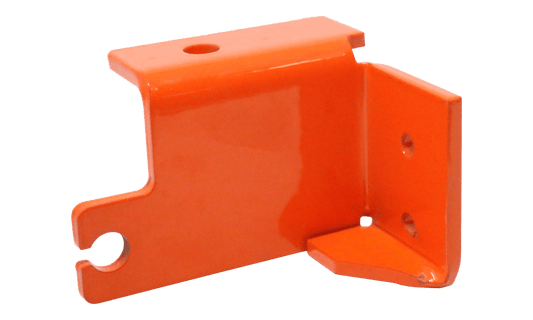

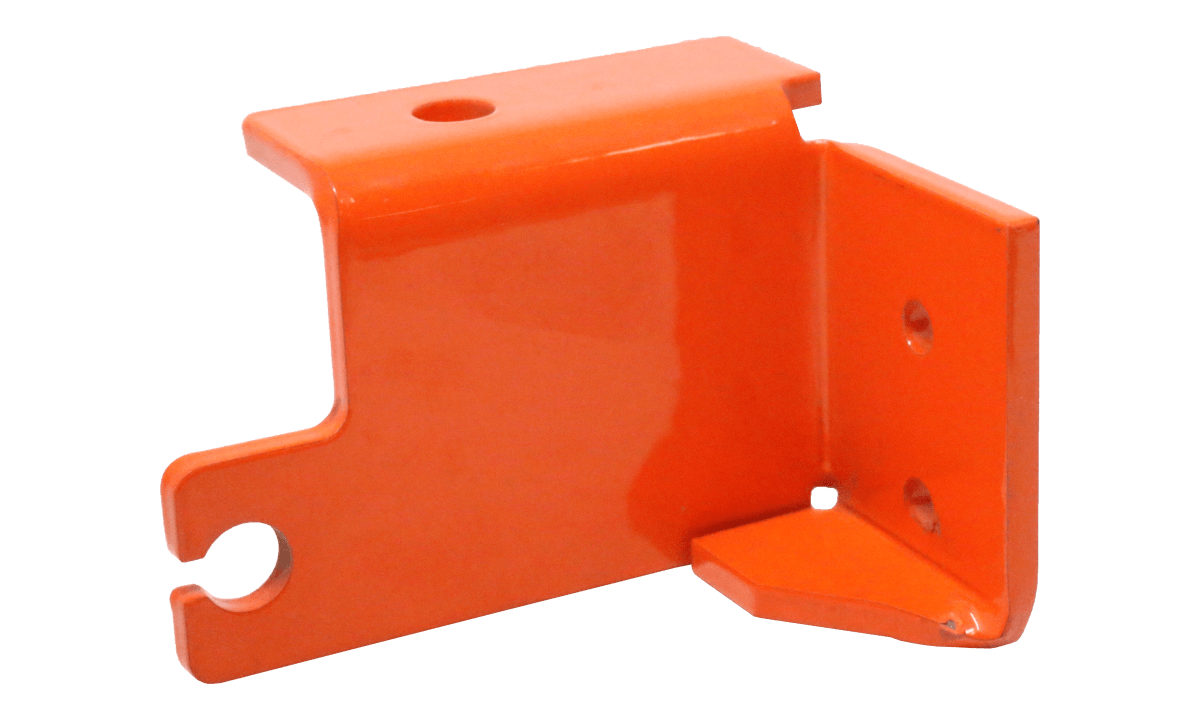

- 10 Outlaw Brake Cable Mount Bracket (Qty 1)

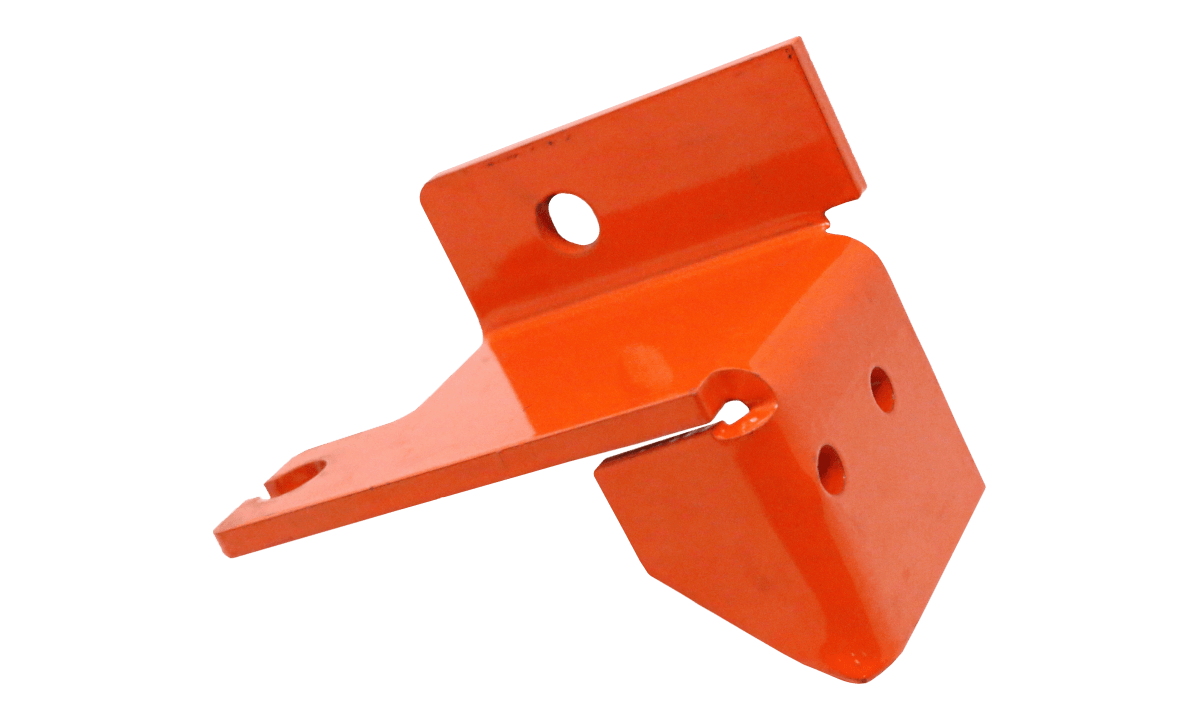

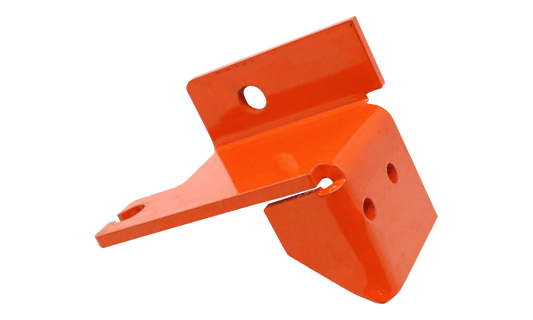

- 11 Outlaw Brake Cable Mounting Bracket (Qty 1)
- 12 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 13 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 14 Alternator to Starter Cable (Qty 1)
- 15 14" Red Battery Cable (Qty 1)
- 16 Battery - All models except Renegade and Revolt (Qty 1)
- 17 Black Cable Boot (Qty 2)
- 18 Red Lug Boot (Qty 1)
- 19 Battery Hold Down (Plastic) (Qty 1)
- 19.1 Battery Hold Down (Plastic) (Qty 1)
- 19.2 1/4-20 X 8 Carriage Bolts Zinc (Qty 2)
- 19.3 1/4-20 Wing Nuts Zinc (Qty 3)
- 20 Rebel, Rogue Ground Wire (Qty 1)
- 21 2014 to 2018 Outlaw 2x2 Folding (Qty 1)
- 22 1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC (Qty 4)
- 23 1/2-13 X 3.25 Hex Bolt-Grade 5 (Qty 4)
- 24 2016 Outlaw Floor Panel (Qty 1)
- 25 2016 Outlaw Floor Mat Base/XP (Qty 1)
- 26 Ratchet Fastener - Floorboard (Qty 12)
- 27 Solenoid (752-1251-210HP) (Qty 1)
- 28 1/4-20 X 5/8 BS C/S 18-8 SS (Qty 1)
- 29 Floorboard Cable (Qty 1)
- 30 1/4-20 Hex Nuts Zinc (Qty 1)
