Drive Train

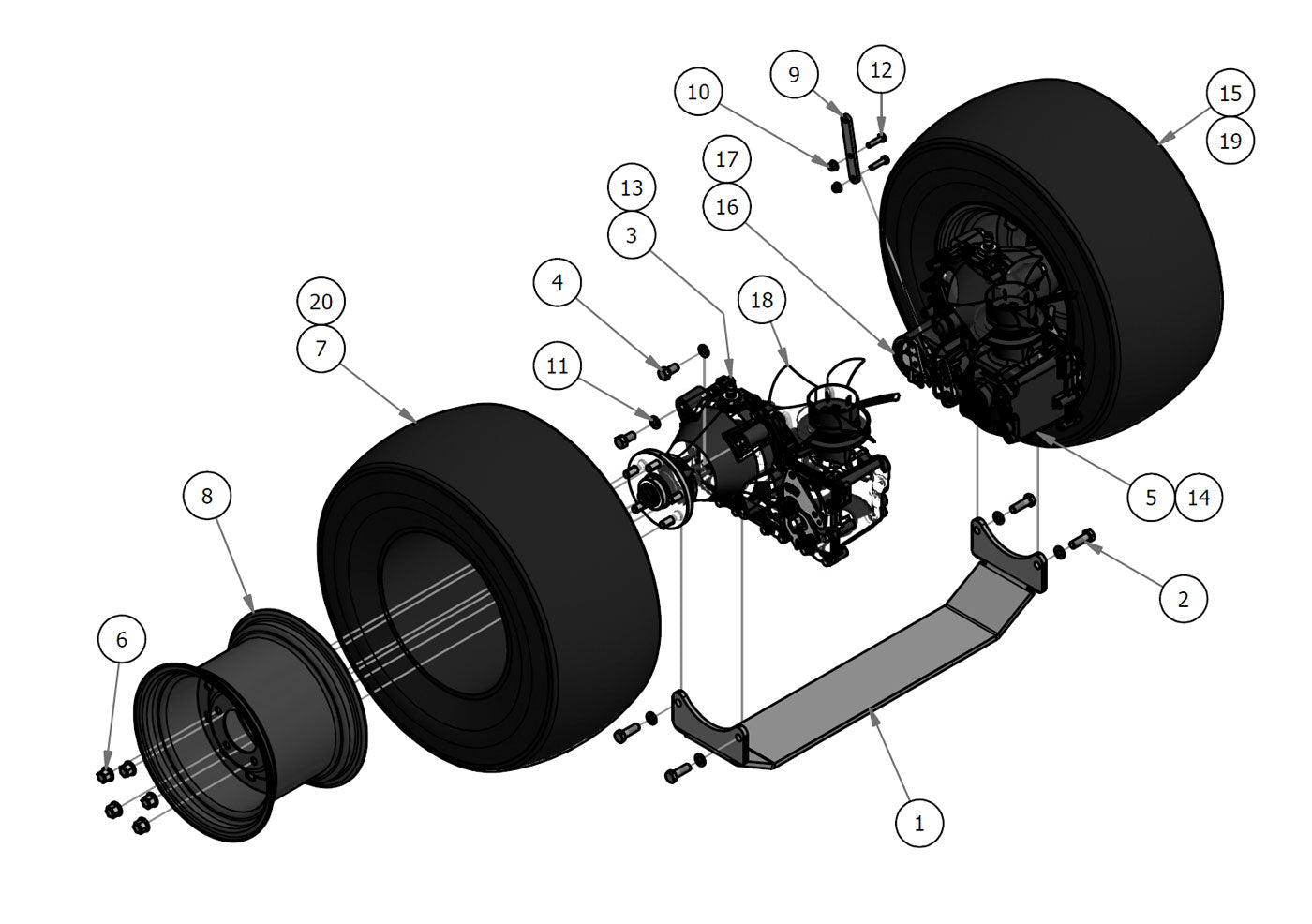

Parts Index
- 1 Outlaw Transaxle Cross Brace (Qty 1)
- 2 1/2-13 X 1-1/2 GR 5 Hex Bolt (Qty 4)
- 3 5400 Transaxle - Left - Rebel X (Qty 1)
- 4 1/2 x 1 Bolt (Qty 4)
- 5 5400 Transaxle-Right- Rebel X (Qty 1)
- 6 Acorn Lug Nut (Qty 10)
- 7 24 x 12 - 12 Tire Pro Maxxis (Qty 2)
- 8 2015 Outlaw Black Wheel12x8.5"/2019 022-4091-00 (Qty 2)
- 9 2015 Outlaw Brake Adapter Brkt--Plated (Qty 2)
- 10 5/16-18 Nylon Flange Nut (Qty 4)
- 11 1/2 Lockwasher Zinc (Qty 8)
- 12 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 4)
- 13 4400 Transaxle-Left- Rebel (Qty 1)
- 14 4400 TransaxleRight- Rebel (Qty 1)
- 15 2015 Outlaw Black Assembly 24x12-12 (Qty 2)
- 16 Hydro Filter for 5400 Transaxle (Qty 2)
- 17 Hydro Filter for 4400 Transaxl (Qty 2)
- 18 Fan/Pulley Kit for 5400 Outlaw (Qty 2)
- 19 Rear Wheel Assy-24x12-12 Reaper Turf (Qty 1)
- 20 2018 24x12-12 Reaper Turf Tire-Fits 022-4100-00 (Qty 1)
-
1#203-0100-00
Outlaw Transaxle Cross Brace
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
2#018-5006-00
1/2-13 X 1-1/2 GR 5 Hex Bolt
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
3#050-7000-00
5400 Transaxle - Left - Outlaw
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
4#018-2030-00
1/2 x 1 Bolt
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
5#050-7001-00
5400 Transaxle-Right-Outlaw
Qty Used: 1Regular price $849.99 USDRegular priceUnit price per
-
6#013-3000-00
Acorn Lug Nut
Qty Used: 10Regular price $2.99 USDRegular priceUnit price per
-
7#022-5349-00
24 x 12 - 12 Tire Pro Maxxis
Qty Used: 2Regular price $199.99 USDRegular priceUnit price per
-
8#022-4070-00
2015 Outlaw Black Wheel12x8.5"/2019 022-4091-00
Qty Used: 2Regular price $131.99 USDRegular priceUnit price per
-
9#039-2135-00
2015 Outlaw Brake Adapter Brkt--Plated
Qty Used: 2Regular price $6.99 USDRegular priceUnit price per
-
10#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
11#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 8Regular price $0.00 USDRegular priceUnit price per
-
12#018-2006-00
5/16-18 X 1-1/4 GR 5 Hex Bolt
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
13#050-1000-00
4400 Transaxle-Left-Base Outlaw/2019 Rebel
Qty Used: 1Regular price $909.99 USDRegular priceUnit price per
-
14#050-1050-00
4400 TransaxleRight-Base Outlaw/2019 Rebel
Qty Used: 1Regular price $909.99 USDRegular priceUnit price per
-
15#022-4050-00
2015 Outlaw Black Assembly 24x12-12
Qty Used: 2Regular price $261.99 USDRegular priceUnit price per
-
16#063-1060-00
Hydro Filter for 5400 Transaxle
Qty Used: 2Regular price $26.99 USDRegular priceUnit price per
-
17#063-1070-00
Hydro Filter for 4400 Transaxl
Qty Used: 2Regular price $24.99 USDRegular priceUnit price per
-
18#050-2073-00
Fan/Pulley Kit for 5400 Outlaw
Qty Used: 2Regular price $119.62 USDRegular priceUnit price per
-
19#022-4100-00
2018 Outlaw Assy-24x12-12 Reaper Turf
Qty Used: 1Regular price $299.99 USDRegular priceUnit price per
-
20#022-4095-00
2018 24x12-12 Reaper Turf Tire-Fits 022-4100-00
Qty Used: 1Regular price $199.99 USDRegular priceUnit price per
