Carbureted 824cc Yamaha

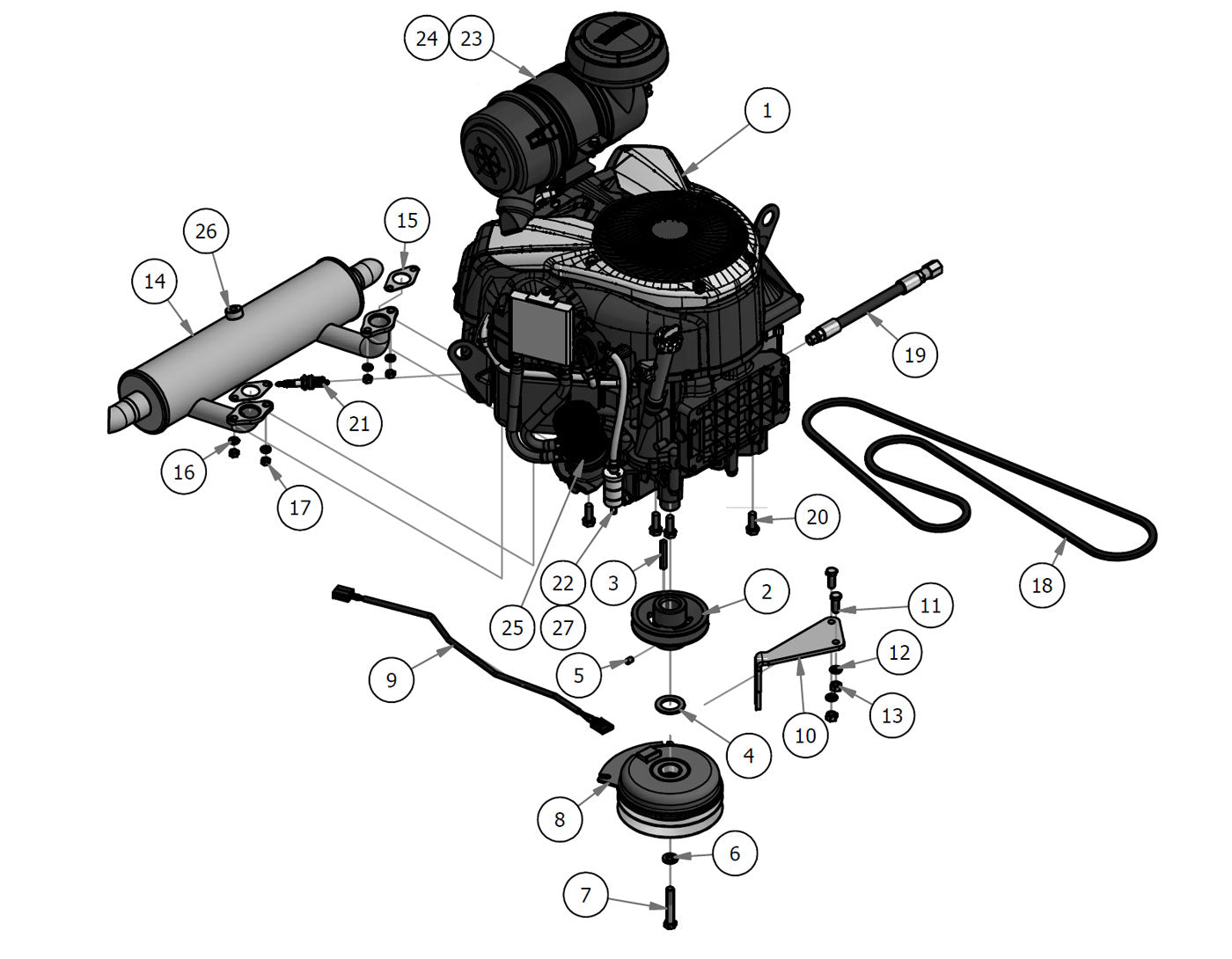

Parts Index
- 1 2018 Yamaha Engine-27.5hp Carbureted (Qty 1)
- 2 4 3/4 Motor Pulley (Qty 1)
- 3 1/4 X 2 Square Key Stock (Qty 1)
- 4 1.140x1.750x .132 Flat Washer (Qty 1)
- 5 3/8-16x1/2 Socket Set Cup Point (Qty 1)
- 6 7/16 Lock washer zinc (Qty 1)
- 7 7/16-20 X 2-1/2 GR 5 Hex Bolt (Qty 1)
- 8 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 9 Clutch Pigtail (Qty 1)
- 10 PTO Engager Holder-Clutch--Plated (Qty 1)
- 11 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 12 3/8 Lockwasher Zinc (Qty 2)
- 13 3/8-16 Hex Nuts Zinc (Qty 2)
- 14 2018 Yamaha Exhaust (Qty 1)
- 15 2017 Yamaha Exhuast Gasket (Qty 2)
- 16 5/16 Lock washer Zinc (Qty 4)
- 17 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 18 Pump Belt for 35hp Diesel/XP (Qty 1)
- 19 Yamaha Oil Drain/ 2019 Rebel Kohler Oil Drain (Qty 1)
- 20 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 21 2017 Yamaha Spark Plug (Qty 2)
- 22 Universal Inline Fuel Filter (Qty 1)
- 23 Canister Air Fil Outer2010&Old (Qty 1)
- 24 Canister Air Filter - Inner (Qty 1)
- 25 2017 Yamaha Oil Filter (Qty 1)
- 26 O2 Bung Plug 12mm x 1.25 CS (Qty 1)
- 27 OBSOLETE USE 063-6000-00 (Qty 1)
