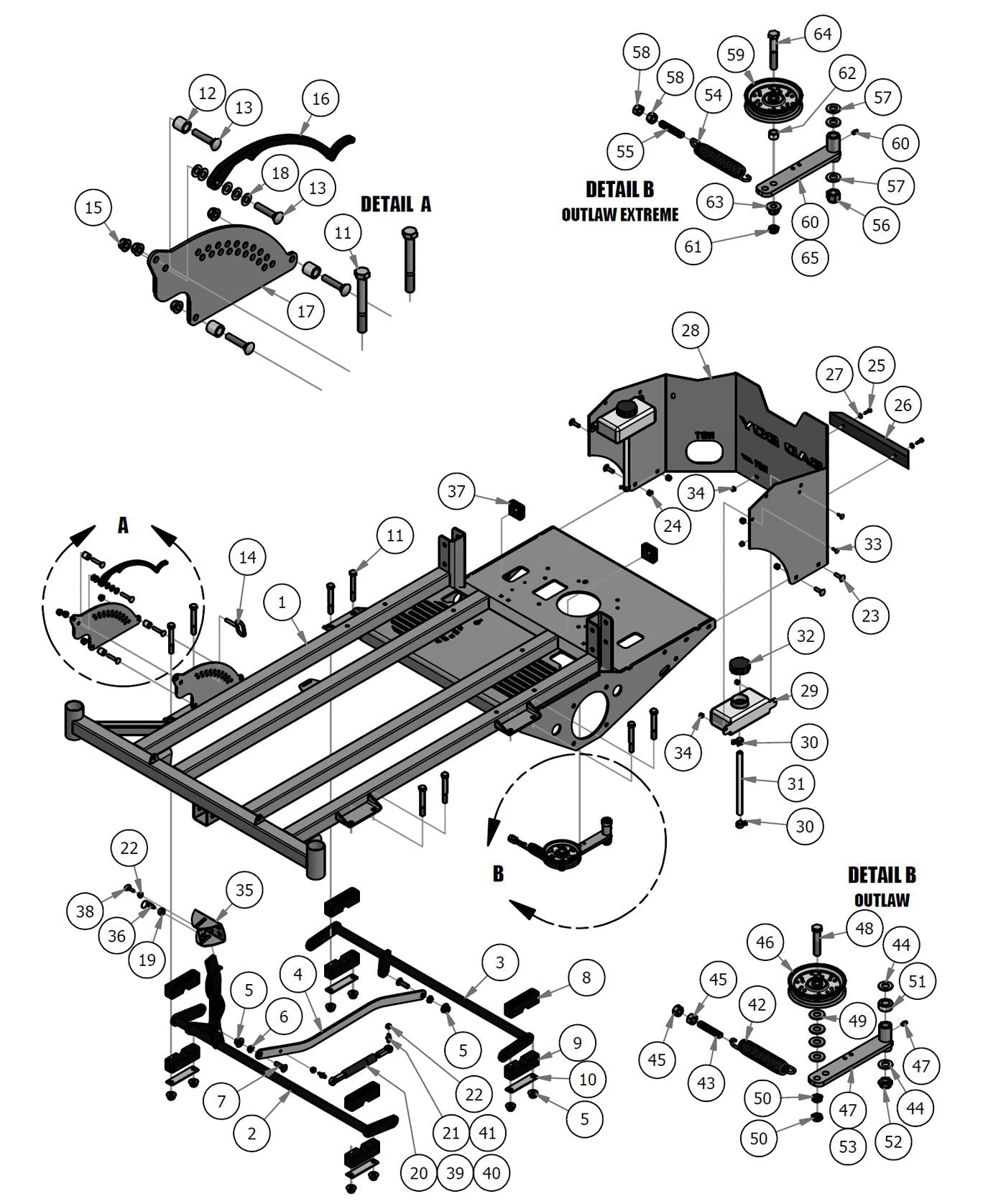

Actuator Bar & Rear Cover
Parts Index
- 1 2017 Standard/Extreme Outlaw Frame (Qty 1)
- 2 2015 Outlaw Actuator Bar (Qty 1)
- 3 2015 Outlaw Actuator Bar(Rear) (Qty 1)
- 4 Outlaw Deck Linkage Rod (Qty 1)
- 5 1/2-13 Nylon Insert Flange Nut (Qty 10)
- 6 Actuator Bar Bushing-SF-1620-4 (Qty 2)
- 7 1/2 x 1 1/2 Carriage Bolt (Qty 2)
- 8 Two Piece Pillow Block-Male (Qty 4)
- 9 Two Piece Pillow Block-Female (Qty 4)
- 10 Two Piece Pillow Block-Plate (Qty 4)
- 11 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 8)
- 12 Spacer 3/4ODx1/2IDx0.75 (Qty 3)
- 13 3/8 x 1 3/4 Carriage Bolt (Qty 4)
- 14 Deck Height Lever Pin (Qty 1)
- 15 3/8 Nylock Flange Nut (Qty 4)
- 16 Outlaw Deck Lever Lock (Qty 1)
- 17 Outlaw Height Indicator Plate (Qty 1)
- 18 .390x.750x.062 Nylon Washer (Qty 5)
- 19 1/2-13 Hex Nuts Zinc (Qty 1)
- 20 Dampener (200lbs) (Qty 1)
- 21 10mm Damper Ball Stud- (Qty 2)
- 22 5/16-18 Hex Flange Nuts Zinc w (Qty 3)
- 23 3/8-16 X 1-1/4 Carriage Bolt (Qty 4)
- 24 3/8-16 Nylon Insert Locknut Zi (Qty 4)
- 25 1/4-20 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 26 14 Bumper (Qty 1)
- 27 1/4 USS Flat Washer Zinc (Qty 2)
- 28 2016 Outlaw/XP Rear Cover (Qty 1)
- 29 Expansion Tank for Outlaw (Qty 2)
- 30 5/8" Wire Clamp-Outlaw Only (Qty 4)
- 31 5/8 Braided Hose (Qty 2)
- 32 ZT Hydraulic Tank Cap (Qty 2)
- 33 1/4 x 3/4 Carriage Bolt (Qty 4)
- 34 1/4-20 Nylon Insert Flange Nut (Qty 6)
- 35 Outlaw Deck Lift Pedal (Qty 1)
- 36 Pull Pin - Foot Assist w/Ring (Qty 1)
- 37 Frame Plug 2x2 (Qty 2)
- 38 5/16-18 x 1 Thumb Screw Zinc (Qty 1)
- 39 Dampener (250lbs) (Qty 1)
- 40 Dampener (300lbs) (Qty 1)
- 41 13mm Ball Stud (Qty 2)
- 42 2009 Deck/Pump Idler Spring (Qty 1)
- 43 All Thread-Pump Idler Tensioner (Qty 1)
- 44 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 45 1/2-13 Hex Nuts Zinc (Qty 2)
- 46 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 47 Idler Bracket (Qty 1)
- 48 1/2-13 x 2 1/2 Hex Bolt Gr 5 (Qty 1)
- 49 .565x1.25x.095 Washer Brass (Qty 4)
- 50 1/2-13 Nylon Insert Jam Locknut (Qty 2)
- 51 5/8 Set Collar W/One Set Screw (Qty 1)
- 52 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 53 Pump Idler Assembly-Base Outlaw (Qty 1)
- 54 2009 Deck/Pump Idler Spring (Qty 1)
- 55 All Thread-Pump Idler Tensioner (Qty 1)
- 56 5/8-11 Nylon Insert Locknut Zi (Qty 1)
- 57 .630 ID X 1.122 OD X .142 THK (Qty 3)
- 58 1/2-13 Hex Nuts Zinc (Qty 2)
- 59 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 60 Idler Bracket (Qty 1)
- 61 1/2-13 Nylon Insert Jam Locknut (Qty 1)
- 62 1/2 Set Collar w/set collar (Qty 1)
- 63 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 64 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 65 2019 Rebel Pump Idler (Qty 1)
-
52#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
53#039-6945-04
Pump Idler Assembly-Base Outlaw
Qty Used: 1Regular price $49.95 USDRegular priceUnit price per
-
56#013-7021-00
5/8-11 Nylon Insert Locknut Zi
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
62#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 1Regular price $4.18 USDRegular priceUnit price per
-
64#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
65#039-6945-03
2019 Rebel Pump Idler
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
1#070-5370-17
2017 Standard/Extreme Outlaw Frame
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
2#028-6030-00
2015 Outlaw Actuator Bar
Qty Used: 1Regular price $159.22 USDRegular priceUnit price per
-
3#028-6040-00
2015 Outlaw Actuator Bar(Rear)
Qty Used: 1Regular price $145.95 USDRegular priceUnit price per
-
4#028-6050-00
Outlaw Deck Linkage Rod
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
563#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
6#032-3000-00
Actuator Bar Bushing-SF-1620-4
Qty Used: 2Regular price $1.19 USDRegular priceUnit price per
-
7#018-0008-00
1/2 x 1 1/2 Carriage Bolt
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
8#017-9000-00
Two Piece Pillow Block-Male
Qty Used: 4Regular price $9.99 USDRegular priceUnit price per
-
9#017-9050-00
Two Piece Pillow Block-Female
Qty Used: 4Regular price $9.99 USDRegular priceUnit price per
-
10#017-9025-00
Two Piece Pillow Block-Plate
Qty Used: 4Regular price $29.99 USDRegular priceUnit price per
-
11#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 8Regular price $3.99 USDRegular priceUnit price per
-
12#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 3Regular price $2.99 USDRegular priceUnit price per
-
13#018-0009-00
3/8 x 1 3/4 Carriage Bolt
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
14#040-4000-00
Deck Height Lever Pin
Qty Used: 1Regular price $16.04 USDRegular priceUnit price per
-
15#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
16#031-0100-00

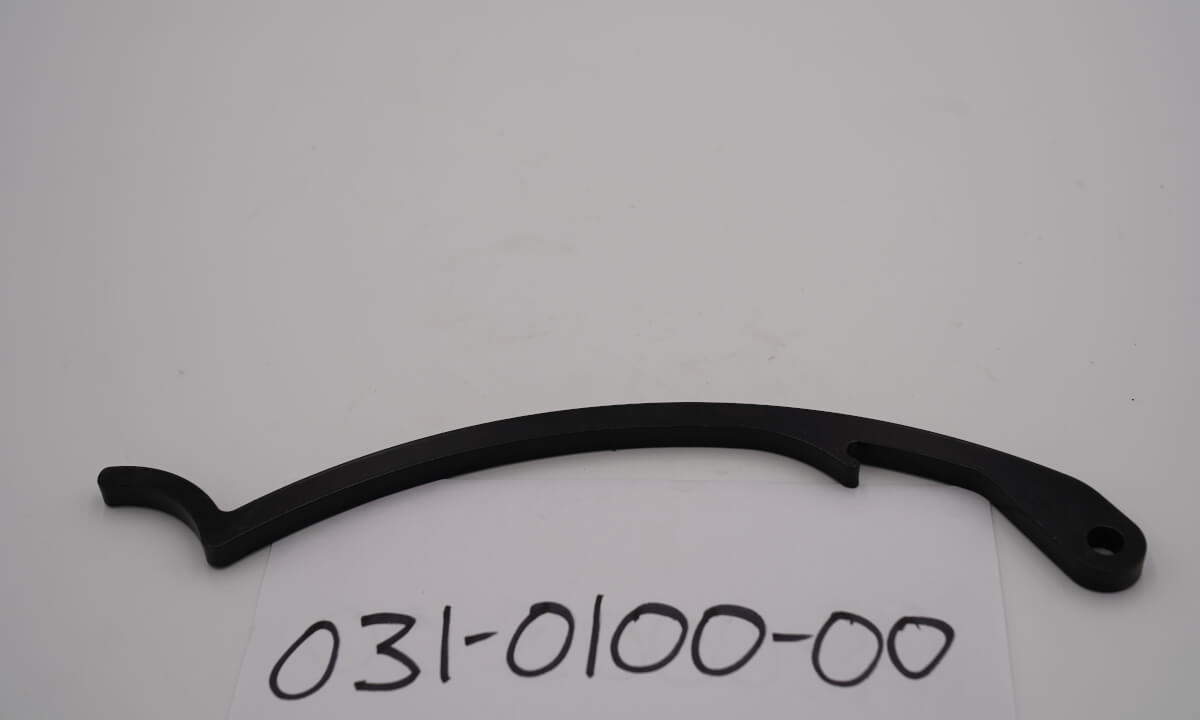

Outlaw Deck Lever Lock
Qty Used: 1Regular price $17.24 USDRegular priceUnit price per
-
17#026-2100-00

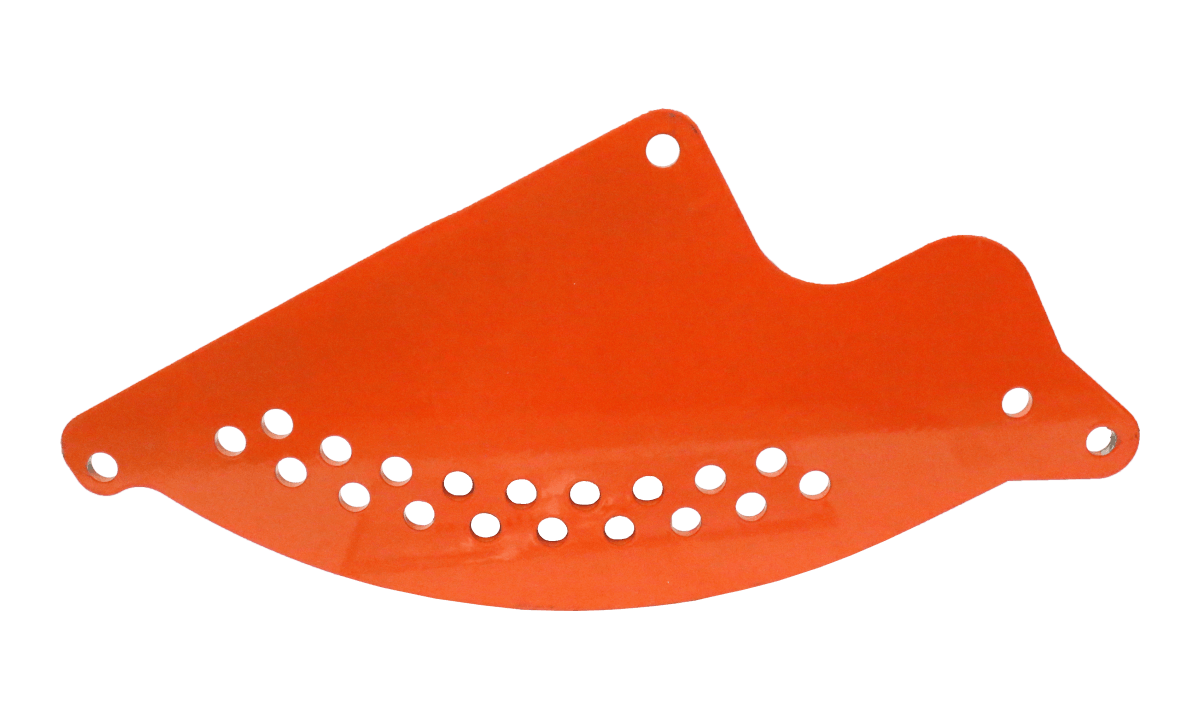

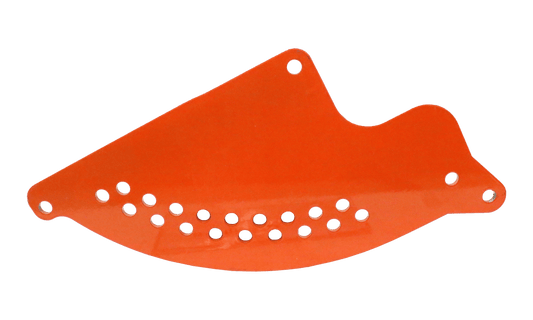

Outlaw Height Indicator Plate
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
-
18#019-2003-00
.390x.750x.062 Nylon Washer
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
194558#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
20#087-5400-00
Damper (200lbs)
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
21#018-2050-00
10mm Damper Ball Stud-
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
22#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
23#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 4Regular price $0.99 USDRegular priceUnit price per
-
24#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
25#018-4702-00
1/4-20 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
-
27#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
28#026-2190-00
2016 Outlaw/XP Rear Cover
Qty Used: 1Regular price $179.99 USDRegular priceUnit price per
-
29#067-8085-00
Expansion Tank for Outlaw
Qty Used: 2Regular price $29.18 USDRegular priceUnit price per
-
30#072-8074-00
5/8" Wire Clamp-Outlaw Only
Qty Used: 4Regular price $4.37 USDRegular priceUnit price per
-
31#051-9000-00
5/8 Braided Hose
Qty Used: 2Regular price $4.37 USDRegular priceUnit price per
-
32#066-5050-00
ZT Hydraulic Tank Cap
Qty Used: 2Regular price $14.58 USDRegular priceUnit price per
-
33#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
34#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 6Regular price $1.39 USDRegular priceUnit price per
-
35#026-0013-00

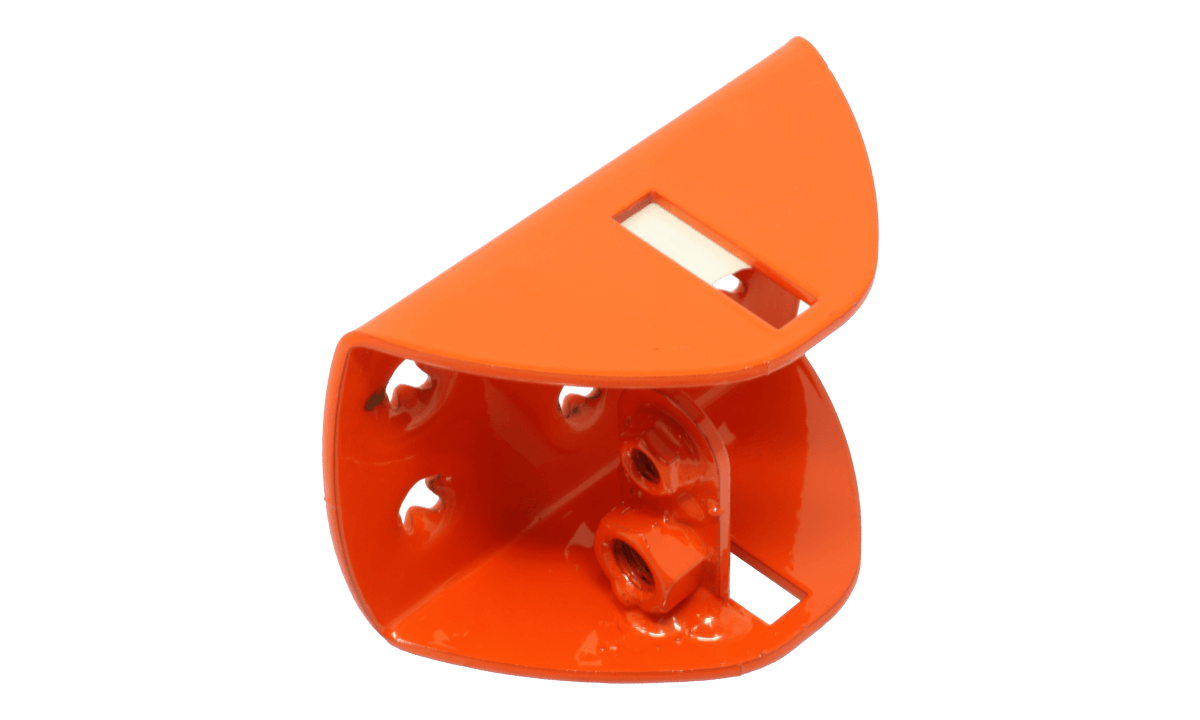

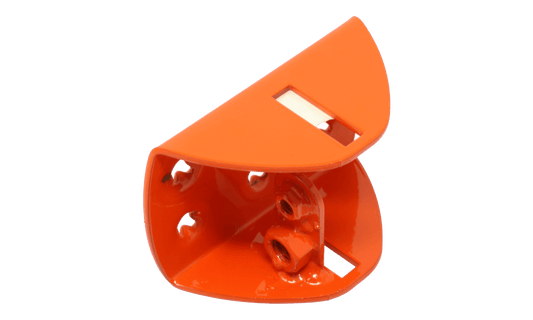

Outlaw Deck Lift Pedal
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
36#040-5000-00

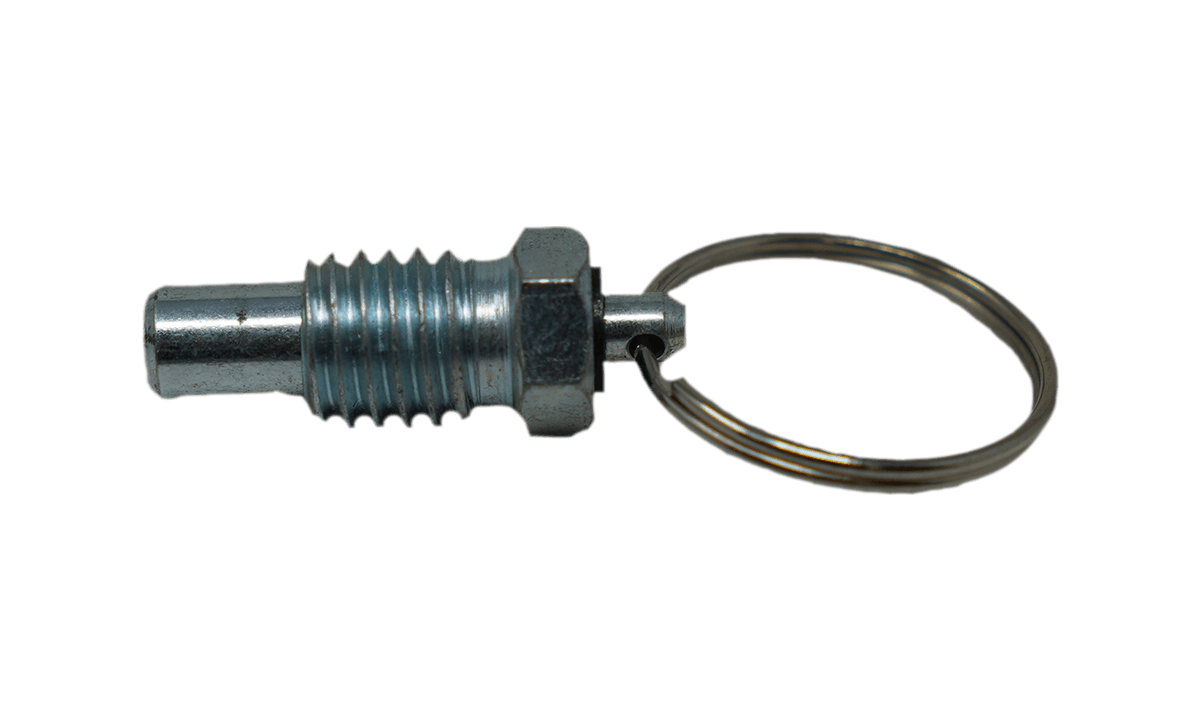

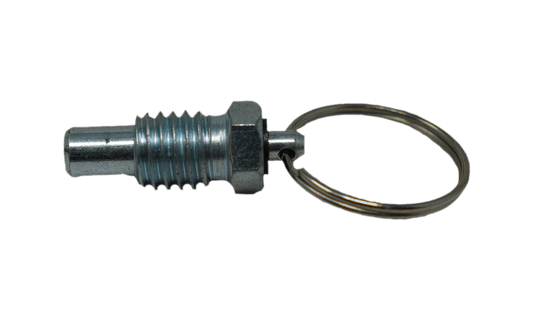

Pull Pin - Foot Assist w/Ring
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
37#014-9000-00
Frame Plug 2x2
Qty Used: 2Regular price $2.48 USDRegular priceUnit price per
-
38#030-0010-00
5/16-18 x 1 Thumb Screw Zinc
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
39#087-6100-00
Dampener (250lbs)
Qty Used: 1Regular price $72.91 USDRegular priceUnit price per
-
40#087-7200-00
Damper (300lbs)
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
41#018-2049-00
13mm Ball Stud
Qty Used: 2Regular price $4.39 USDRegular priceUnit price per
-
4254#034-2009-00
2009 Deck/Pump Idler Spring
Qty Used: 1Regular price $16.99 USDRegular priceUnit price per
-
4355#018-2004-00
All Thread-Pump Idler Tensioner
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
4457#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
4659#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
4760#039-6945-00
Idler Bracket
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
48#018-0015-00
1/2-13 x 2 1/2 Hex Bolt Gr 5
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
49#019-5010-00
.565x1.25x.095 Washer Brass
Qty Used: 4Regular price $2.39 USDRegular priceUnit price per
-
5061#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
51#025-7020-00
5/8 Set Collar W/One Set Screw
Qty Used: 1Regular price $3.97 USDRegular priceUnit price per
