747cc Kohler

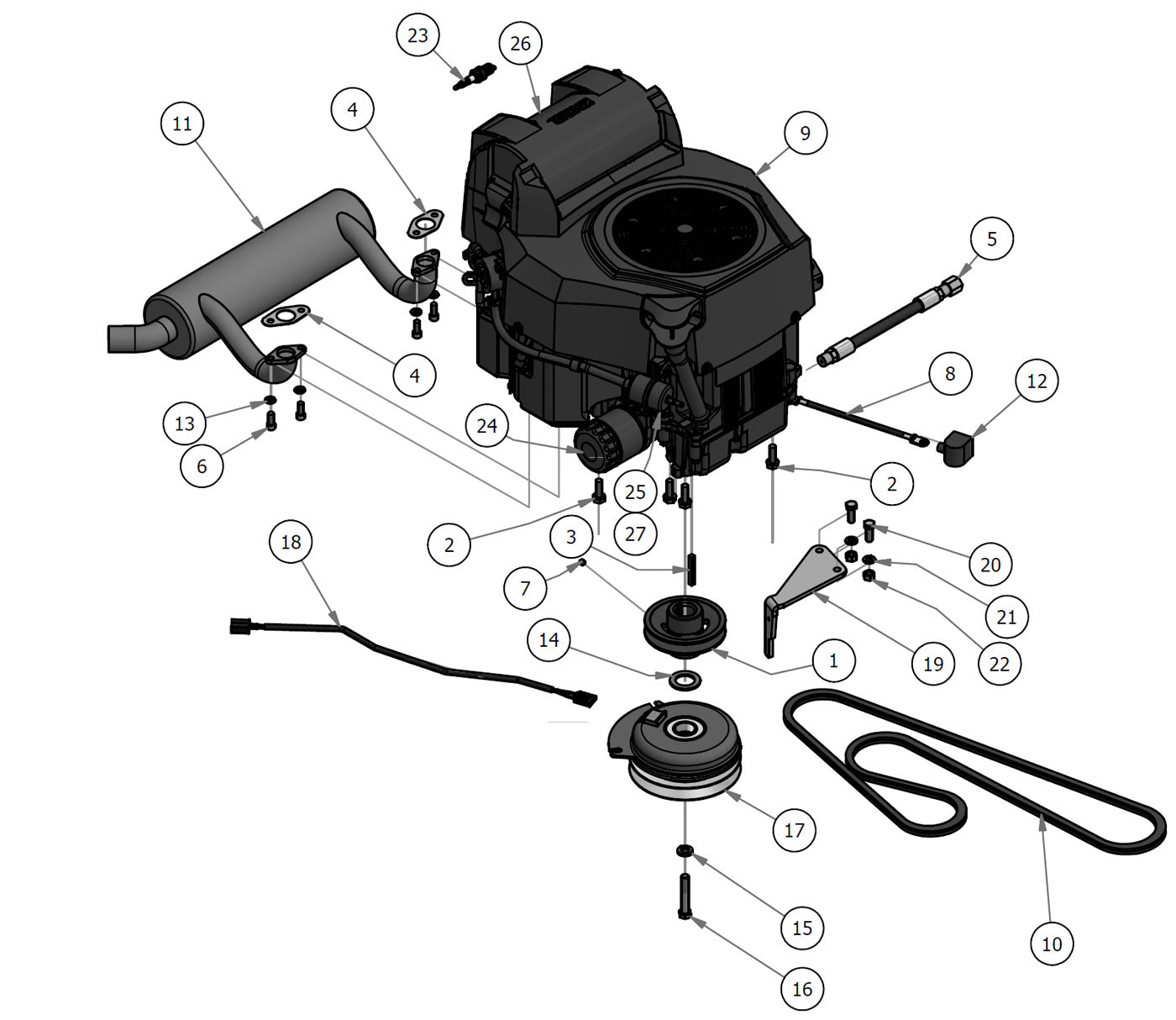

Parts Index
- 1 4 3/4 Motor Pulley (Qty 1)
- 2 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 3 1/4 X 2 Square Key Stock (Qty 1)
- 4 Exhaust Gaskets for 27,30 hp (Qty 2)
- 5 Oil Drain Valve (Qty 1)
- 6 5/16-18 X 3/4 SOCKET C/S (Qty 4)
- 7 5/16-24 x 1/4 Set Screw (Qty 1)
- 8 Rebel, Rogue Ground Wire (Qty 1)
- 9 25hp Kohler-2014 CZT, Oulaw (Qty 1)
- 10 Pump Belt Outlaw (Qty 1)
- 11 2014 Kohler Outlaw Muffler (Qty 1)
- 12 Black Cable Boot (Qty 1)
- 13 5/16 Lock washer Zinc (Qty 4)
- 14 1.140x1.750x .132 Flat Washer (Qty 1)
- 15 7/16 Lock washer zinc (Qty 1)
- 16 7/16-20 X 2-1/2 GR 5 Hex Bolt (Qty 1)
- 17 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 18 Clutch Pigtail (Qty 1)
- 19 PTO Engager Holder-Clutch--Plated (Qty 1)
- 20 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 21 3/8 Lockwasher Zinc (Qty 2)
- 22 3/8-16 Hex Nuts Zinc (Qty 2)
- 23 Spark Plug-Kohler/Briggs (Qty 2)
- 24 25/26 HP Kohler Oil Filter ZT (Qty 1)
- 25 Universal Inline Fuel Filter (Qty 1)
- 26 25hp Kohler CZT/Outl Air Filte (Qty 1)
- 27 Fuel Filter (Qty 1)
-
1#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
2#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
3#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
4#015-2751-00
Exhaust Gaskets for 27,30 hp
Qty Used: 2Regular price $5.96 USDRegular priceUnit price per
-
5#015-5401-00
Oil Drain Valve
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
6#018-8067-00
5/16-18 X 3/4 SOCKET C/S
Qty Used: 4Regular price $1.69 USDRegular priceUnit price per
-
7#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
8#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
9#015-2030-00
25hp Kohler-2014 CZT, Oulaw
Qty Used: 1Regular price $2,799.00 USDRegular priceUnit price per
-
10#041-5048-00

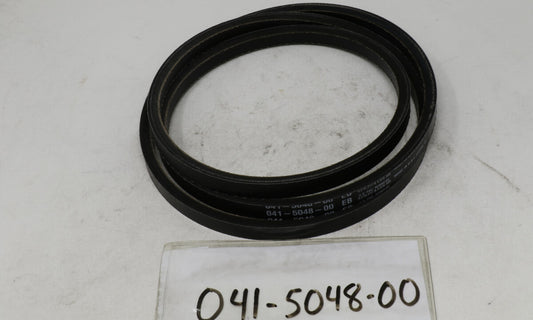

Pump Belt Outlaw
Qty Used: 1Regular price $56.99 USDRegular priceUnit price per
-
11#015-0065-00
2014 Kohler Outlaw Muffler
Qty Used: 1Regular price $172.49 USDRegular priceUnit price per
-
12#103-5400-00
Black Cable Boot
Qty Used: 1Regular price $3.97 USDRegular priceUnit price per
-
13#019-8051-00
5/16 Lock washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
14#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
15#019-8053-00
7/16 Lock washer zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
16#018-5300-00
7/16-20 X 2-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
-
18#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
19#057-5906-00
PTO Engager Holder-Clutch--Plated
Qty Used: 1Regular price $19.32 USDRegular priceUnit price per
-
20#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
21#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
22#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
23#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
24#063-5000-00

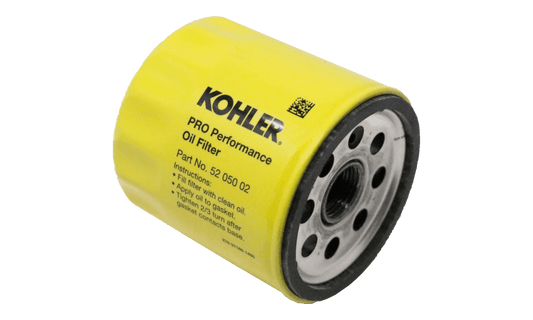

25/26 HP Kohler Oil Filter ZT
Qty Used: 1Regular price $18.99 USDRegular priceUnit price per
-
25#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
26#063-5005-00

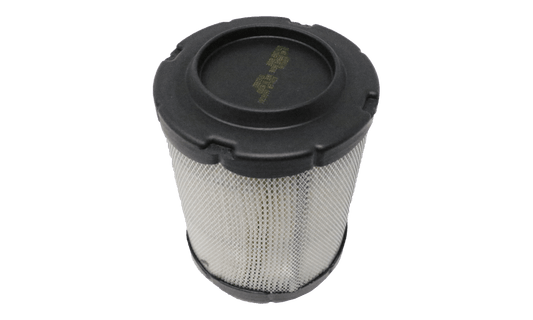

25hp Kohler CZT/Outl Air Filte
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
27#015-0077-07

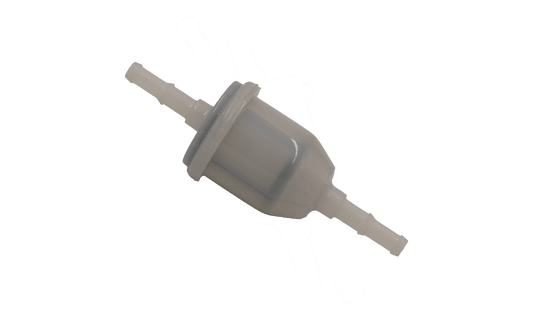

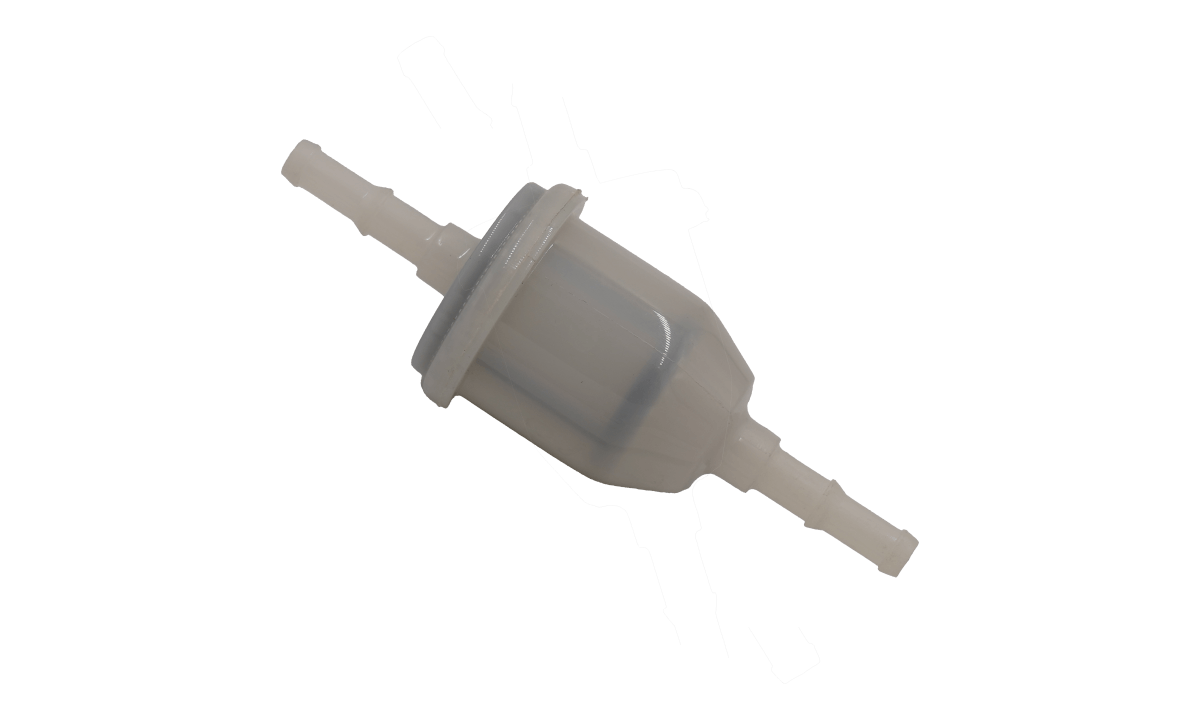

Fuel Filter
Qty Used: 1Regular price $14.99 USDRegular priceUnit price per
