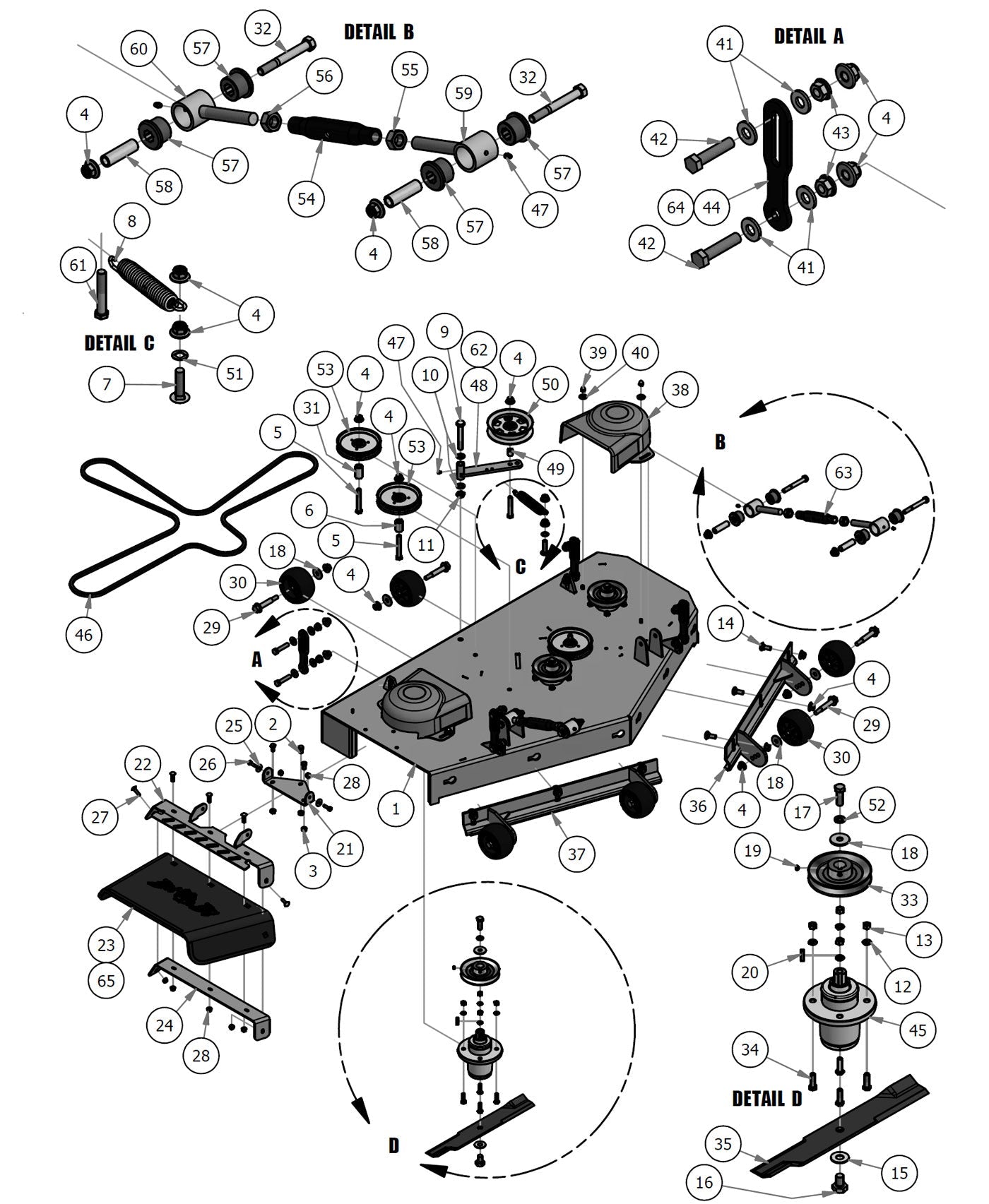

54" Deck Assembly
Parts Index
- 2 3/8-16 X 3/4 GR 5 Hex Bolts (Qty 3)
- 3 3/8-16 Hex Flange Nuts Zinc w/ (Qty 3)
- 4 1/2-13 Nylon Insert Flange Nut (Qty 30)
- 5 1/2 x 3 1/2 Flange Bolt - Gr 8 (Qty 3)
- 6 .502 ID X 1.000 0D X 1.500 (Qty 2)
- 7 1/2 x 2 Carriage Bolt (Qty 1)
- 8 2015 Deck Idler Spring (Qty 1)
- 9 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 10 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 11 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 12 3/8 Lockwasher Zinc (Qty 12)
- 13 3/8-16 Hex Nuts Zinc (Qty 12)
- 14 1/2 x 1 1/4 Carriage Bolt (Qty 6)
- 15 5/8 Flat Washer (Qty 3)
- 16 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 3)
- 17 1/2-20 X 1-1/2 GR 5 Bolts Zinc (Qty 3)
- 18 1/2 Belleville Washer #K2000-G (Qty 9)
- 19 5/16-24 x 1/4 Set Screw (Qty 3)
- 20 1/4 x 1 Square Key (Qty 3)
- 21 Discharge Chute Hanger-Deck (Qty 1)
- 22 60 Discharge Chute Upper (Qty 1)
- 23 Discharge Chute (Rubber Component) (Qty 1)
- 24 60 Discharge Lower Bracket (Qty 1)
- 25 .360 ID Plastic Washer (Qty 2)
- 26 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 27 5/16-18 X 1-1/4 Carriage Bolt (Qty 5)
- 28 5/16-18 Nylon Flange Nut (Qty 7)
- 29 Deck Wheel Bolt (Qty 6)
- 30 Deck Wheel (Qty 6)
- 31 .502 ID X 1.00 OD X 1.750 (Qty 1)
- 32 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 4)
- 33 5.25" Deck Pulley-54" ZT/Maverick/Outlaw (Qty 3)
- 34 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 12)
- 35 54" Blade for Avenger/ZT/Mav/Outlaw/Revolt (Qty 3)
- 36 54 Outlaw Adjustable Deck Fron (Qty 1)
- 37 54 Outlaw Adjustable Deck Fron (Qty 1)
- 38 Pulley Cover (Qty 2)
- 39 Acorn Nut-Pulley Cover (Qty 4)
- 40 .360 ID Black Plastic Washer (Qty 4)
- 41 .505 ID X 1 OD X .128 THK Washer (Qty 16)
- 42 1/2-13 X 2-1/4 GR 5 Hex Bolts (Qty 8)
- 43 1/2-13 Hex Fange Nuts Zinc w/ (Qty 8)
- 44 OBSOLETE USE 039-2125-17 (Qty 4)
- 45 Commercial Cast Iron Spindle (Qty 3)
- 46 60 Pup/Lightning/ZT/Mav/Avenger/ - 54 Rebel/Rogue (Qty 1)
- 47 1/4 Drive-in Grease Fitting (Qty 5)
- 48 Idler Bracket (Qty 1)
- 49 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 50 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 51 .517 Square Hole Round Washer (Qty 1)
- 52 1/2 Lockwasher Zinc (Qty 3)
- 53 5 3/4 Idler Pulley-Capitol (Qty 3)
- 54 2015 Outlaw Toplink Body (Qty 2)
- 55 11/16-12 Lefthand Hex Nut-Topl (Qty 2)
- 56 11/16-12 Hex Nut-2015 Toplink (Qty 2)
- 57 Bushing-2015 Outlaw Toplink (Qty 8)
- 58 Sleeve-2015 Outlaw Toplink (Qty 4)
- 59 2015 Outlaw Toplink LH End (Qty 2)
- 60 2015 Outlaw Toplink RH End (Qty 2)
- 61 1/2-13 X 3 GR 5 Hex Bolts Zinc (Qty 1)
- 63 Toplink (Qty 2)
- 64 Outlaw/Extreme/XP Deck Hanger Assy (Qty 1)
- 65 2017 54"/60" ZT/Mav Chute Assembly (Qty 1)
-
2#018-5250-00
3/8-16 X 3/4 GR 5 Hex Bolts
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
3#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
4#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 30Regular price $1.39 USDRegular priceUnit price per
-
5#018-2018-00
1/2 x 3 1/2 Flange Bolt - Gr 8
Qty Used: 3Regular price $3.29 USDRegular priceUnit price per
-
6#025-5338-00
.502 ID X 1.000 0D X 1.500
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
7#018-1050-00
1/2 x 2 Carriage Bolt
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
8#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
9#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
10#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
11#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
12#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 12Regular price $0.00 USDRegular priceUnit price per
-
13#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 12Regular price $0.00 USDRegular priceUnit price per
-
14#018-3003-00
1/2 x 1 1/4 Carriage Bolt
Qty Used: 6Regular price $0.89 USDRegular priceUnit price per
-
15#019-5038-00
5/8 Flat Washer
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
16#018-6020-00
5/8-18 X 1-1/2 GR 8 Hex Bolts
Qty Used: 3Regular price $2.49 USDRegular priceUnit price per
-
17#018-6019-00
1/2-20 X 1-1/2 GR 5 Bolts Zinc
Qty Used: 3Regular price $1.19 USDRegular priceUnit price per
-
18#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 9Regular price $4.69 USDRegular priceUnit price per
-
19#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 3Regular price $1.59 USDRegular priceUnit price per
-
20#042-6030-00
1/4 x 1 Square Key
Qty Used: 3Regular price $4.37 USDRegular priceUnit price per
-
21#206-6017-00
Discharge Chute Hanger-Deck
Qty Used: 1Regular price $36.48 USDRegular priceUnit price per
-
22#039-4864-00
60 Discharge Chute Upper
Qty Used: 1Regular price $39.74 USDRegular priceUnit price per
-
23#210-6005-00
Discharge Chute (Rubber Component)
Qty Used: 1Regular price $55.99 USDRegular priceUnit price per
-
24#039-4863-00
60 Discharge Lower Bracket
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
25#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
26#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
27#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-
28#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
29#018-0010-00
Deck Wheel Bolt - 2011 Outlaw
Qty Used: 6Regular price $5.89 USDRegular priceUnit price per
-
30#022-1000-00
Deck Wheel
Qty Used: 6Regular price $15.99 USDRegular priceUnit price per
-
31#025-5339-00
.502 ID X 1.00 OD X 1.750
Qty Used: 1Regular price $4.87 USDRegular priceUnit price per
-
32#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 4Regular price $3.99 USDRegular priceUnit price per
-
33#033-6006-00
5.25" Deck Pulley-54" ZT/Maverick/Outlaw
Qty Used: 3Regular price $33.16 USDRegular priceUnit price per
-
34#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
35#038-0001-00
54\" Blade for Avenger/ZT/Mav/Outlaw/Revolt
Qty Used: 3Regular price $21.16 USDRegular priceUnit price per
-
36#060-5520-00
54 Outlaw Adjustable Deck Fron
Qty Used: 1Regular price $49.95 USDRegular priceUnit price per
-
37#060-5530-00
54 Outlaw Adjustable Deck Fron
Qty Used: 1Regular price $49.95 USDRegular priceUnit price per
-
38#014-5000-00
Pulley Cover
Qty Used: 2Regular price $14.58 USDRegular priceUnit price per
-
39#013-0004-00
Acorn Nut-Pulley Cover
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
40#019-6050-00
.360 ID Black Plastic Washer
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
41#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 16Regular price $0.69 USDRegular priceUnit price per
-
42#018-6037-00
1/2-13 X 2-1/4 GR 5 Hex Bolts
Qty Used: 8Regular price $1.39 USDRegular priceUnit price per
-
43#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
44#039-2125-00
OBSOLETE USE 039-2125-17
Qty Used: 4Regular price $14.58 USDRegular priceUnit price per
-
45#037-4000-00
Commercial Cast Iron Spindle
Qty Used: 3Regular price $291.91 USDRegular priceUnit price per
-
46#041-1650-00
60 Pup/Lightning/ZT/Mav/Avenger/ - 54 Rebel/Rogue
Qty Used: 1Regular price $84.99 USDRegular priceUnit price per
-
47#024-6034-00
1/4 Drive-in Grease Fitting
Qty Used: 5Regular price $0.66 USDRegular priceUnit price per
-
48#039-6945-00
Idler Bracket
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
49#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
50#033-8050-00
2017 5" Split Idler Pulley-Tensioner Only
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
51#019-0007-00
.517 Square Hole Round Washer
Qty Used: 1Regular price $1.09 USDRegular priceUnit price per
-
52#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 3Regular price $0.00 USDRegular priceUnit price per
-
53#033-7201-25
5 3/4 Idler Pulley-Capitol
Qty Used: 3Regular price $33.16 USDRegular priceUnit price per
-
54#048-7020-00
2015 Outlaw Toplink Body
Qty Used: 2Regular price $26.47 USDRegular priceUnit price per
-
55#013-0008-00
11/16-12 Lefthand Hex Nut-Topl
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
56#013-0007-00
11/16-12 Hex Nut-2015 Toplink
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
57#032-2000-00
Bushing-2015 Outlaw Toplink
Qty Used: 8Regular price $3.97 USDRegular priceUnit price per
-
58#032-2001-00
Sleeve-2015 Outlaw Toplink
Qty Used: 4Regular price $3.97 USDRegular priceUnit price per
-
59#048-7022-00
2015 Outlaw Toplink LH End
Qty Used: 2Regular price $29.13 USDRegular priceUnit price per
-
60#048-7021-00
2015 Outlaw Toplink RH End
Qty Used: 2Regular price $29.13 USDRegular priceUnit price per
-
61#018-7016-00
1/2-13 X 3 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
-
64#039-2125-17
Outlaw/Extreme/XP Deck Hanger Assy
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
65#210-6005-98
2017 54"/60" ZT/Mav Chute Assembly
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
