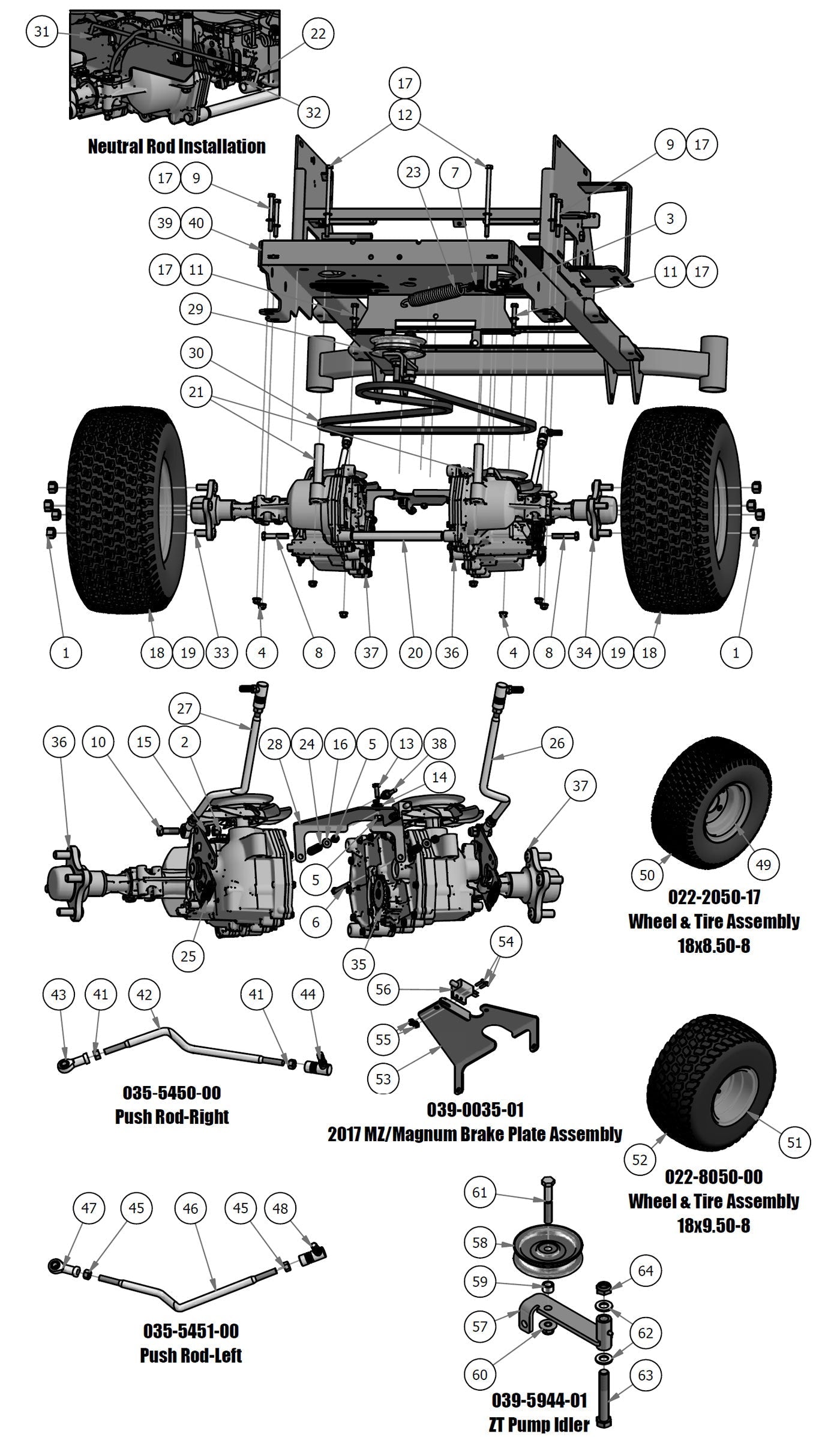

Transaxle & Wheels
Parts Index
- 1 Acorn Lug Nut (Qty 8)
- 2 3/8-16 Nylon Insert Locknut Zi (Qty 2)
- 3 1/2-13 Hex Nuts Zinc (Qty 3)
- 4 5/16-18 Nylon Flange Nut (Qty 8)
- 5 1/4-20 Nylon Insert Locknut Zi (Qty 3)
- 6 ¼-20 x 2-1/2 Gr2 Hex C/S Zinc (Qty 2)
- 7 All Thread (Qty 1)
- 8 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 2)
- 9 5/16-18 X 3 GR 5 Hex Bolt Zinc (Qty 4)
- 10 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 11 5/16 x 2 1/2 Bolt (Qty 2)
- 12 5/16-18 X 6 GR 5 Hex Bolt Zinc (Qty 2)
- 13 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 1)
- 14 .390x.750x.062 Nylon Washer (Qty 1)
- 15 3/8 Lockwasher Zinc (Qty 2)
- 16 1/4 USS Flat Washer Zinc (Qty 2)
- 17 5/16 USS Flat Washer Zinc (Qty 8)
- 18 2017 18x8.50-8 Tire/Wheel Assembly 42" MZ (Qty 2)
- 19 18x9.50-8 Tire and Wheel Assembly Magnum (Qty 1)
- 20 2017 Transaxle Spacer-MZ (Qty 1)
- 21 2017 Transaxle Spacer (Qty 2)
- 22 Neutral Rod (Qty 2)
- 23 2015 Deck Idler Spring (Qty 1)
- 24 Spring-Brake Lock Bracket MZ (Qty 2)
- 26 Push Rod RH (Assembly) (Qty 1)
- 27 Push Rod LH (Assembly) (Qty 1)
- 28 2017 MZ/Magnum brake plate assembly (Qty 1)
- 29 Pump Idler Bracket Assembly-ZT, MZ, Aven, Raider (Qty 1)
- 30 Pump Belt for ZT, MZ, Avenger (Qty 1)
- 31 Bow Pin (Qty 2)
- 32 Neutral Rod Clip (Qty 2)
- 33 Transaxle Wheel Studs/ Drum Brake Studs (Qty 8)
- 34 MZ 4 Bolt Hub Kit (Qty 2)
- 35 MZ Brake Cog Kit (Qty 1)
- 36 Magnum RH Transaxle (Qty 1)
- 37 Magnum LH Transaxle (Qty 1)
- 38 2017 MZ Brake Cable- 18.37" CABLE ONLY (Qty 2)
- 39 2017 MZ/ZT 54"-60" Frame (Qty 1)
- 40 2017 MZ/ZT 42"-48" Frame (Qty 1)
- 41 3/8-24 Hex Nut Zinc (Qty 2)
- 42 Push Rod RH (Assembly) (Qty 1)
- 43 Spherical Rod End (Qty 1)
- 44 Quick Release Ball Joint (Qty 1)
- 45 3/8-24 Hex Nut Zinc (Qty 2)
- 46 Push Rod LH (Assembly) (Qty 1)
- 47 Spherical Rod End (Qty 1)
- 48 Quick Release Ball Joint (Qty 1)
- 49 2017 8.50-8 MZ Wheel (Qty 1)
- 50 18x8.50-8 Rear Tire Only 42 MZ (Qty 1)
- 51 Rear Wheel 48in MZ (Qty 1)
- 52 18x9.50-8 Rear Tire Only 48 MZ (Qty 1)
- 53 Brake Lock Bracket (Qty 1)
- 54 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 55 10-24 Nylon Insert Locknut Zin (Qty 2)
- 56 Safety Switch (Qty 1)
- 57 Idler Bracket (Qty 1)
- 58 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 59 1/2 Set Collar w/set collar (Qty 1)
- 60 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 61 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 62 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 63 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 64 5/8-11 Nylon Insert Jam Locknu (Qty 1)
-
57#039-5944-00
Idler Bracket
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
58#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
59#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 1Regular price $4.18 USDRegular priceUnit price per
-
60#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
61#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
62#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
63#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
64#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
1#013-3000-00
Acorn Lug Nut
Qty Used: 8Regular price $2.99 USDRegular priceUnit price per
-
2#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
3#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
4#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
5#013-8073-00
1/4-20 Nylon Insert Locknut Zi
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
6#018-1076-00
¼-20 x 2-1/2 Gr2 Hex C/S Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
7#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
8#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
9#018-4701-00
5/16-18 X 3 GR 5 Hex Bolt Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
10#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
11#018-5344-00
5/16 x 2 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
12#018-5355-00
5/16-18 X 6 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $2.19 USDRegular priceUnit price per
-
13#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
14#019-2003-00
.390x.750x.062 Nylon Washer
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
15#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
16#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
17#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
18#022-2050-17
2017 18x8.50-8 Tire/Wheel Assembly 42" MZ
Qty Used: 2Regular price $145.99 USDRegular priceUnit price per
-
19#022-8050-00
18x9.50-8 Tire and Wheel Assembly Magnum
Qty Used: 1Regular price $199.99 USDRegular priceUnit price per
-
20#025-0016-00
2017 Transaxle Spacer-MZ
Qty Used: 1Regular price $13.12 USDRegular priceUnit price per
-
21#025-0070-00
2017 Transaxle Spacer
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
22#028-0070-00
Neutral Rod
Qty Used: 2Regular price $11.66 USDRegular priceUnit price per
-
23#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
24#034-3050-00
Spring-Brake Lock Bracket MZ
Qty Used: 2Regular price $1.19 USDRegular priceUnit price per
-
2642#035-5450-00
Push Rod RH (Assembly)
Qty Used: 1Regular price $31.73 USDRegular priceUnit price per
-
2746#035-5451-00
Push Rod LH (Assembly)
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
28#039-0035-01
2017 MZ/Magnum brake plate assembly
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
29#039-5944-01
Pump Idler Bracket Assembly-ZT/MZ/Compact Outlaw
Qty Used: 1Regular price $58.37 USDRegular priceUnit price per
-
30#041-6400-00
Pump Belt for ZT, MZ, Avenger
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
-
32#044-2008-00
Neutral Rod Clip
Qty Used: 2Regular price $1.31 USDRegular priceUnit price per
-
33#050-2012-00
Transaxle Wheel Studs/ Drum Brake Studs
Qty Used: 8Regular price $5.10 USDRegular priceUnit price per
-
34#050-2078-00
MZ 4 Bolt Hub Kit
Qty Used: 2Regular price $79.99 USDRegular priceUnit price per
-
35#050-4032-98
MZ Brake Cog Kit
Qty Used: 1Regular price $61.00 USDRegular priceUnit price per
-
36#050-4070-00
2017 EZT - Right - MZ Models
Qty Used: 1Regular price $599.99 USDRegular priceUnit price per
-
37#050-4071-00
2017 EZT - Left - MZ Models
Qty Used: 1Regular price $599.99 USDRegular priceUnit price per
-
38#064-8057-17
2017 MZ Brake Cable- 18.37" CABLE ONLY
Qty Used: 2Regular price $23.87 USDRegular priceUnit price per
-
39#070-5420-00
2017 MZ/ZT 54"-60" Frame
Qty Used: 1Regular price $799.99 USDRegular priceUnit price per
-
40#070-5810-00
2017 MZ/ZT 42"-48" Frame
Qty Used: 1Regular price $799.99 USDRegular priceUnit price per
-
4145#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
4347#048-3000-00
Spherical Rod End-Outlaw Only
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
4448#099-2009-00
Quick Release Ball Joint
Qty Used: 1Regular price $8.99 USDRegular priceUnit price per
-
49#022-2055-17
2017 8.50-8 MZ Wheel
Qty Used: 1Regular price $106.99 USDRegular priceUnit price per
-
50#022-8027-00
18x8.50-8 Rear Tire Only 42 MZ
Qty Used: 1Regular price $106.19 USDRegular priceUnit price per
-
51#022-8026-00
Rear Wheel 48in MZ
Qty Used: 1Regular price $106.19 USDRegular priceUnit price per
-
52#022-8025-00
18x9.50-8 Rear Tire Only 48 MZ
Qty Used: 1Regular price $159.99 USDRegular priceUnit price per
-
53#039-0035-00
Brake Lock Bracket
Qty Used: 1Regular price $8.74 USDRegular priceUnit price per
-
54#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
55#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
56#077-8073-00
Safety Switch
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
