Tanks & Electronics

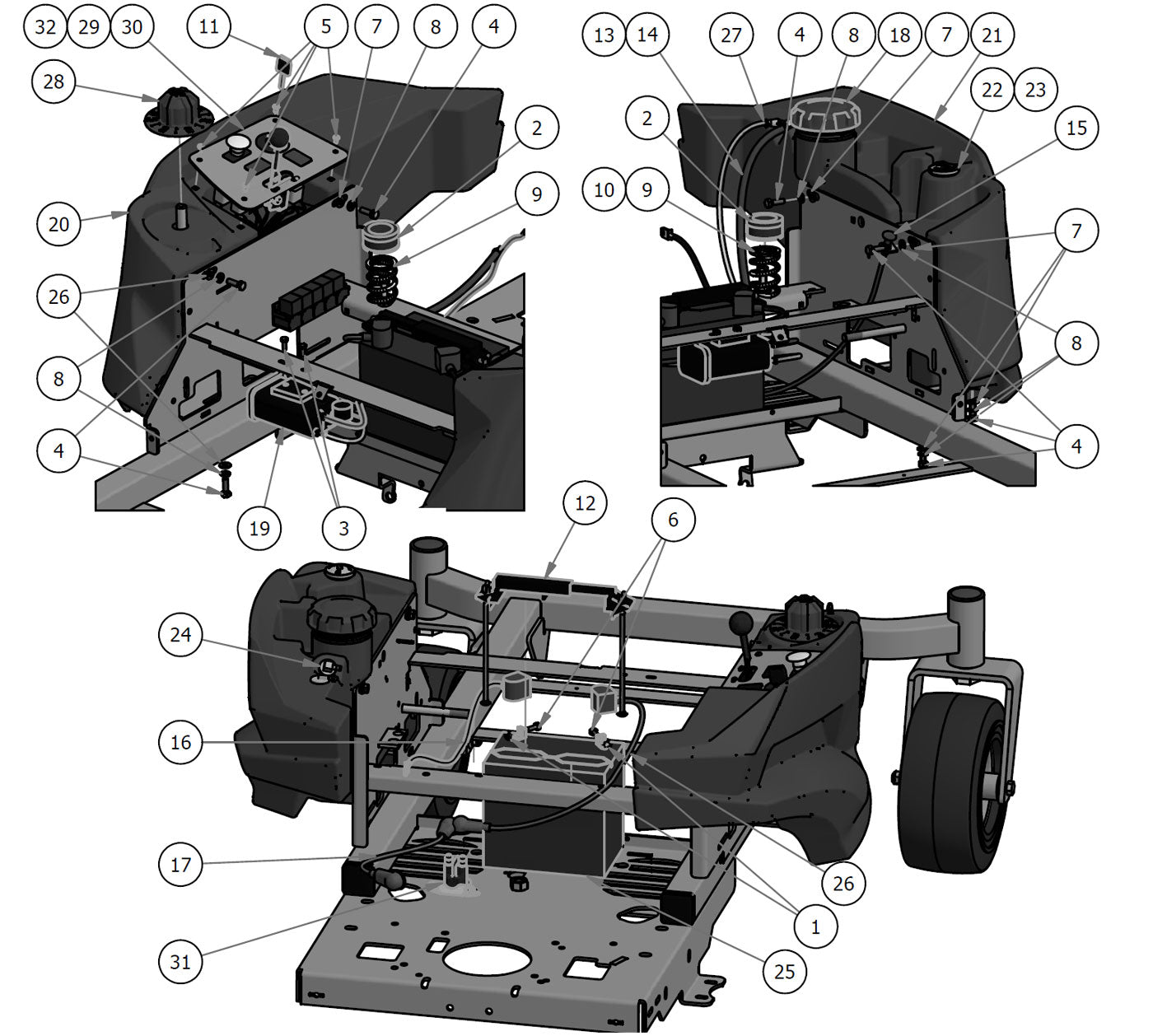

Parts Index
- 1 1/4-20 Hex Flange Nuts Zinc w/ (Qty 6)
- 2 Seat Spring Cap Cover (Qty 2)
- 3 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 4 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 7)
- 5 10-32 X 3/8 BS C/S 18-8 SS with Patch (Qty 4)
- 6 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 5)
- 7 5/16 USS Flat Washer Zinc (Qty 15)
- 8 5/16 Lock washer Zinc (Qty 11)
- 9 2017 MZ/ZT Seat Spring Assembly (Qty 2)
- 10 2017 Seat Spring Assy. With Cable (Qty 1)
- 11 Ignition Key (Qty 1)
- 12 Battery Hold Down (Plastic) (Qty 1)
- 13 15" Fuel Line (Qty 1)
- 14 2014 ZT Fuel Line Assembly-37" (Qty 1)
- 15 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 16 24 inch Black Cable - MZ/ZT (Qty 1)
- 17 14" Red Battery Cable (Qty 1)
- 18 3.5" Tethered Fuel Cap (Qty 1)
- 19 MZ/Revolt Kawasaki EPA Cannister Assy (Qty 1)
- 20 2017 Magnum Right Side Console (Qty 1)
- 21 2017 Magnum Left Side Fuel Tank (Qty 1)
- 22 Fuel Gauge w/ Grommet (Qty 1)
- 23 New Style Grommet for 2017 MZ Magnum Fuel Gauge (Qty 1)
- 24 Black Rollover Valve & Grommet (Qty 1)
- 25 Battery - All models except Renegade and Revolt (Qty 1)
- 26 2017 MZ/ZT 42"-48" Frame (Qty 1)
- 27 MZ Tank Hose Clamp 1/4 Vinyl (Qty 1)
- 28 Deck Height Dial (Qty 1)
- 29 2017 Magnum Control Panel Assembly (Qty 1)
- 30 2017 MZ Control Panel Assembly (Qty 1)
- 31 Solenoid (752-1251-210HP) (Qty 1)
- 32 2017 MZ/ZT/MAV/HD/Revolt Tach Wire Assy (Qty 1)
-
1#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
2#014-8047-00
Seat Spring Cap Cover
Qty Used: 2Regular price $8.12 USDRegular priceUnit price per
-
3#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
4#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 7Regular price $0.00 USDRegular priceUnit price per
-
5#018-2010-00
10-32 X 3/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
6#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-
7#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 15Regular price $0.79 USDRegular priceUnit price per
-
8#019-8051-00
5/16 Lock washer Zinc
Qty Used: 11Regular price $0.79 USDRegular priceUnit price per
-
9#034-8045-03
2017 MZ/ZT Seat Spring Assembly
Qty Used: 2Regular price $29.99 USDRegular priceUnit price per
-
10#034-8045-04
2017 Seat Spring Assy. With Cable
Qty Used: 1Regular price $29.06 USDRegular priceUnit price per
-
11#042-9000-00
Ignition Key
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
12#043-8929-00
Battery Hold Down (Plastic)
Qty Used: 1Regular price $16.35 USDRegular priceUnit price per
-
13#051-0001-00
15" Fuel Line
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
14#051-2014-00
2014 ZT Fuel Line Assembly-37"
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
15#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
16#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
17#064-5301-00
14\" Red Battery Cable
Qty Used: 1Regular price $16.04 USDRegular priceUnit price per
-
18#066-8083-00
3.5" Tethered Fuel Cap
Qty Used: 1Regular price $19.84 USDRegular priceUnit price per
-
19#067-0015-02
MZ Kohler/Kawasaki EPA Cannister Assy
Qty Used: 1Regular price $53.01 USDRegular priceUnit price per
-
20#067-2080-50
2017 Magnum Right Side Console
Qty Used: 1Regular price $218.93 USDRegular priceUnit price per
-
21#067-2090-50
2017 Magnum Left Side Fuel Tank
Qty Used: 1Regular price $238.83 USDRegular priceUnit price per
-
22#067-4090-00
Fuel Gauge w/ Grommet
Qty Used: 1Regular price $42.99 USDRegular priceUnit price per
-
23#067-6056-00
New Style Grommet for 2017 MZ Magnum Fuel Gauge
Qty Used: 1Regular price $6.49 USDRegular priceUnit price per
-
24#067-6060-00
Black Rollover Valve & Grommet
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
25#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
26#070-5810-00
2017 MZ/ZT 42"-48" Frame
Qty Used: 1Regular price $799.99 USDRegular priceUnit price per
-
27#072-8070-00
MZ Tank Hose Clamp 1/4 Vinyl
Qty Used: 1Regular price $1.45 USDRegular priceUnit price per
-
28#077-9000-00
Deck Height Dial
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
29#079-3460-01
2017 Magnum Control Panel Assembly
Qty Used: 1Regular price $99.00 USDRegular priceUnit price per
-
30#079-3460-02
2017 MZ Control Panel Assembly
Qty Used: 1Regular price $99.00 USDRegular priceUnit price per
-
31#108-0001-00
Solenoid (752-1251-210HP)
Qty Used: 1Regular price $27.49 USDRegular priceUnit price per
-
32#216-1000-17
2017 MZ/ZT/MAV Tach Wire Assy
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
