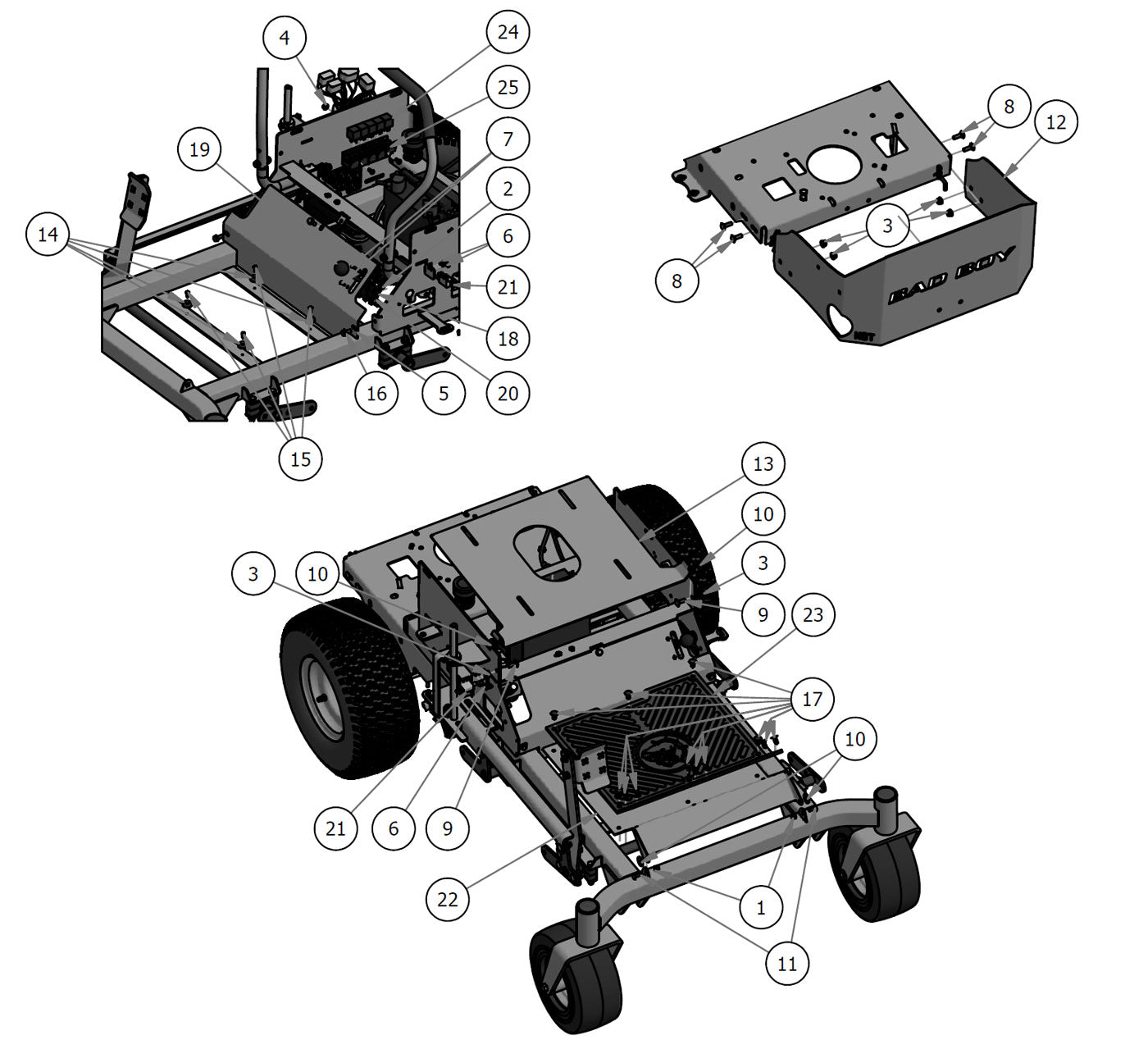

Seat Pan & Covers
Parts Index
- 1 1/4-20 Nylon Insert Flange Nut (Qty 2)
- 2 10-24 Nylon Insert Locknut Zin (Qty 2)
- 3 5/16-18 Nylon Flange Nut (Qty 14)
- 4 1/4-20 Hex Flange Nuts Zinc w/ (Qty 6)
- 5 2017 MZ Cooler Cover--Orange (Qty 1)
- 6 12-24 x 1/2 HWH Bolt (Qty 4)
- 7 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 8 5/16-18 X 1 Carriage Bolt Zinc (Qty 4)
- 9 5/16 x 7/8 Carriage Bolt (Qty 2)
- 10 .360 ID Plastic Washer (Qty 4)
- 11 1/4 x 3/4 Carriage Bolt (Qty 2)
- 12 2017 MZ Rear Plate--Orange (Qty 1)
- 13 2017 MZ Seat Plate--Orange (Qty 1)
- 14 Button Bumper (Qty 4)
- 15 10 X 1/2 Pan Phil a T/S Zinc (Qty 4)
- 16 5/16 x 3/4 Hex Washer Type F (Qty 3)
- 17 Ratchet Fastener - Floorboard (Qty 12)
- 18 Universal Throttle Head - 2012 (Qty 1)
- 19 Throttle / Brake Head Ball (Qty 1)
- 20 2017 MZ Brake Cable- 18.37" CABLE ONLY (Qty 2)
- 21 Safety Switch (Qty 2)
- 22 2017 MZ/ZT Floorboard--Orange (Qty 1)
- 23 Mat (Floor) (Qty 1)
- 24 5Relay Terminal (Qty 5)
- 25 2017 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (Qty 1)
-
1#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
2#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
3#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 14Regular price $0.79 USDRegular priceUnit price per
-
4#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
5#014-3317-00
2017 MZ Cooler Cover--Orange
Qty Used: 1Regular price $71.50 USDRegular priceUnit price per
-
6#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
7#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
8#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
9#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
10#019-6042-00
.360 ID Plastic Washer
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
11#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
12#026-0117-00
2017 MZ Rear Plate--Orange
Qty Used: 1Regular price $72.97 USDRegular priceUnit price per
-
13#026-2017-00
2017 MZ Seat Plate--Orange
Qty Used: 1Regular price $119.41 USDRegular priceUnit price per
-
14#029-4010-00
Button Bumper
Qty Used: 4Regular price $1.31 USDRegular priceUnit price per
-
15#030-3050-00
10 X 1/2 Pan Phil a T/S Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
16#030-7042-00
5/16 x 3/4 Hex Washer Type F
Qty Used: 3Regular price $0.89 USDRegular priceUnit price per
-
17#040-6080-00
Ratchet Fastener - Floorboard
Qty Used: 12Regular price $2.91 USDRegular priceUnit price per
-
18#055-2012-00
Universal Throttle Head - 2012
Qty Used: 1Regular price $23.87 USDRegular priceUnit price per
-
19#055-2013-00
Throttle Head Ball
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
20#064-8057-17
2017 MZ Brake Cable- 18.37" CABLE ONLY
Qty Used: 2Regular price $23.87 USDRegular priceUnit price per
-
21#077-8073-00
Safety Switch
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
22#079-3417-00
2017 MZ/ZT Floorboard--Orange
Qty Used: 1Regular price $145.95 USDRegular priceUnit price per
-
23#081-4000-00
Mat (Floor)
Qty Used: 1Regular price $58.39 USDRegular priceUnit price per
-
24#086-1201-00
Relay Terminal
Qty Used: 5Regular price $23.34 USDRegular priceUnit price per
-
25#086-3050-17
2017 MZ/ZT/Maverick/Compact Outlaw Wiring Harness
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
