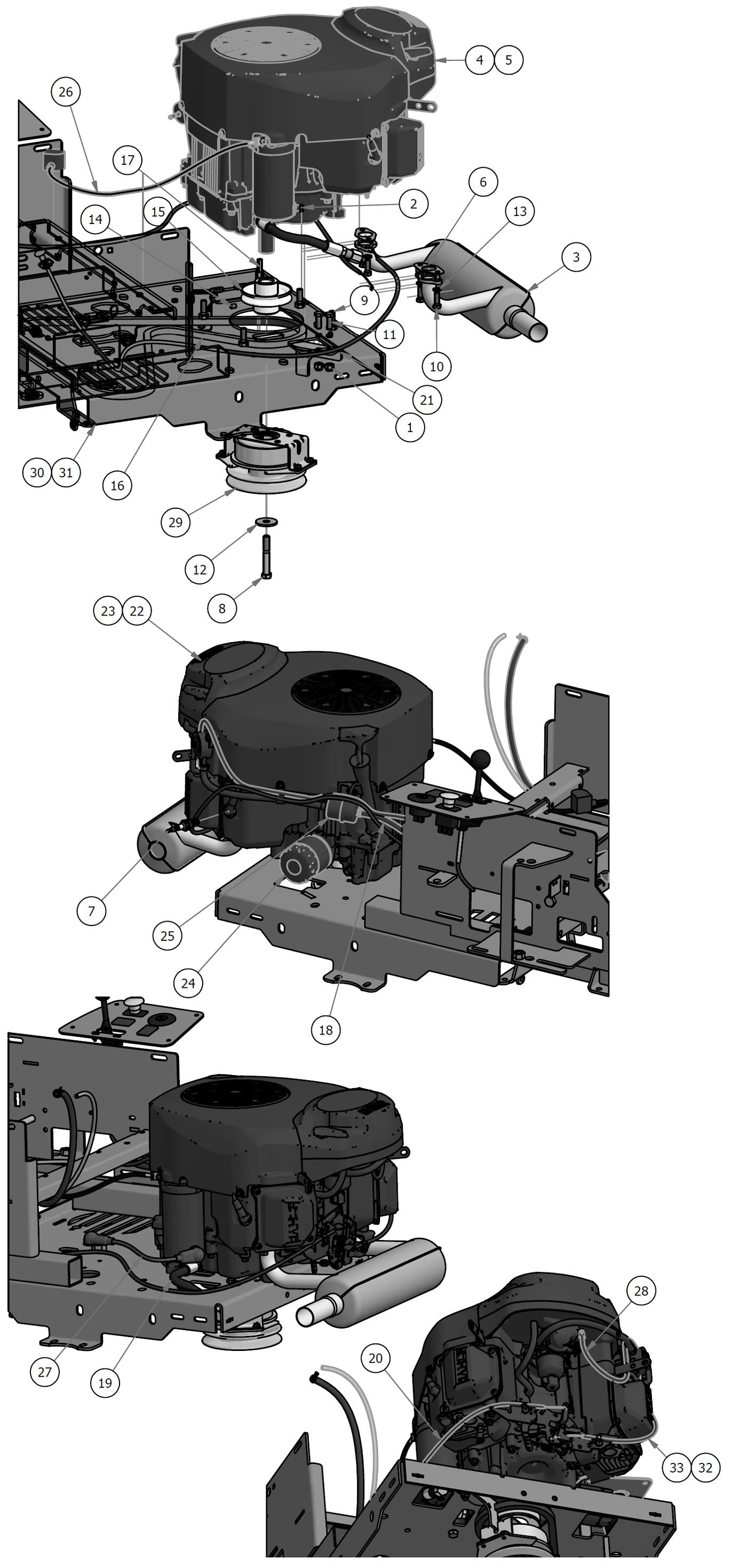

Kohler KT-725 & KT-740
Parts Index
- 1 3/8-16 Nylon Insert Locknut Zi (Qty 2)
- 2 1/4-20 Hex Flange Nuts Zinc w/ (Qty 1)
- 3 2017 Kohler Exhaust MZ, AVEN, ZT, MAV, HD (Qty 1)
- 4 25hp Kohler 2014 MZ-KT740-3048 (Qty 1)
- 5 22 Kohler MZ/Magnum-KT725-3035 (Qty 1)
- 6 Exhaust Gaskets for 27,30 hp (Qty 2)
- 7 Spark Plug-Kohler/Briggs (Qty 2)
- 8 7/16-20 x 3 Hex C/S GR 8 Yellow (Qty 1)
- 9 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 10 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 4)
- 11 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 12 1/2 Belleville Washer #K2000-G (Qty 1)
- 13 5/16 Lock washer Zinc (Qty 4)
- 14 3/8-16x1/2 Socket Set Cup Point (Qty 1)
- 15 3 3/4 Motor Pulley-2009 MZ (Qty 1)
- 16 Pump Belt for ZT, MZ, Avenger (Qty 1)
- 17 1/4 x 1 Square Key (Qty 1)
- 18 2014 ZT Fuel Line Assembly-37" (Qty 1)
- 19 Kohler Oil Drain Hose (Qty 1)
- 20 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 21 Clutch Stop (Qty 1)
- 22 25/26 HP Koh Precleaner ZT/MZ (Qty 1)
- 23 25/26 HP Koh Air Filter ZT/MZ (Qty 1)
- 24 25 HP Kohler Oil Filter ZT/MZ (Qty 1)
- 25 Universal Inline Fuel Filter (Qty 1)
- 26 24 inch Black Cable - MZ/ZT (Qty 1)
- 27 14" Red Battery Cable (Qty 1)
- 28 MZ/Revolt Kawasaki EPA Cannister Assy (Qty 1)
- 29 Clutch For 1" Shaft (Qty 1)
- 30 2017 MZ/ZT 54"-60" Frame (Qty 1)
- 31 2017 MZ/ZT 42"-48" Frame (Qty 1)
- 32 2017 Magnum Control Panel Assembly (Qty 1)
- 33 2017 MZ Control Panel Assembly (Qty 1)
-
1#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
2#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
3#015-0051-00
2017 Kohler Exhaust MZ/ZT/Mav/Compact Outlaw
Qty Used: 1Regular price $217.48 USDRegular priceUnit price per
-
4#015-2014-00
25hp Kohler 2014 MZ-KT740-3048
Qty Used: 1Regular price $1,799.00 USDRegular priceUnit price per
-
5#015-2015-00
22 Kohler MZ/Magnum-KT725-3035
Qty Used: 1Regular price $1,799.00 USDRegular priceUnit price per
-
6#015-2751-00
Exhaust Gaskets for 27,30 hp
Qty Used: 2Regular price $5.96 USDRegular priceUnit price per
-
7#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
8#018-0007-00
7/16-20 x 3 Hex C/S GR 8 Yellow
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
9#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
10#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
11#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
12#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 1Regular price $4.69 USDRegular priceUnit price per
-
13#019-8051-00
5/16 Lock washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
14#030-6029-00
3/8-16x1/2 Socket Set Cup Point
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
15#033-2010-00
3 3/4 Motor Pulley-2009 MZ
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
16#041-6400-00
Pump Belt for ZT, MZ, Avenger
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
17#042-6030-00
1/4 x 1 Square Key
Qty Used: 1Regular price $4.37 USDRegular priceUnit price per
-
18#051-2014-00
2014 ZT Fuel Line Assembly-37"
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
19#051-5401-00
Kohler Oil Drain Hose
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
20#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
21#057-5900-00
Clutch Stop
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
22#063-5002-00
25/26 HP Koh Precleaner ZT/MZ
Qty Used: 1Regular price $7.95 USDRegular priceUnit price per
-
23#063-5003-00
25/26 HP Koh Air Filter ZT/MZ
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
24#063-5004-00
25 HP Kohler Oil Filter ZT/MZ
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
25#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
26#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
27#064-5301-00
14\" Red Battery Cable
Qty Used: 1Regular price $16.04 USDRegular priceUnit price per
-
28#067-0015-02
MZ Kohler/Kawasaki EPA Cannister Assy
Qty Used: 1Regular price $53.01 USDRegular priceUnit price per
-
29#070-0055-00
Clutch For 1\" Shaft
Qty Used: 1Regular price $279.99 USDRegular priceUnit price per
-
30#070-5420-00
2017 MZ/ZT 54"-60" Frame
Qty Used: 1Regular price $799.99 USDRegular priceUnit price per
-
31#070-5810-00
2017 MZ/ZT 42"-48" Frame
Qty Used: 1Regular price $799.99 USDRegular priceUnit price per
-
32#079-3460-01
2017 Magnum Control Panel Assembly
Qty Used: 1Regular price $99.00 USDRegular priceUnit price per
-
33#079-3460-02
2017 MZ Control Panel Assembly
Qty Used: 1Regular price $99.00 USDRegular priceUnit price per
