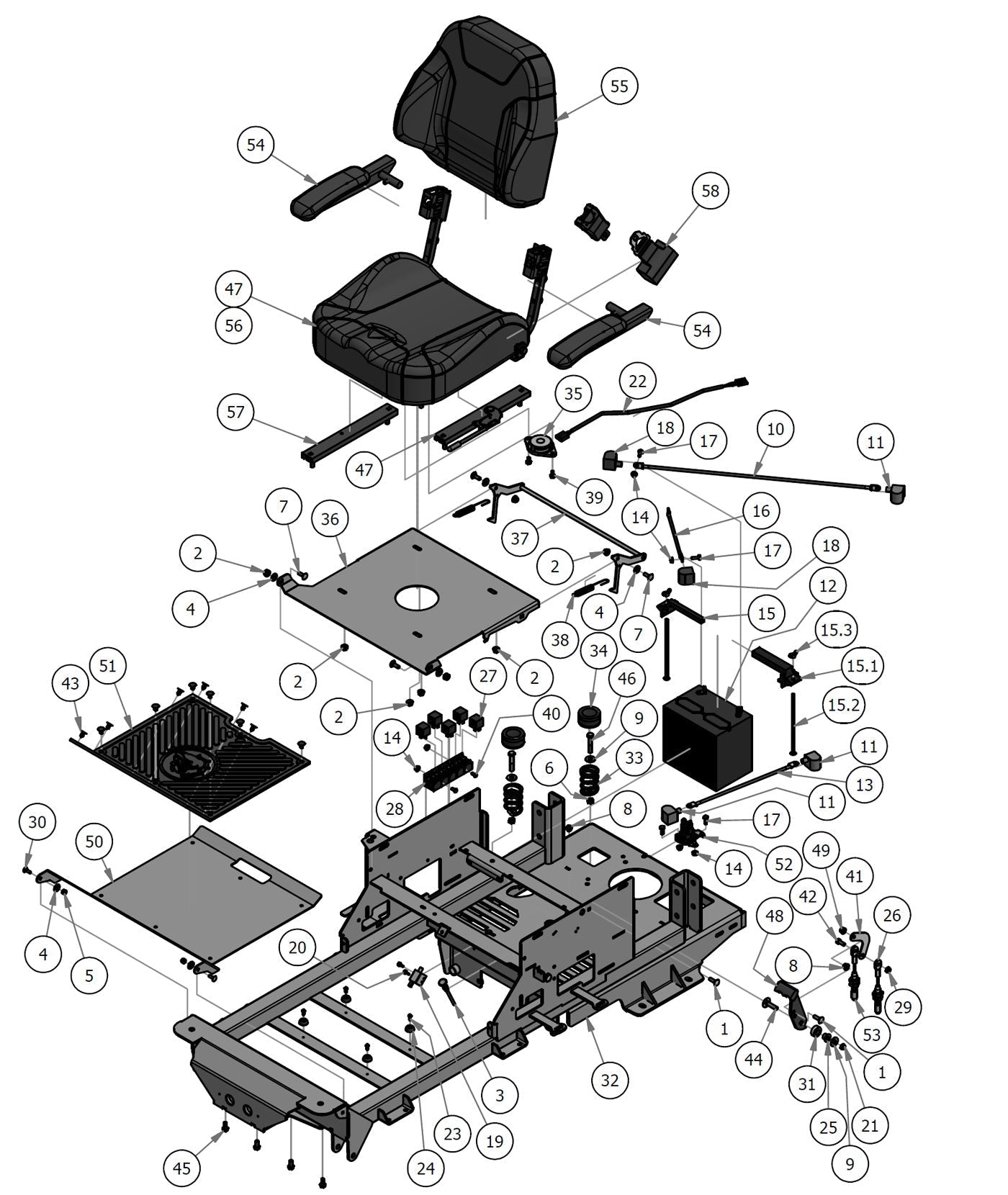

Upper Frame Assembly
Parts Index
- 1 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 2 5/16-18 Nylon Flange Nut (Qty 8)
- 3 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 4 .360 ID Plastic Washer (Qty 6)
- 5 1/4-20 Nylon Insert Locknut Zi (Qty 2)
- 6 3/8-16 Hex Nuts Zinc (Qty 2)
- 7 5/16 x 7/8 Carriage Bolt (Qty 4)
- 8 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
- 9 3/8 USS Flat Washer Zinc (Qty 3)
- 10 24 Red Battery Cable (Qty 1)
- 11 Red Lug Boot (Qty 3)
- 12 Battery - All models except Renegade and Revolt (Qty 1)
- 13 14" Red Battery Cable (Qty 1)
- 14 1/4-20 Hex Flange Nuts Zinc w/ (Qty 6)
- 15.1 Battery Hold Down (Plastic) (Qty 1)
- 15.2 1/4-20 X 8 Carriage Bolts Zinc (Qty 2)
- 15.3 1/4-20 Wing Nuts Zinc (Qty 2)
- 16 Rebel, Rogue Ground Wire (Qty 1)
- 17 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 4)
- 18 Black Cable Boot (Qty 2)
- 19 Safety Switch (Qty 1)
- 20 12-24 x 1/2 HWH Bolt (Qty 2)
- 21 3/8-16 Centerlock Half Nut (Qty 1)
- 22 Seat Switch Adaptor - Pup (Qty 1)
- 23 10 X 1/2 Pan Phil a T/S Zinc (Qty 4)
- 24 Button Bumper (Qty 4)
- 25 Bronze Bushing SF-1220-8 (Qty 1)
- 26 2017 ZT Brake Cable-24.50" (Qty 1)
- 27 5Relay Terminal (Qty 5)
- 28 2017 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (Qty 1)
- 29 5/16-18 Nylock Jam Nut (Qty 1)
- 30 1/4 x 3/4 Carriage Bolt (Qty 2)
- 31 Brake Lever Spacer (Qty 1)
- 33 Seat Spring (Qty 2)
- 34 Seat Spring Cap Cover (Qty 2)
- 35 13/14 MZ/Outlaw Seat Switch (Qty 1)
- 36 Seat Plate 2016--Orange (Qty 1)
- 37 Seat Latch Rod (Qty 1)
- 38 Brake Spring (Qty 2)
- 39 1/4-20x1/2 HWH Bolt Slot Type (Qty 2)
- 40 1/4-20 X 1/2 BS C/S 18-8 SS (Qty 2)
- 41 Brake Cable Adapter Bracket (Qty 1)
- 42 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 1)
- 43 OBSOLETE USE 040-6080-00 (Qty 12)
- 44 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 45 5/16 x 3/4 Hex Washer Type F (Qty 4)
- 46 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 2)
- 47 OBSOLETE USE 071-5080-18 (Qty 1)
- 48 Brake Handle (Qty 1)
- 49 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap) (Qty 1)
- 50 Maverick Floor Panel--Orange (Qty 1)
- 51 Mat (Floor) (Qty 1)
- 52 Solenoid (752-1251-210HP) (Qty 1)
- 53 2017 ZT Brake Cable-18.50" (Qty 1)
- 54 2017 ZT/Maverick/2020 ZTElite/Avenger Arm Rest Kit (Qty 1)
- 55 2017 Maverick Back Cover 071-5080-17 (Qty 1)
- 56 2017 Maverick Seat Cover 071-5080-17 (Qty 1)
- 57 Seat Rails for Outlaw Seat/2020 ZT Elite/ZTAvenger (Qty 1)
- 58 Seat Belt for 071-5080-17 (Qty 1)
- 15 Battery Hold Down (Plastic) (Qty 1)
-
50#079-3470-18
Maverick Floor Panel--Orange
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
51#081-4000-00
Mat (Floor)
Qty Used: 1Regular price $58.39 USDRegular priceUnit price per
-
52#108-0001-00
Solenoid (752-1251-210HP)
Qty Used: 1Regular price $27.49 USDRegular priceUnit price per
-
53#064-3050-00
2017 ZT Brake Cable-18.50"
Qty Used: 1Regular price $48.10 USDRegular priceUnit price per
-
54#071-2054-00
2017 ZT/Maverick/2020 ZTElite/Avenger Arm Rest Kit
Qty Used: 1Regular price $139.99 USDRegular priceUnit price per
-
55#071-2052-00
2017 Maverick Back Cover 071-5080-17
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
56#071-2053-00
2017 Maverick Seat Cover 071-5080-17
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
57#071-5015-00
Seat Rails for Outlaw Seat/2020 ZT Elite/ZTAvenger
Qty Used: 1Regular price $87.56 USDRegular priceUnit price per
-
58#071-5083-00
Seat Belt for 071-5080-17
Qty Used: 1Regular price $106.14 USDRegular priceUnit price per
-
1#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
2#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
3#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
4#019-6042-00
.360 ID Plastic Washer
Qty Used: 6Regular price $0.00 USDRegular priceUnit price per
-
5#013-8073-00
1/4-20 Nylon Insert Locknut Zi
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
6#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
7#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
8#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
9#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
10#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
11#103-5300-00
Red Lug Boot
Qty Used: 3Regular price $5.29 USDRegular priceUnit price per
-
12#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
13#064-5301-00
14\" Red Battery Cable
Qty Used: 1Regular price $16.04 USDRegular priceUnit price per
-
14#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
15.115#043-8929-00
Battery Hold Down (Plastic)
Qty Used: 1Regular price $16.35 USDRegular priceUnit price per
-
15.2#018-8050-00
1/4-20 X 8 Carriage Bolts Zinc
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
15.3#013-8051-00
1/4-20 Wing Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
16#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
17#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
18#103-5400-00
Black Cable Boot
Qty Used: 2Regular price $3.97 USDRegular priceUnit price per
-
19#077-8073-00
Safety Switch
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
20#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
21#013-0012-00
3/8-16 Centerlock Half Nut
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
22#036-5300-00
Seat Switch Adaptor - Pup
Qty Used: 1Regular price $14.53 USDRegular priceUnit price per
-
23#030-3050-00
10 X 1/2 Pan Phil a T/S Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
24#029-4010-00
Button Bumper
Qty Used: 4Regular price $1.31 USDRegular priceUnit price per
-
25#032-5053-00
Bronze Bushing SF-1220-8
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
26#064-3051-00
2017 ZT Brake Cable-24.50"
Qty Used: 1Regular price $53.94 USDRegular priceUnit price per
-
27#086-1201-00
Relay Terminal
Qty Used: 5Regular price $23.34 USDRegular priceUnit price per
-
28#086-3050-17
2017 MZ/ZT/Maverick/Compact Outlaw Wiring Harness
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
-
29#013-9005-00
5/16-18 Nylock Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
30#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
31#025-0001-00
Brake Lever Spacer
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
33#034-8045-00
Seat Spring
Qty Used: 2Regular price $19.15 USDRegular priceUnit price per
-
34#014-8047-00
Seat Spring Cap Cover
Qty Used: 2Regular price $8.12 USDRegular priceUnit price per
-
35#071-8061-00
13/14 MZ/Outlaw Seat Switch
Qty Used: 1Regular price $17.89 USDRegular priceUnit price per
-
36#026-1016-00
Seat Plate 2016--Orange
Qty Used: 1Regular price $102.11 USDRegular priceUnit price per
-
37#028-0090-00
Seat Latch Rod
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
38#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 2Regular price $11.66 USDRegular priceUnit price per
-
39#030-7041-00
1/4-20x1/2 HWH Bolt Slot Type
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
40#018-2012-00
1/4-20 X 1/2 BS C/S 18-8 SS
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
41#039-0150-00
Brake Cable Adapter Bracket
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
42#018-8063-00
5/16-18 X 3/4 GR 5 Hex Bolts Z
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
43#040-6090-00
OBSOLETE USE 040-6080-00
Qty Used: 12Regular price $1.99 USDRegular priceUnit price per
-
44#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
45#030-7042-00
5/16 x 3/4 Hex Washer Type F
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
46#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
47#071-5080-17
OBSOLETE USE 071-5080-18
Qty Used: 1Regular price $499.99 USDRegular priceUnit price per
-
48#069-1050-00
Brake Handle
Qty Used: 1Regular price $17.24 USDRegular priceUnit price per
-
49#013-8042-00
5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap)
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
