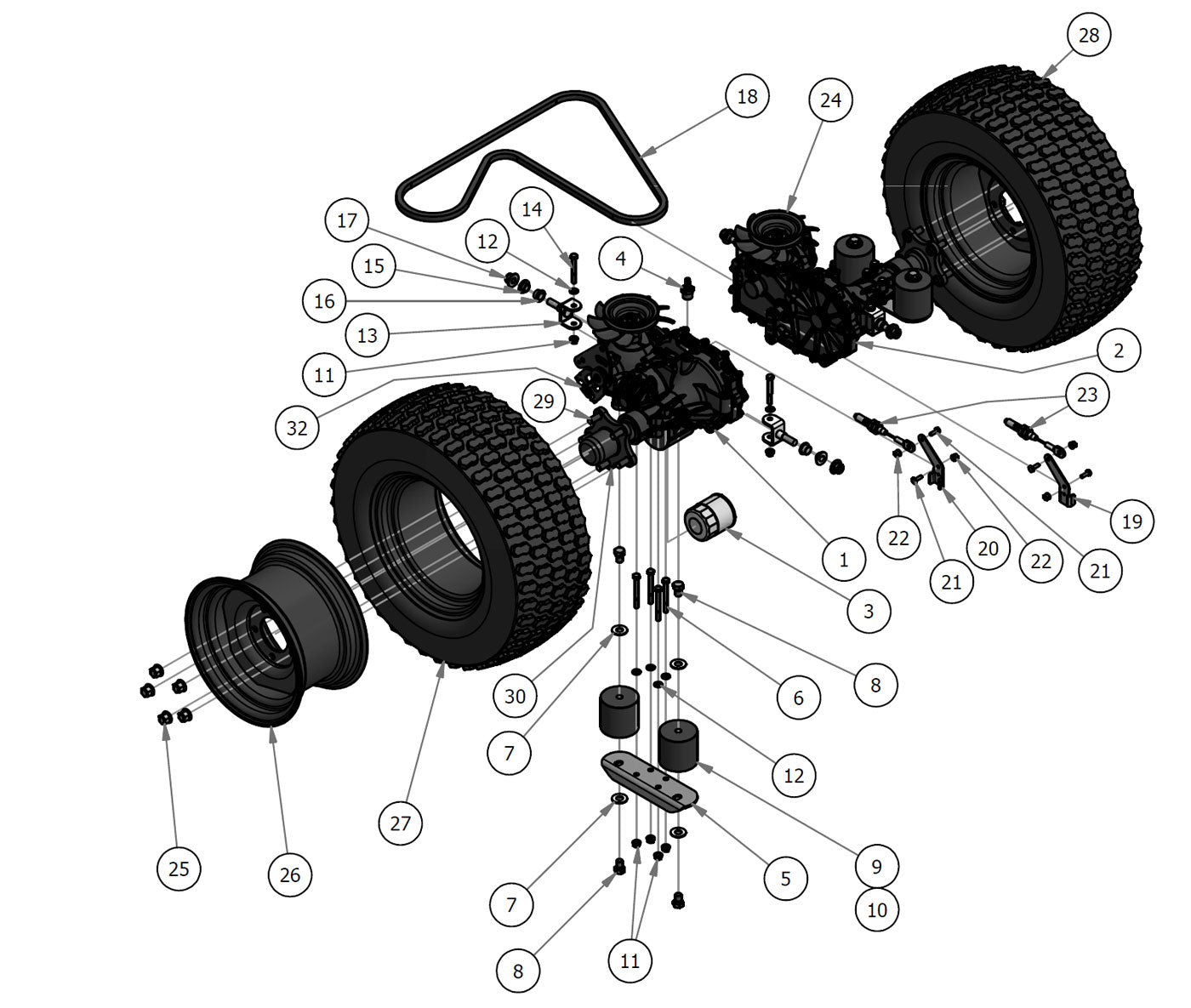

Transaxle Assembly
Parts Index
- 1 OBSOLETE US 050-0075-01 (Qty 1)
- 2 OBSOLETE USE 050-0080-01 (Qty 1)
- 3 ZT Hydraulic Filter (Qty 2)
- 4 ZT Fitting, 3/8 x 3/8 45 Degree (Qty 2)
- 5 EZT Rear Susp Transaxle Mount--Plated (Qty 2)
- 6 5/16-18 X 3 GR 5 Hex Bolt Zinc (Qty 8)
- 7 1/2 SAE Flat Washer GR 8 (Qty 8)
- 8 1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc (Qty 8)
- 9 Isolator (Green Dot) (Qty 4)
- 10 Isolator (Red Dot) (Qty 4)
- 11 5/16-18 Hex Flange Nuts Zinc w (Qty 12)
- 12 5/16 USS Flat Washer Zinc (Qty 12)
- 13 5/16 x 2 1/2 Bolt (Qty 4)
- 14 5/16 x 2 1/2 Bolt (Qty 4)
- 15 .515 ID Plastic Shoulder Washer (Qty 4)
- 16 Bronze Bushing - SF-2024-8 (Qty 4)
- 17 1/2-13 Nylon Insert Flange Nut (Qty 4)
- 18 Pump Belt-2018 Maverick 75.8"/2019 & Up Maverick (Qty 1)
- 19 Brake Arm Ext. Bracket Paired With 039-1320-00 (Qty 1)
- 20 Brake Arm Ext. Bracket Paired With 039-1321-00 (Qty 1)
- 21 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 4)
- 22 1/4-20 Nylon Insert Flange Nut (Qty 4)
- 23 Brake Cable Walk Behind/Revolt (Qty 2)
- 24 Fan/Pulley Kit for ZT / 2017 MZ (Qty 2)
- 25 Acorn Lug Nut (Qty 10)
- 26 12" Black Wheel-2016 Maverick (Qty 2)
- 27 23 x 10.50 - 12 Tire (Qty 2)
- 28 23 x 10.50 -12 Black Assembly - Maverick (Qty 2)
- 29 5 Bolt Hub Kit (Qty 2)
- 30 Transaxle Wheel Studs/ Drum Brake Studs (Qty 10)
- 31 Gold Transaxle Spring (Qty 2)
-
1#050-0075-00
OBSOLETE US 050-0075-01
Qty Used: 1Regular price $558.49 USDRegular priceUnit price per
-
2#050-0080-00
OBSOLETE USE 050-0080-01
Qty Used: 1Regular price $558.49 USDRegular priceUnit price per
-
3#063-1050-00
ZT Hydraulic Filter
Qty Used: 2Regular price $21.22 USDRegular priceUnit price per
-
4#024-1200-00
ZT Fitting, 3/8 x 3/8 45 Degree
Qty Used: 2Regular price $18.63 USDRegular priceUnit price per
-
5#039-1306-00
EZT Rear Susp Transaxle Mount--Plated
Qty Used: 2Regular price $14.58 USDRegular priceUnit price per
-
6#018-4701-00
5/16-18 X 3 GR 5 Hex Bolt Zinc
Qty Used: 8Regular price $0.69 USDRegular priceUnit price per
-
7#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 8Regular price $0.75 USDRegular priceUnit price per
-
8#018-1055-00
1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc
Qty Used: 8Regular price $2.69 USDRegular priceUnit price per
-
9#032-9000-00
Isolator (Green Dot)
Qty Used: 4Regular price $66.33 USDRegular priceUnit price per
-
10#032-9002-00
Isolator (Red Dot)
Qty Used: 4Regular price $66.33 USDRegular priceUnit price per
-
11#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 12Regular price $0.69 USDRegular priceUnit price per
-
12#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
1314#018-5344-00
5/16 x 2 1/2 Bolt
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
15#019-8027-00
.515 ID Plastic Shoulder Washer
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
16#032-5052-00
Bronze Bushing - SF-2024-8
Qty Used: 4Regular price $4.37 USDRegular priceUnit price per
-
17#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
18#041-7400-00
Pump Belt-2018 Maverick 75.8"/2019 & Up Maverick
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
19#039-1321-00
Brake Arm Extension Bracket
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
20#039-1320-00
Brake Arm Extension Bracket
Qty Used: 1Regular price $5.49 USDRegular priceUnit price per
-
21#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
22#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-

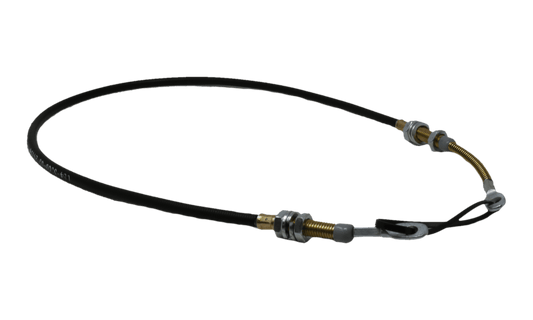

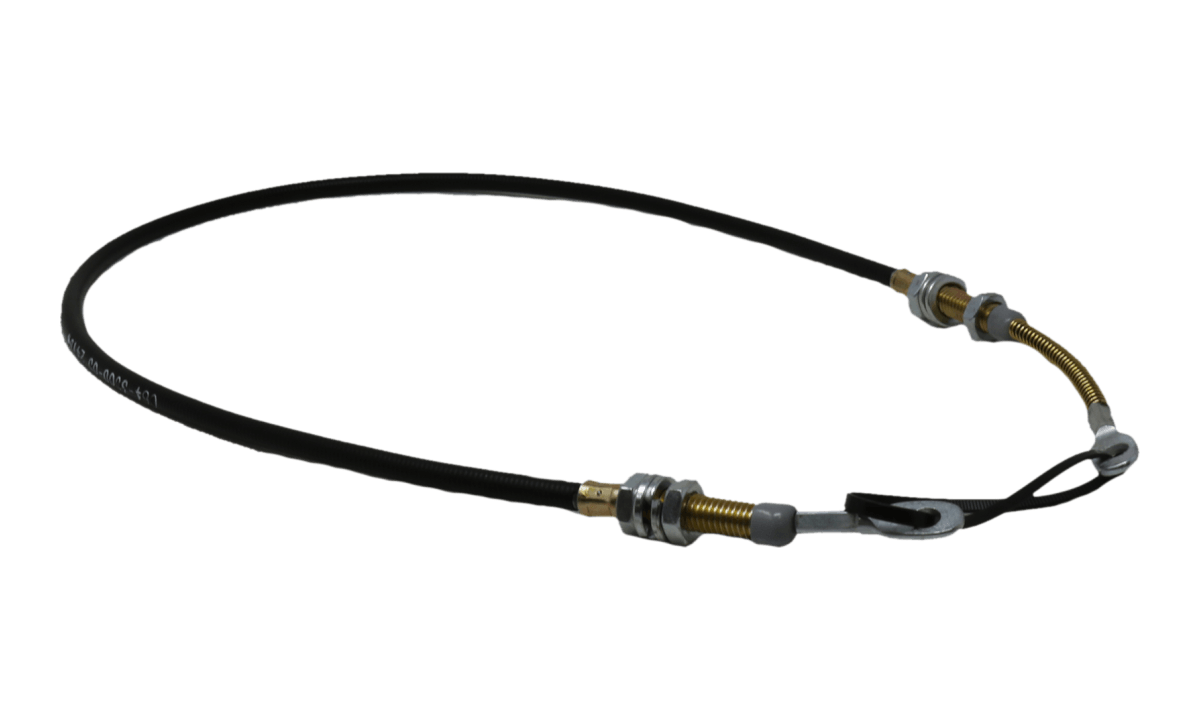

23#064-3000-00
Brake Cable Walk Behind/Revolt
Qty Used: 2Regular price $29.18 USDRegular priceUnit price per
-
24#050-2075-00
Fan/Pulley Kit for ZT / 2017 MZ
Qty Used: 2Regular price $66.33 USDRegular priceUnit price per
-
25#013-3000-00
Acorn Lug Nut
Qty Used: 10Regular price $2.99 USDRegular priceUnit price per
-
26#022-5466-00
12" Black Wheel-2016 Maverick
Qty Used: 2Regular price $106.99 USDRegular priceUnit price per
-
27#022-5351-00
23 x 10.50 - 12 Tire
Qty Used: 2Regular price $149.99 USDRegular priceUnit price per
-
28#022-5465-00
23 x 10.50 -12 Black Assembly - Maverick
Qty Used: 2Regular price $289.99 USDRegular priceUnit price per
-
29#050-2077-00
5 Bolt Hub Kit
Qty Used: 2Regular price $88.97 USDRegular priceUnit price per
-
30#050-2012-00
Transaxle Wheel Studs/ Drum Brake Studs
Qty Used: 10Regular price $5.10 USDRegular priceUnit price per
-
31#034-9080-00
Gold Transaxle Spring
Qty Used: 2Regular price $13.92 USDRegular priceUnit price per
